TOP AND CONSOLE PARTS

For Models: LER7646AQ2, LER7646AZ2

(Designer White) (Designer Almond)

12−94 Litho in U.S.A. (dhb) Part No. 4377312

ELECTRIC DRYER

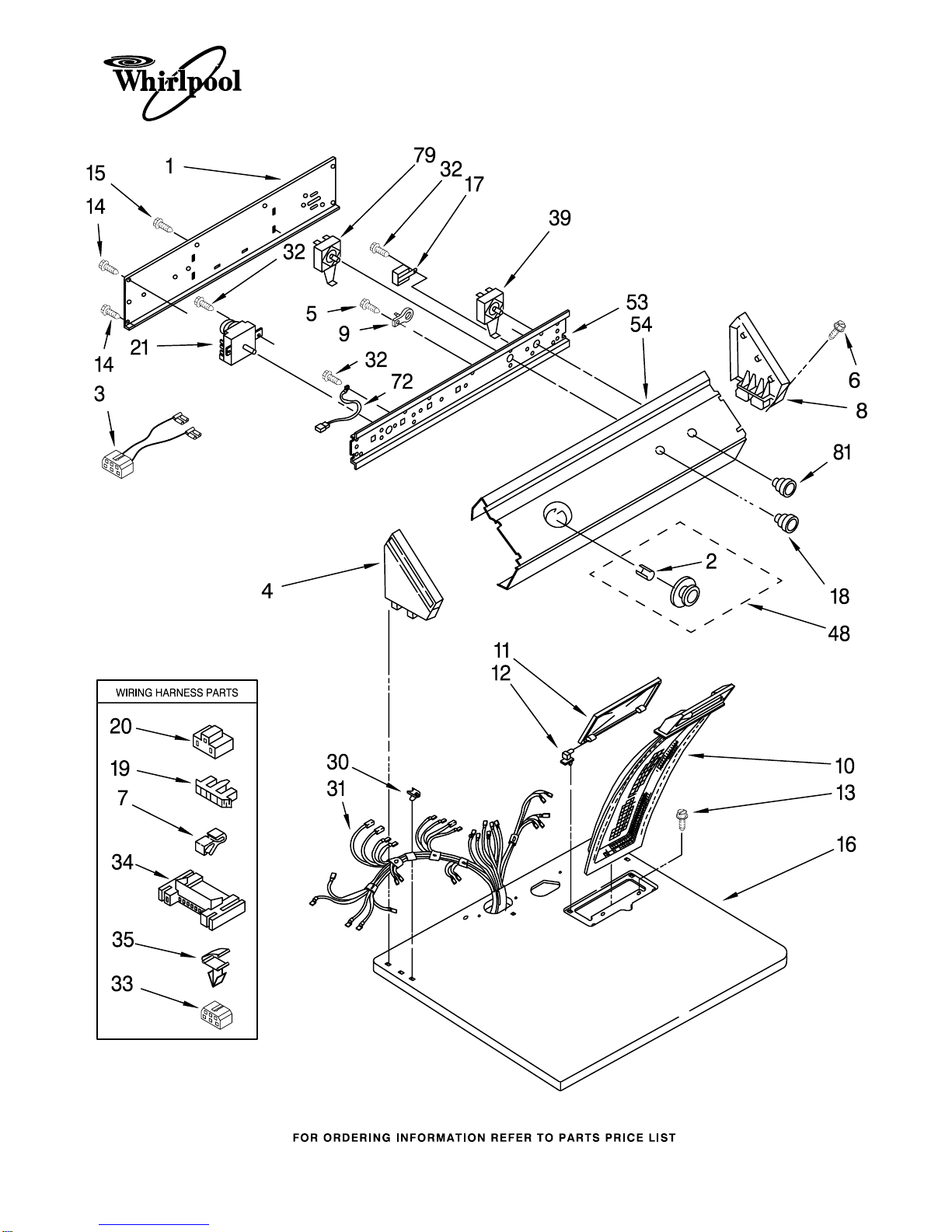

TOP AND CONSOLE PARTS

For Models: LER7646AQ2, LER7646AZ2

(Designer White) (Designer Almond)

4377312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 688805 Clip

3 3396029 Wire−Jumper

Assembly

4 Cap, End (L.H.)

3358531 White

3358532 Almond

5 3390647 Screw, 8−18 x 1/2

6 3353145 Screw, Console

7 689180 Clip, Retainer

8 Cap, End (R.H.)

3358516 White

3358517 Almond

9 3388706 Resistor, Timer

10 349639 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 693994 Screw (4)

15 693995 Screw (2)

16 Top

3396022 White

3396023 Almond

17 694419 Buzzer, Mini

18 Knob, Control

3358435 White

3358436 Almond

19 3397269 Connector, Timer

20 3401144 Connector

(PTS Relay)

21 3398137 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3401625 Harness, Wiring

(Includes 690261

Terminal Block)

32 3390646 Screw, 8−18 x 5/16

33 3347243 Connector,

6 Circuit

34 3395683 Connector,

Housing

35 3394427 Clip. Harness

39 3398094 Relay,

Push−To−Start

48 Timer Knob

Assembly

3396146 White

3396149 Almond

53 3396293 Bracket, Control

54 Panel, Control

3397212 White

3399021 Almond

72 690853 Wire, Ground

79 3396013 Switch, Cycle

Selection

81 Knob, Push

To Start

3396161 White

3396164 Almond

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3396303 Guide, Use & Care

LIT3397597 Instructions,

Installation

LIT3401723 Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818 Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

CABINET PARTS

For Models: LER7646AQ2, LER7646AZ2

(Designer White) (Designer Almond)

4377312

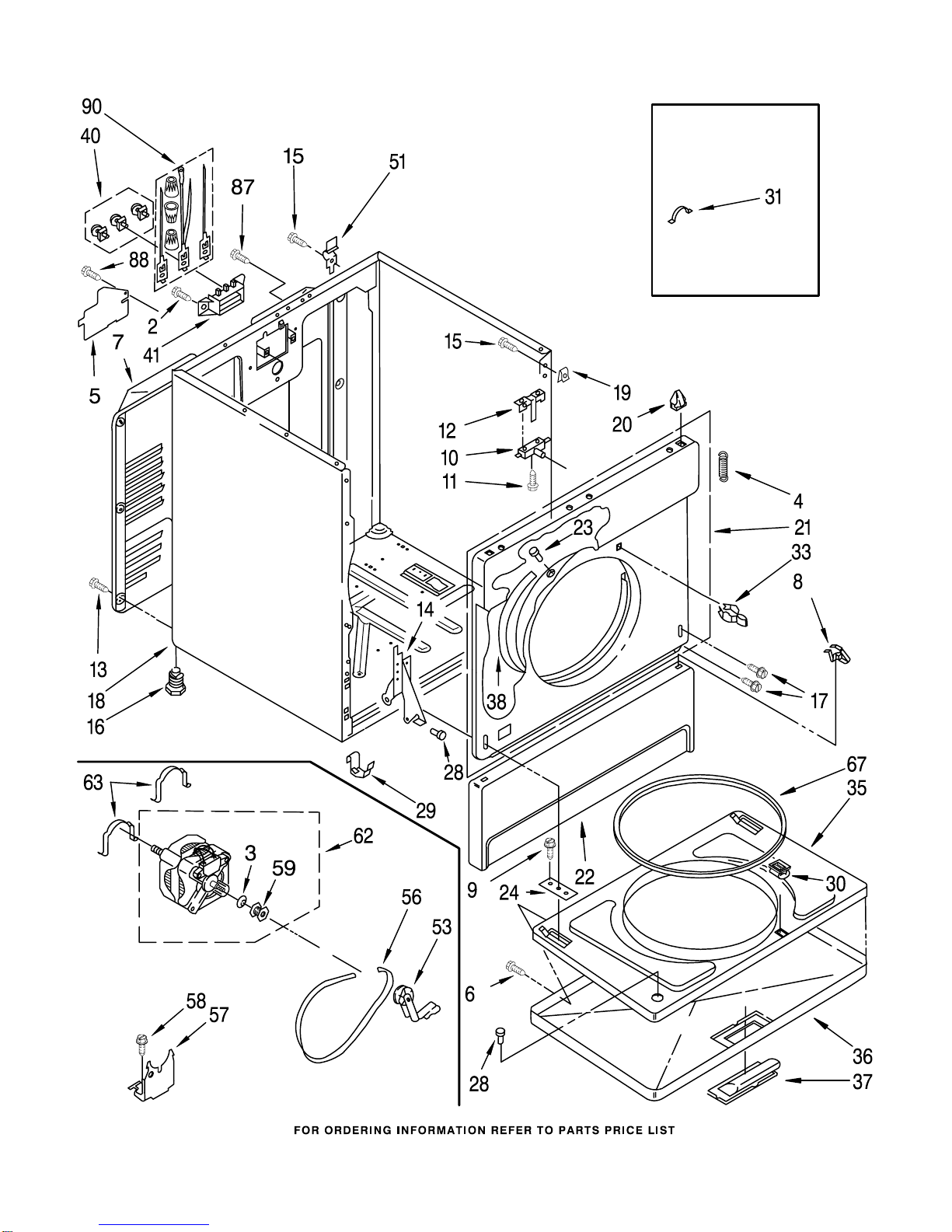

CABINET PARTS

For Models: LER7646AQ2, LER7646AZ2

(Designer White) (Designer Almond)

4377312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

3 3393657 Restrainer, Belt

4 237979 Spring, Door (2)

5 3396795 Cover, Terminal

Block

6 694091 Screw

7 3396805 Panel, Rear

8 3388229 Clip,

Toe Panel (2)

9 3357011 Screw,

10−16 x 1/2

10 347207 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

13 693994 Screw, Rear Panel

Mounting

14 687905 Hinge, R.H.

687906 Hinge, L.H.

15 343641 Screw, 10−16 x 1/2

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 342043 Screw,

10−32 x 1/2

18 Cabinet

3399585 White

3399586 Almond

(Includes Illus.

Nos. 5, 7, 16, 41

and 57)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel

338012 White

689533 Almond

22 Panel, Toe

692427 White

692428 Almond

23 685203 Clip, Felt Pad

24 337189 Clip, Hinge (2)

28 238614 Bumper

29 297092 Clip, Hinge (2)

30 690081 Catch, Door

31 98997 Clip, Harness

33 696144 Strike, Door

35 695954 Door, Rear

36 Door Front

348728 White

689330 Almond

37 Handle, Door

690270 White

690271 Almond

38 349464 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3389627 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390733 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

88 693995 Screw, 10−16 x 1/2

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

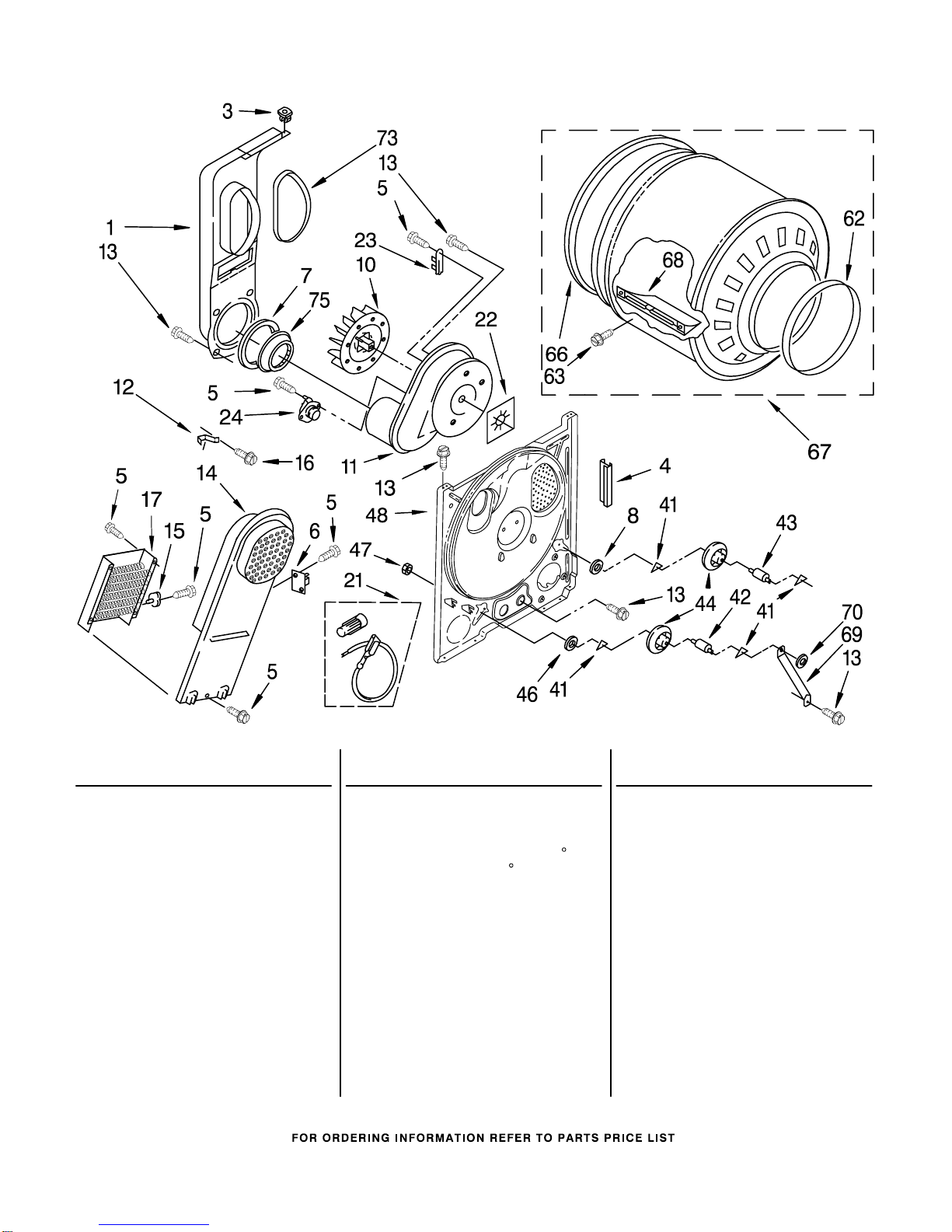

BULKHEAD PARTS

For Models: LER7646AQ2, LER7646AZ2

(Designer White) (Designer Almond)

4377312

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3396352 Lint Chute Assembly

(Includes Item

No.73)

3 98460 Nut, Push−In (2)

4 686889 Pad, Cabinet

5 90767 Screw, 8 x 3/8

6 3399848 Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

8 3388703 Washer, Support

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3390291 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

16 3400800 Screw, 8−18 x 3/4

17 3398064 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

22 3392123 Seal, Blower

23 3392519 Fuse, Thermal

24 3387139 Thermostat,

Internal Bias

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3399464 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 3397509 Seal, Rear Drum

67 3396778 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 3398160 Seal

75 696302 Shield, Exhaust
