Whirlpool LE9805XPW0 Manual de usuario

1 696198 Panel, Rear Console

2 386795 Panel, Control

3 355326 Screw, 13-16 x 5/8 (4)

4 63789 End Cap (L.H.)

5 63020 Rack, Literature

6 343641 Screw, 10-16 x 1/2

7 696004 Bracket, Control

8 359787 Trim, Frame

9 358563 Pivot, Lever

10 349639 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

689313 Golden Harvest

695022 Toast

695023 Platinum

12 Hinge, Cover

339229 R.H.

339230 L.H.

13 688983 Screw, 8-18 x 5/8

15 358564 Lever

16 Top

695507 White

695508 Almond

695509 Golden Harvest

695510 Toast

695511 Platinum

17 60996 Transformer

18 64211 Screw, 8-18 (2)

19 358473 Stop, Push-In (2)

20 693263 Module, Touch

21 61292 Display Assembly

22 63795 Cap End (R.H.)

23 691359 Relay, Start-To-Stop

24 690756 Screw, No. 8 Hi-Lo

25 691360 Relay, Power

26 61203 Microcomputer Assembly

27 693891 Relay, Motor

28 359201 Speaker & Housing

29 690853 Wire, Ground

30 358472 Nut, Push-In (2)

31 689559 Clip, Push-On (4)

32 358644 Screw

37 60279 Terminal

38 339583 Screw, 6-20 x 1/2

39 357144 Clip, Wire (Tech Sheet/Top)

40 359188 Housing, Speaker

41 60278 Connector

42 694295 Harness, Electric

43 688412 Clip, Harness (Rear Bulkhead Area)

44 693994 Screw, Hex Washer Head

45 689180 Clip, Harness Retainer (Door Switch Wires)

46 685963 Tie, Wire (Console Harness Area)

LIT696234 Instructions, Installation

LIT694124 Tech Sheet (Service Information)

LIT693849 Guide, Dryer

LIT696211 Use & Care Guide

LIT691455 Label, Operating Instruction

LIT696475 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

FOLLOWING PARTS NOT ILLUSTRATED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

285365 Toast

285366 Platinum

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS

LITERATURE PARTS

LIT677813 Automatic Washer (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

LIT677971 Ice Maker (In Refrigerator)

1 690989 Screw, 10-32 x 1/2

2 693995 Screw, Hex Washer Head

3 9416643 Screw, 10-16 x 1/2

4 238614 Bumper (2)

5 690893 Cover, Block Terminal

6 342043 Screw, 10-32 x 1/2

7 348365 Panel, Rear

8 690236 Wire, Ground

9 295998 Clip, Door Switch

10 691361 Switch, Door

11 98129 Screw, 6-20 x 1-3/8

12 691366 Idler & Pulley Assembly

13 98518 Screw, 10-12 x 1/2

14 692495 Spring, Door (2)

15 237823 Clip, Front Panel (2)

16 688222 Foot, Plastic Dryer (4)

18 Cabinet

690841 White

690842 Almond

690845 Golden Harvest

694876 Toast

694877 Platinum

19 98234 Clip, Ground (2)

20 688904 Lock, Front Top (2)

21 Panel, Front

695620 White

695621 Almond

695622 Golden Harvest

695623 Toast

695624 Platinum

22 693994 Screw, Hex Washer Head

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

25 692494 Seal, Door

26 337189 Clip, Hinge (2)

27 694091 Screw

28 692498 Hinge, R.H.

692501 Hinge, L.H.

29 98997 Clip

33 696144 Strike, Door

34 279393 Terminal Block Kit (For Terminal Block)

35 695737 Door, Rear

36 Door, Front

692318 White

692319 Almond

692322 Golden Harvest

695130 Toast

695131 Platinum

37 Handle, Door

690265 White

690266 Almond

690269 Golden Harvest

695016 Toast

695017 Platinum

38 692493 Seal & Bearing Assembly

40 690262 Light Shield

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

56 694416 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 694872 Pulley, Motor

61 337351 Switch, Motor Start (Use W/695075 Motor)

62 695075 Motor, Drive 60 Hz.

63 660658 Clamp, Motor (2)

343481 (Alt.)

685441 (Alt.)

66 279318 Terminal, Tinned & Brass (3) (Includes Illus. 34)

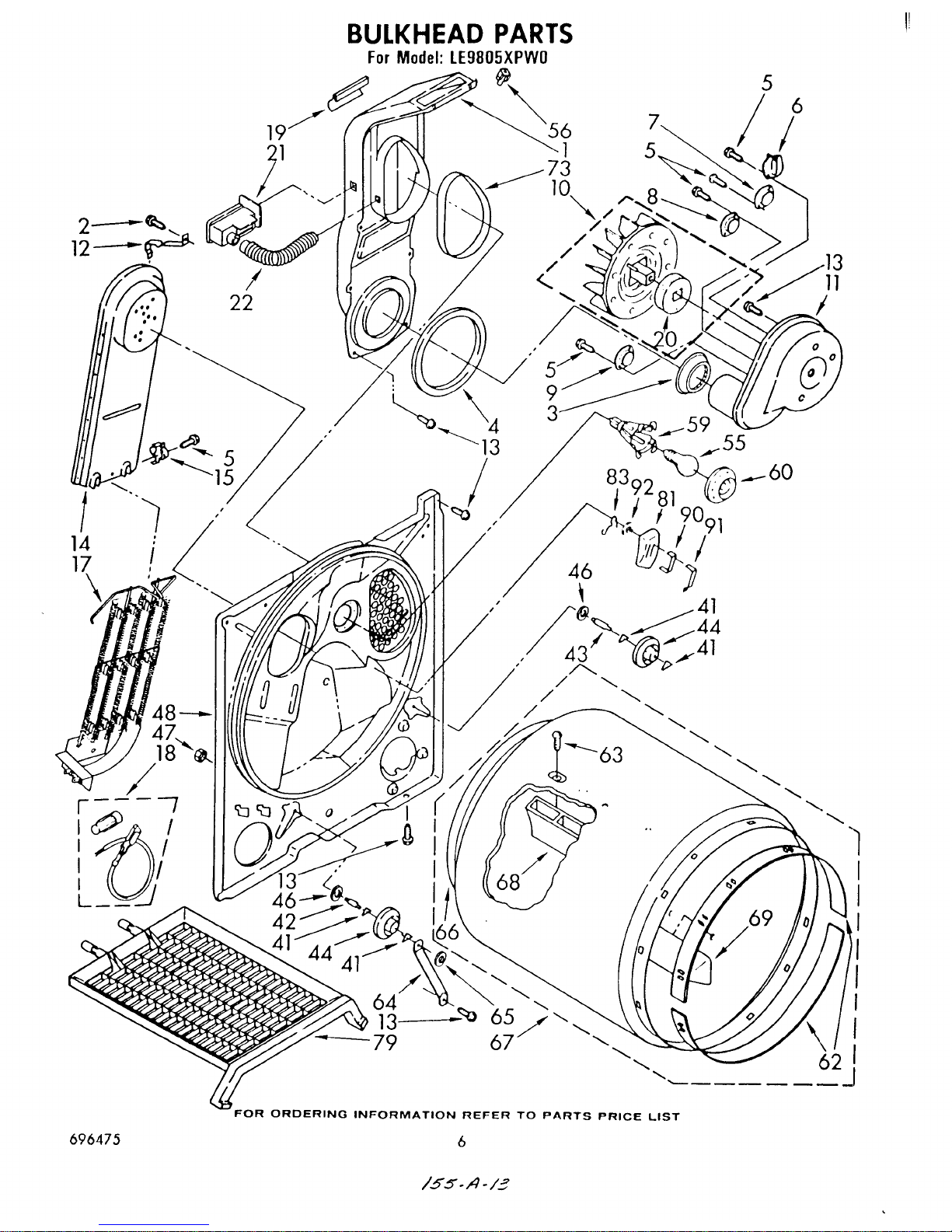

1 686214 Lint Chute Assembly

2 687128 Screw, 10-16 x 1/2

3 696302 Shield, Exhaust

4 347139 Seal

5 90767 Screw, 8A x 3/8

6 660877 Thermal Fuse

688841 (Alt.) 195~F (90.5~C)

690198 (Alt.) 183~F (84~C)

7 660073 Thermostat, 155~F (68~C)

341199 (Alt.)

299620 (Alt.)

8 690032 Thermostat, 150~F (66~C)

9 690031 Thermostat, 140~F (60~C)

10 695499 Wheel, Blower

11 348493 Housing, Blower

12 337272 Clip

13 343641 Screw, 10-16 x 1/2

14 685457 Box, Heater

15 341195 Thermostat, 250~F (121.1~C)

17 660982 Heater Element (For 240 Volt Installation)

693300 (Alt.)

693298 (Alt.)

693062 (Alt.)

696326 Element, Heater (For 208 Volt Installation)

18 279457 Terminal Wire Kit (For Heater Element Wiring Harness Repair)

19 686770 Support Protector

20 694630 Seal, Blower

21 690981 Alert, Lint

22 686577 Hose, Differential

41 690997 Tri Ring (4)

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 349241 Roller, Support

46 348197 Washer, Support

47 120377 Nut, 3/8-16

48 685821 Bulkhead

55 311255 Bulb

56 98460 Nut, Push-In(2)

59 691034 Socket Assembly

60 341165 Lens, Drum Light

62 279441 Ring, Bearing

63 690372 Screw, 11-16 x 7/8

64 348944 Bracket, Shaft

65 90296 Clip

66 347885 Seal, Rear

67 695587 Drum Assembly

68 692490 Baffle, Drum (Long) (2)

69 692491 Baffle, Drum (Short) (1)

73 339956 Seal

79 692990 Dry Rack Assembly

81 348861 Pad, Sensor

83 342267 Clip, Sensor (2)

90 348859 Electrode (Inside)

91 348860 Electrode (Outside)

92 298877 Washer, Insulating
