Use&CareGuide

Cycle control knob

I Temperature selector

Start button

Lint screen

Door

Dryer drum

Model and serial

number plate

LARGECAPACITYAUTOMATICDRYERS

LE5320XT LE5530XS LE5600XS LE5650XM LE5700XS

LE5705XP LE6055XS LG5321XT LG5531XS LG56OlXS

LG5651XM LG57OlXS LG5706XP LG6056XS

Contents

Important Safety

Instructions.

Additional safety instructions

and your responsibilities

Operating Instructions

Starting your dryer

Dryer cycles and settings

Cool down times

Using FLUFF AIR

Using TUMBLE PRESS

Using DAMP DRY

Lint signal .

Caring for Your Dryer

Cleaning the lint screen

Cleaning dryer interior

Lint removal

If You Need Service or

Assistance.

Whirlpool Warranty

Page

4-5

9-10

01988 Whirlpool Corporation

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used. To

remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue as

described above.

Do not use rubbing alcohol or flam-

mable or toxic solvents, such as

acetone, gasoline, carbon tetrachloride,

etc. These can damage the finish.

Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to re-

move dust from storing or shipping.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and serial numbers

from plate (on the frame behind the

door) and purchase date from sales

slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. kctkeguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

ImportantSafetyInstructions

Read these laundry instruc-

tions for important use and

safety information before

using your dryer.

NEVER dry items cleaned,

washed, soaked in or spotted with

wax, paint, gasoline or flammable

fluids in the dryer. The fumes can

create a FIRE HAZARD or

EXPLOSION. ALWAYS hand

launder and air dry fabrics contarn-

ing these materials.

NEVER allow children to operate,

play with or crawl inside the dryer.

Close supervision of children is

necessary when the dryer is used

near children.

DO NOT reach Into a dryer if the

drum is moving.

DO NOT tamper with the controls.

You are personally responsi-

ble for making sure that your

dryer is installed, repaired and

parts replaced by a qualified

person.

Use only fabric softeners specifi-

cally labeled as not being harmful

to the dryer.

FIRE HAZARD and DAMAGE to

materials can resull from:

-drying rubber, rubber-like and

heat sensitive materials with heat.

-allowing lint build-up inside the

dryer or exhaust system. Clean-

ing should be done periodically

by a qualified person.

Clean lint screen before or after

each load.

When discarding an

When discarding an old dryer,

ALWAYS remove ItALWAYS remove Ihe door to

prevt ’ ’

prevent accidental entrapment.

DO kul Install or s

DO NOT install or store dryer

where it will be expcwhere it will be exposed to the

weather.

DO NOT let dust, lint, paper, rags,

chemicals, etc. pile up around or

under the dryer.

Dryer must be electrically

grounded. See the Installation

Instructions.

- SAVE THESE INSTRUCTIONS -

Additional safetyinstructionsandyour responsibilities

NEVER operate the dryer if:

-it is not working right (i.e. noisy, too I

-it is damaged.

-parts are missing (i.e. door latch).

- all panels are not in place.

-the lint screen is loose, damaged

or missing.

ALWAYS shut off the gas valve

before leaving on vacation if you have

a gas dryer.

ALWAYS unplug the power supply

cord or turn off electrical power before

attempting to service the dryer. Shut

off GAS VALVE if you have a gas dryer.

You are personally responsi-

ble for making sure that your

dryer:

-is properly maintalned

100.

- is properly installed and leveled

on a floor that can support the

weight in a well ventilated room.’

- is located in an area where the

temperature is above 45°F (7.2%).

- is connected to the proper outlet

and electrical supply.’

- is properly connected to fuel and

exhaust systems.*

- is not installed against drapes or

curtains.’

- is used only for jobs normally

expected of home clothes dryers.

- is not used by anyone unable to

operate it properly.

*See the Installation Instructions for

complete information.

OperatingInstructions

Startingyour dryer

Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting

it.

TYPE OF LOAD SUGGESTED SUGGESTED

CYCLE TEMPERATURE

Cottons and linens

EXTRA HEAVY-Bedspreads, mattress

pads, quilts

HEAVYWEIGHT-Towels, jeans,

corduroys, work clothes

MEDIUMWEIGHT - Sheets, pillowcases,

cottons, underwear, diapers

LIGHTWEIGHT - Battstes, organdies,

lingerie

EX HEAVY

HEAVY

MEDIUM

LIGHT

PERM’T PRESS

HEAVY HIGH

Permanent press, synthetics

and blends

HEAVYWEIGHT - Work clothes, jackets,

raincoats

MEDIUMWEIGHT- Shorts, play clothes,

sheets, slacks

LIGHTWEIGHT - Lingerie, blouses,

dresses

PERMANENT

PRESS

40-50 MINS.

30-40 MINS.

20-30 MINS.

PERM’T PRESS

HEAVY HIGH

Knits

HEAVYWEIGHT - Cottons, rayons,

blends, T-shirts, slacks, shirts

LIGHTWEIGHT- Synthetic (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze,

lace, etc.

PERMANENT

PRESS

40-50 MINS.

30-40 MINS.

PERM’T PRESS

HEAVY HIGH

KNITS GENTLE

LOW

PERMANENT

PRESS

20-30 MINS.

15-20 MINS. KNITS GENTLE

LOW

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER - Pillows, bras,

stuffed toys

PLASTIC-Shower curtains, tablecloths

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,

SHEER NYLON

PERMANENT

PRESS

20-30 MINS.

40-50 MINS.

15-20 MINS.

FLUFF AIR

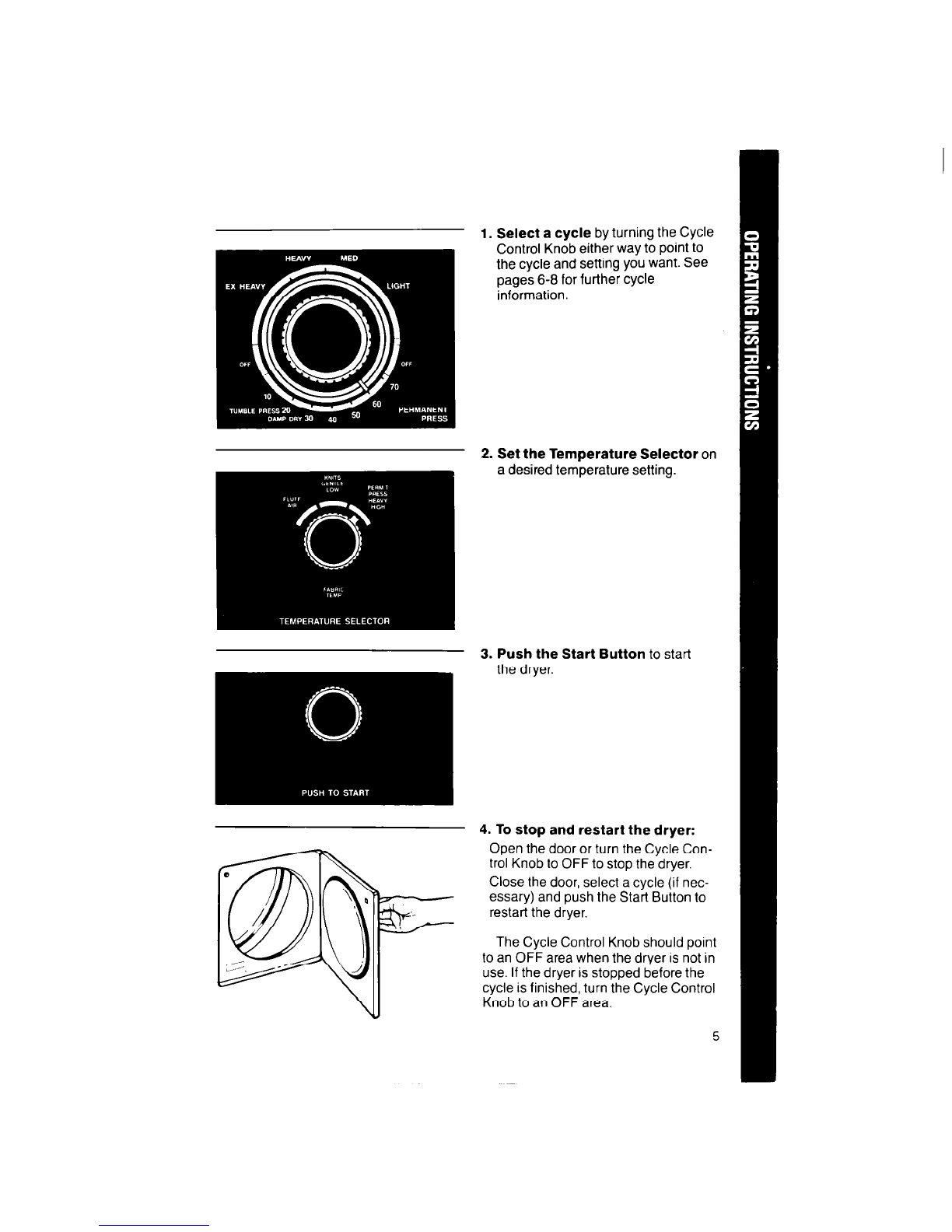

1. Select a cycle by turning the Cycle

Control Knob either way to point to

the cycle and setting you want. See

pages 6-8 for further cycle

information.

2. Set the Temperature Selector on

a desired temperature setting.

3. Push the Start Button to start

the dryer.

4. To stop and restart the dryer:

Open the door or turn the Cycle Con-

trol Knob to OFF to stop the dryer.

Close the door, select a cycle (if nec-

essary) and push the Start Button to

restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not in

use. If the dryer is stopped before the

cycle is finished, turn the Cycle Control

Knob to an OFF area.

Operating Instructions

Continued

More drying time Less drying time

Dryercyclesandsettings

The PERMANENT PRESS cycle helps

provide the special care that permanent

press and synthetic fabrics need. This

cycle dries with heat followed by a 10

minute cool-down period. See the chart

on page

for suggested time and

temperature settings.

The EX HEAVY HEAVY MEDIUM

and LIGHT cycles describe the loads

they are designed to dry. See chart on

page 4 for load description.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY cycle is designed to be

long enough to dry a load of heavy

fabrics (towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS HEAVY HIGH.

If the load is not as dry as you want,

set the Cycle Control Knob more to

the left the next time you dry that kind

of load.

If the load is dryer than you want

set the Cycle Control Knob more to the

right the next time you dry that kind

of load.

Cool-downtimes

In all cycles, the heal shuts off before

the dryer stops tumbling. This cool-

down time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

The PERMANENT PRESS cycle has

10 minutes of cool-down time at the end

of the cycle.

All other cycles have 5 minutes of

cool-down time.

To help reduce wrinkling, take the

load from the dryer as soon as tumbling

stops. This is very important for perma-

nent press, knits and synthetic fabrics.

NOTE: Overdrying can cause

shrinkage, static cling and damage to

some fabrics.

(Models LE5650XM, LG5651XM,

LE5705XP and LG5706XP)

(All other models)

Drying plastic or rubber items

with heat may damage the items

or be a FIRE HAZARD. I

UsingFLUFFAIR

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

or air dry bedding, plastic tablecloths,

foam rubber pillows, stuffed toys,

sneakers, etc.

1. Turn the Temperature Selector to

FLUFF AIR.

2. Turn the Cycle Control Knob to the

number of mrnutes you want in the

PERMANENT PRESS cycle.

3. Push the Start Button.

UsingTUMBLEPRESS”

The TUMBLE PRESS setting removes

wrinkles from clothing such as items

that may have been packed in a suit-

case, closet or items not removed from

the dryer.

1. Set the Temperature Selector on

PERM’T PRESS HEAVY HIGH.

2. Set the Cycle Control Knob on

TUMBLE PRESS.

3. Push the Start Button.

For models LE5650XM,

LG5651XM, LE5705XP and

LG5706XP the load will tumble in

heated air for 5 minutes. Then the dryer

will tumble the clothes for 10 more

minutes without heat.

For all other models the load will

tumble in heated air for 10 minutes.

Then the dryer will tumble the clothes

for 10 more minutes without heat.

Operating Instructions

Continued

(Models LE5750XM, LG5751XM,

LE5795XP and LG5796XP)

(All other models)

‘A

’ ,\?

UsingDAMPDRY

This setting should be used for damp

items that do not require an entire

drying cycle.

1. Set the Cycle Control Knob on

DAMP DRY in the PERMANENT

PRESS cycle.

2. Push the Start Button.

For models LE5650XM,

LG5651XM, LE5705XP and

LG5706XP the dryer tumbles the load

with heat for 15 minutes, then without

heat for 10 minutes.

For all other models the dryer tum-

bles the load with heat for 20 minutes,

then without heat for 10 minutes.

Lint signal

(models LE5705XP and

LG5706XP only)

Clean the lint screen before each

load. If you neglect to clean your lint

screen, the signal will sound. The

(whistle tone) signal lets you know the

air flow is being restricted. Restricted

air flow reduces drying efficiency.

Turn off the dryer and clean the lint

screen as shown on page 9.

CaringForYourDryer

Cleaningthe lint screen

The lint screen is located under a lid on top of the dryer. Clean it before each

load. A screen blocked by lint can increase drying time.

Do not run the dryer with the lint screen loose,

damaged, blocked or missing. Doing so can

cause overheating, damage fabrics and be a

FIRE HAZARD.

1. Open the lid and pull the lint screen

straight out.

2. Roll lint off the screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

Cleaningthe dryer interior

Electric shock hazard. Unplug the

power supply cord or turn off the

electrical power before cleaning

the interior. Failure to do so could

result in electrical shock or injury.

Garments which contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer Interior. If the interior is discolored,

clean with one of the following methods

to avoid staining later load items.

Caring For Your Dryer

Continued

Powdered laundry detergent

Make a paste with detergent and very

warm water. Apply paste to a soft cloth

and scrub area until all excess dye is

removed. Wipe thoroughly with a damp

cloth. Tumble a load of rags to dry.

-OR-

Liquid household cleaner

Apply to stained area. Rub with a cloth

until all excess dye is removed. Tumble

a load of rags to dry.

Thermostats Heat element

terminals

Electric Dryers

Igniter L Funnel ~-

Gas Dryers

Lint removal

Lint can gather rnsrde the dryer and

create a FIRE HAZARD. This lint

should be removed at least every

2 to 3 years, or more often,

depending on dryer usage.

Electrical shock hazard.

Unplug the power supply cord

or turn off the electrical power.

Do not

put

hands inside the

cabinet.

Make sure the dryer is cool.

Failure to do so could result in

electrical shock, injury or

damage.

Cleaning should be done only by a

qualified person.

1. Remove back panel (electric) or

lower access panel (gas).

2. Avoid damaging wires, thermostats,

funnel or igniter.

3. Remove lint from boxed-in area with

a soft brush or vacuum cleaner.

4. Replace panel; reconnect and

relevel the dryer.

Otros manuales para LE5320XT

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Whirlpool

Whirlpool

Whirlpool WED97HEXW1 Manual de usuario

Whirlpool

Whirlpool LE9100XT Manual de usuario

Whirlpool

Whirlpool 7MLGC9545JQ4 Manual de usuario

Whirlpool

Whirlpool GGC9858EZ0 Manual de usuario

Whirlpool

Whirlpool LEW0050PQ2 Guía de solución de problemas

Whirlpool

Whirlpool LER4624BW2 Manual de usuario

Whirlpool

Whirlpool LE6090XTW0 Manual de usuario

Whirlpool

Whirlpool DUET SPORT W10151580B Manual de usuario

Whirlpool

Whirlpool WED7990XU Manual de usuario

Whirlpool

Whirlpool W10054070A Manual de usuario

Whirlpool

Whirlpool 8578230 Manual de usuario

Whirlpool

Whirlpool Duet Sport W10151582A Manual de usuario

Whirlpool

Whirlpool Cabrio W10151492A Manual de usuario

Whirlpool

Whirlpool WED86HEBW0 Manual de usuario

Whirlpool

Whirlpool Duet Sport WGD8300SWH Manual de usuario

Whirlpool

Whirlpool WGD94HEX Manual de lista de piezas

Whirlpool

Whirlpool WGD4910XQ Manual de usuario

Whirlpool

Whirlpool WGD6600VU Manual de usuario

Whirlpool

Whirlpool AWZ8CDS/PRO Guía de instalación

Whirlpool

Whirlpool W11364660B Manual de usuario

Whirlpool

Whirlpool 3979171 Manual de usuario

Whirlpool

Whirlpool WPWADREW25 Manual de usuario

Whirlpool

Whirlpool duet GGW9200L Series Manual de usuario

Whirlpool

Whirlpool 3397618 Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
