Whirlpool GU3600XTSB2 Manual de usuario

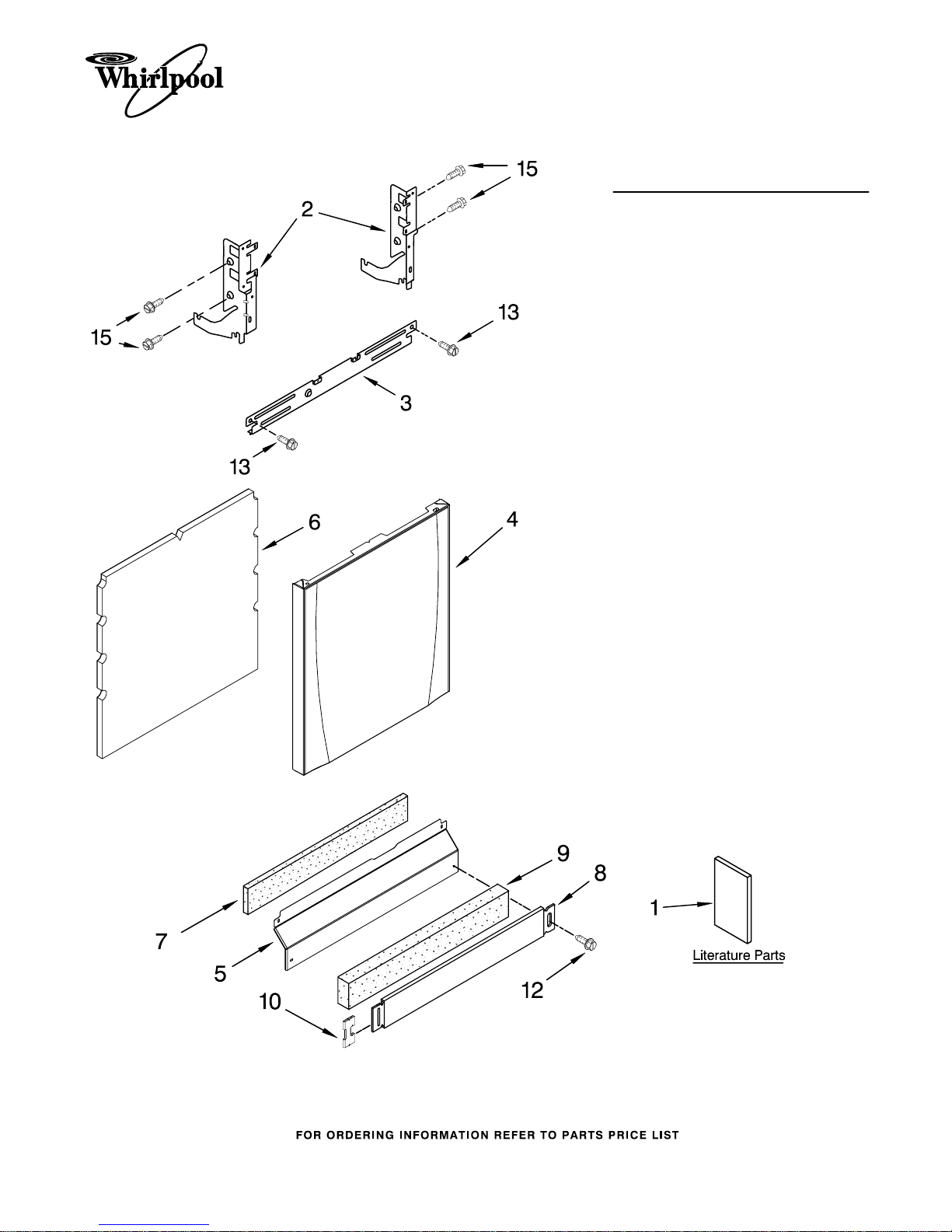

DOOR AND PANEL PARTS
1
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
09−07 Litho In U.S.A. (els) Part No. W10163000 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10021230
Instructions,
Installation
W10102695
Energy Guide
8575899 Guide, Use & Care
W10082651
Tech Sheet
English/French
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener,
Door
4 Panel Front
8537066 Black
8537067 White
8537069 Stainless
5 Access Panel
8558256 Black
8558257 White
6 8542577 Insulation, Door
7
W10073540
Insulation, Access
Panel
8 Toe Panel
8558252 Black
8558253 White
9
W10073550
Insulation, Toe
Panel
10 8269016 Clip, Grounding
12 Screw
302868 Black
3400836 White
13 304392 Screw
15 3400071 Screw

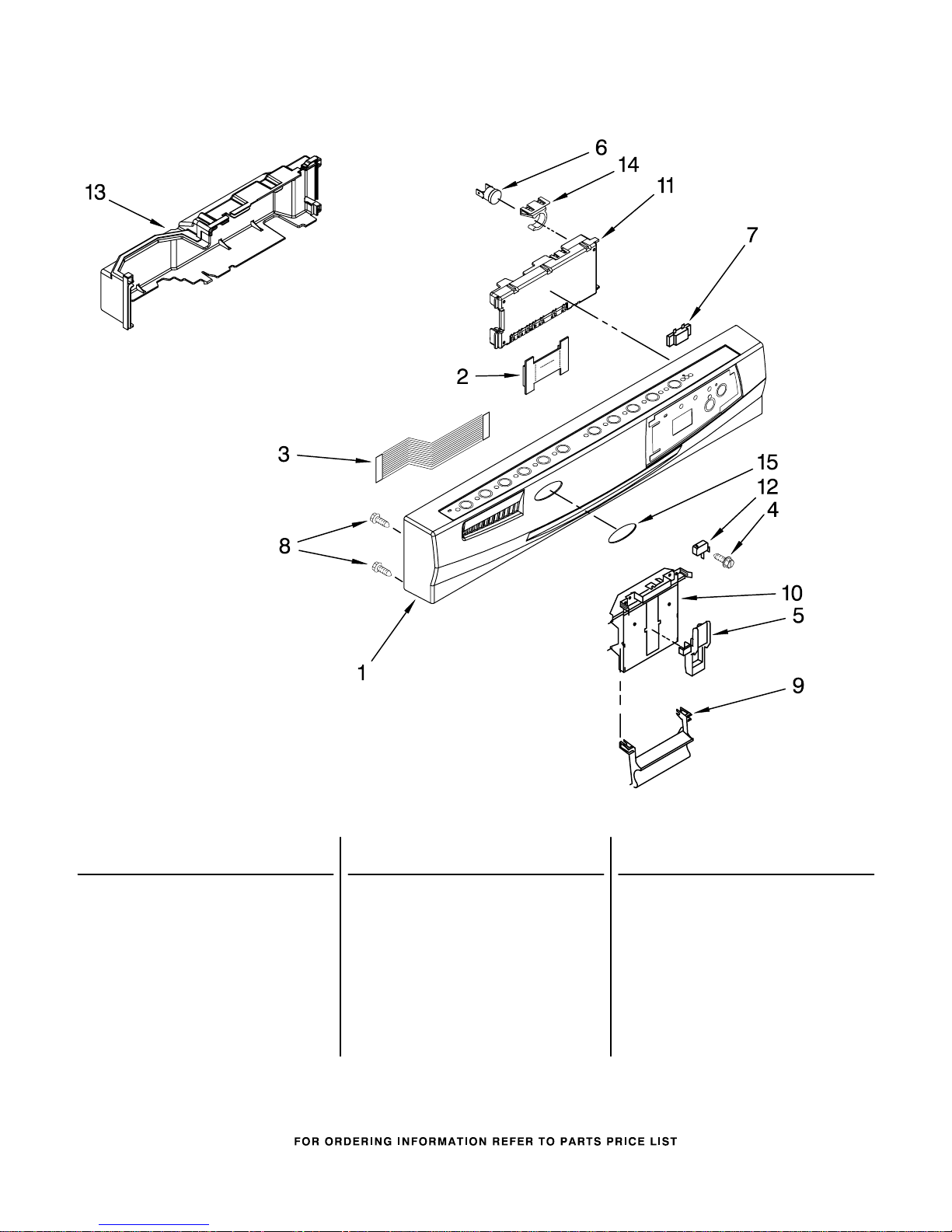

CONTROL PANEL PARTS
2
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
W10102481
Black
W10102482
White
W10102483
Silver
2 8535571 Board,
Interconnect
3 8535412 Cable, Ribbon
4 3400412 Screw
5 8524471 Actuator, Latch
6 661663 Fuse, Thermal
Electronic
7 8269206 Display, Dual
Digit
8 3369051 Screw (6)
9 Handle, Latch
8575331 Black
8575332 White
8575334 Grey
10 8524476 Bolt, Latch
11
W10084141
Control,
Electronic
12 8269209 Switch, Door
13
W10082957
Cover, Control
Shield
14 8546546 Clip, BI−Metal
15 9757613 Nameplate

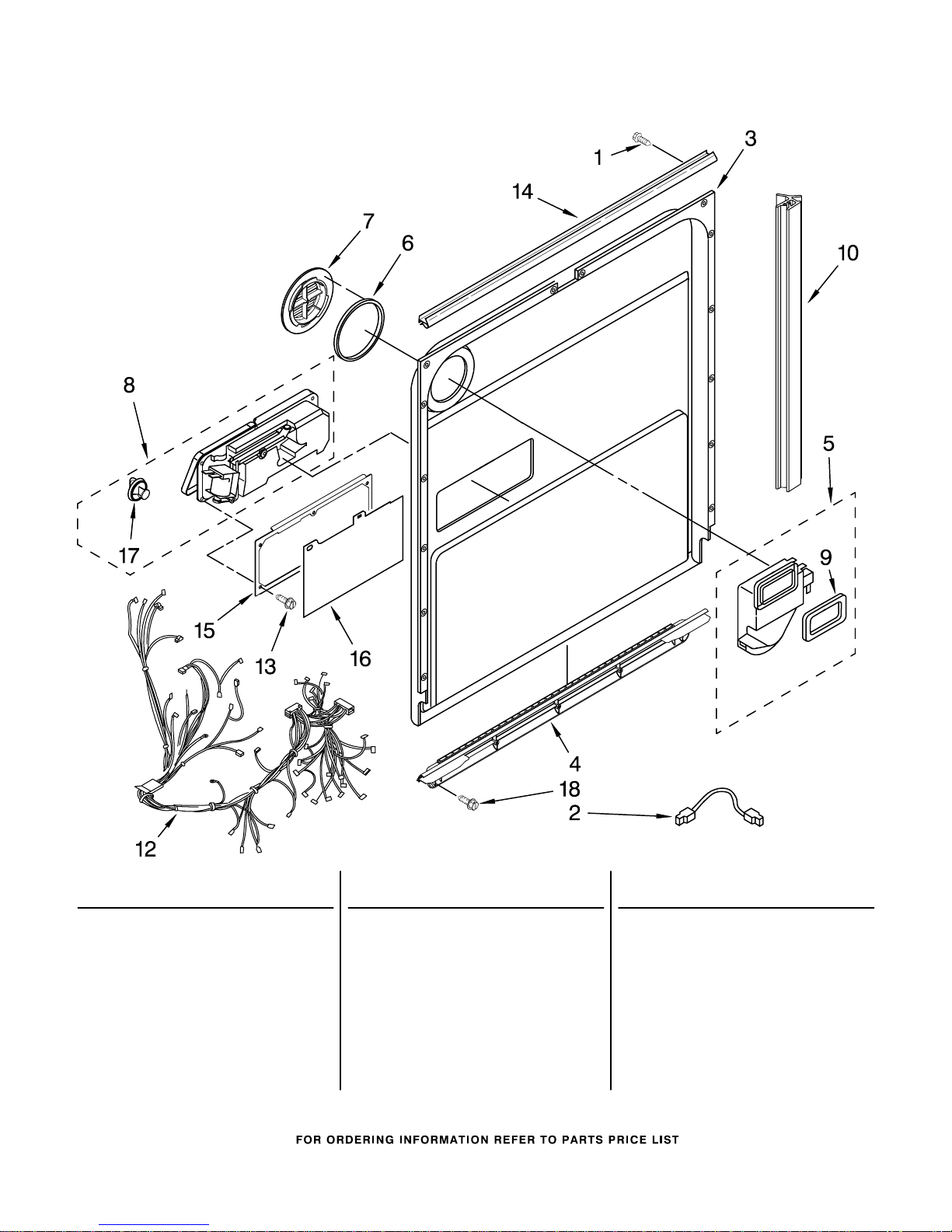

DOOR AND LATCH PARTS
3
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8545608 Harness, Vent
Motor
3
W10084289
Inner Door
Mastic Assembly
(Also Order
Item 6)
4 8268937 Inlet, Air
5 8572583 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7 8545536 Deflector, Vent
(Also Order
Item 6)
8 8565815 Dispenser,
Assembly
9 8269258 Seal, Front
10 8574160 Seal, Side
12
W10071150
Wiring Harness
Main
13 8281154 Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield, Dispenser
17 8558307 Cap, Rinse Aid
18 8281217 Screw

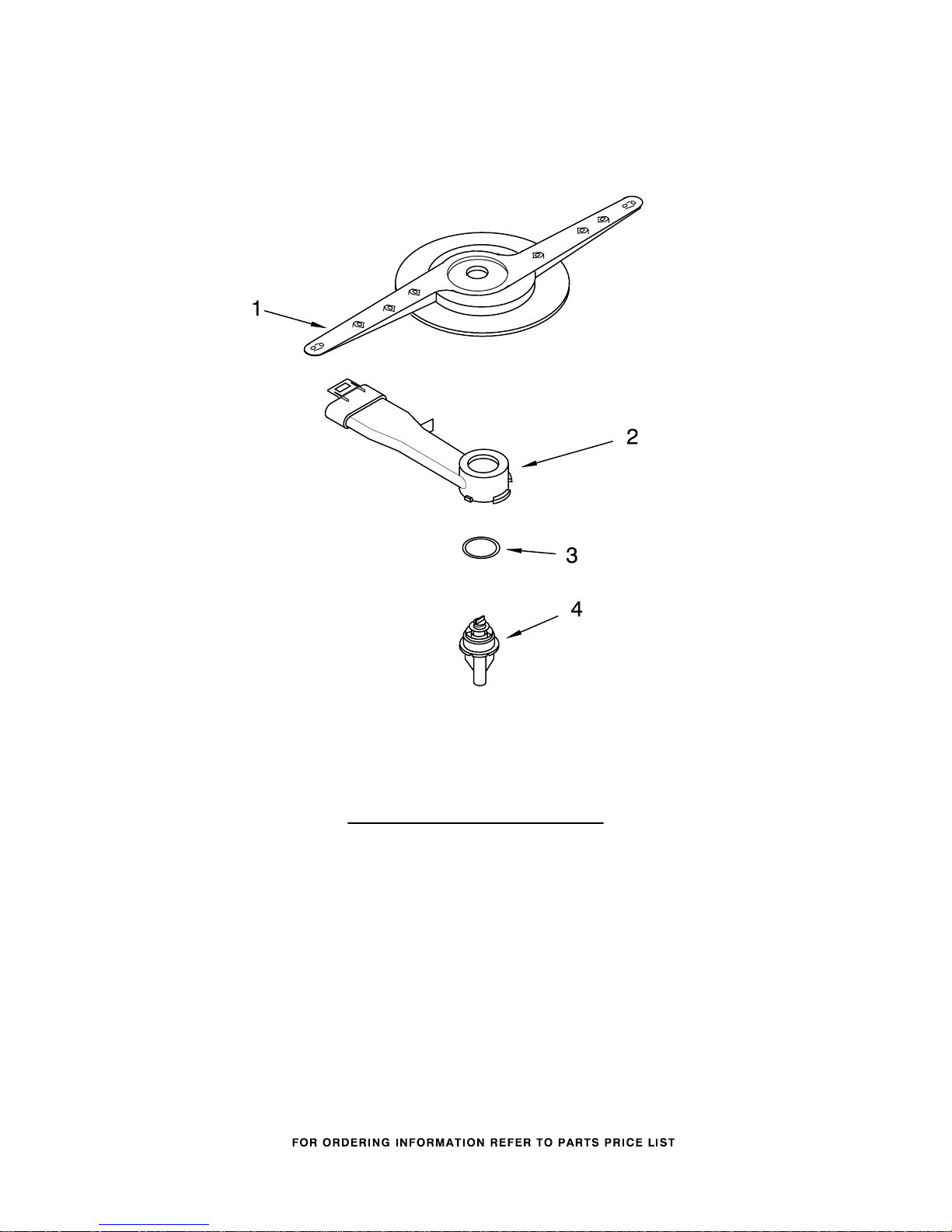

LOWER WASHARM PARTS
4
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
3 8268340 Seal, Sprayarm
4 8268342 Support, Lower
Sprayarm

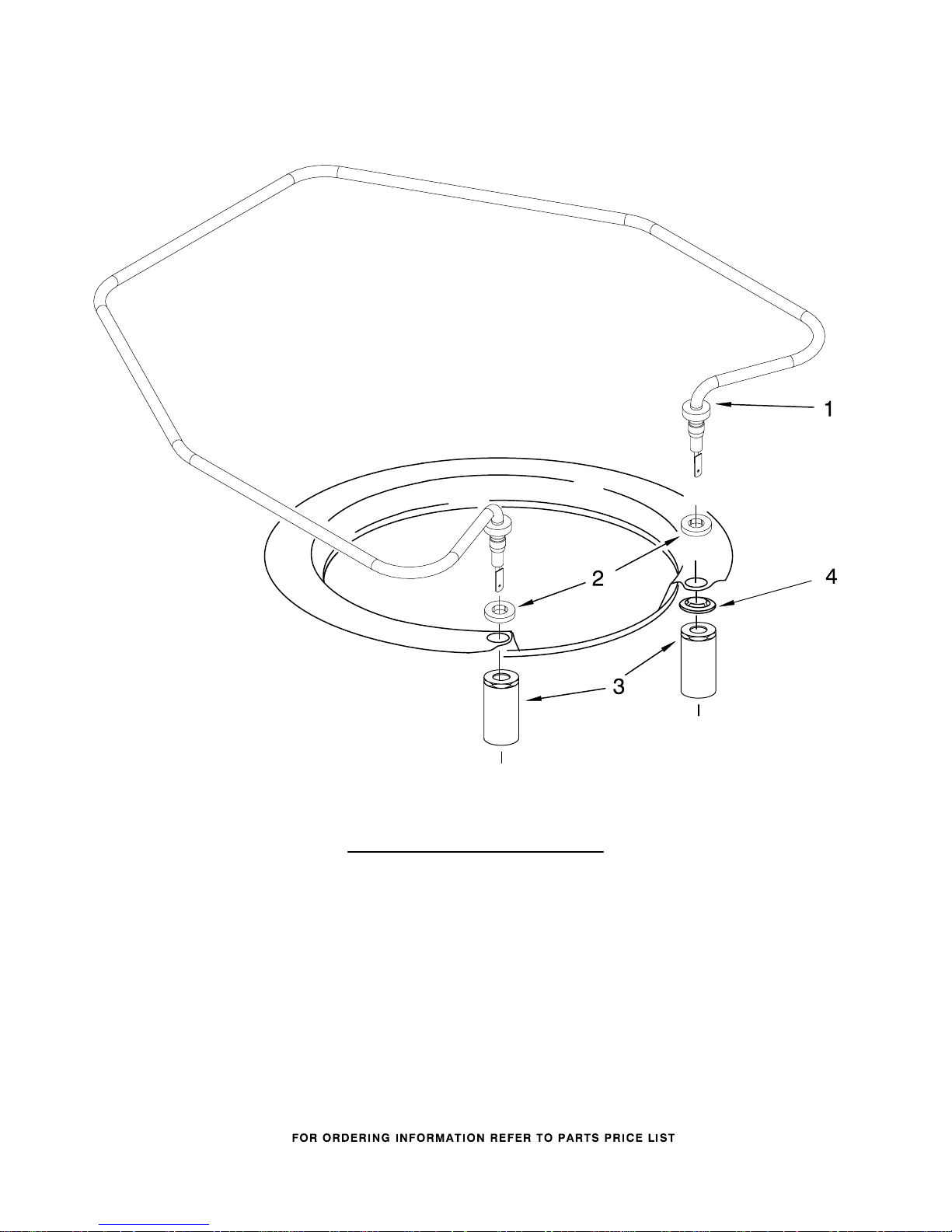

HEATER PARTS
5
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Speed Nut
NOTE:
If heater element is
removed, it must be replaced.
FILL, DRAIN AND OVERFILL PARTS
6
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION
1
W10070120
Wire, Jumper
2
W10041920
Hose, Inlet
3
W10041900
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 356138 Clamp, Hose
10 8531022 Drain Loop
with Check Valve
11 8268909 Switch, Overfill
Control
12 8545946 Standpipe,
Overfill
(Includes Item 13)
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
15 8268895 Float & Retainer
Assembly
16 8268892 Lever, Overflow
Switch
17 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)

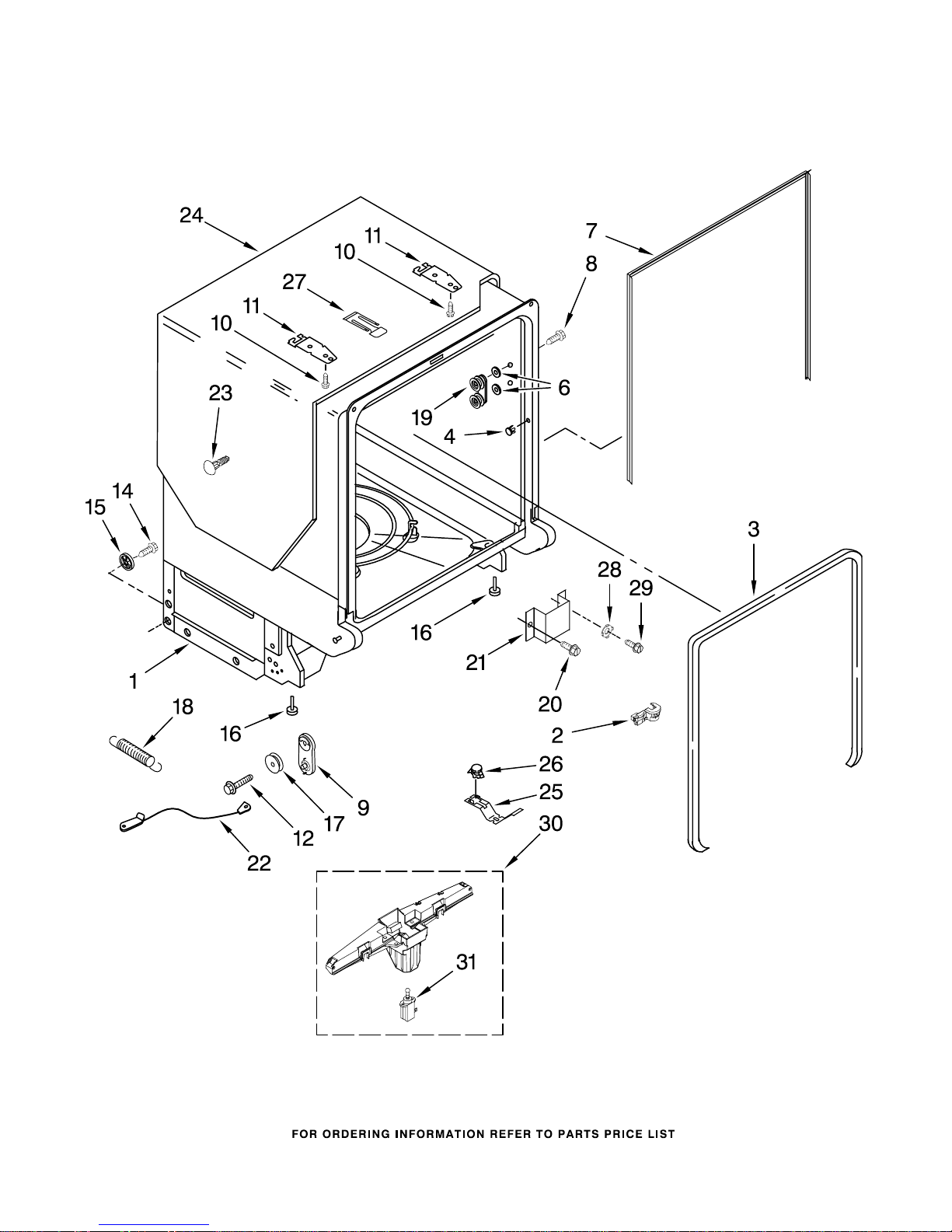

TUB AND FRAME PARTS
7
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
TUB AND FRAME PARTS
8
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION
1
W10084283
Tub Assembly
2 8573061 Strain Relief
3
W10112096
Door Seal
4 8270119 Plug Tub
6 9743002 Gasket, Bracket
Mounting
7 8269110 Seal, Cabinet
8 3400072 Screw
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
19 8270019 Wheel & Mount
Assembly
(Also Order
Item 6)
20 3400892 Screw
21 8268991 Cover, Terminal
Box
22 8535568 Link, Door
Balance
23 304666 Retainer, Push
24 8573239 Shield, Sound
Tub
25 9742648 Bracket,
Thermostat
26 661566 Thermostat
27 8580309 Strike, Latch
28 3378128 Washer, Pronged
29 3400014 Screw
30 8572661 Actuator, Turbo
Wash
31
W10082769
Motor, Wax
PUMP AND MOTOR PARTS
9
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
PUMP AND MOTOR PARTS
10
For Models: GU3600XTSB2, GU3600XTSQ2, GU3600XTSY2
(Black) (White) (Silver)
W10163000
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump with seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9 8534942 Motor Assembly
10 3400217 Screw
11 8268391 Screen, Separation
12 8572615 Sump & Motor
Assembly
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 26)
17 8269144 Hose, Drain
18 8534941 Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
(Also Order
Item 26)
21 8268403 Face Seal Assembly
(Also Order
Item 26)
22 356138 Clamp, Hose
23
W10082647
Optical Water
Indicator
24 8269507 Capacitor
25 8534946 Shield, Capacitor
26 8531018 Washer
