Whirlpool GU2455XTSB3 Manual de usuario
DOOR AND PANEL PARTS
1
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
4−10 Litho in U.S.A. (els) (eeb) Part No. W10153394 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8575348 Instructions,
Installation
W10102784
Energy Guide
8575899 Guide, Use & Care
W10082651
Tech Sheet
2 Arm, Hinge
8534858 Left
8534857 Right
3 8268983 Stiffener,
Door
4 Panel Front
W10073200
Black
W10073210
White
W10073220
Biscuit
W10137625
Stainless
5 Access Panel
(Includes Item 7)
8558260 Black
8558261 White
8558262 Biscuit
6 8268580 Insulation, Door
7
W10073540
Insulation,
Access Panel
8 Toe Panel
(Includes
Items 10 & 11)
8558252 Black
8558253 White
8558254 Biscuit
9 8269740 Clip, Grounding
10 8269016 Clip, Grounding
11
W10073550
Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
3400865 Biscuit
13 343641 Screw
14 489470 Screw
CONTROL PANEL PARTS
2
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Console Asm.
includes Active
Overlay & Insert
W10142856
Black
W10142857
White
W10142858
Biscuit
2 8546546 Clip, BI−Metal
3 3400412 Screw
4
W10056090
Cover Control
Shield Assembly
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 8269206 Display, Dual
Light
8 3369051 Screw (6)
9 Handle, Latch
8575331 Black
8575332 White
8575333 Biscuit
10 8524476 Bolt, Latch
11
W10084142
Control,
Electronic
12 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8575895 Inner Door
(Also Order
Item 4)
3 8542603 Vent Assembly
(Also Order
Item 4)
4 8269259 Gasket, Vent
5 8575892 Deflector, Vent
(Also Order
Item 4)
6 8565815 Dispenser,
Assembly
(Includes Item 13)
7 8269258 Seal, Front
8 8573175 Wiring Harness
Main
9 8281154 Screw
10 8269296 Seal,
Console/door
11 8535637 Bracket, Dispenser
12 8531865 Shield, Dispenser
13 8558307 Cap, Rinse Aid
4

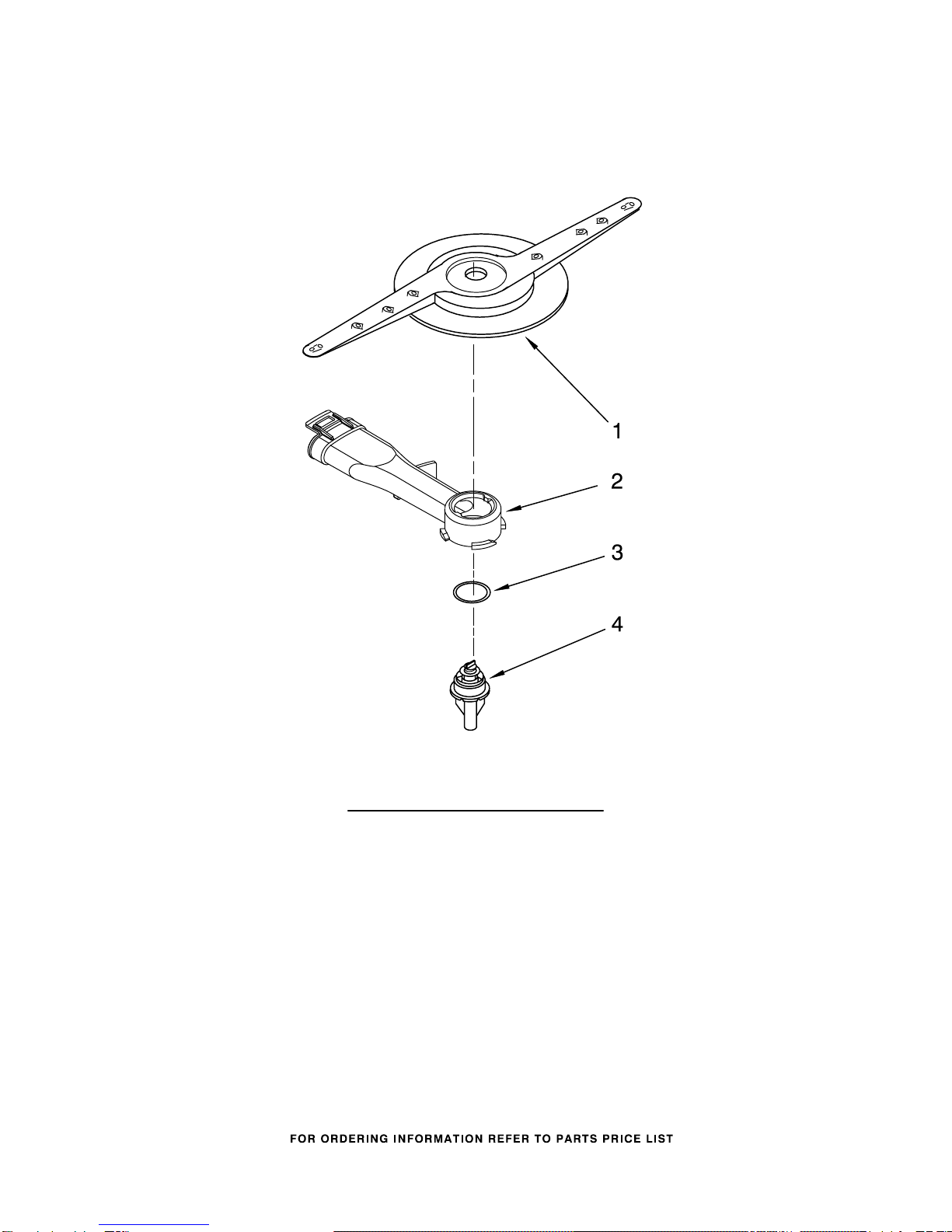

LOWER WASHARM PARTS
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8268333 Wash Arm Assembly
2 8268343 Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4 8268342 Hub, Lower
Sprayarm
(Also Order
Item 3)
HEATER PARTS
5
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8563007 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 8269262 Bracket,
Heater Support
NOTE:
If heater element is
removed, it must be replaced.
FILL AND OVERFILL PARTS
6
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
Assembly
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545881 Standpipe,
Overfill
11 304231 Screw
12 8268895 Float & Retainer
Assembly
13 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
14 8531022 Drain Loop
with Check Valve
15 356138 Clamp, Hose
TUB AND FRAME PARTS
7
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
TUB AND FRAME PARTS
8
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8575978 Tub Assembly
2 8573061 Strain Relief
3 8268888 Door Seal
4 8533836 Screw (8)
5 3400850 Screw
6 8269145 Bracket,
Undercounter
7 8269831 Wheel Leg
8 8524584 Leveler, Leg
9 8524473 Spring, Door
Balance
10 8575897 Wheel & Mount
Assembly
11 3400892 Screw
12 8268991 Cover, Terminal
Box
13 8268961 Pad, Friction
14 304231 Screw
15 8573241 Shield, Sound
Tub
16 3378595 Bracket,
Thermostat
17 661566 Thermostat
18 8580309 Strike, Latch
19 8268990 Bushing, Door
Spring
20 3378128 Washer
21 3400014 Screw
PUMP AND MOTOR PARTS
9
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
PUMP AND MOTOR PARTS
10
For Models: GU2455XTSB3, GU2455XTSQ3, GU2455XTST3, GU2455XTSS3
(Black) (White) (Biscuit) (Stainless)
W10153394
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6 8268383 Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8534942 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14 Sump & Motor
Assembly
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Item 23)
19 8269144 Hose, Drain
20 8534941 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
23 8268403 Face Seal Assembly
24 356138 Clamp, Hose
25
W10082647
Optical Water
Indicator
26 8269507 Capacitor
27 8534946 Shield,
Capacitor
28 8531018 Washer
W10237167
