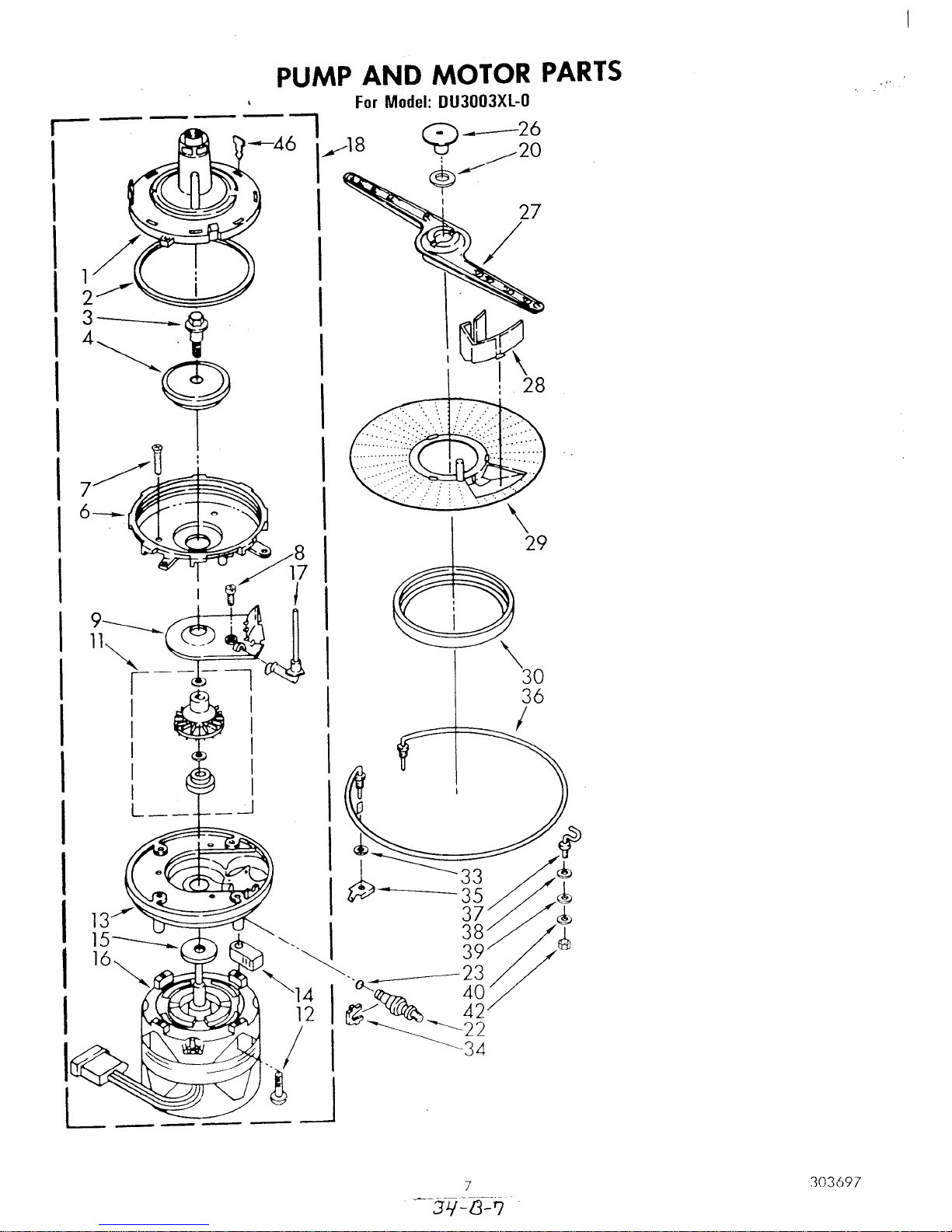

Whirlpool DU3003XL-0 Manual de usuario

1 300754 Bracket, Console

2 303458 Panel, Escutcheon

3 301074 Motor, Timer

4 Relay, Start

300516 Alternate

301620 Alternate

301536 Alternate

5 303441 Insert, Console

6 303281 Timer

7 162402 Screw (4)

8 339494 Screw (2)

9 302868 Screw, 8-18 x 1/2 (2)

11 302100 Switch, Rocker

15 98209 Screw

20 303090 Screw, 8-18 x 5/8 (2)

28 300996 Dial, Indicator

30 301010 Knob

34 301502 Screw, 6-20 x 3/8 (3)

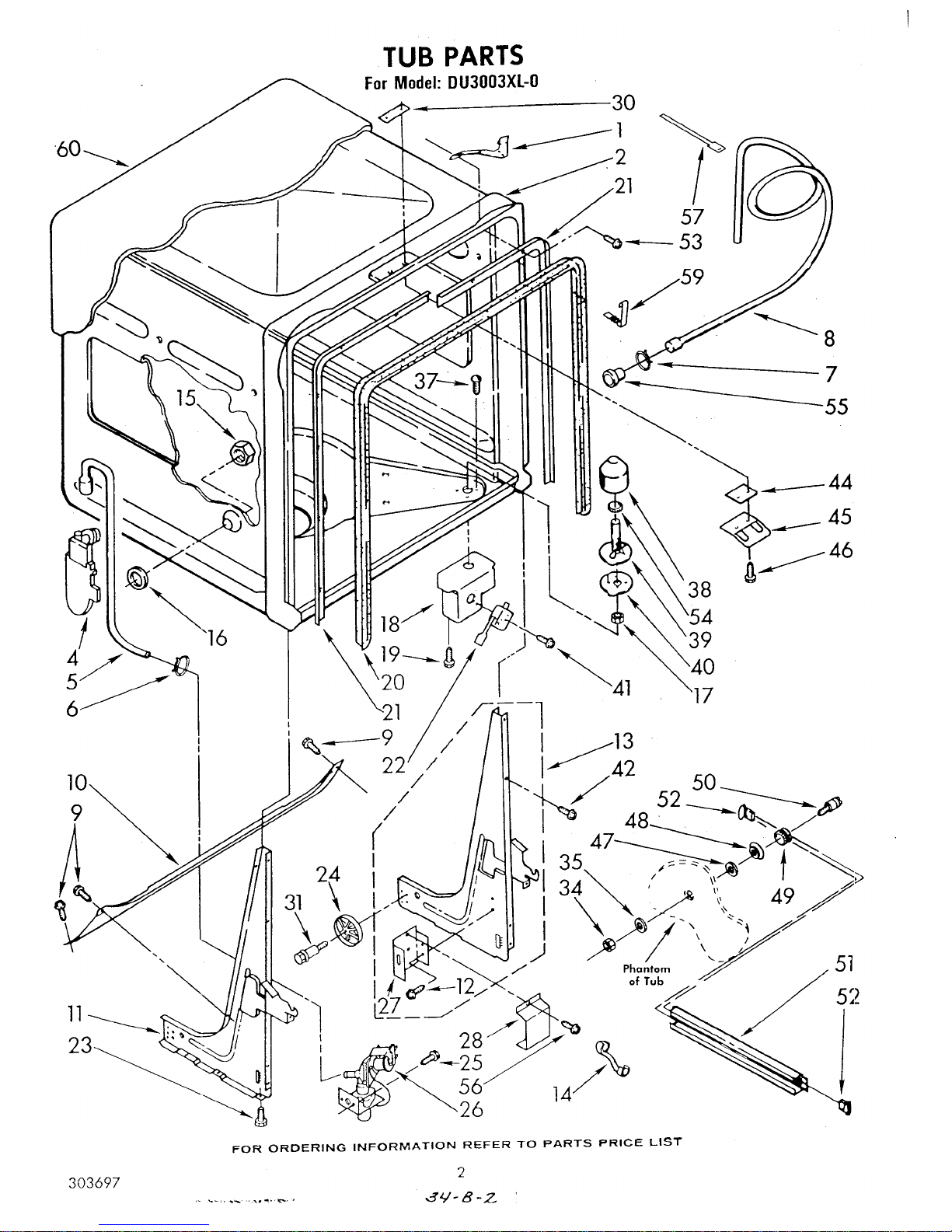

1 300796 Bracket, Mounting (2)

2 303110 Tub Assembly

4 300974 Inlet, Water

5 301054 Hose, Inlet

6 301958 Clamp

7 356138 Clamp

8 719954 Hose, Drain

9 90767 Screw, 8A x 3/8 Hex Head Tapping (4)

10 303111 Brace

11 302822 Leg & Hinge Assembly, L.H.

12 718178 Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)

13 302823 Leg & Hinge Assembly, R.H.

14 717563 Relief, Strain

15 713799 Nut, 7/8-16 Polypropylene (1)

16 713878 Gasket

17 717488 Nut, 1/8 Self-Threading (1)

18 719342 Bracket, Overflow

19 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (3)

20 Gasket

302090 Alternate

302091 Alternate

21 302093 Retainer, R.S.

302094 Retainer, L.S.

22 301671 Switch, Pressure

301672 Switch, Pressure (Alternate)

23 302849 Leveling Leg

24 302819 Wheel, Leg

25 90767 Screw, 8A x 3/8 Hex Head Tapping (2)

26 300453 Valve, Water Inlet

27 300067 Box, Terminal

28 300068 Cover, Terminal Box

30 303080 Nut, Twin Spring

31 302818 Screw, Shoulder

34 718829 Locknut, 10-32 (8)

35 717624 Washer (8)

37 717236 Screw, 8-18 x 1/2 Pan Head Tapping (1)

38 718035 Float

39 719967 Standpipe, Overflow

40 719966 Gasket, Overflow

41 98086 Screw, 4-40 x 3/4 Hex Head Slotted Thread Cutting (1)

42 90767 Screw, 8A x 3/8 Hex Head Tapping\ \Ground (2)

44 712302 Shim

45 300233 Strike

46 9416643 Screw, 10-12 x 1/2 (2)

47 718750 Washer (8)

48 718817 Washer, Cup (8)

49 300844 Wheel Assembly (8)

50 712499 Screw, Shoulder (8)

51 300846 Track (2)

52 300845 End Cap, Track (4)

53 719266 Screw, 8-18 x 5/8 Indented Hex-Head (10)

54 301662 Gasket (2)

55 301656 Insert, Cup-Hose

56 90767 Screw, 8A x 3/8 Hex Head Tapping (1)

57 596490 Clip, Strap

59 301663 Clip, Gasket

60 303457 Soundshield, Tub

OPTIONAL PARTS NOT INCLUDED

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72109 New Avocado

72110 Golden Harvest

72108 Coffee

72032 Black

72112 Toast

72113 Platinum

PAINT, PRESSURIZED SPRAY (13 ox.)

350930 White

350956 Almond

261888 New Avocado

261890 Golden Harvest

261886 Coffee

350939 Black

285365 Toast

285366 Platinum

206922 Primer (White)

206925 Leveler (Thinner) (2 Oz.)

PAINT, BULK (1 QT.)

*799344 White (Uncut)

*799340 Black (Uncut)

*261889 New Avocado (Uncut)

*261891 Golden Harvest (Uncut)

*261887 Coffee (Uncut)

*285367 Toast (Uncut)

*285368 Platinum (Uncut)

799351 Thinner (1 Gal.)

*Special Thinner 799351 Required

TUB LINER REPAIR

799640 Kit, Epoxy Patch (White)

FOLLOWING PARTS NOT ILLUSTRATED

LITERATURE PARTS

303549 Tag, Energy Fact

303311 Instructions, Installation

303810 Guide, Use & Care

303697 List, Parts

1 303266 Door, Inner (Includes Illus. 4)

2 303197 Support, Door (R.H.)

303196 Support, Door (L.H.)

3 717921 Gasket, Door

4 303202 Liner, Door

5 300115 Pin, Lid Hinge

6 301957 Sp\a\cer, Cor\ru\ga\te\d

8 300234 Pin, Pivot (2)

9 LIT302081 Label, User Guide

10 300246 Screen, Vent

12 300235 Latch Assembly

14 Switch, Interlock

300232 Alternate

303075 Alternate

18 301458 Screw, 8 x 1/2 Truss Head Tapping (2)

19 303222 Barrier, Console

20 301971 Panel Edging, Door

21 303223 Barrier, Door

22 302135 Panel, Access

23 303144 Plate, Toe

24 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (1)

25 300890 Screw, 8-18 x 3/8 Hex Washer Head Slotted Tapping (2)

26 300155 Lid, Detergent Dispenser Assembly

27 300106 Spring, Lid

28 90767 Screw, 8A x 3/8 Hex Washer Head Tapping (Ground) (1)

29 302868 Screw, 8-18 x 1/2 (4)

32 300119 Lever, Catch

33 300105 Seal, Lever

34 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (2)

35 300104 Retainer

38 300109 Actuator

39 718250 Screw, 8 x 1/2 Hi-Lo Blunt Point (1)

41 301582 Screw, 6-32x1(1)

46 90767 Screw, 8A x 3/8 Hex Head Tapping Ground (1)

48 |Panel, Front

49 303501 Trim, Door (2)

60 716425 Spring, Door

61 716401 Retainer, Spring

74 300128 Screw, 8-18 x 1/2 Oval Head Serration Lock (6)

77 300237 Washer

78 90767 8A x 3/8 Hex Head Tapping (2)

89 300230 Lever, Release

90 301857 Clip, Wire

91 688983 Screw, 8-18 x 1/2 (2)

92 302251 Screw, 8 x 1/2 Oval Head (4)

93 303121 Retainer, Clip

94 303362 Shield, Harness

95 90767 Screw, 8A x 3/8 Hex Head Tapping

|Refer To Dishwasher Replacement

Panel Parts List No. 675345.

1 300995 Wheel & Axle Assembly (4)

2 717509 Wheel & Shroud Assembly (4)

3 302986 Dishrack, Upper

4 302813 Spray Arm Assembly

5 302030 Tower

12 303357 Dishrack, Lower

14 303358 Bumper

16 |Panel, R.S.

17 302046 Basket, Silverware

|Refer To Dishwasher Replacement

Panel Parts List No. 675345.
