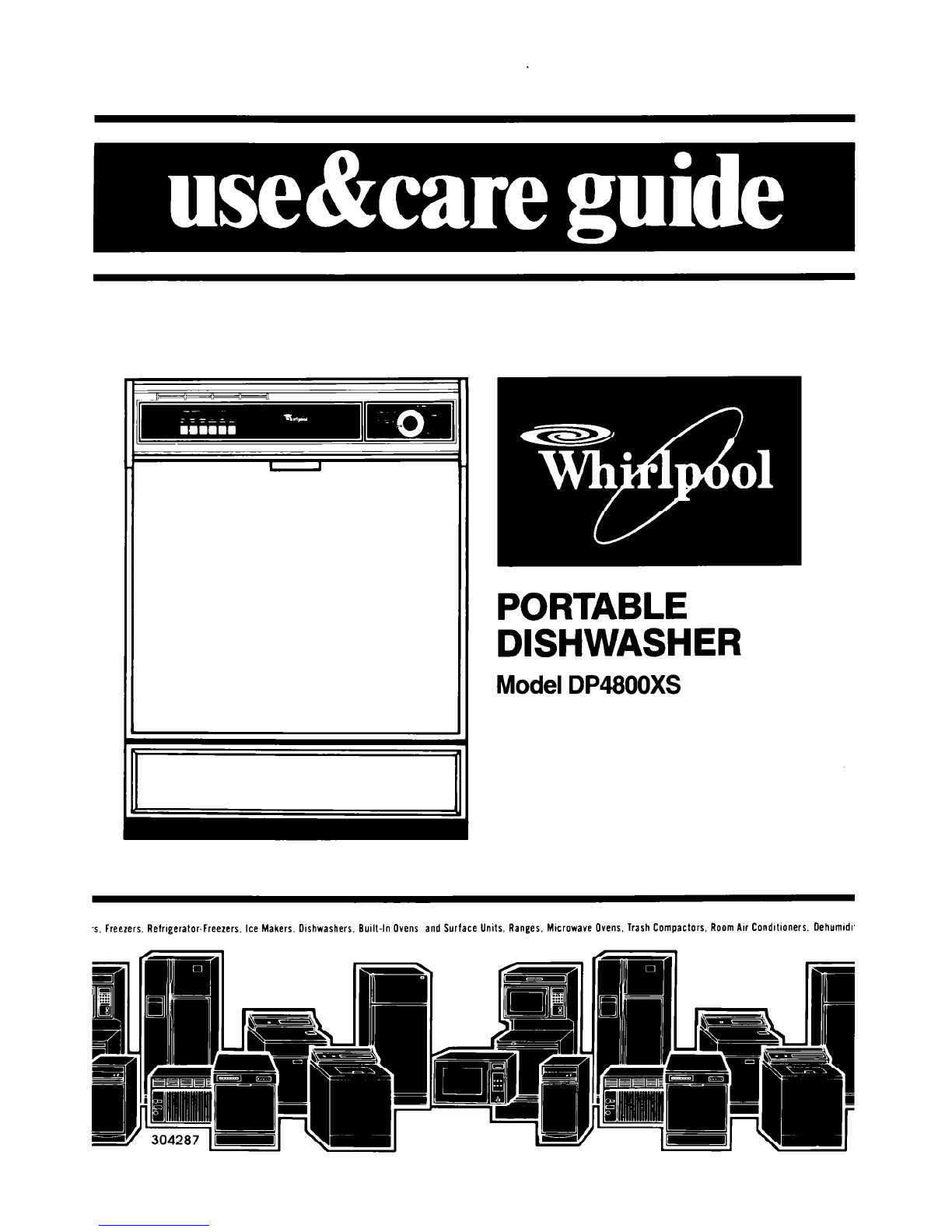

PORTABLE

DISHWASHER

Model DP4800XS

‘s. Freezers. Aefrlgerator-Freezers. Ice Makers, Dishwashers, Built-In Ovens and Surface Units. Ranges. Microwave Ovens, Trash Compactors, Room AN Condltloners. Dehumldl,

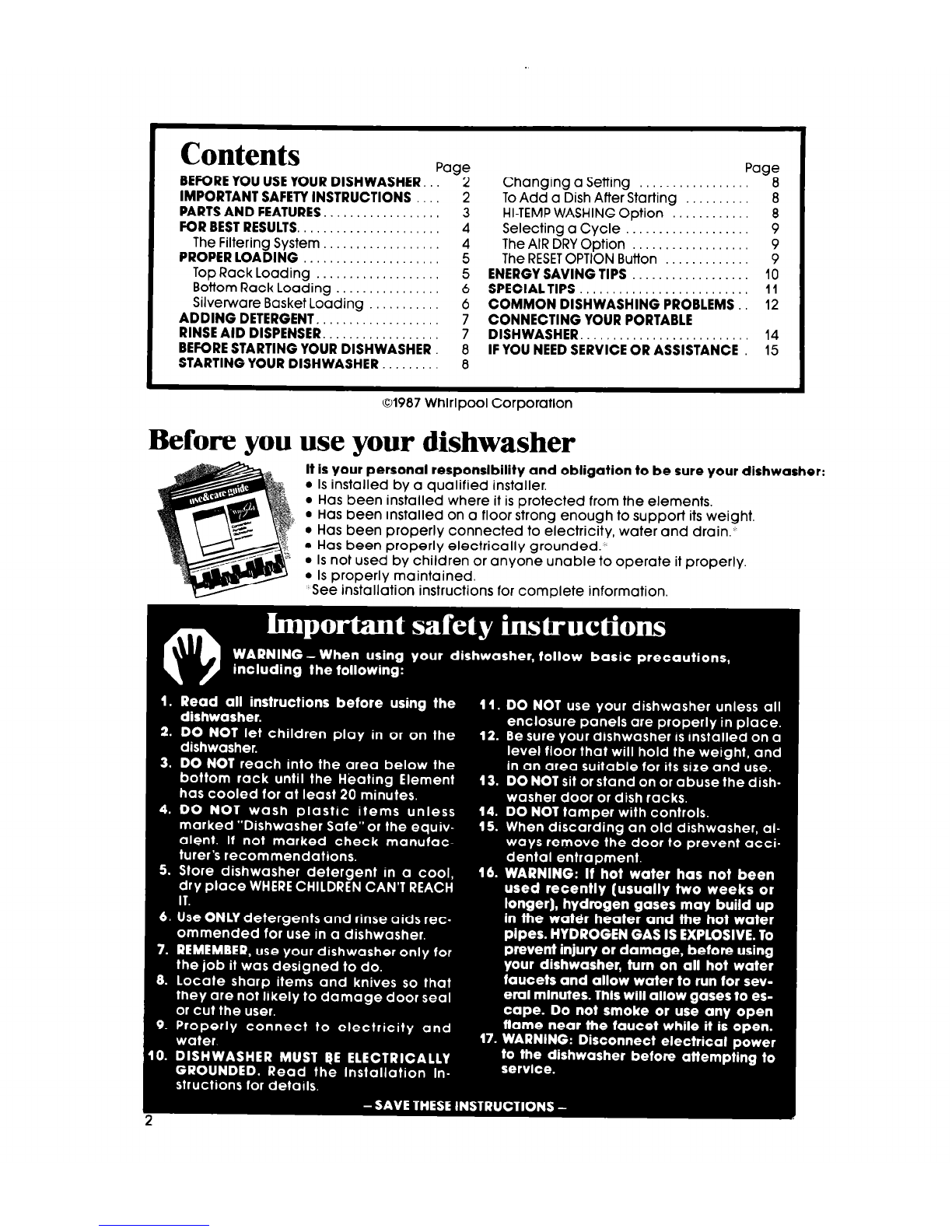

Contents

Page

BEFORE YOU USE YOUR DISHWASHER. .. 2

IMPORTANT SAFETY INSTRUCTIONS .... 2

PARTS AND FEATURES. ................. 3

FOR BEST RESULTS. ..................... 4

The Filtering System .... ........... 4

PROPER LOADING ..................... 5

Top Rack Loading ................... 5

Bottom Rack Loading ................ 6

Silverware Basket Loading ........... 6

ADDING DETERGENT. .................. 7

RINSE AID DISPENSER. ................. 7

BEFORE STARTING YOUR DISHWASHER. 8

STARTING YOUR DISHWASHER. ........ 8

Page

Changing a Setting 8

To Add a Dish After Starting 8

HI-TEMP WASHING Option 8

Selecting a Cycle 9

The AIR DRY Option 9

The RESETOPTION Button 9

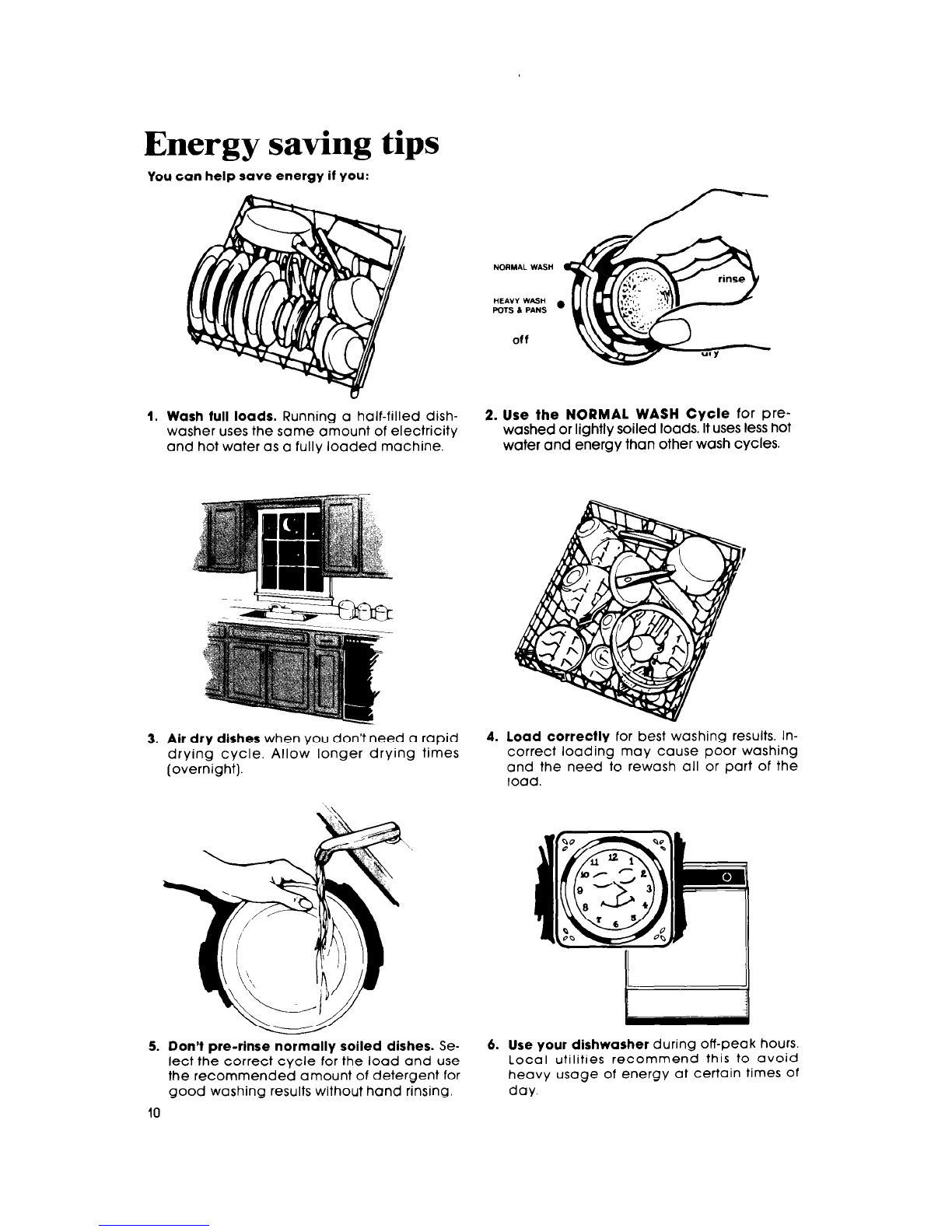

ENERGY SAVING TIPS 10

SPECIAL TIPS 11

COMMON DISHWASHING PROBLEMS 12

CONNECTING YOUR PORTABLE

DISHWASHER.. 14

IF YOU NEED SERVICE OR ASSISTANCE 15

01987 Whirlpool Corporation

Before you use your dishwasher

It is your personal respontlbility and obligation to be sure your dishwasher:

Is installed by a qualified installer.

Has been installed where it is protected from the elements.

Has been installed on a floor strong enough to support its weight.

Has been properly connected to electricity, water and drain-

Has been properly electrically grounded. ~

Is not used by children or anyone unable to operate it properly.

Is properly maintained.

See installation instructions for complete information.

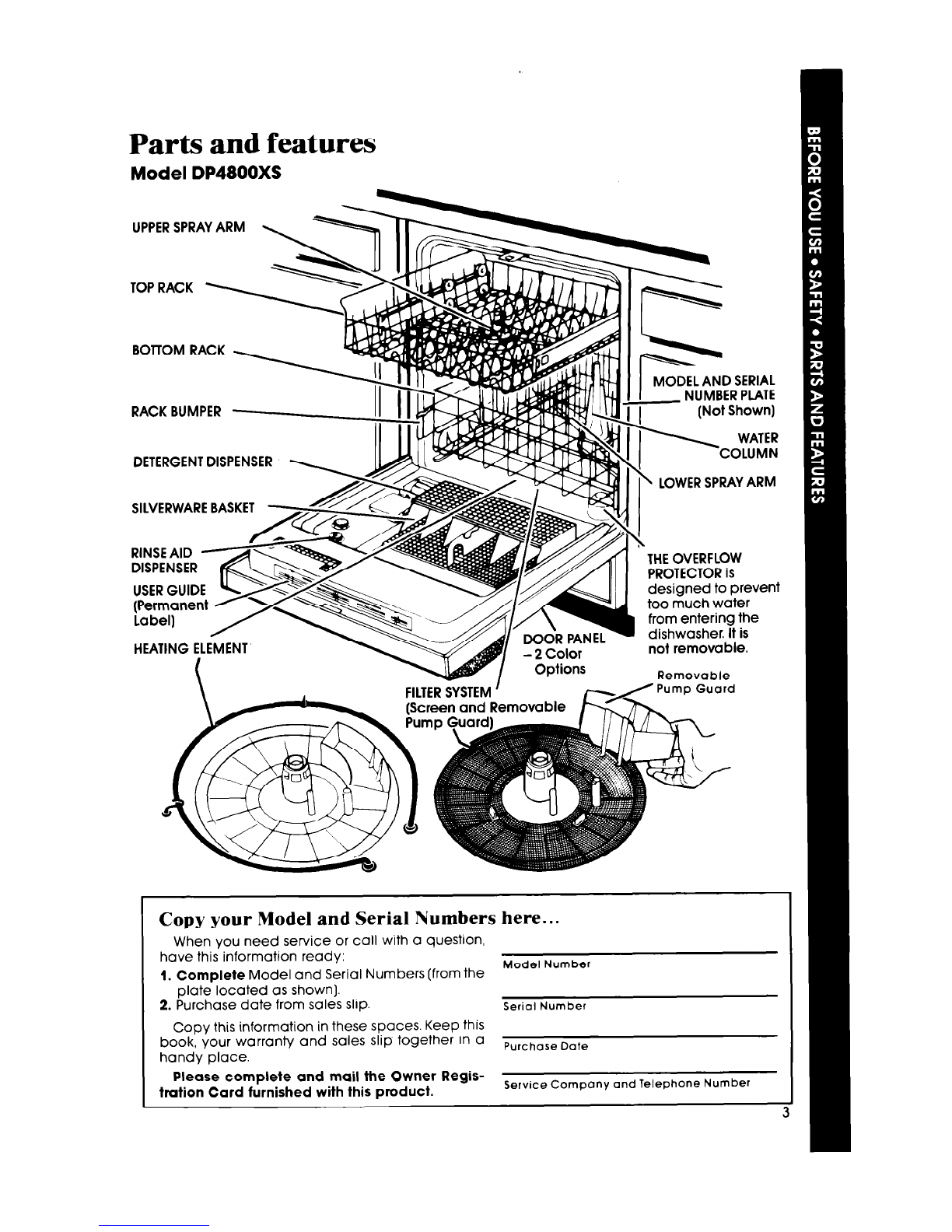

Parts and features

Model DP4800XS

UPPERSPRAY ARM

TOP RACK

RACK BUMPER

DETERGENT DISPENSER

SILVERWARE BASKET

HEATING ELEMENT

BOllOM RACK

/A! / \,-u

vvd,R PANEL

- 2 Color

Options

h THEOVERFLOW

PROTECTOR is

designed to prevent

too much water

from entering the

dishwasher. It is

not removable.

Removoble

MODEL AND SERIAL

I NUMBER PLATE

(Not Shown)

\ LOWERSPRAY ARM

Copy your Model and Serial Numbers here.. .

When you need service or call with a question,

have this information ready:

1. Complete Model and Serial Numbers (from the

Model Number

plate located as shown].

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. Keep this

book, your warranty and sales slip together in a

Purchase Date

handy place.

Please complete and mail the Owner Regis-

tration Card furnished with this product.

Service Company and Telephone Number

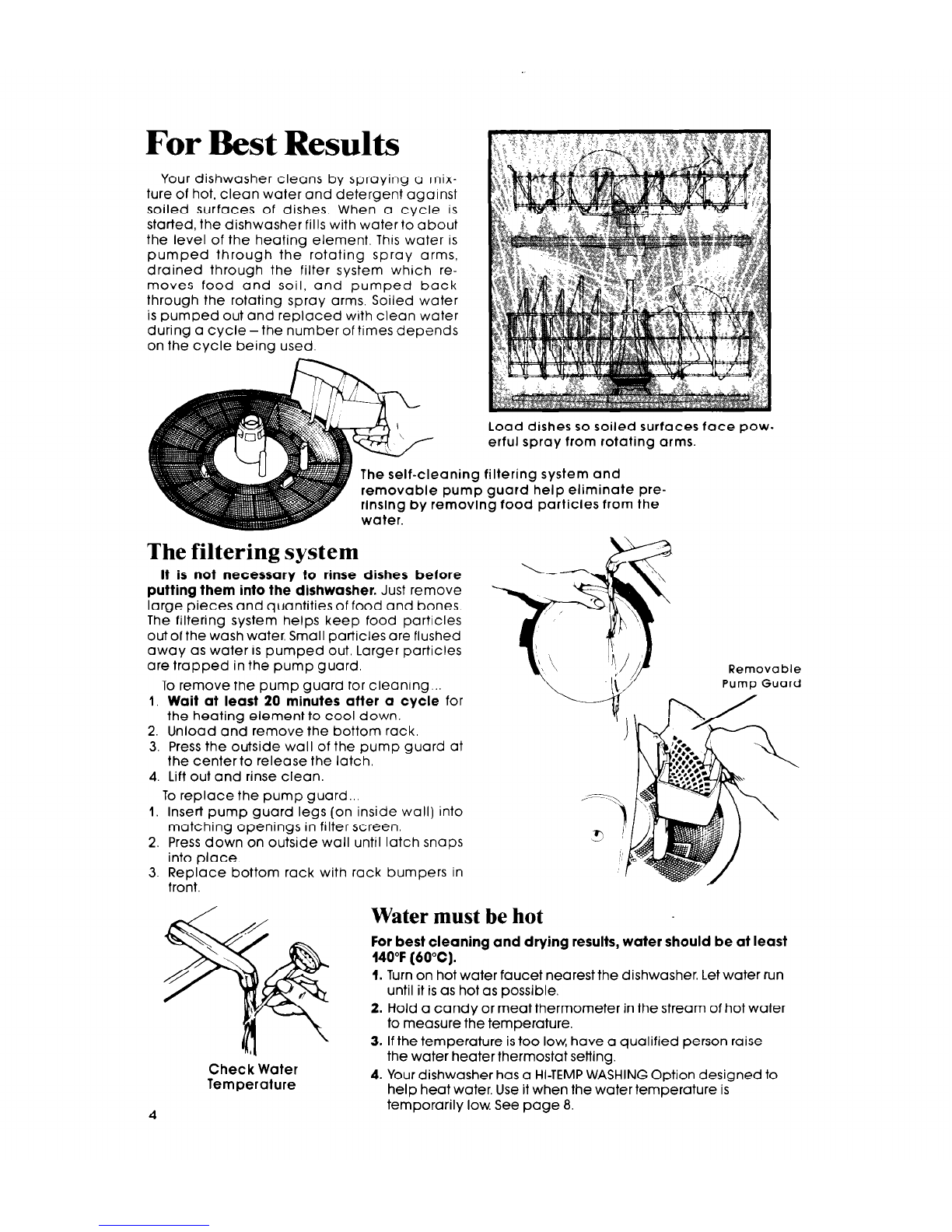

For Best Results

Your dishwasher cleans by spraying a mix-

ture of hot, clean water and detergent against

soiled surfaces of dishes. When a cycle is

started, the dishwasher fills with waterto about

the level of the heating element. This water is

pumped through the rotating spray arms,

drained through the filter system which re-

moves food and soil, and pumped back

through the rotating spray arms. Soiled water

is pumped out and replaced with clean water

during a cycle-the number of times depends

on the cycle being used.

The self-cleaning filtering system and

removable pump guard help eliminate pre-

rinsing by removing food particles from the

Load dishes so soiled surfaces face pow-

erful spray from rotating arms.

The

filtering system

It is not necessary to rinse dishes before

putting them into the dishwasher. Just remove

large pieces and quantities of food and bones.

The filtering system helps keep food particles

out of the wash water. Small particles are flushed

away as water is pumped out. Larger particles

are trapped in the pump guard.

To remove the pump guard for cleaning...

Wait at least 20 minutes after a cycle for

the heating element to cool down.

2. Unload and remove the bottom rack.

3. Press the outside wall of the pump guard at

the centerto release the latch.

4. Lift out and rinse clean.

Removable

Pump Guard

To replace the pump guard...

Insert pump guard legs (on inside wall) into

matching openings in filter screen.

Press down on outside wall until latch snaps

into place.

Replace bottom rack with rack bumpers in

tront.

Water must be hot

For best cleaning and drying results, water should be at least

140°F (60°C).

1. Turn on hot water faucet nearest the dishwasher. Let water run

until it is as hot as possible.

2. Hold a candy or meat thermometer in the stream of hot water

to measure the temperature.

3. If the temperature is too low, have a qualified person raise

Check Water

Temperature

the water heater thermostat setting.

4. Your dishwasher has a HI-TEMP WASHING Option designed to

help heat water. Use it when the water temperature is

temporarily low. See page 8.

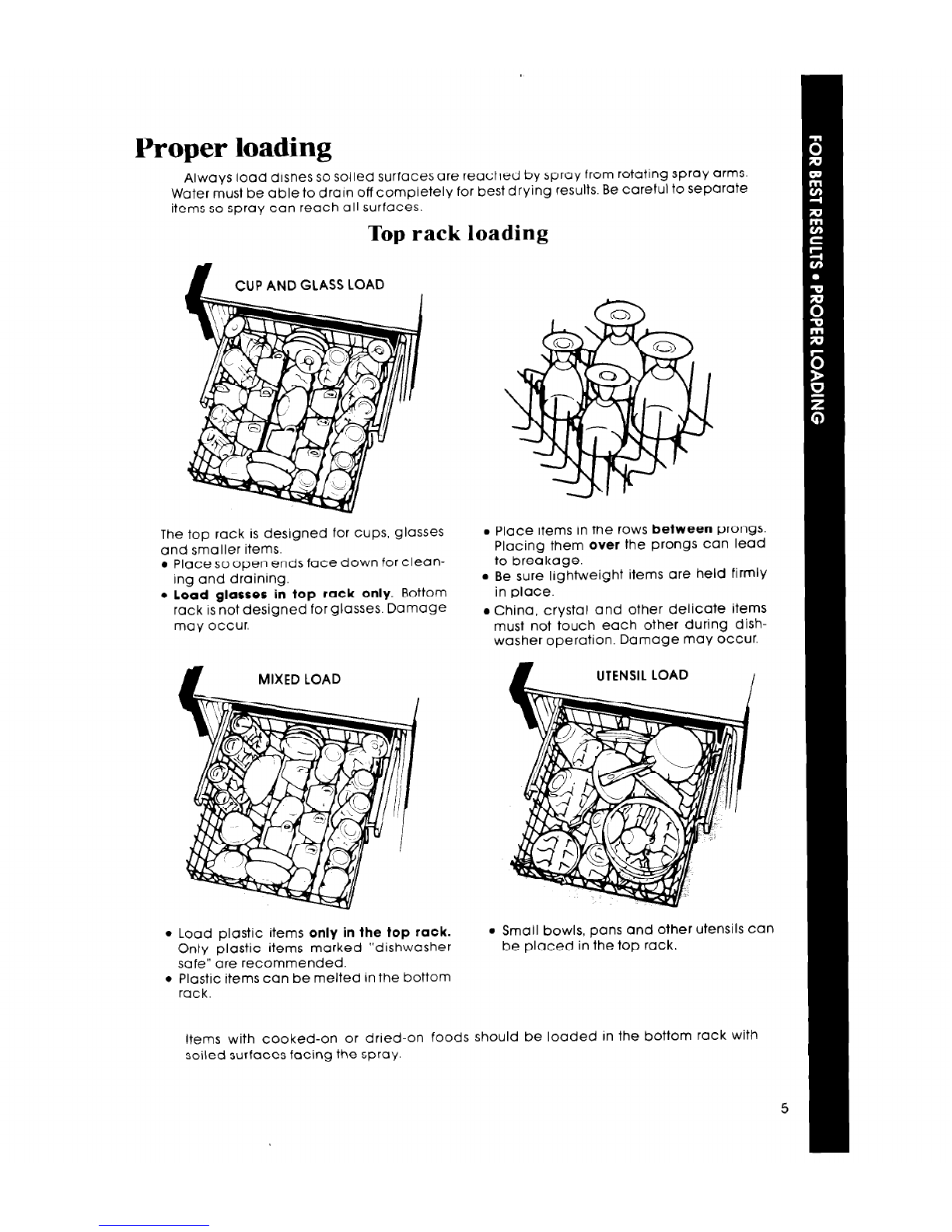

Proper loading

Always load dishes so soiled surfaces are reached by spray from rotating spray arms.

Water must be able to drain off completely for best drying results. Be careful to Separate

items so spray can reach all surfaces.

Top rack loading

The top rack is designed for cups, glasses

and smaller items.

Place so open ends face down for clean-

ing and draining.

load glasses in top rack only. Bottom

rack is not designed for glasses. Damage

may occur.

Load plastic items only in the top rack.

Only plastic items marked “dishwasher

safe” are recommended.

Plastic items can be melted in the bottom

rack.

Place items in the rows between prongs.

Placing them over the prongs can lead

to breakage.

Be sure lightweight items are held firmly

in place.

China, crystal and other delicate items

must not touch each other during dish-

washer operation. Damage may occur.

Small bowls, pans and other utensils can

be placed in the top rack.

Items with cooked-on or dried-on foods should be loaded in the bottom rack with

soiled surfaces facing the spray.

Bottom rack loading

Make sure pot handles and other items

do not stop rotation of either the upper or

lower spray arm. Spray arms must move

freely.

Securely place heavily soiled cookware

face down in rack.

Place plates, soup bowls, etc., between

prongs and facing the spray.

. Load cookie sheets, cake pans and other

large items at sides or back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

Do not load glasses, cups or plastic items

in the bottom rack.

When lower rack is removed, replace

with bumpers in front.

Silverware basket loading

Load forks and spoons so they don’t

nest together. Spray can’t reach nested

items.

NO YES

Mix items in each section of the bas-

ket. Small items-baby bottle caps, jar

lids, etc.-can be put in any section.

Make sure sharp items [knives, forks,

skewers, etc.) are put in point down.

The silverware basket can be loaded

while it’s in place on the door, or it can

be taken out for loading on the counter

or table.

It can also be removed for easy un-

loading. Always unload or remove the

basket before unloading the racks to

avoid spilling water droplets on the

To remove the basket, slide it toward

the top of the door-by the handle. Lift

it off the holding buttons. Replace it in

reverse order.

To open the basket, unhook the latch

as shown, Be sure the

cover is completely

latched before

pulling out the

bottom rack and

before closing

the dishwasher

door.

Adding detergent

The kind and amount of dishwasher detergent you use is an important part of

getting your dishes clean. Read this section carefully.

Use automatic dlsh-

washer detergent only.

Other detergents are

too mild and much too

sudsy to work in the

dishwasher.

Different brands of

dishwasher detergent

have different amounts

of phosphorus. Phospho-

rus softens water and

helps prevent water

spots on dishes.

If water is hard and

phosphorus content is

low (8.7% or less], you

may need to use more

detergent or use a

brand with a higher

phosphorus content

(12% or higher).

Do not add detergent

until you are ready to

wash. Fresh automatic

dishwasher detergent

Is necessary for best

washing results. Store

detergent tightly in a

cool dry place.

The detergent dispenser

The detergent dispenser has one section with

a cover and one without.

Put detergent in both sections for cycles with

two washes.

Put detergent in the covered section only for

cycles with one wash.

Push the cover down

until it is latched.

The cover opens auto-

matically when the main

wash starts. Detergent in

the open section falls

into the dishwasher

when the door is closed.

C?VW .

Use covered section for.. Use both

NORMAL WASH Cycle sections for.. .

POTS h PANS Cycle

HEAVY WASH Cycle

How much detergent to use

The amount of detergent to use

depends on the hardness of your

water. Iftoo little is used, dishes won’t

be clean. However, if too much is

used in soft water, glassware will

begin to etch.

Find out your water’s hardness by

asking your local water depart-

ment, water softener company or

county extension agent.

HARD-Fill 1 or both sections to top

line if water is 8 or more grains of

hardness.

MEDIUM - Fill 1 or both sections to

middle line if water is 5 to 7 grains of

hardness.

SOFT- Fill 1 or both sections to

bottom line if water is 0 to 4 grains of

hardness.

Rinse aid dispenser

A rinse aid helps keep water from forming droplets and dry-

ing as spots. Keep the dispenser filled with a rinse aid such as

Jet-Dry.” A small amount is released automatically during the

final rinse of each cycle. Check the dispenser periodically to

see if it needs refilling.

Before starting

your dishwasher

Spin the Upper Spray Arm to make sure

nothing will stop it from turning freely.

2. Close and latch the door.

3. Run hot water at sink nearest dishwasher

until it is hot. Turn it off. (See page 14 for

connecting instructions.)

CLEAN SELECTORBUTTONS

Starting your dishwasher

POTS 81PANS Cycle... HEAVY WASH Cycle...

Make sure Cycle Control Knob points

to dot marked POTS & PANS. to dot marked HEAVY WASH..

2. Push POTS & PANS Clean Selector 2. Push HEAVYWASHbutton.

Button. 3. Push button for option desired.

3. Push button for option desired. 4. Without turning it, pull out the Cycle

4. Without turning it, pull out the Cycle Control Knob to start the cycle.

Control Knob to start the cycle.

NORMAL WASH Cycle... RINSE & HOLD Cycle...

Turn Cycle Control Knob clockwise until 1. Push NORMAL WASHbutton.

it stops at dot marked NORMAL WASH. 2. Select AIR DRYOPTION

only. Do not use

2. Push NORMAL WASHbutton.

HI-TEMP WASHING Option.

3. Push button for option desired. 3. Turn Cycle Control Knob clockwise to

4. Without turning it,pull out the Cycle Con- dot marked RINSE& HOLD.

troi Knob to start the cycle. 4. Close and latch the door to start the

cycle.

Changing a setting

2. With the Cycle Control Knob pulled out,

You can change a setting anytime during turn clockwise to the cycle you want.

any cycle. 3. Be sure the detergent dispensers are filled

1. Unlatch the door to stop the cycle, but don’t properly for the new cycle.

open it until the spray arms stop spinning. 4. Latch the door to start the cycle.

To add a dish after starting

4. Close the door. Do not latch it. Wait 30 sec-

onds for air in the dishwasher to warm UD.

1. To be sure the added item is washed and This helps reduce the amount of moisture

rinsed, make sure the Cycle Control Knob that can come from the vent when restart-

has not passed NORMAL WASH. ing the cycle.

2. Unlatch the doorto stop the cycle. 5. Latch the door. The dishwasher will start

3. Open the door and add the dish. from where it stopped.

HI-TEMP WASHING Option

When this option is selected, water for the

main wash and the final rinse is heated [except

in RINSE & HOLD) to 145’F (63-C). Washing and

rinsing action in those parts of the cycle will

be longer if the water is heated. HI-TEMP wash-

ing is automatic in POTS & PANS.

OPTION SELECTOR BUTTONS CYCLE CONTROL KNOB

Selecting a cycle

POTS & PANS Cycle

Maximum cleaning for cooked- or

baked-on foods. Timer delays while

the dishwasher automatically heats

the water to 145°F (63°C) in both

washes and the last rinse (marked

Cycle time will be about 1% to 2

hours, depending on time needed

to heat water.

HEAVY WASH Cycle

For normal, everyday soiled loads.

(The Energy Guide Label data is

based on this cycle.] Cycle time is

about 70 minutes,

NORMAL WASH Cycle

For pre-rinsed or lightly soiled loads,

Cycle time is about 60 minutes.

RINSE & HOLD Cycle

For rinsing a few items to be

washed one or more days later.

Cycle time is about 10 minutes.

Use AIR DRY only Do not use HI-TEMP WASHING Option.

The AIR DRY Option

Air in the dishwasher is automatically heated

during the “dry” part of all cycles. night] and some water spotting may result.

If the

AIR DRY Option

is selected, air in the Some items (such as plastics] may need towel

dishwasher is not heated. Using this option helps drying.

save energy, but dishes ta ke longer to dry (over- For best results, use a liquid rinse aid such as

Jet-Dry?

The RESET OPTIONS Button

If you want to change a selected option,

push the RESET OPTIONS

Button. Re-select an

option, if desired.

Energy saving tips

You can help save energy if you:

1. Wash full loads. Running a half-filled dish-

washer uses the same amount of electricity

and hot water as a fully loaded machine.

3. Air dry dishes when you don’t need a rapid

drying cycle. Allow longer drying times

[overnight).

5. Don’t pre-rinse normally soiled dishes. Se-

lect the correct cycle for the load and use

the recommended amount of detergent for

good washing results without hand rinsing.

Use the NORMAL WASH Cycle for pre-

washed or lightly soiled loads. It uses less hot

water and energy than other wash cycles.

load correctly for best washing results. In-

correct loading may cause poor washing

and the need to rewash all or part of the

load.

Use your dishwasher during off-peak hours.

Local utilities recommend this to avoid

heovy usage of energy at certain times of

day

Tabla de contenidos

Otros manuales de Lavavajillas de Whirlpool

Whirlpool

Whirlpool WDF518SAAB Instrucciones de montaje

Whirlpool

Whirlpool GDP6881XL Manual de usuario

Whirlpool

Whirlpool ADG 8683 Manual de usuario

Whirlpool

Whirlpool DU2900XM Manual de usuario

Whirlpool

Whirlpool DU4000 Series Manual de usuario

Whirlpool

Whirlpool WSFO3T223PCX Manual de instalación y operación

Whirlpool

Whirlpool 8575348-D-WH Manual del propietario

Whirlpool

Whirlpool ADG 7560/1 WP Manual de usuario

Whirlpool

Whirlpool DU920PGQ1 Manual de usuario

Whirlpool

Whirlpool WIC 3C26 Manual de instalación y operación

Whirlpool

Whirlpool WDF330PAHS Manual de usuario

Whirlpool

Whirlpool ADG 301 Manual de usuario

Whirlpool

Whirlpool ADP 4520 WH Manual de usuario

Whirlpool

Whirlpool ADP 741 WH Manual de usuario

Whirlpool

Whirlpool GU3600XTV Guía del usuario

Whirlpool

Whirlpool GDU3024XL Manual de usuario

Whirlpool

Whirlpool BUILT-IN MICROWAVE OVEN Manual de usuario

Whirlpool

Whirlpool GDP6000XR Series Manual de usuario

Whirlpool

Whirlpool Kirkland Signature SUD5000 Manual de usuario

Whirlpool

Whirlpool ADG 9999 M Manual de usuario

Whirlpool

Whirlpool DU900PCDB2 Manual de usuario

Whirlpool

Whirlpool DU8500XT Series Manual de usuario

Whirlpool

Whirlpool UDT518SAFP Manual de usuario

Whirlpool

Whirlpool ADP 5656/1 WHM Manual de usuario

Manuales populares de Lavavajillas de otras marcas

Electrolux

Electrolux ESI5211LOX Manual de usuario

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario
