Whirlpool SF272LXTD1 Manual de usuario

COOKTOP PARTS

For Models: SF272LXTD1

(Universal Silver)

05−07 Litho in U.S.A. (rek) Part No. W10139618 Rev. A

30" GAS FREESTANDING

SELF CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9762998 Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

W10110369

Owners Manual

W10116295

Tech Sheet

9762761 Safer Cooking Tips

2 Cap, Burner

3191904 Left Front

3191901 R. Front, L. Rear

3191898 Right Rear

3 Burner

4455981 Left Front

4455980 R. Front, L. Rear

4455979 Right Rear

4 8272253 Cooktop

5 8523855 Panel, Manifold

6 8273103 Knob, Control (3)

7 8273111 Knob, Powerburner

8 8053458 Grate, Burner (4)

9 3400701 Screw

10 3196557 Screw

CONTROL PANEL PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10009080

Endcap, Left Hand

W10009090

Endcap, Right Hand

2 8053505 Shield−Heat, Lwr

W10117565

Panel, Console

4 9758080 Module, Spark

5 9762095 Brkt−Mntg, Console

6 8523412 Bracket, Support

7 9756301 Cover, Upper

8 8053910 Shield, Heat

9 8273132 Cover, Lower

10 3196169 Screw

W10108260

Control, Range

12 3196178 Screw

13 9757609 Badge

14 9762726 Brkt−Mntg, DSI

15 8273564 Clip

16 9762078 Bracket, EOC Mount

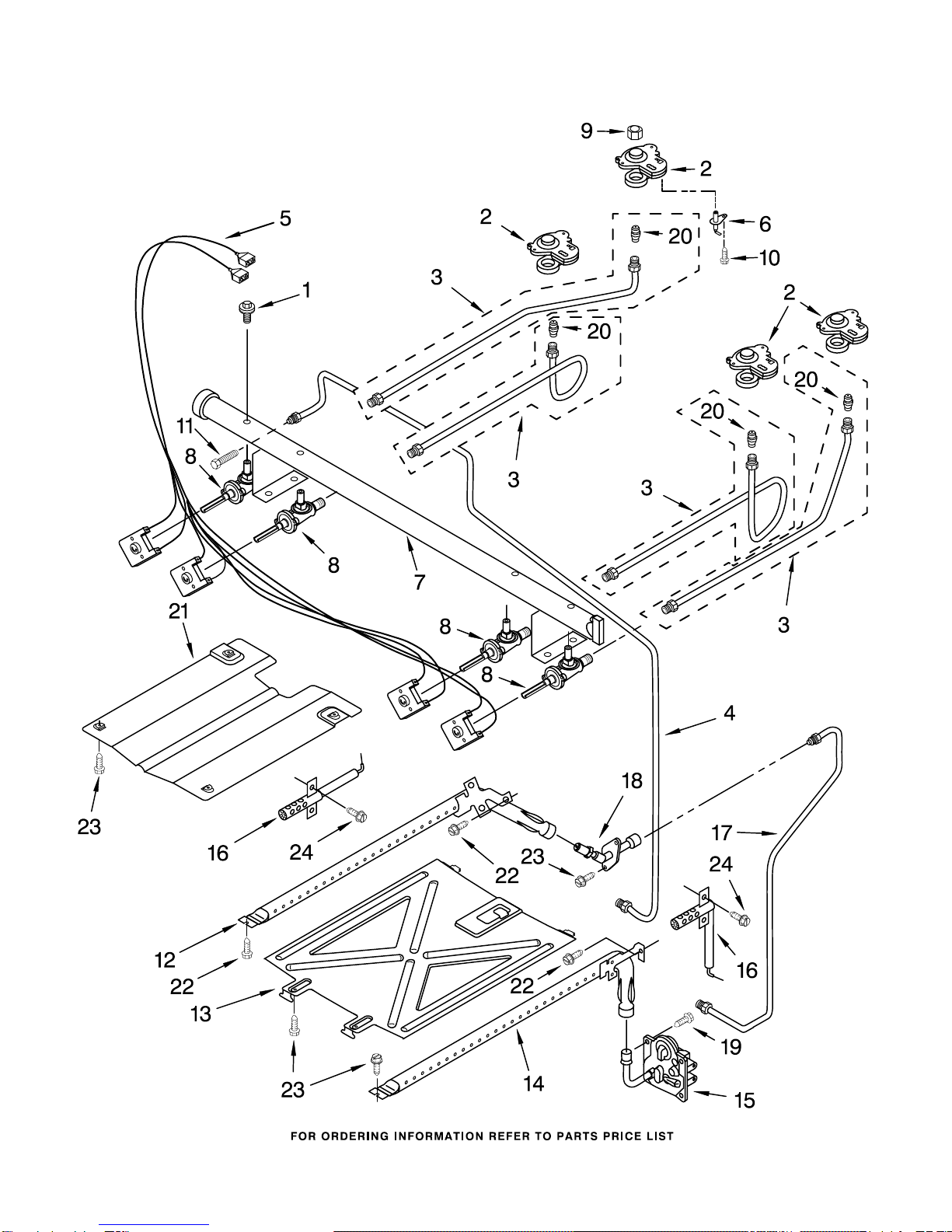

MANIFOLD PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

MANIFOLD PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

2 Burner Base

8273700 Large (3)

8273701 Small (1)

3 Tubing, Burner

W/Orifice

8273693 Left Front

8273698 Left Rear

8273695 Right Front

8273697 Right Rear

4 8523402 Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

6 8523793 Electrode (4)

7 9762230 Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

9 8273060 Nut (4)

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

13 8053970 Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

19 3400016 Screw

20 Orifice, Burner

8273064 Left Front

8273065 Right Front

8273066 Left Rear

8273067 Right Rear

21 8053262 Spreader, Flame

(Broiler)

22 3196265 Screw

23 3196176 Screw

24 3196385 Screw

Following Parts Not Illustrated

8523418 Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

CHASSIS PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10012240

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 8053832 Panel, Side (2)

5 8523249 Brkt, Manifold (2)

7 3196037 Foot, Front (2)

W10058460

Foot, Rear (2)

9 3195097 Bottom, Oven

10 8273902 Sensor, Oven

11 8053967 Baffle, Burner

12 8053969 Shield, Heat

13 8053968 Shield, Lower

14 9760314 Rail, Base (2)

15 9761517 Clip, Door Mntg(2)

W10067840

Screw

17 9757098 Back, Main

18 8522416 Seal, Oven

19 8053971 Brace, Main Back

20 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

21 3196576 Clip, Panel (6)

22 9757891 Cord, Power

23 9760407 Brkt − Hinge

24 9757262 Switch, Door

25 3196701 Light Socket Assy

26 311255 Bulb, Oven Light

27 9761013 Latch, Door

W10078370

Rod, Latch

W10107820

Latch−Mtr

W10114344

Glide, Drawer

31 9761490 Insulation

32 9761512 Clip, Mounting

33 3196178 Screw

34 3196152 Screw

35 3196168 Screw

W10031780

Screw

37 3196179 Screw

38 3196177 Screw

39 9757239 Rod − Door Switch,

Rear Mount

40 3196560 Screw

INSULATION

8524099 Insulation, Wrap

8272614 Insulation, Back

8272613 Insulation, Vent

DOOR PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

DOOR PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

Illus. Part

No. No. DESCRIPTION

1 9762394 Trim, Top

2 3196164 Screw

3 9761983 Handle, Door

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761496 Hinge, Door

11 9761699 Glass, Outer Door

12 Trim, Door Side

8523171 Left Hand

8523165 Right Hand

13 3196160 Screw

14 3196165 Screw

15 3196025 Clip, Door Glass

16 3196794 Bracket, Window(2)

17 8523180 Trim, Bottom

W10031780

Screw

W10113759

Strap, Door

DRAWER & BROILER PARTS

For Models: SF272LXTD1

(Universal Silver)

W10139618

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 9761031 Drawer, Storage

3 3196817 Bracket, Drawer(2)

4 3196813 Rivet, Push (2)

5 9761693 Panel, Drawer Frnt

6 8053334 Spacer, Glide

7 3196168 Screw

OPTIONAL PARTS (NOT INCLUDED)

For Models: SF272LXTD1

(Universal Silver)

W10139618

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10082160

Harness, Main

(EOC Pyro)

8524207 Harness, Wire

Bake/Broil

8523599 Harness, Wire

(Cooktop Spark)

W10045060

Harness, Wire

(Ground)

3196896 Clip, Wire

3400964 Clip, Wire

313438 Clip, Harness

3196173 Screw

3196696 Clip, Harness

3196174 Screw−Grnd Harns
