Whirlpool SC8720EDB0 Manual de usuario

BODY PARTS

For Model : SC8720EDB0, SC8720EDW0

(Black) (White)

9−97 LITHO IN U.S.A. (rmb) Part No. 4381736 Rev. A

30" GAS CONVERTIBLE

DOWNDRAFT COOKTOP

Illus. Part

No. No. DESCRIPTION

1 Cover, Vent

4381645 Black

4381646 White

2 Top, Main

4381639 Black

4381640 White

3 4381656 Nut, Pan (5)

4 4381668 Tube, Burner (RR)

5 4381669 Tube, Burner (RF)

6 4381678 Tube, Burner (LF)

7 4381677 Tube, Burner (LR)

8 4381734 Nut, Tubing (4)

4381667 Washer, Tubing (4)

9 4381665 Box, Burner

10 4381687 Cover, Front

11 4381679 Screw, Cover (4)

12 4381679 Screw, Support (6)

13 4381666 Nut, Hold Down

14 4381683 Screw, Hold Down

15 4381685 Cover, Access (RT)

16 4381679 Screw, Cover (4)

17 4381681 Jar, Grease

18 4381680 Lid, Jar

19 4381684 Baffle, Bottom(LT)

20 Pan, Module

4381655 Left

4381648 Right

21 4381654 Seal, Pan

22 4381661 Igniter, Spark

23 4381647 Lockwasher (2)

24 4381660 Nut, Jam (2)

25 4381649 Screw, Pan

26 4381662 Insulator, Switch

27 4381650 Switch, Micro

4381651 Washer (Teflon)

28 4381653 Nut, Switch (2)

29 4381657 Pin, Locator (3)

30 4381659 Clip, Pan (4)

BLOWER PARTS

For Model : SC8720EDB0, SC8720EDW0

(Black) (White)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4381688 Cover, Motor

2 4381689 Clip, Plenum

3 4381690 Conduit, Metal

4 4381691 Connector, Conduit

5 4381692 Clamp, Cable

6 4381693 Clip, Conduit

7 4381694 Screw, Mtg.

8 4381695 Nut, Band

9 4381696 Screw, Band

11 4381698 Screw, Spacer (3)

12 4381699 Band, Motor

13 4381700 Motor, Blower

14 4381701 Gasket, Foam

15 4381702 Wheel, Blower

4381689 Clip

4381736

16 4381704 Bushing, Conduit

17 4381705 Ring, Inlet

18 4381706 Housing, Blower

19 4381707 Retainer, Filter

20 4381708 Plenum

22 4381709 Plate, Cover

23 4381710 Screw, Cover Plate

24 4381711 Screw, Ground

25 4381712 Filter, Grease

26 4381713 Locknut

27 4381714 Clip, Cover Plate

28 4381715 Screw, Plenum

29 4381716 Spring, Retainer

30 4381717 Relief, Strain

31 4381718 Screw, Relay (2)

32 4381719 Cord, Power

33 4381720 Ring, Restrictor

34 4381721 Relay

4381722 Clip, "J" (2)

35 4381723 Wire, Ground

36 4381724 Module, Spark

37 4381725 Nut, Mtg.

38 4381726 Cap, Nut (4)

4381727 Connector (4)

4381728 Nut, Wire (4)

LITERATURE PARTS

LIT4381592

Guide, Use & Care

LIT4381590

Instructions,

Installation

CONTROL PANEL PARTS

For Model : SC8720EDB0, SC8720EDW0

(Black) (White)

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

4381618 Black

4381619 White

2 Knob, Control (4)

4381620 Black

4381621 White

3 4381622 Switch, Fan

4 4381623 Switch, Valve (2)

(Right Side)

5 4381624 Valve (Right) (2)

6 4381625 Switch, Valve (2)

(Left Side)

7 4381626 Valve (Left) (2)

8 4381627 Manifold

4381628 Nut, Hex

9 4381629 Regulator,Pressure

10 4381630 Bracket, Manifold

11 4381631 Bracket, Fan Swtch

12 4381632 Screw, Bracket (2)

13 4381633 Palnut, Fan Switch

14 Knob, Fan

4381634 Black

4381635 White

Following Parts Not Illustrated

4381636 Harness, Wire

4381637 LP Conversion Kit

4381736

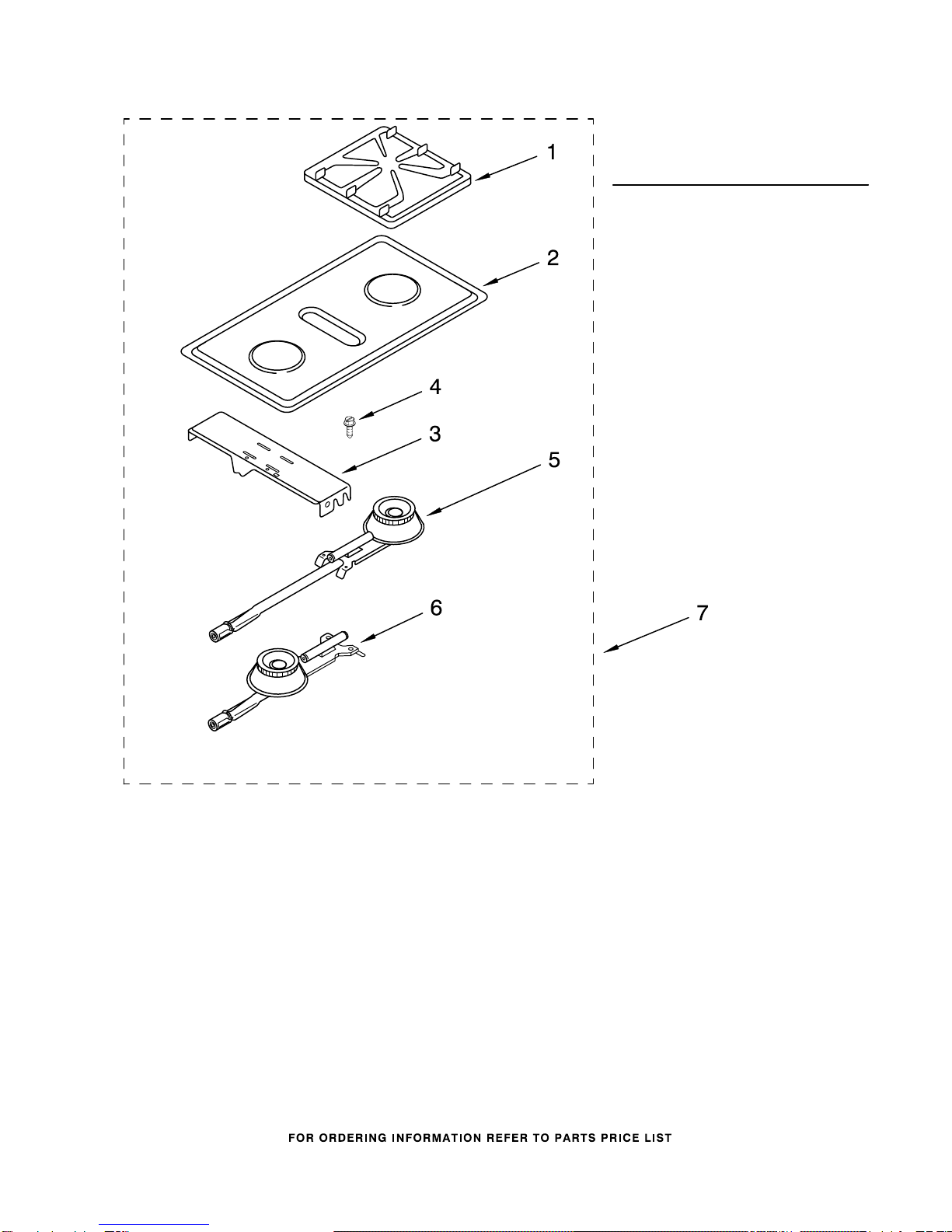

BURNER MODULE PARTS

For Model : SC8720EDB0, SC8720EDW0

(Black) (White)

Illus. Part

No. No. DESCRIPTION

1 4381652 Grate, Burner (2)

2 Pan, Aeration

4381643 Black

4381642 White

4381644 Standoff (4)

3 4381673 Bracket, Burner

4 4381672 Screw, Bracket (4)

5 Burner, Rear

4381670 Black

4381671 White

6 Burner, Front

4381675 Black

4381676 White

7 Complete Module

4378984 Black

4378985 White

4381736

GRILL MODULE PARTS

For Model : SC8720EDB0, SC8720EDW0

(Black) (White)

Illus. Part

No. No. DESCRIPTION

1 Cover, Grill

(Complete)

4378932 Black

4378933 White

2 Panel, Cover

4381729 Black

4381730 White

3 Handle (2)

4381731 Black

4381732 White

4 4381733 Screw, Handle (4)

5 4378931 Griddle (Optional)

6 4381641 Grate, Grill (2)

7 4381658 Burner, Grill

8 4378986 Module, Complete

(Available in

Black Only)

4381736
