BOOM AIR CONDITIONERS

UseAndCare

A Note to You ......................... 2

Air Conditioner Safety ........... 3

Parts and Features ................. 4

Operating Your Air

Conditioner ............................. 5

Starting your air

conditioner .......................... 5

Using the

Exhaust Control .................. 6

Changing air direction ......... 6

Caring for Your Air

Conditioner ............................. 7

Cleaning the front panel

and air filter ........................ 7

Performing annual

maintenance ....................... 6

Saving energy.. ................... 9

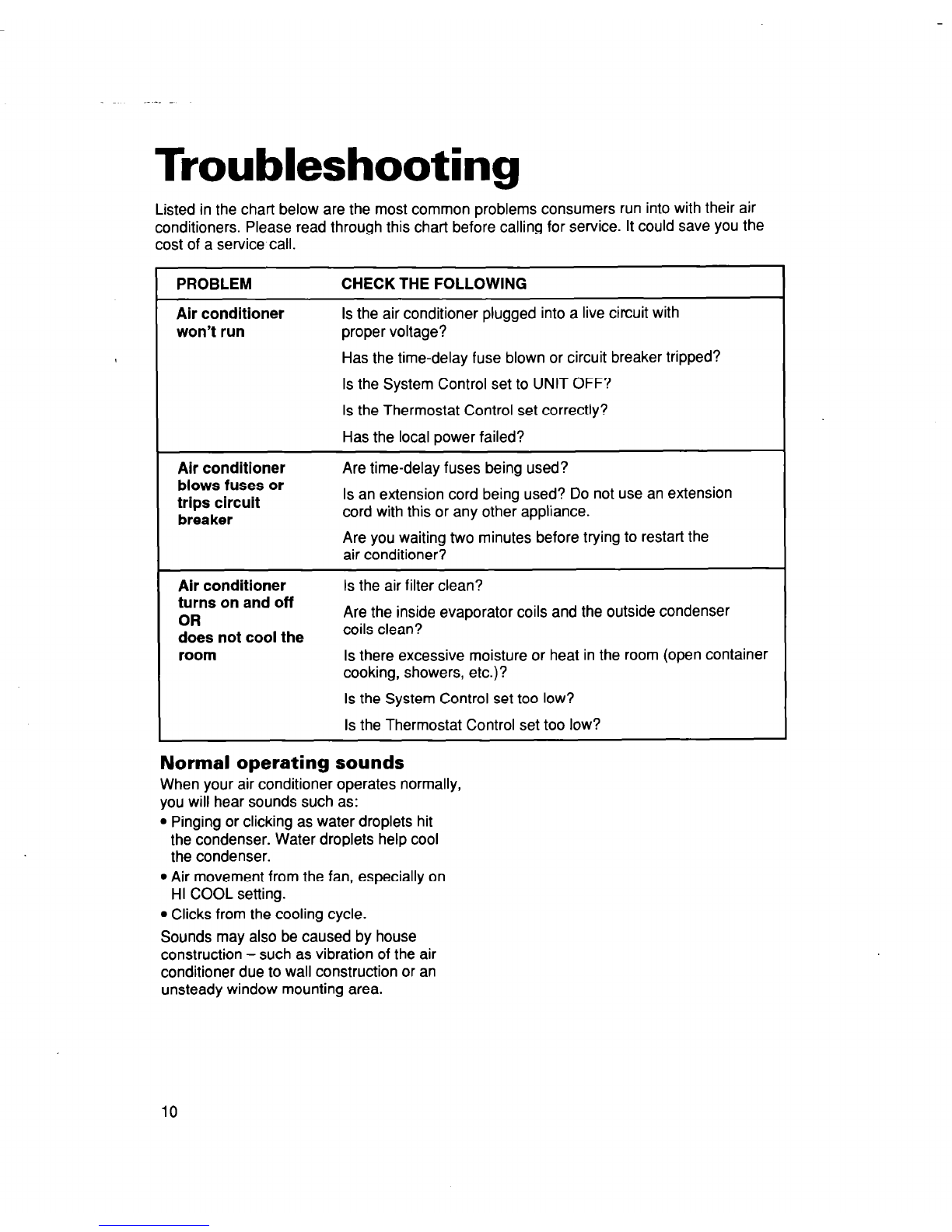

Troubleshooting ................... 10

Requesting Assistance

or Service.. ............................ 11

Index.. .................................... 15

Warranty ............................... 16

l-800-253-1 301

Call our Consumer Assistance Center

with questions or comments.

AIR CONDITIONERS

II MODELS: AR1000 AR1200

PART NO. 1156767 Rev. B

A Note to You

Thank you for buying a COOLERATOR@ appliance.

Because your life is getting busier and more complicated, COOLERATOR Air Conditioners

are easy to use, save time, and help you manage your home better. To ensure you enjoy

years of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely.

Please read it carefully. Also, please complete and mail the Ownership Registration Card

provided with your appliance. This card helps us notify you about any new information on

your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label (see diagram on

page 4 for location of label).

Dealer Name

Please also record the purchase date of

Dealer Address

your appliance and your dealer’s name,

Dealer Phone

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

This symbol alerts you to such

dangers as flre, electrical shock,

burns, and personal injury. I

IMPORTANT SAFETY INSTRUCTIONS

l Read all instructions before using the

air conditioner.

@Complete the installation requirements

as described in the Installation

Instructions.

l Do not operate the air conditioner with

the front panel removed.

l Never clean air conditioner parts with

. FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

flammable fluids. The fumes can create

an explosion or fire hazard.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install your air conditioner in a window that

will hold the weight, and secure the air

conditioner according to the Installation

Instructions.

l Connect the air conditioner to the proper

kind of outlet with the correct electrical

supply and grounding. (See the Installation

Instructions.)

l Make sure the air conditioner is the correct

size for the area you want to cool.

l Use the air conditioner only to do what a

window air conditioner is designed to do.

l Make sure the air conditioner is not used

by anyone unable to operate it properly.

l Maintain the air conditioner properly.

Also, remove the Energy Label. Use a damp

cloth to take off any glue residue. DO NOT

use sharp instruments, flammable fluids, or

abrasive cleaners. These can damage

the material.

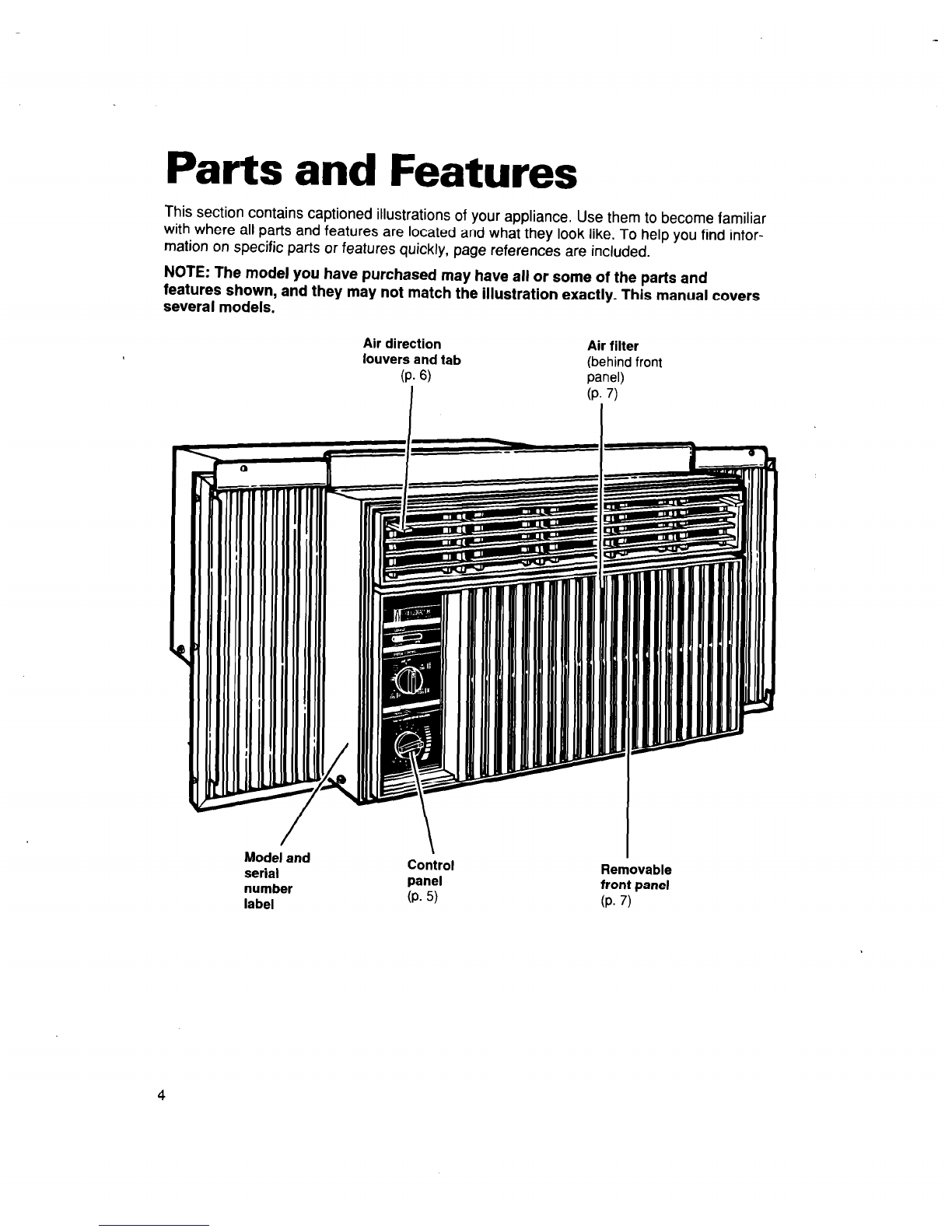

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. To help you find infor-

mation on specific parts or features quickly, page references are included.

NOTE: The model you have purchased may have all or some of the parts and

features shown, and they may not match the illustration exactly. This manual covers

several models.

Air direction Air filter

louvers and tab (behind front

(P. 6)

panel)

I (P. 7)

Model and

serial

number

label

Control

panel

(P. 5)

Removable

front panel

(P. 7)

Operating Your Air

Conditioner

In order to obtain the best possible results from your air conditioner, it is important that you

operate it properly. This section will tell you how to do just that.

Starting your air conditioner

Fire Hazard

Do not use an extension cord.

Doing so can result in death, fire, or

electrical shock.

NOTE: Make sure air conditioner System

Control is set to Unit Off before plugging in

the unit.

1. Set the Exhaust Control to Closed for

best cooling results.

2. Set the System Control to the

desired setting.

LO COOL ...........for sleeping comfort

MED COOL ..........for normal cooling

HI COOL ..........for maximum cooling

FAN ONLY ......for air circulation only

3. Turn the Thermostat Control to the mid

(number 6) setting. You can adjust the air

conditioner’s cooling performance by

resetting the Thermostat Control to a

higher number for maximum cooling.

Lower the thermostat for less cooling.

You will need to experiment to find the

setting which suits you best.

When lowering the Thermostat Control

setting, the compressor (motor) may

shut off.

NOTE: When the compressor is turned off

with either the system control or the thermo-

stat control, wait at least two minutes before

restarting the air conditioner or turning the

compressor back on.

Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

Do not remove ground prong.

Failure to follow these instructions

can result in death or electrical shock.

Using the Exhaust Control

The Exhaust Control draws stale or smoky

air from the room or circulates existing

room air.

NOTE: Make sure the Exhaust Control is

returned to the Closed setting when cooling

or room air circulation is desired. Energy

efficiency is decreased when operating in

exhaust and cooling at the same time.

To exhaust room air:

1. Set Exhaust Control to Open.

2. If cooling is desired, set System Control

to desired Cool setting.

3. If cooling is not required, set System

Control to Fan Only.

To circulate room air:

1. Set Exhaust Control to Closed.

2. If cooling is desired, set System Control

to desired Cool setting.

3. If cooling is not required, set System

Control to Fan Only.

Changing air direction

The louvers, in the top grille area of the air Tab

conditioner, control the direction of the --

cooled air. Move the tabs, at the top of the

grille, in the direction you want the air to go

if=--

(right, left, or straight ahead).

Caring for Your Air

Conditioner

Proper maintenance of your air conditioner will help ensure longer life and lower operating

costs. This section will tell you how to clean your air conditioner and perform annual mainte-

nance. You can always call your authorized Whirlpool service dealer for an annual checkup.

Cleaning the front panel and air filter

Explosion Hazard

Unplug power cord from outlet before cleaning air

conditioner.

Use only nonflammable cleaners.

Failure to follow these instructions can result in death,

explosion, fire, or electrical shock.

1. Remove the front panel from air condi-

tioner for cleaning. Press down at top

edge of front panel to release it from

the cabinet.

Tabs

2. Pull the top of the front panel toward you.

3. Lift up and away from the bottom

spring clips.

4. Remove filter from the front panel by

removing the elastic band which holds it

in place.

5. Clean filter by using a vacuum cleaner.

If very dirty, wash filter with warm water

and a mild detergent. Air dry thoroughly

before replacing. Do not use a hot

air dryer.

6. Clean front panel using a soft cloth with

warm water and a mild detergent. Rinse

and dry.

7. Replace filter and hold it with elastic band.

8. Wipe control panel clean with a soft

dry cloth.

9. Replace front panel. Locate bottom of

panel on the spring clips. Press down on

top edge of the front panel and push front

toward air conditioner to secure

upper tabs.

Performing annual maintenance

Your air conditioner needs annual mainte-

nance to help ensure steady, top performance

throughout the year.

Call the service company recommended

by your dealer to:

l Inspect and clean the coils and conden-

, sate water passages.

l Check fan.

The compressor and fan motor are sealed

and need no oiling. The expense of an

annual inspection is the customer’s

responsibility.

Electrical Shock Hazard

Unplug power cord from outlet before

servicing.

If you are familiar with electrical appliances,

you can do the cleaning and maintenance

yourself. If you choose to do so, follow

these steps:

Be sure no liquid gets into the motor,

electrical control box, or compressor

terminals.

NOTE: Do not lift, push, or pull any white

beaded foam (expanded polystyrene) parts.

1. Unplug the power cord.

2. Remove air conditioner from window.

3. Remove the front panel. (See “Cleaning

Failure to follow these instructions

can result in death, electrical shock,

or serious injury.

the front panel and air filter” on page 7.) Excessive Weight Hazard

Use 2 or more people to move and

install air conditioner.

Failure to do so can result in back or

other injury.

4. Remove the side curtains. Slide curtains

out to their fullest width. From the back

side, remove the Phillips-head screws

which attach the curtains to the cabinet.

(See A in illustration.)

5. Remove the slotted, hex-head screws

holding the top channel. (See B in

illustration.)

6. Remove slotted, hex-head screws on

sides of cabinet. (See C in illustration.)

7. Holding the cabinet on both sides, care-

fully lift cabinet off base. Watch out for

the sharp metal fins on the front and

rear coils.

8. Wrap the motor, electrical control box,

and compressor terminal box in plastic

film to make sure no water or other

liquids get inside. Water or other liquids

could damage the insulation and cause

serious mechanical problems.

9. Clean and hose out the base, coils, and

condensate pans. Clean air conditioner

at least once a year or more often if the

condenser coils and pans collect dirt,

sand, leaves, insects, or algae. Also,

clean the air conditioner if you detect an

odor coming from it.

10. Remove plastic film from the motor and

electrical parts.

11. Replace air conditioner in cabinet.

12. Replace the front panel.

NOTE: It is a good idea to wait 24 hours

before starting the air conditioner again.

Doing so allows time for all areas to

dry thoroughly.

The water from rainfall or from normal

operation does not harm the motor or

electrical parts.

Saving energy

You can help save energy by following the

tips below.

l Improve your home’s insulation. Seal all

doors and windows. Close the fireplace flue.

l Close all blinds and drapes on sunny sides

of the house. Add window awnings.

l Keep the air filter clean.

l Do not block the airflow with drapes

or furniture.

l Ventilate the attic. High temperatures in

the attic add to the air conditioner’s

cooling load.

l Try not to use heat-producing appliances

during the hottest part of the day.

l Turn off lights and appliances when they

are not needed.

l Keep heat registers and cool-air

returns closed.

l Use exhaust venting fans when cooking,

doing laundry, or bathing.

. _. _

Troubleshooting

Listed in the chart below are the most common problems consumers run into with their air

conditioners. Please read through this chart before calling for service. It could save you the

cost of a service call.

PROBLEM CHECK THE FOLLOWING

Air conditioner

won’t run Is the air conditioner plugged into a live circuit with

proper voltage?

Has the time-delay fuse blown or circuit breaker tripped?

Is the System Control set to UNIT OFF?

Is the Thermostat Control set correctly?

Has the local power failed?

Air conditioner

blows fuses or

trips circuit

breaker

Are time-delay fuses being used?

Is an extension cord being used? Do not use an extension

cord with this or any other appliance.

Are you waiting two minutes before trying to restart the

air conditioner?

Air conditioner

turns on and off

does not cool the

Is the air filter clean?

Are the inside evaporator coils and the outside condenser

coils clean?

room Is there excessive moisture or heat in the room (open container

cooking, showers, etc.)?

Is the System Control set too low?

Is the Thermostat Control set too low?

Normal operating sounds

When your air conditioner operates normally,

you will hear sounds such as:

l Pinging or clicking as water droplets hit

the condenser. Water droplets help cool

the condenser.

l Air movement from the fan, especially on

HI COOL setting.

l Clicks from the cooling cycle.

Sounds may also be caused by house

construction - such as vibration of the air

conditioner due to wall construction or an

unsteady window mounting area.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Whirlpool

Whirlpool

Whirlpool 3QACM07XD2 Manual de usuario

Whirlpool

Whirlpool AMD 018 Manual de usuario

Whirlpool

Whirlpool SPOW 407 Manual de usuario

Whirlpool

Whirlpool ACPE102PS2 Manual de usuario

Whirlpool

Whirlpool Room Air Conditioners for Slider & Casement... Manual de usuario

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool AR1800XA0 Manual de operación

Whirlpool

Whirlpool 3PACH21DD0 Manual de usuario

Whirlpool

Whirlpool WMB Manual de usuario

Whirlpool

Whirlpool ACS102PP0 Manual de usuario

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool ROOM AIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool ACQ102PV Manual de usuario

Whirlpool

Whirlpool ACE184XL0 Manual de usuario

Whirlpool

Whirlpool ACU072XE Hoja de información del producto

Whirlpool

Whirlpool Packaged Terminal Air Conditioner Manual de usuario

Whirlpool

Whirlpool WA6059Q Manual de usuario

Whirlpool

Whirlpool MAGICOOL Manual de usuario

Whirlpool

Whirlpool ACM052PS0 Manual de usuario

Whirlpool

Whirlpool MAGICOOL Manual de usuario

Whirlpool

Whirlpool ACC602XP0 Manual de usuario

Whirlpool

Whirlpool ASV09000R Manual de usuario

Whirlpool

Whirlpool AC1888 Manual de usuario

Whirlpool

Whirlpool R-WHAP121AW Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
