BEFORE USING THE APPLIANCE

To make the most out of your new appliance, please read the user instructions carefully and keep them

handy for future consultation.

SAFETY PRECAUTIONS

• The Installation and service/repair must be

performed by a qualified technician, in

compliance with the producer's instructions and

following local safety norms. Do not repair or

replace any parts of the appliance unless it is

specifically written in the user instructions.

• Do not pull the power supply cord to remove it

from the socket. Do not twist or press the

power supply cord, and make sure it is not

broken.

• Do not touch the power plug, circuit breaker

and emergency button when your hands are

wet.

• Do not insert your fingers or foreign substances

into the air inlet/outlet of indoor&outdoor unit.

• Never block the air inlet or outlet of indoor and

outdoor unit.

• Physically or mentally disabled people, children

and people without any experience with the

product are only allowed to use the appliance if

they have had specific training on how to

operate the appliance by a person responsible

for their security and well-being. The appliance

is not intended for use by disabled people and

very young children without supervision.

• Children should be supervised to ensure that

they do not play with the appliance (including

remote control).

AIR CONDITIONER PRECAUTIONS

Please strictly follow the below instructions:

• Long and direct exposure to cool air might be

harmful to health. It is advisable to set the

louvers in order to avoid direct cool air and

deflect it within the room.

• Upon malfunctioning first turn the appliance off

by pressing the ON/OFF button on the remote

control, then disconnect it from power supply.

• Do not switch the appliance on and off too often

as this can damage the appliance.

• Do not place any objects on the outdoor unit.

• Disconnect the air conditioner from the power

supply if it is to be left unused for a long period

of time or during a thunder/lightning storm.

• This product contains Fluorinated Greenhouse

Gases covered by the Kyoto Protocol, the

refrigerant gas being in a hermetically sealed

system. Refrigerant gas: R410a has a Global

Warming Potential (GWP) 1975.

• This appliance has been made of recyclable or

re-usable material. Scrapping must be carried

out in compliance with local waste disposal

regulations. Before scrapping it, make sure to

cut off the mains cord so that the appliance

cannot be re-used.

• For more detailed information on handling and

recycling of this product, contact your local

authorities who deal with the separate collection

of rubbish or the shop where you bought the

appliance.

SCRAPPING OF PACKAGING

• The packaging can be 100% recycled as

confirmed by the recycling symbol . The

various parts of the packaging must not be

dispersed in the environment, but must be

scrapped in line with local authority regulations.

SCRAPPING OF APPLIANCE

• This appliance is marked according to the

European Directive 2002/96/EC, Waste

Electrical and Electronic Equipment (WEEE).

• By ensuring that this product is disposed of

correctly, you will help to prevent potentially

negative consequences for the environment and

for human health.

• The symbol on the product or on the

documents accompanying the product indicates

that this appliance should not be treated as

household waste, but must be given to the

appropriate local gathering place where electric

and electronic appliances are stored and

recycled.

SAFEGUARDING THE ENVIRONMENT

PRODUCT DESCRIPTION

Indoor unit

1. Air Intake

2. Front Panel

3. Display panel

4. Electrical box

5. Air Outlet

6. Filter monitor reset button

7. Vertical Adjustment Louver

8. Horizontal Adjustment Louver

9. Air Filter

10. Remote Control

Outdoor unit

11. Air Intake

12. Pipes and Power Connection Cord

13. Drain Hose

Note: Condensate water drains at

COOLING or DRY operation.

14. Air Outlet

Images in the user instructions are based on external views of standard models, shape and design vary

according to the model.

CONTROL PANEL DISPLAY INDICATORS

DESCRIPTION

Temperature indicator (1)

Displays set temperature.

Running indicator (2)

It lights up during operation.

It flashes during outside unit defrosting.

Timer indicator (3)

It lights up during the set time.

It goes off when timer operation ends.

Sleep indicator (4)

It lights up during sleep mode.

Filter monitor indicator (5)

Filter monitor indicator doesn't work on inverter models. This LED will never light up, so regular

check anc cleaning of dust filter is required.

Emergency ON/OFF button (6)

Used to control the unit by pressing the button, when the RC is out of work.

Used to set or cancel auto-restart function.

Signal Receptor (7)

12 3 4 5 6 7

REMOTE CONTROL FUNCTIONS

AND INDICATORS

1. ON/OFF BUTTON

Starts and/or Stops the appliance by pressing

this button.

2. MODE BUTTON

Used to select the operation mode.

3. FAN BUTTON

Used to select fan speed in sequence auto,

high, medium or low.

4-5. TEMPERATURE BUTTON

Used to select the room temperature. Used

to set time in timer mode and real time clock.

6. 6TH SENSE BUTTON

Sets or cancels 6th sense operation.

7. SWING BUTTON

Stops or starts vertical adjustment louver

swinging and sets the desired up/down airflow

direction.

8. SLEEP BUTTON

Sets or cancels Sleep Mode operation.

9. AROUND U BUTTON

When you press this button, the remote

control transmits signal of the actual room

temperature around itself to the indoor unit

every 10 minutes. Therefore please keep the

remote control in a location where it can

transmit the signal to the indoor unit properly.

Press once to set and press again to cancel.

10. TIMER ON/CLOCK BUTTON

Used to set the current time.

Used to set or cancel the timer on operation.

11 TIMER OFF BUTTON

Used to set or cancel the timer off operation.

12. JET BUTTON

Used to start or stop the fast cooling.

13. DIM BUTTON

Used to turn on or turn off display light on

indoor unit.

14. POWER SAVE BUTTON

Used to start or stop the power save

operation.

INDICATOR SYMBOLS ON RC DISPLAY

Cooling indicator

Dry indicator

Fan only indicator

Heating indicator

Auto fan speed

High fan speed

Medium fan speed

Low fan speed

6th Sense indicator

Sleep indicator

Around U indicator

Jet indicator

Signal transmission

Display set timer

Display current time

Display set temperature

Power save indicator

OFF

STORAGE AND TIPS FOR USING THE

REMOTE CONTROL

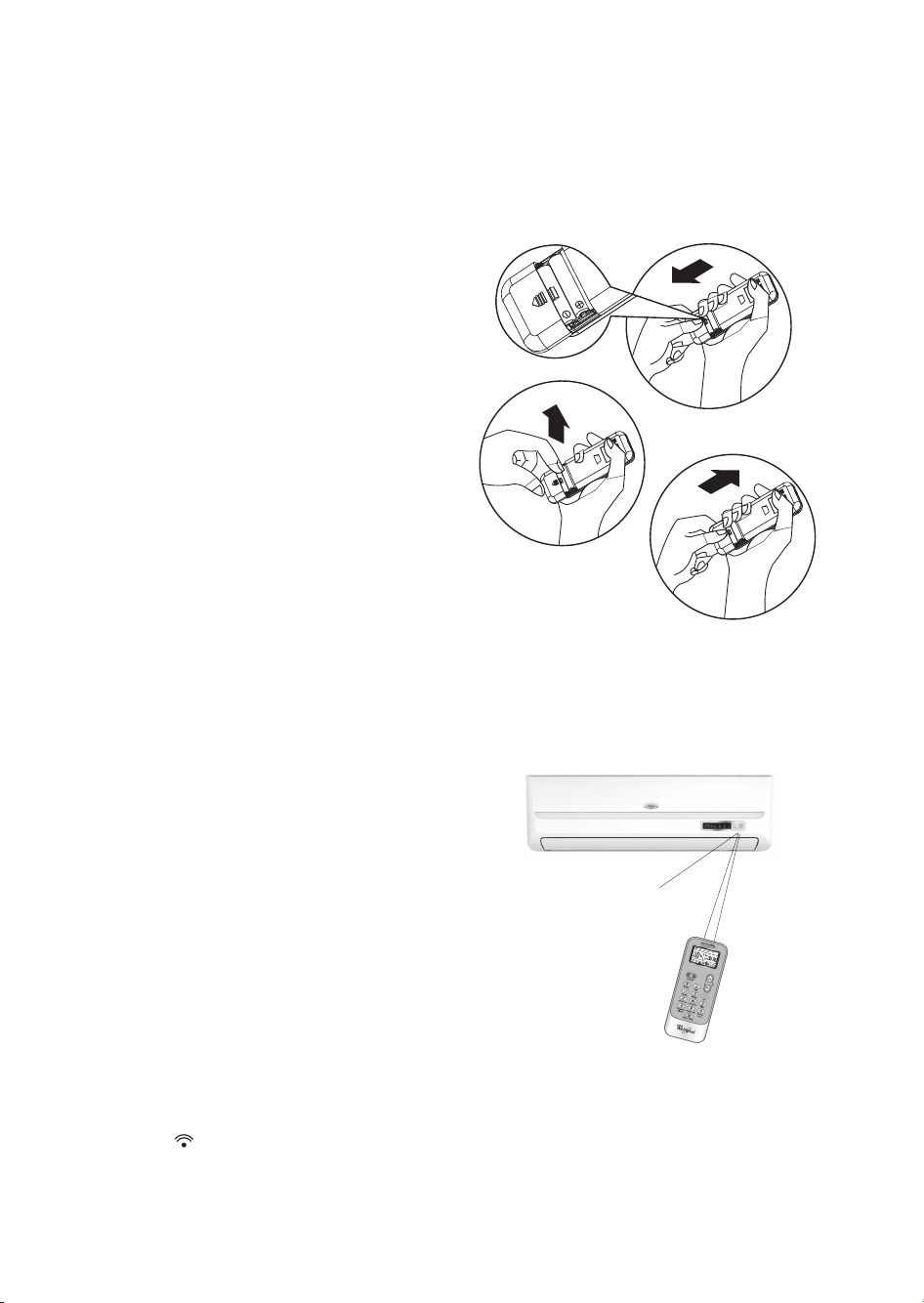

How to insert the batteries

1. Insert a pin and gently press down on the

battery cover and push in the direction of the

arrow to remove, as shown.

2. Insert 2 AAA batteries (1.5V) into the

compartment.

Ensure that "+" and "-" polarity is correctly

positioned.

3. Close the battery cover on the remote control.

How to remove the batteries

Remove the battery cover in the direction of the

arrow.

Press the positive pole of the battery softly with

your fingers, then draw the batteries out of the

compartment. All this should be done by adults,

children are forbidden to remove the batteries

from the remote control in order to avoid danger

of swallow.

Disposal of the batteries

Please discard the batteries as sorted municipal

waste at the accessible collection point.

Precautions

• When replacing the batteries, do not use new

batteries with old batteries, or different types of

batteries as this may cause the remote control

to malfunction.

• If you do not expect to use the remote control

for some time, take the batteries out to prevent

leakage of battery acid in the remote control.

• Operate the remote control within effective

range. Keep the remote control at least 1 meter

from any TV set or HI-FI equipment.

• If the remote control does not work normally,

take the batteries out and reinstall after 30

seconds. If it still does not work install new

batteries.

• To operate the appliance by remote control,

point the remote control at the receiving device

on the indoor unit, to ensure receiving

sensibility.

• To send a message from remote control, the

symbol will flash for 1 second. On receipt

of the message, the appliance will emit a beep.

• The remote control will operate the air

conditioner at a distance of up to 7m.

• Each time the batteries are replaced in the

remote control, the remote control is pre-set at

Heat Pump mode.

Signal receptor

OPERATING MODE DESCRIPTION

Operation Modes:

1. Selecting mode

Each time MODE button is pressed, the operation

mode is changed in sequence:

COOLING →DRY →FAN ONLY →HEATING

↑

Heating mode is not available for cooling only air

conditioners.

2. FAN mode

Each time the "FAN" button is pressed, the fan

speed is changed in sequence:

Auto →High →Medium →Low

↑

At "FAN ONLY" mode, only "High","Medium" and

"Low" are available.

At "DRY" mode, Fan speed is set at "Auto"

automatically, "FAN" button is ineffective in this

case.

3. Setting temperature

Press once to raise temperature setting by 1

raise °C

Press once to lower temperature setting by 1

lower °C

*Note: Heating mode is NOT available for

cooling only models.

4. Turning on

Press button, when the appliance receives

the signal, the RUNNING indicator of the indoor

unit lights up.

During mode changes wait a few seconds and

repeat the operation if the unit does not respond

at once.

When selection the heating operation, air flow will

start after 2-5 minutes.

Range of available set temperature

*HEATING, COOLING 18°C~32°C

DRY +/-7°C

FAN ONLY unable to set

1 2

Otros manuales para AMD 018

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Acondicionador de aire de Whirlpool

Whirlpool

Whirlpool ACSIOZ ACS520 Manual de usuario

Whirlpool

Whirlpool 1188177-W Manual de lista de piezas

Whirlpool

Whirlpool ACM052PS0 Manual de usuario

Whirlpool

Whirlpool AWA07520N Guía de instalación

Whirlpool

Whirlpool ACC602XP0 Manual de usuario

Whirlpool

Whirlpool ACE184XS0 Manual de usuario

Whirlpool

Whirlpool ACE082XR0 Manual de usuario

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manual de usuario

Whirlpool

Whirlpool ASV09000R Manual de usuario

Whirlpool

Whirlpool ACQ052PK0 Manual de usuario

Whirlpool

Whirlpool ACE082XH0 Manual de usuario

Whirlpool

Whirlpool ACS088PR0 Manual de usuario

Whirlpool

Whirlpool AMD034 Manual de usuario

Whirlpool

Whirlpool ACXO82XZO Manual de usuario

Whirlpool

Whirlpool AMD 061 Manual de usuario

Whirlpool

Whirlpool WHHW242AW Manual de usuario

Whirlpool

Whirlpool YACQ108MR0 Manual de usuario

Whirlpool

Whirlpool SPIW409A2WF Manual de usuario

Whirlpool

Whirlpool Comfore-aire RA51K0 Manual de usuario

Whirlpool

Whirlpool Cool Impression room air conditioners Manual de usuario

Whirlpool

Whirlpool 1159801 Manual de usuario

Whirlpool

Whirlpool CA13WQ4 Manual de usuario

Whirlpool

Whirlpool 63851338 Instrucciones de montaje

Whirlpool

Whirlpool WHAT102-2BW Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
