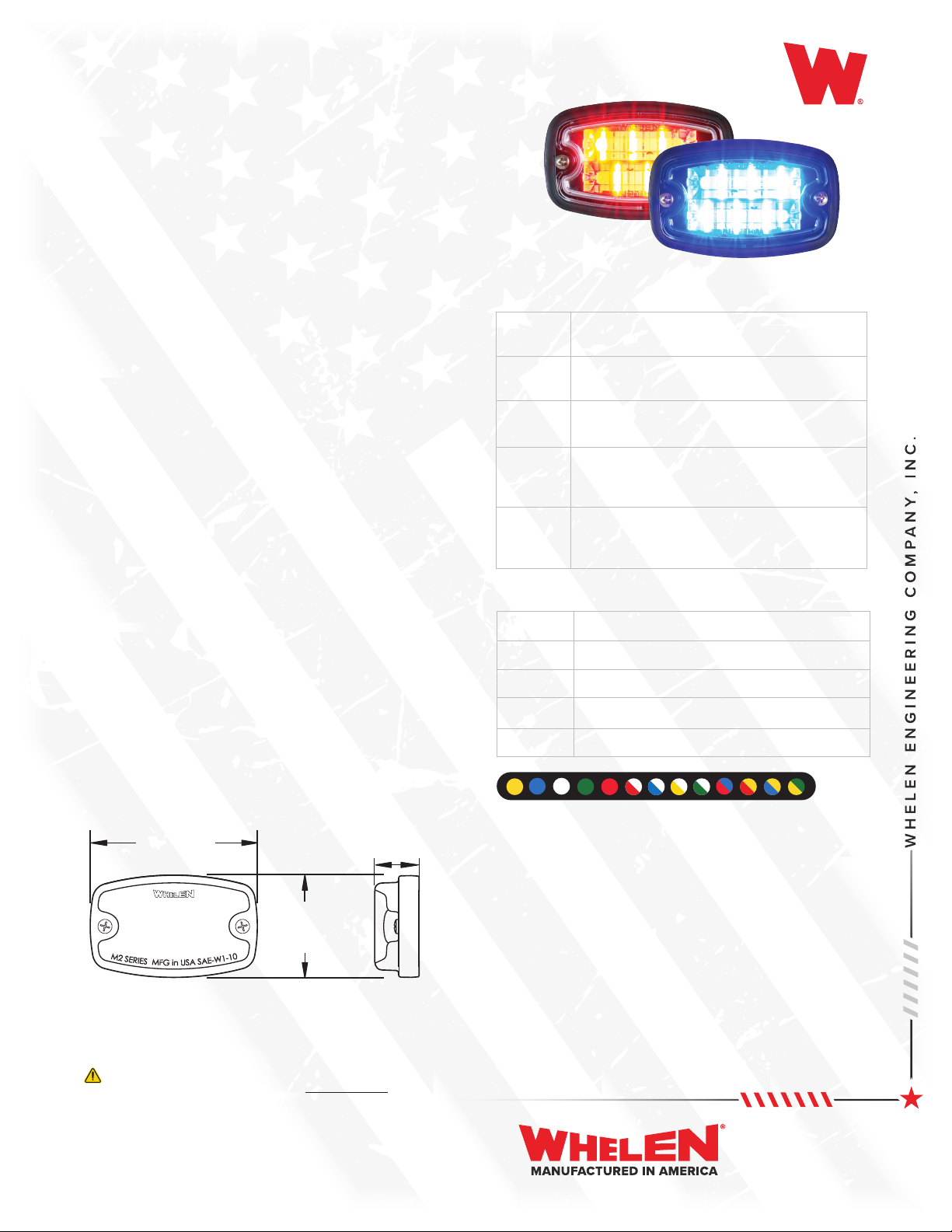

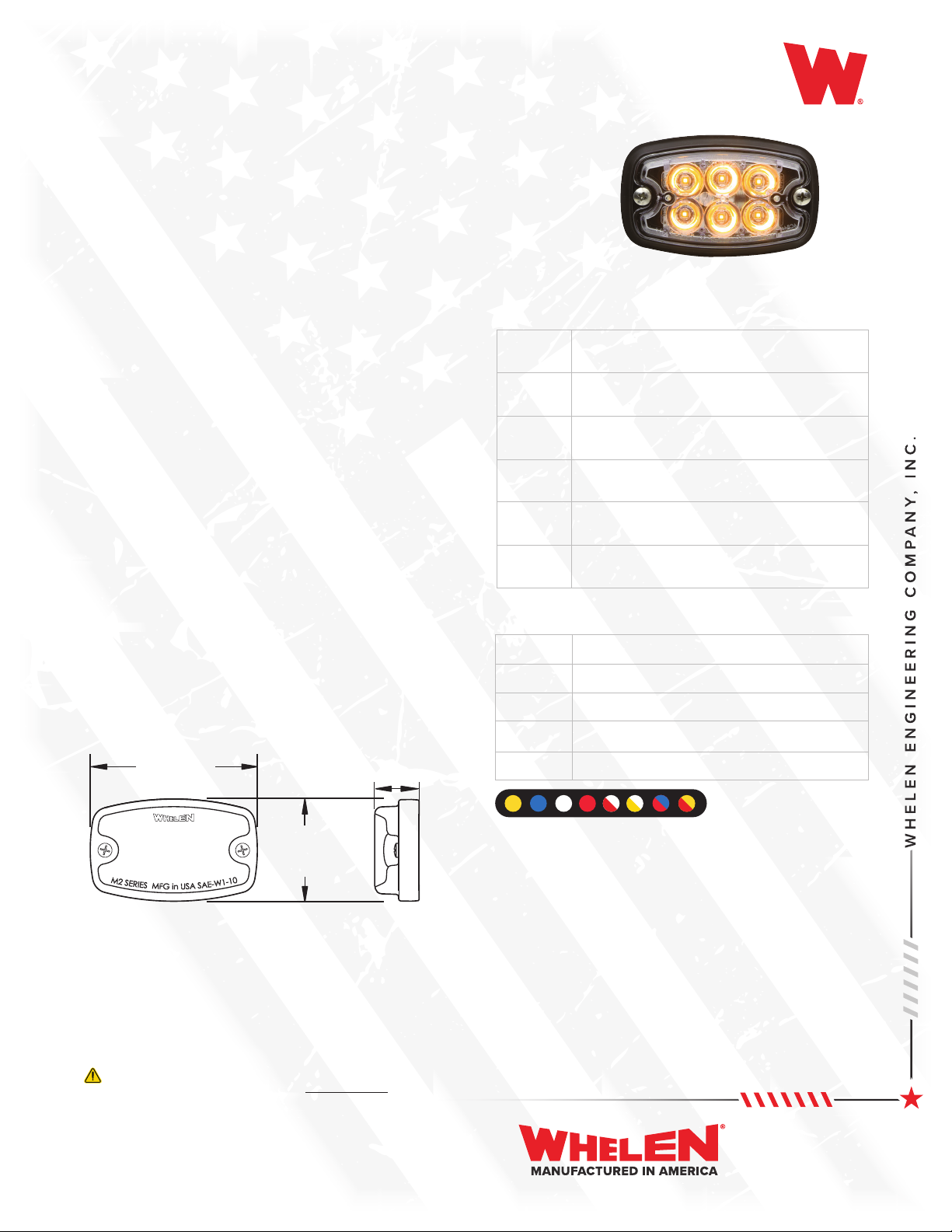

LIGHTHEADS

M2 SERIES

With a unique lens shape and patented Linear-LED®or TIR™

reflector assembly, M Series™lightheads are completely

illuminated for unmatched high-intensity warning and low

current consumption. The M2’s compact footprint makes

it ideal for installation in areas where space is limited, like

grilles and push bumpers.

ML2DJ

WARNING: This product may contain chemicals known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, visit whelen.com/regulatory.

Code No. P13466A - 8/2023

(53mm)

3.7"

(93mm)

0.9"

(23mm)

M2FC Flange Mount, Chrome

M2FB Flange Mount, Black

M2GROM Grommet Mount Kit, Black

M2PEDB Pedestal Mount Kit, Black

M2PEDC Pedestal Mount Kit, Chrome

OPTIONS

SPECS

Voltage: 12 VDC

Current: Peak: 1.0 amp

Average: 0.45 amp

Certiﬁcations: KKK-1822F, NFPA 1901, NFPA 1917,

SAE, and EC65 speciﬁcations

Warranty: 10-Year warranty

*REPLACE SYMBOL IN MODEL NUMBER WITH LED COLOR DESIRED: A=AMBER, B=BLUE,

C=WHITE, G=GREEN, R=RED

# REPLACE SYMBOL IN MODEL NUMBER WITH LED COLOR DESIRED:

D=RED/WHITE, E=BLUE/WHITE, F=AMBER/WHITE, H=GREEN/WHITE, J=RED/BLUE,

K=RED/AMBER, M=BLUE/AMBER, P=AMBER/GREEN

• Available with Clear, Color, or Smoked lenses

• Hard-coated lenses resist environmental damage

from sand, sun, salt, and road chemicals

• Mounts to surface via two screws for easy installation

• SOLO™and DUO™models have 74 Scan-Lock™ﬂash

patterns

• DVI™ﬂash patterns

• Patented E Block™technology creates a watertight

seal around the unit’s stranded wires to prevent

moisture from entering the lighthead

 STEADYLOCK™sets lightheads to Steady

automatically when used with a CenCom Core®

control system

M2 LINEAR LIGHTHEAD FEATURES

ML2* SOLO, Warning Light, Amber, Blue, White, Green or

Red, with Color Lens

ML2*C SOLO, Warning Light, Amber, Blue, White, Green or

Red, with Clear Lens

ML2*X SOLO, Warning Light, Amber, Blue, White, Green or

Red, with Smoked Lens

ML2D#

DUO, Warning Light, Red/White, Blue/White, Amber/

White, Green/White, Red/Blue, Red/Amber,

Blue/Amber, or Amber/Green Only, with Clear Lens

ML2D#X

DUO, Warning Light, Red/White, Blue/White, Amber/

White, Green/White, Red/Blue, Red/Amber,

Blue/Amber, or Amber/Green Only, with Smoked Lens

M2 LINEAR MODELS

51 Winthrop Road

Chester, Connecticut 06412-0684

(860) 526-9504

www.whelen.com

All products proudly designed,

manufactured, and assembled

in the U.S.A.

• ISO 9001 Registered QMS

Whelen Engineering reserves the right to upgrade and

improve products without notice.

M2 TIR LIGHTHEAD FEATURES

LIGHTHEADS

M2 SERIES

With a unique lens shape and patented Linear-LED®or TIR™reflector

assembly, M Series™lightheads are completely illuminated for

unmatched high-intensity warning and low current consumption. The

M2’s compact footprint makes it ideal for installation in areas where

space is limited, like grilles and push bumpers.

• Available with Clear or Color lenses

• Hard-coated lenses resist environmental damage

from sand, sun, salt, and road chemicals

• Mounts to surface via two screws for easy installation

• SOLO™models have 25 Scan-Lock™ﬂash patterns

• Split models have 69 Scan-Lock ﬂash patterns

M2* SOLO, Warning Light, Amber, Blue, White, or Red, with

Color Lens

M2*C SOLO, Warning Light, Amber, Blue, White, or Red with

Clear Lens

M2# SOLO, Warning Light, Split Color, Red/White, Amber/

White, Red/Blue, or Red/Amber Only, with Clear Lens

M2W* SOLO, Warning Light, Wide Angle, Amber, Blue, White,

or Red, with Color Lens

M2W*C SOLO, Warning Light, Wide Angle, Amber, Blue, White,

or Red, with Clear Lens

M2W# SOLO, Warning Light, Wide Angle, Split Color, Red/

White, Red/Blue, Red/Amber Only, with Clear Lens

WARNING: This product may contain chemicals known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, visit whelen.com/regulatory.

Code No. P13466A - 8/2023

M2 TIR MODELS

(53mm)

3.7"

(93mm)

0.9"

(23mm)

M2FC Flange Mount, Chrome

M2FB Flange Mount, Black

M2GROM Grommet Mount Kit, Black

M2PEDB Pedestal Mount Kit, Black

M2PEDC Pedestal Mount Kit, Chrome

OPTIONS

SPECS

Voltage: 12 VDC

Current: Peak: 1.0 amp

Average: 0.45 amp

Certiﬁcations: KKK-1822F, NFPA 1901, NFPA 1917,

SAE, and EC65 speciﬁcations

Warranty: 10-Year warranty

REPLACE * SYMBOL IN MODEL NUMBER: A=AMBER, B=BLUE, C=WHITE, R=RED.

REPLACE # SYMBOL IN MODEL NUMBER WITH SPLIT OR DUO COLOR DESIRED:

D=RED/WHITE, F=AMBER/WHITE, J=RED/BLUE, K=RED/AMBER
