Wharfedale Pro SVP-12PM Manual de usuario

SVP-12PMSVP-12PM

Service Manual :

SVP-12PM

Professional Speaker

Enclosures

TABLE OF CONTENTS

SPECIFICATIONS-----------------------------------------------------------------------------2

SCHEMATIC DIAGRAM---------------------------------------------------------------------3

ASSEMBLY PART LIST----------------------------------------------------------------------4

ELECTRONICS PARTS LIST----------------------------------------------------------------5

SCHEMATIC DIAGRAM(AMP)------------------------------------------------------------6

ASSEMBLY PART LIST(AMP)--------------------------------------------------------------8

ELECTRONICS PARTS LIST(AMP)--------------------------------------------------------9

All manuals and user guides at all-guides.com

all-guides.com

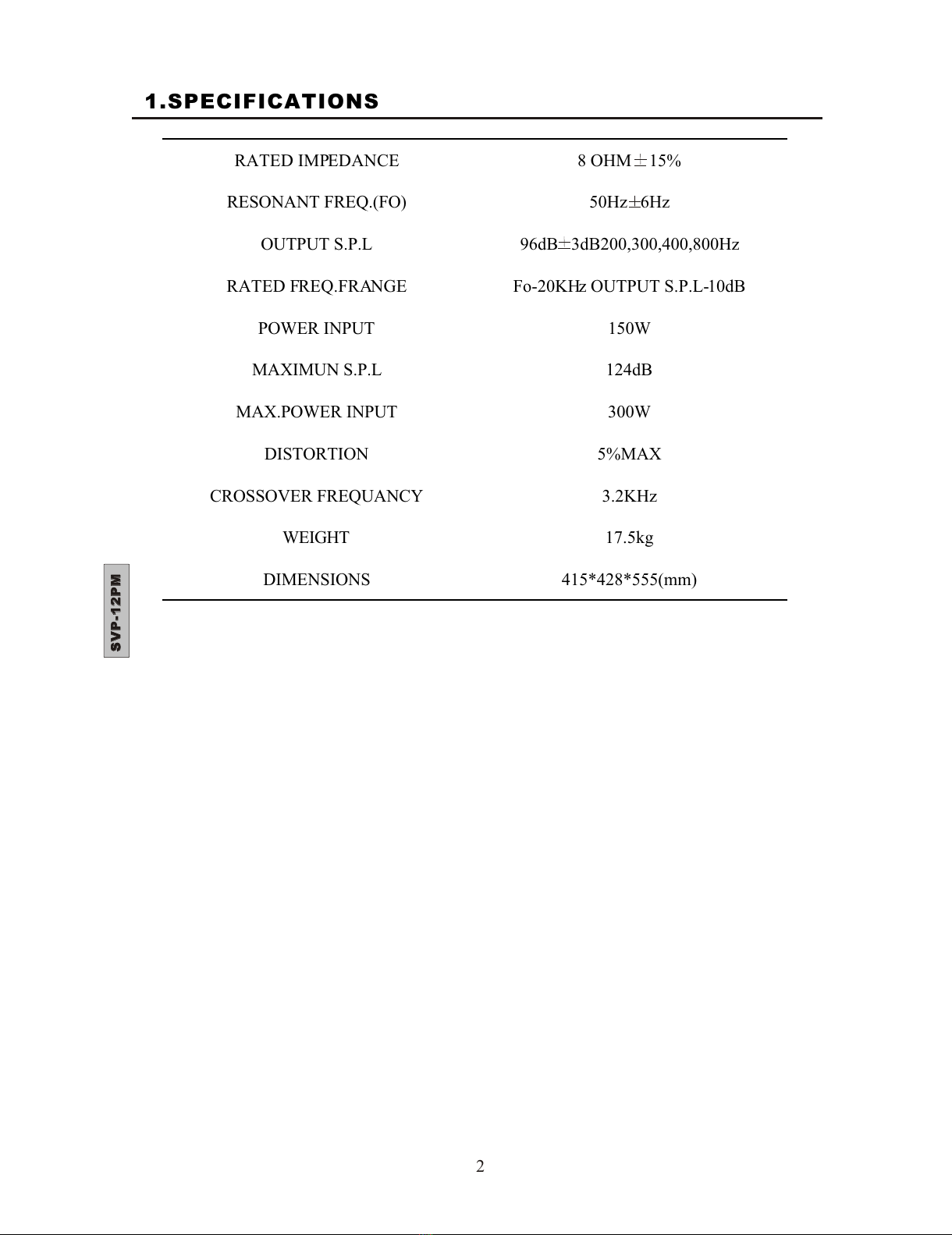

1.SPECIFICATIONS

SVP-12PMSVP-12PM

RATED IMPEDANCE 8 OHM 15%

RESONANT FREQ.(FO) 50Hz 6Hz

OUTPUT S.P.L 96dB 3dB200,300,400,800Hz

RATED FREQ.FRANGE Fo-20KHz OUTPUT S.P.L-10dB

POWER INPUT 150W

MAXIMUN S.P.L 124dB

MAX.POWER INPUT 300W

DISTORTION 5%MAX

CROSSOVER FREQUANCY 3.2KHz

WEIGHT 17.5kg

DIMENSIONS 415*428*555(mm)

All manuals and user guides at all-guides.com

2.SCHEMATIC DIAGRAM

SVP-12PMSVP-12PM

R1=2 OHM/25W L2=0.3mH

L1=0.25mH C1=1.5uF/250V

All manuals and user guides at all-guides.com

3.ASSEMBLY PARTS LIST

SVP-12PMSVP-12PM

R/N P.N PART NAME DESCRIPTION QUA

1062-5318000110 POWER WIRE 1

2217-2645000003 LOGO 1

3217-2920000001 WHARFEDALE PRO-LOGO 1

4226-3800601111 RUBBER FOOT 4

5233-0600550501 PLASTIC TUBE 2

6253-2920000001 TWEETER HORN 1

7310-2921000001 GRILL 1

8328-2643000001 HANDLE 1

9328-2921000001 TEAR HANDLE 1

10 333-2927000001 FRONT IRON CORNER 4

11 333-2927000002 BEHIND IRON CORNER 2

12 344-2923000001 CABINET 1

1ZC-27400-07 AMPLIFIER european 1

13 409-2923000001 CARTON BOX 1

14 500-4070320300A NUT M4 Zn 4

15 513-4010120300A WASHER M4 Zn 4*10*1.2 4

16 513-4012130800A WASHER M4 BZn 4*12*1.3 4

17 529-4013250813A SCREWS SC(*)4*25 DA 4

18 533-5001350801A SCREWS MT(+)5*35 D 3

19 537-4002300801A SCREWS MP(+) 4*30 4

20 537-5001100801A SCREWS MP(+)5*10 BZn D 4

21 553-3502408061A SCREWS 3.5*40 TA H BZn 4

22 553-4001208061A SCREWS 4*20TA H BZn 12

23 553-4001258061A SCREWS 4*25TA H BZn 4

24 553-5001259061A SCREWS 5*25TA H φ9D 8

25 554-4001208061A SCREWS 4*20KA H φ818

26 554-4002188061A SCREWS 4.0*18 KA Hφ8.0 16

27 600-9230000010 CROSSOVER 1

28 ZD-53200-01 TWEETER 1

29 ZD-56900-01 WOOFER 1

All manuals and user guides at all-guides.com

4.ELECTRONIC PARTS LIST

SVP-12PMSVP-12PM

R/N P.N PART NAME DESCRIPTION QUA

1001-2009519100 RESISTOR 2OHM/25W 10% 1

2 014-1550411002 CAPACITOR 1.5uF/250V 10% 1

3 053-2921003109 PCB BOARD 1

4079-0002000000 FUSE SK3 C-CTECH 1

5080-0100306000 INDUCTANCE 0.3mHmH 1

6 080-0302510110 INDUCTANCE 0.25mH 1

All manuals and user guides at all-guides.com

5.SCHEMATIC DIAGRAM(AMP)

SVP-12PMSVP-12PM

All manuals and user guides at all-guides.com

all-guides.com

5.SCHEMATIC DIAGRAM(AMP)

SVP-12PMSVP-12PM

All manuals and user guides at all-guides.com

6.ASSEMBLY PARTS LIST(AMP)

SVP-12PMSVP-12PM

R/N P/N PART NAME DESCRIPTION QUA

1ZC-27400-07 AMPLIFIER

2088-1274000300 AMPLIFIER BLOCK SVP-12PM 1

3088-1274001000 AUDIO ADJUST BLOCK SVP-12PM-TONE 1

4088-1274002000 SIGNAL INPUT BLOCK SVP-12PMINPUT 1

5088-1326000000 POWER BLOCK SVP-15PB 1

6019-0556122001 BRIGHT LED BLUE 1

7031-2200510122 FUSE 1

8042-1003005000 POWER SWITCH RF-1003 TV-5 AC250V 1

9 044-1000000000 SOCKET POWER 1

10 049-1304113124 MICRO SOCKET MICROPHONE 1

11 055-0302310311 GROUP WIRE AWG18 1

14 083-0122500000 FAN 1

15 213-1026000001 VOLUME KNOB 1

16 300-1274000011 CONTROL PANEL 1

17 304-1295000001 PCB BRACKET 1

18 306-1326000001 RADIATOR 1

19 307-1300500111 COPPER POST M3*10.8mm 5

20 307-2300600161 COPPER POST M3*16 1

21 307-2300601501 COPPER POST M3*15 4

22 308-1274000001 PANEL C-274.02M 1

23 524-3022080811A SCREWS SK(+)3*8 MC H BZn 4

24 526-3022160811A SCREWS SB(+)3*16 MC H BZn 4

25 527-4022080811A SCREWS SP(+)4*8 MC H BZn 4

26 535-3031080801A SCREWS MPW(+)3*8 BZn D 11

27 537-3001080801A SCREWS MP(+)3*8 BZn D 1

28 537-3001140801A SCREWS MP(+)3*14 BZn D 7

All manuals and user guides at all-guides.com

7.ELECTRONIC PARTS LIST(AMP)

R/N P.N PART NAME DESCRIPTION QUA PLACE

088-1274001000 ATTUNEMENT PCB 1

1053-1274002000 PCB BOARD 1

2014-4740211028 CAPACIT OR MKS2 470nF 63V 10% 1 C4

3014-1020100001 CAPACIT OR CL11 1NF-50V-J 1 C21

4014-1030100001 CAPACIT OR 10NF 50V J 1 C3

5014-1040100001 CAPACIT OR CL11 100NF/50V-J 1 C6

6014-1220200002 CAPACIT OR AMZ 1N2F-63V-5% 1 C7

7014-1530100001 CAPACIT OR CL11 15NF/50V-J 1 C10

8009-1050508110 CAPACIT OR 1uF 50V 20% 1 C2

9014-2730300001 CAPACIT OR 27N-100V-J 1 C1

10 014-4710100002 CAPACIT OR AMZ 470PF/50V J 1 C9

11 014-4720100001 CAPACIT OR CL11 4.7NF/50V-J 1 C5

12 008-4701010014 CAPACIT OR 470P-100V-J 1 C11

13 014-5630100001 CAPACIT OR CL11 56NF/50V-J 5% 1 C8

14 008-1001005015 CAPACIT OR 100PF-50V-10% 1 C18

15 006-1014061143 CAPACIT OR SM100uF 25V 2 C14.C15

16 006-1004051143 CAPACIT OR SM10uF 25V 4 C12.C13.C19.C20

17 006-2204061163 CAPACIT OR SM22UF 50V 20% 1 C17

18 001-1502105050 RESISTOR 1.5K 1/4W J 1 R7

19 001-1004105050 RESISTOR 100K 1/4W J 1 R5

20 001-1001105050 RESISTOR 100 OHM 1/4W J 1 R14

21 001-1803105050 RESISTOR 18K 1/4W J 1 R3

22 001-2203105050 RESISTOR 22K 1/4W J 2 R9.R10

23 001-4702105050 RESISTOR 4.7K 1/4W J 1 R1

24 001-2002105050 RESISTOR 2K 1/4W J 1 R15

25 020-5032129112 POTENTIOMETERS R0911NOX-V1B503YE00-00 1R2

26 020-1043119012 POTENTIOMETERS RA4543-20-15EB1-B100K-C 5 POT1.POT2.POT3.P

OT4.POT5

27 056-4102220000 JACK JS-1001-02 1 CON2

28 056-4104221100 JACK DJ2802-4P 1 CON1

29 018-4108599115 AUDION MSP8599 TO-92 1 Q1

30 019-0311122001 LED 204HD/E-A RED 1 R16

31 017-3290000000 IC TA7796P 1 U1

32 017-0650000000 IC TL072(CN) 1 U2

33 222-0130505011 LAMP'S BRACKET LED-13 1R16

088-1274002000 INPUT PCB 1

1053-1274003000 PCB BOARD 1

2049-2102224111 JACK PHONE JY6351-02-250 2

3 049-1304113120 JACK LS-2031-4 1

1 055-0304400133 LEAD 1

2055-2502300344 LEAD 1

3044-2600000000 POWER JACK RF-2004 1

4 041-2043000000 POWER SWITCH R130-22C-11P 1

5 060-4180120015 LEAD 2

SVP-12PMSVP-12PM

All manuals and user guides at all-guides.com

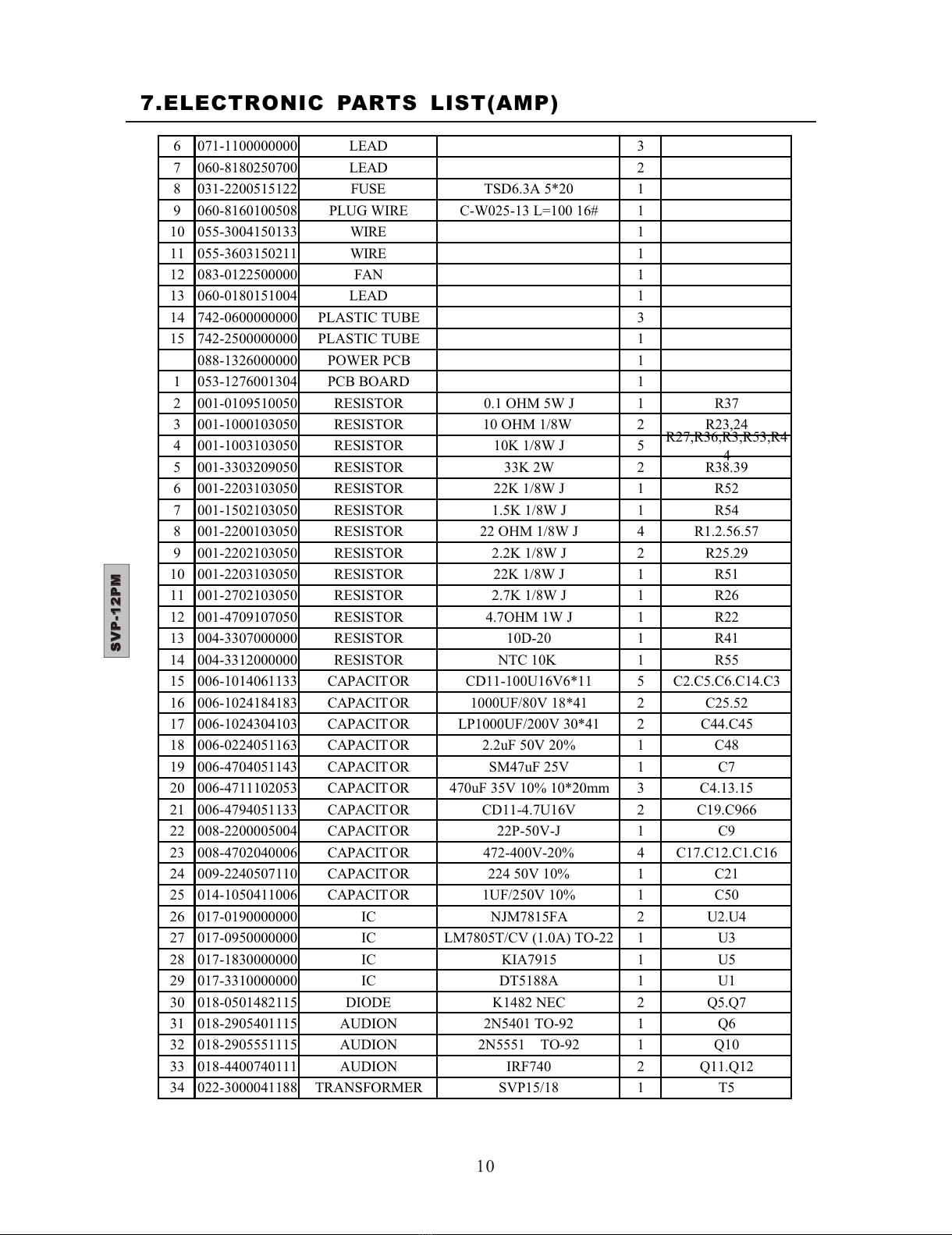

7.ELECTRONIC PARTS LIST(AMP)

6071-1100000000 LEAD 3

7060-8180250700 LEAD 2

8031-2200515122 FUSE TSD6.3A 5*20 1

9 060-8160100508 PLUG WIRE C-W025-13 L=100 16# 1

10 055-3004150133 WIRE 1

11 055-3603150211 WIRE 1

12 083-0122500000 FAN 1

13 060-0180151004 LEAD 1

14 742-0600000000 PLASTIC TUBE 3

15 742-2500000000 PLASTIC TUBE 1

088-1326000000 POWER PCB 1

1053-1276001304 PCB BOARD 1

2001-0109510050 RESISTOR 0.1 OHM 5W J 1 R37

3001-1000103050 RESISTOR 10 OHM 1/8W 2 R23,24

4 001-1003103050 RESISTOR 10K 1/8W J 5 R27,R36,R3,R53,R4

5 001-3303209050 RESISTOR 33K 2W 2 R38.39

6 001-2203103050 RESISTOR 22K 1/8W J 1 R52

7001-1502103050 RESISTOR 1.5K 1/8W J 1 R54

8001-2200103050 RESISTOR 22 OHM 1/8W J 4 R1.2.56.57

9 001-2202103050 RESISTOR 2.2K 1/8W J 2 R25.29

10 001-2203103050 RESISTOR 22K 1/8W J 1 R51

11 001-2702103050 RESISTOR 2.7K 1/8W J 1 R26

12 001-4709107050 RESISTOR 4.7OHM 1W J 1 R22

13 004-3307000000 RESISTOR 10D-20 1 R41

14 004-3312000000 RESISTOR NTC 10K 1 R55

15 006-1014061133 CAPACIT OR CD11-100U16V6*11 5 C2.C5.C6.C14.C3

16 006-1024184183 CAPACIT OR 1000UF/80V 18*41 2 C25.52

17 006-1024304103 CAPACIT OR LP1000UF/200V 30*41 2 C44.C45

18 006-0224051163 CAPACIT OR 2.2uF 50V 20% 1 C48

19 006-4704051143 CAPACIT OR SM47uF 25V 1 C7

20 006-4711102053 CAPACIT OR 470uF 35V 10% 10*20mm 3 C4.13.15

21 006-4794051133 CAPACIT OR CD11-4.7U16V 2 C19.C966

22 008-2200005004 CAPACIT OR 22P-50V-J 1 C9

23 008-4702040006 CAPACIT OR 472-400V-20% 4 C17.C12.C1.C16

24 009-2240507110 CAPACIT OR 224 50V 10% 1 C21

25 014-1050411006 CAPACIT OR 1UF/250V 10% 1 C50

26 017-0190000000 IC NJM7815FA 2 U2.U4

27 017-0950000000 IC LM7805T/CV (1.0A) TO-22 1 U3

28 017-1830000000 IC KIA7915 1 U5

29 017-3310000000 IC DT5188A 1 U1

30 018-0501482115 DIODE K1482 NEC 2 Q5.Q7

31 018-2905401115 AUDION 2N5401 TO-92 1 Q6

32 018-2905551115 AUDION 2N5551 TO-92 1 Q10

33 018-4400740111 AUDION IRF740 2 Q11.Q12

34 022-3000041188 TRANSFORMER SVP15/18 1 T5

SVP-12PMSVP-12PM
