Westinghouse LTV-20V4 Manual de usuario

-- Important Safety Instructions

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5I_) not use this apparatus near water.

6Clean only with dry cloth.

7I_ not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

8Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third mounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not tit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments and accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified _'l"_i

by the manuthcturer, or sold with the apparatus. When a cart is

used, use caution when moving the cart and apparatus combination to

avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused t\3r long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 Apparatus shall not be exposed to dripping or splashing and no objects fill with liquids,

such as vases, shall be placed on the apparatus.

16 To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable

parts inside. Refer servicing to qualified service personnel.

17 The readily operable appliance coupler will serve as the disconnect device of this

apparatus.

18 The apparatus must be connected to a mains socket outlet with a protected earthing

connection.

19 Keep 10cm minimum distance around the apparatus for sufficient ventilation.

20 Spent or discharged batteries must be recycled or disposed of property in compliance

with all applicable laws. For detailed information, contact your local county solid waste

authority.

/_ WARNING: TO REDUCE THE RISK OF FIRE ORRiSK OF ELECTRIC SHOCK ELECTRIC SHOCK, DO NOT EXPOSE THIS

DO NOT OPEN PRODUCT TO RAIN OR MOISTURE,

The lightning flash with arrow head symbol, within an equilateral triangle, is

//_ intended to alert the user to the of uninsutated "dangerous voltage"

presence

within the product's enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

///_ user to the of important operating and maintenance (servicing)

presence

instructions in the literature accompanying the appliance.

Caution: These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than that

contained in the operating instructions unless you are qualified to do so.

Maintenanc÷

If any of the following occurs, unplug the LCD TV and contact your distributor or

qualified technician to repair the LCD TV:

IThe power cord or plug is damaged.

2Liquid enters the LCD IV.

3LCD TV is damp or wet.

4LCD TV is damaged.

5LCD TV malfunctions.

DISCLAIMER

Westinghouse Digital does not recommend the use of any ammonia or alcohol-based

cleaners on the LCD TV screen or case. Some chemical cleaners have been reported to

damage the screen and/or LCD TV case. WEstinghouse Digital wilt not be liable for

damage resulting tiom the use of rely ammonia or alcohol-based cleaners.

Note: DO NOT attempt to repair the LCD TV by yourself. There are high voltages inside

the cabinet which poses a risk of electric shock.

Changing parts

If the LCD TV requires new parts, ask the technician for written proof the new parts

are specified by the lnanufacturer and function are the same as the original parts.

Atier the LCD TV is repaired, be sure to ask the technician (in accordance with the

manut:acturer's requirements) m conduct a routine safety inspection to make sure the

LCD TV is sate. If the LCD TV has been used longer than its life, please contact

qualified technician tierrepair.

UsoFN r÷cord

You can find the serial number and model on the back of the LCD TV. Be sure to provide

the model mid serial number when you contact your distributor.

Note: Please read mid comply with all warnings, cautions, and instructions in the manual

thoroughly. Failing m do so may void your warranty. Modifying the LCD TV in such a

manner not approved by this manual will also void your warranty.

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Note: This equipment has been tested mid t\_und to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are desiNled to provide

reasonable protection against harlnful interference in a residential installation. This

equipment generates uses and can radiate radio frequency ener_w and, if not installed and

used in accordance with the instructions, may cause harlnfut interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harlnful interference to radio or

television reception, which can be deterlnined by mining the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the t\_tlowing

measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

• (7onnect the equipment into an outlet on a circuit d!f/brentf_om that to which

the receiver is connected

Caution: To comply with the limits for an FCC Class B computing device, always use

the signal cord and power cord supplied with this unit. The Federal Comlnunications

Commission warns that changes or modifications to the unit not expressly approved by

the party responsible t\_rcompliance could void the user's authority to operate the

equipment.

mContents

hnportant Safety Instructions

I. Introduction

1-1 Bel\_re Use

1-2 Specifications

1-3 Package Contents

1-4 Installation

1-5 Front panel controls

1-6 Back panel connections

1-7 Remote control

1-7-1 Insertin_ batteries and effective range of the remote

1-7-2 Remote Control Button Description

I1. Equipment Connections and Setup

2-1 Power Connection

2-2 Connecting with Hea@hone

2-3 Antenna Connections

2-4 Connecting Other Components

2-4-1 Connecting Composite video/S-video

2-4-2 Connecting Component video

//. Basic operation and Adjustment

3-l Turning on your I,CD TV & Watching a TV progn'am

3-2 Usin_ the On Screen Display ( OSD )

3-2-10SD Main Menu contents & OSD switch loop

3-2-20SD Instruction

3-2-2-1 DISPLAY

3-2-2-2 ADVANCED

3-2-2-3 TV

3-2-2-4 AUDIO

3-2-2-5 SYSTEM

IV. Other Information

4-1 Troubleshooting

4-2 Wall Mountin_

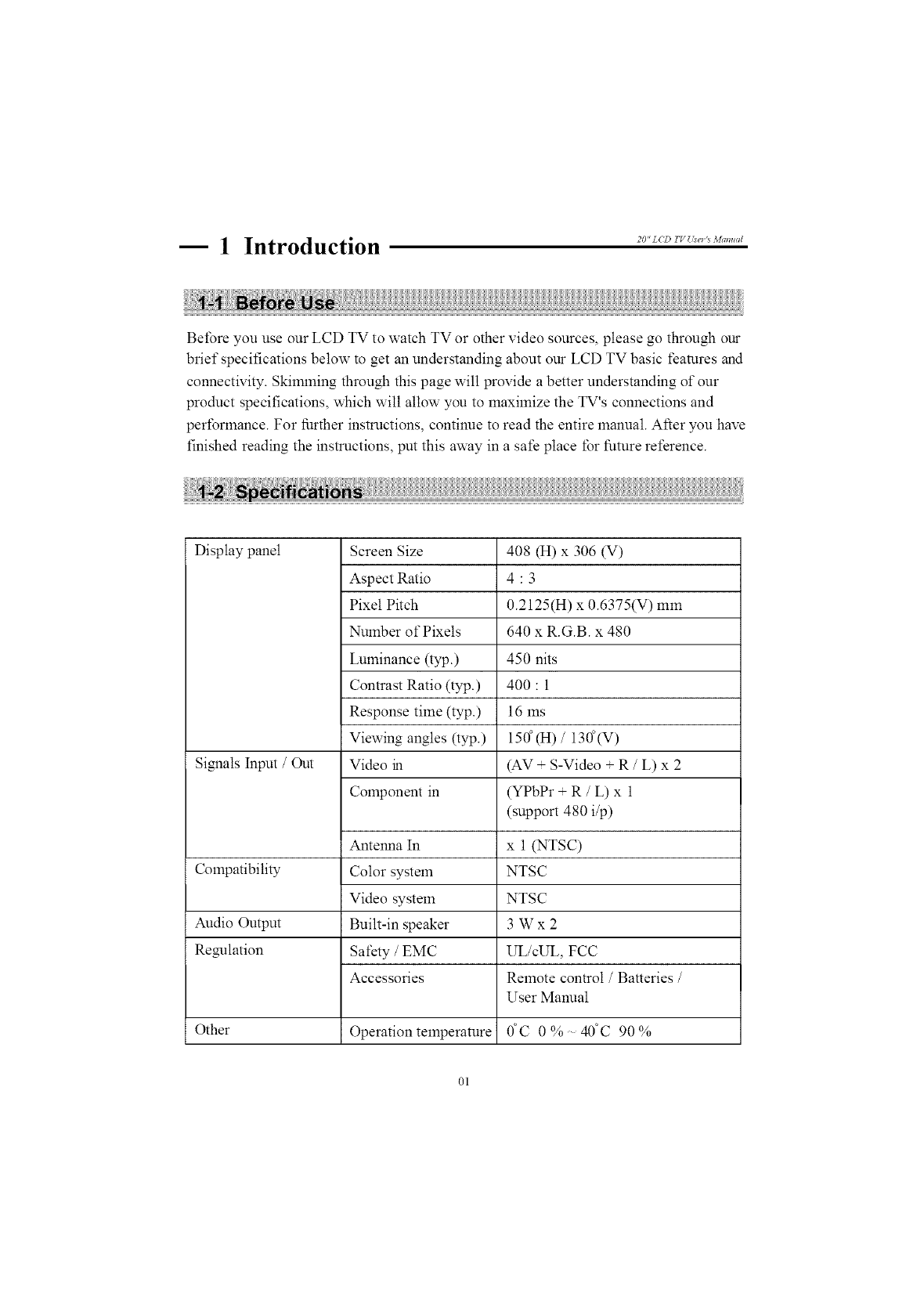

m1 Introduction 20" L C79 TV Userls Mallucd

Before you use our LCD TV to watch TV or other video sources, please go through our

brief specifications below to get an understanding about our LCD TV basic features and

connectivity. Skimming through this page will provide a better understanding of our

product specifications, which will allow you to maximize the TV's connections and

performance. For further instructions, continue to read the entire manual. After you have

finished reading the instructions, put this away in a sale place for future reference.

Display panel

SiNlals Input /Out

Compatibility

Audio Output

Retaliation

Screen Size

Aspect Ratio

Pixel Pitch

Number of Pixels

Luminance (typ.)

Contrast Ratio (typ.)

Response time (typ.)

Viewing angles (typ.)

Video in

Component in

Antenna In

Color system

Video system

Built-in speaker

Safety /EMC

Accessories

Other Operation temperature

408 (H) x 306 (V)

4:3

0.2125(H) x 0.6375(V) mm

640 x R.G.B. x 480

450 nits

400 : 1

16 ms

150°(H) /130°(V)

(AV + S-Video + R /L) x 2

(YPbPr + R /L) x 1

(support 480 i/p)

x 1 (NTSC)

NTSC

3Wx2

UL/cUL, FCC

Remote control /Batteries /

User Manual

0°C 0% 40°C 90%

Dimensional Overview

20"LC7_ TVUserll Mallual

409mm

476.4 mm

60ram

•Since the glass can be easily scratched or broken, please handle the product gently.

Never place the unit on a surthce with the glass facing downwards unless it is on

protective padding.

• When opening the carton, please check that product is in good condition and all

standard accessories and items are included. (Remote control and two AAA

batteries; LCD TV user manual)

I_MPORTANT: Save the original box

and all the packing material for future

shipping needs.

NOTE:

1.In some regions or countries, even though power outlet shapes are totally different

fiom their explanatory drawings, their connectivity and operation

methods are all the same.

2.Ddepending on your purchasing region the required accessories wilt be included

in our product accessory box.

20" LC_) TV User I_M(mucd

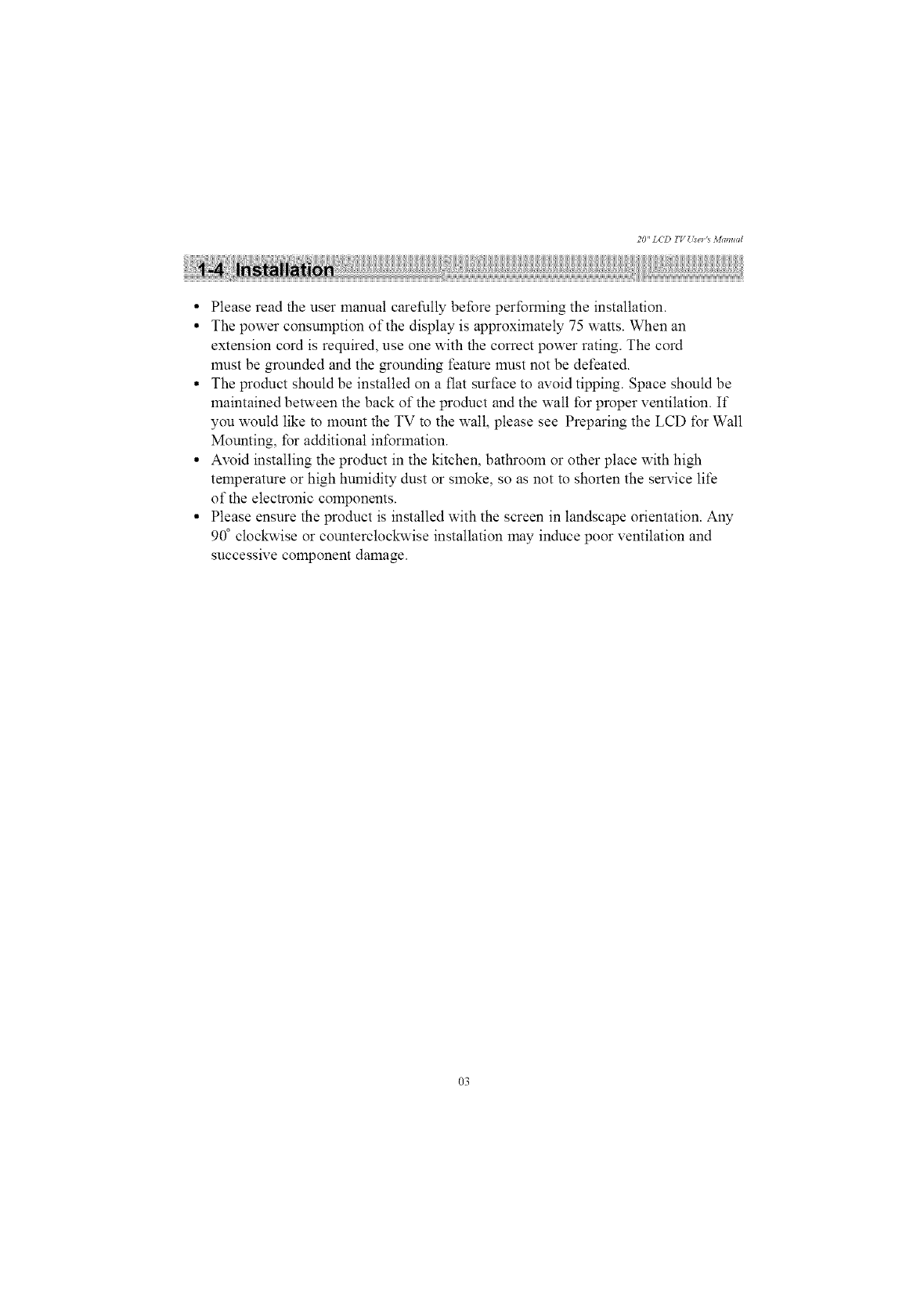

•Please read the user manual carefully before performing the installation.

• The power consumption of the display is approximately 75 watts. When an

extension cord is required, use one with the correct power rating. The cord

must be grounded and the grounding feature must not be defeated.

• The product should be installed on a flat surface to avoid tipping. Space should be

maintained between the back of the product and the wall for proper ventilation. If

you would like to mount the TV to the wall, please see Preparing the LCD t\_rWall

Mounting, for additional information.

• Avoid installing the product in the kitchen, bathroom or other place with high

temperature or high humidity dust or smoke, so as not to shorten the selwice life

of the electronic components.

• Please ensure the product is installed with the screen in landscape orientation. Any

90° cloclcvvise or countercloclcvvise installation may induce poor ventilation and

successive component damage.

20"LdT) TVU_er's Manual

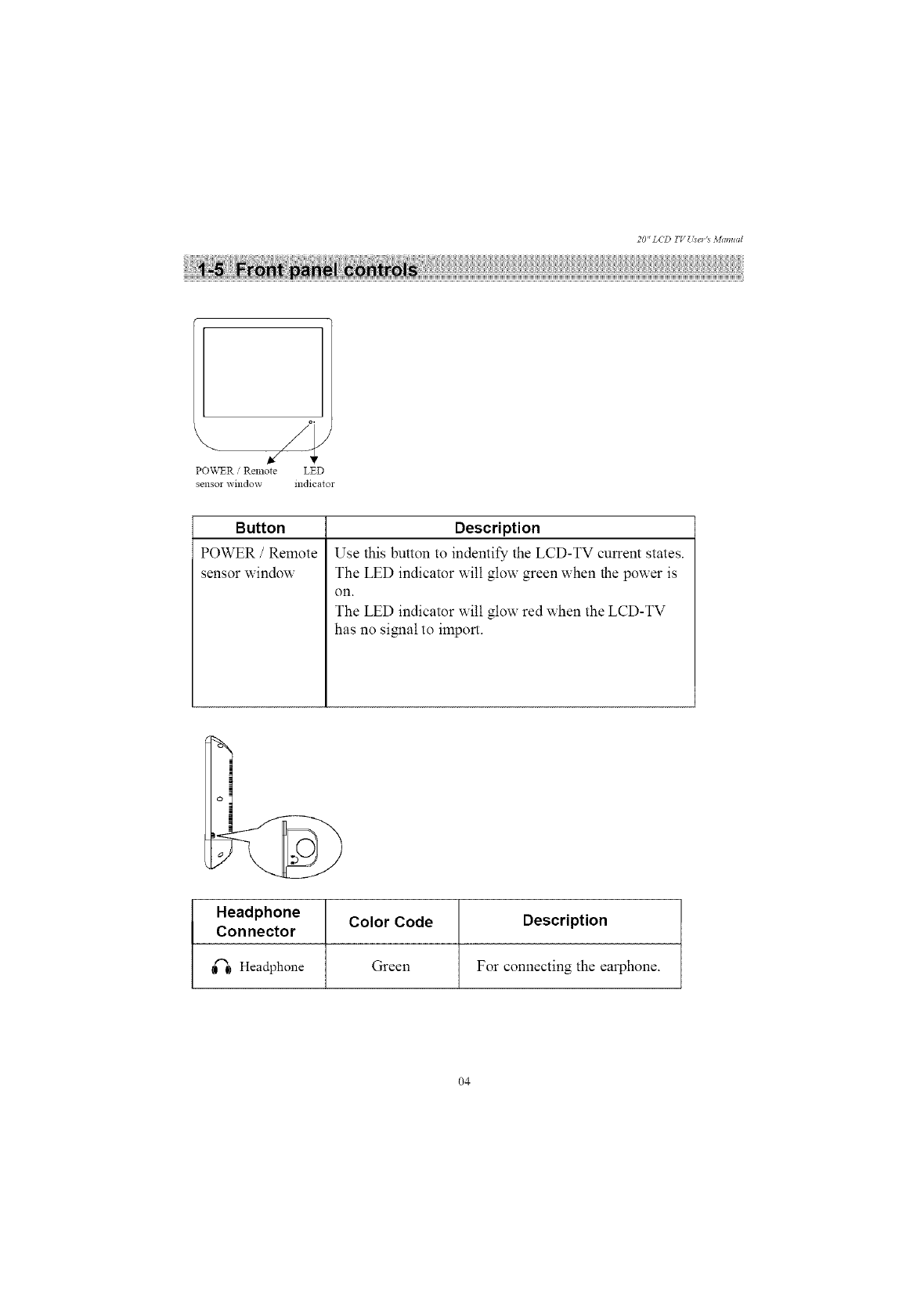

PO\_,TR, Remote LED

sensor window indicator

Button

POWER /Remote

sensor window

Description

Use this button to indentify the LCD-TV current states.

The LED indicator wilt glow green when the power is

on.

The LED indicator will glow red when the LCD-TV

has no signal to import.

Headphone Color Code Description

Connector

Headphone (heen For connecting the earphone.

20"LC7_ TVUserll Manual

Button

CHANNEL

A/T FUNCTION

4- /m VOLUME

ADJUST

-_ SOURCE

Description

Use this button to display and adjust the software-controlled

features of this LCD-TV.

Use these two buttons to switch between preprogrammed

channels. When the OSD MENU is turned ON, use these to

switch between functions to adjust.

Use these two buttons to make the sound softer and louder.

When the OSD MENU is turned ON, use these to adjust the

particular value of a function.

Use this button to change between video input signals.

Press the SOURCE button repeatedly to scroll through the

following list of inputs: IV, VIDEO 1 , VIDEO 2, and YPbPr.

NOTE:

As long as either CH Up button or CH Down button is pressed, whichever input source

is being viewed will immediately be switched to IV input source to display image on

the screen.

Otros manuales para LTV-20V4

Tabla de contenidos

Otros manuales de TELEVISOR de Westinghouse

Westinghouse

Westinghouse CW24T9PW Manual de usuario

Westinghouse

Westinghouse LTV-40w1 HDC Manual de instrucciones

Westinghouse

Westinghouse WD40FX1450 Manual de usuario

Westinghouse

Westinghouse VR-2218 Manual de usuario

Westinghouse

Westinghouse VR-3725 Manual de usuario

Westinghouse

Westinghouse CW40T6DW Manual de usuario

Westinghouse

Westinghouse VR-4085DF Manual de usuario

Westinghouse

Westinghouse UW37SC1W Manual de usuario

Westinghouse

Westinghouse WR65UX4019 Manual de usuario

Westinghouse

Westinghouse VR-3226 Manual de usuario

Westinghouse

Westinghouse WD32HT1360 Manual de usuario

Westinghouse

Westinghouse DW46F1Y1 Manual de usuario

Westinghouse

Westinghouse VR-3710 Manual de usuario

Westinghouse

Westinghouse connector Manual de usuario

Westinghouse

Westinghouse Roku TV Manual de usuario

Westinghouse

Westinghouse WE50UE4008 Manual de usuario

Westinghouse

Westinghouse DWM40F1D1 Manual de usuario

Westinghouse

Westinghouse EW40T4FW Manual de usuario

Westinghouse

Westinghouse WD42FB2680 Manual de usuario

Westinghouse

Westinghouse WD48UW4490 Manual de usuario

Westinghouse

Westinghouse WD48FW2490 Manual de usuario

Westinghouse

Westinghouse VR-2418 Manual de usuario

Westinghouse

Westinghouse WD50UC4300 Manual de usuario

Westinghouse

Westinghouse DWM48F1Y1 Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
