Westinghouse WM27PX9019 Manual de usuario

WM27PX9019

WH32UX9019

WM32DX9019

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS

INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lighting” indicates unin-

sulated material within your unit may

cause an electrical shock.For the safety of

everyone in your household, please do not

remove product covering.

The “exclamation point” calls atten-

tion to features for which you should

read the enclosed literature closely to pre-

vent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to

rain or moisture and objects filled with liquids, such as vases, should not be placed on this

apparatus.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS

INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lighting” indicates unin-

sulated material within your unit may

cause an electrical shock.For the safety of

everyone in your household, please do not

remove product covering.

The “exclamation point” calls atten-

tion to features for which you should

read the enclosed literature closely to pre-

vent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to

rain or moisture and objects filled with liquids, such as vases, should not be placed on this

apparatus.

3All specifications and informations are subject to change without notice.

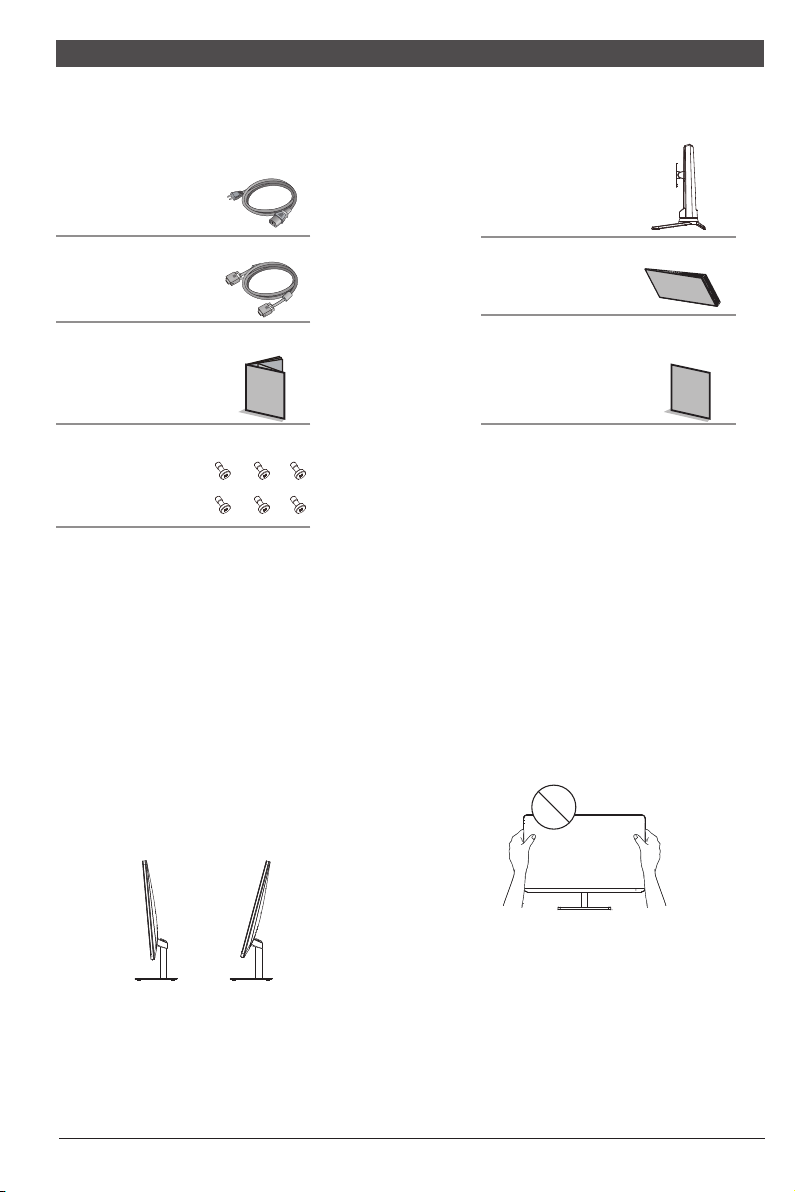

II.Installation Instructions

1.Accessories

Signal cable

User manual

Base/Stand

Warranty card

(The above pictures are for illustration only and the physical accessories shall govern.)

2. Angle Adjustment

2.1 The screen can be adjusted by

inclining forward and backward;

however, the specific adjustment

depends on the specific model of

the device. Generally, i t may be

inclined 5 ± 2 ° f orward and 1 5 ± 2 °

backward.

2.2 When adjusting the angle of the

monitor, be sure not to touch or press

the area of the screen.

(The above pictures are for illustration only and the physical accessories shall govern.)

Please always place

this device on a stable

surface; otherwise,

it m a y f a l l a n d b e

damaged.

The altitude and the

tropical environment

the adapter fits depend

on which adapter is

used for the device.

The rating plate on

the back of the device

with the above warning

sign indicates that

t h i s p r o d u c t i s

ap pli cab le for the

safe use of the region

w i t h a l t i t u d e o f

2,000m and below.

Do not hold the plug

w i t h w e t h a n d ;

otherwise, electric

shock m a y o c c u r.

Make sure the plug

has a g o o d t o u c h

because poor touch

may cause fire.

Do not use a broken

power plug nor keep

a power cord near heat

source; otherwise,

e l e c t r i c s h o c k o r

fire may occur.

When cleaning the

device, be sure to

remove the power

plug, u s e a p i e c e

of soft cloth rather

t h a n i n d u s t r i a l

ch emi cal to cle an

the device, be sure

not to let water enter

the device.

Do not disassemble

this device without

permission. In case

of failure, be sure to

contact a professional

servicing person to fix

it. The unauthorized

disassembly of this

device may result

in electric shock or

fire.

In case of rare smell

or noise out of this

device, be sure to

immediately cut off

the power supply and

ask a professional

servicing person to

fix the problem.

When t h i s d e v i c e

is idle for long time,

be sure to power it

off; otherwise, electric

shock o r f i r e m a y

occur.

I.Safety Prevention Measures

Note:

The device with AC switch may use such AC switch as cut-off component.

The device without AC switch may use power plug or coupler as cut-off component.

In case of the normal use of the equipment, make sure the cut-off component

can be accessed easily.

All specifications and informations are subject to change without notice.

Power cord

Screws

Quick Start Guide

3All specifications and informations are subject to change without notice.

II.Installation Instructions

1.Accessories

Signal cable

User manual

Base/Stand

Warranty card

(The above pictures are for illustration only and the physical accessories shall govern.)

2. Angle Adjustment

2.1 The screen can be adjusted by

inclining forward and backward;

however, the specific adjustment

depends on the specific model of

the device. Generally, i t may be

inclined 5 ± 2 ° f orward and 1 5 ± 2 °

backward.

2.2 When adjusting the angle of the

monitor, be sure not to touch or press

the area of the screen.

(The above pictures are for illustration only and the physical accessories shall govern.)

Please always place

this device on a stable

surface; otherwise,

it m a y f a l l a n d b e

damaged.

The altitude and the

tropical environment

the adapter fits depend

on which adapter is

used for the device.

The rating plate on

the back of the device

with the above warning

sign indicates that

t h i s p r o d u c t i s

ap pli cab le for the

safe use of the region

w i t h a l t i t u d e o f

2,000m and below.

Do not hold the plug

w i t h w e t h a n d ;

otherwise, electric

shock m a y o c c u r.

Make sure the plug

has a g o o d t o u c h

because poor touch

may cause fire.

Do not use a broken

power plug nor keep

a power cord near heat

source; otherwise,

e l e c t r i c s h o c k o r

fire may occur.

When cleaning the

device, be sure to

remove the power

plug, u s e a p i e c e

of soft cloth rather

t h a n i n d u s t r i a l

ch emi cal to cle an

the device, be sure

not to let water enter

the device.

Do not disassemble

this device without

permission. In case

of failure, be sure to

contact a professional

servicing person to fix

it. The unauthorized

disassembly of this

device may result

in electric shock or

fire.

In case of rare smell

or noise out of this

device, be sure to

immediately cut off

the power supply and

ask a professional

servicing person to

fix the problem.

When t h i s d e v i c e

is idle for long time,

be sure to power it

off; otherwise, electric

shock o r f i r e m a y

occur.

I.Safety Prevention Measures

Note:

The device with AC switch may use such AC switch as cut-off component.

The device without AC switch may use power plug or coupler as cut-off component.

In case of the normal use of the equipment, make sure the cut-off component

can be accessed easily.

All specifications and informations are subject to change without notice.

Power cord

Screws

Quick Start Guide

5All specifications and informations are subject to change without notice.

VGA Port

Connect the VGA cable into the VGA IN port

in the back of the monitor (this needs the support of

the monitor).

HDMI Port

Connect the HDMI cable into the HDMI IN

port into the back of the monitor (this needs

the support of the monitor).

DP Port

Connect the DP cable into the DP IN port of

the monitor (this needs the support of the monitor).

USB OUT Port

Connect the USB cable into the USB OUTport

in the back of the monitor (this needs the support of

the monitor).

USB IN Port

Connect the USB cable into the USB IN port

in the back of the monitor (this needs the support of

the monitor).

Audio Interface

Connect the AUDIO cable to the AUDIO OUT port in

the back of the display (this needs the support of the

monitor).

Power Plug

Connect the power cord of the monitor into the

POWER port in the back of the monitor.

All specifications and informations are subject to change without notice.

* Warning: Always use the power

cord of standard configuration.

Model with inbuilt power supply

IV. User Setup

1. Schematic Diagram of Keys

2. Description of Keys' Functions

III. Connect the Monitor to PC

(The above pictures are for illustration only and the physical accessories shall govern.)

Before connecting the LCD monitor to the PC, please power down the PC and

the monitor.

26 7

Note: The physical keys of the specific model shall govern.

LED

indicator

light

Pops up the menu/Backs to the previous menu (in case of main menu,

exits from the whole menu).

When the OSD is opened, as the up/right function selection key,

the progress bar value increases,Hotkey for the specified shortcut

mode when the OSD is closed.

When the OSD is opened, as the down/left function selection key,

the progress bar value decreases.When the OSD is closed, as the

specified shortcut hotkey, with the atmosphere lamp machine, for

the atmosphere lamp switch shortcut key.

If the menu is activated, chooses the corresponding function.

When the menu is inactivated, press this button to enter the automatic

adjustment function; the automatic adjustment function will automatically

set the horizontal vertical position, always and focus (only for VGA signal)

Power switch: Powers on/off the monitor.

lighting: Turn on; Flash: stand-by.

▲

5All specifications and informations are subject to change without notice.

VGA Port

Connect the VGA cable into the VGA IN port

in the back of the monitor (this needs the support of

the monitor).

HDMI Port

Connect the HDMI cable into the HDMI IN

port into the back of the monitor (this needs

the support of the monitor).

DP Port

Connect the DP cable into the DP IN port of

the monitor (this needs the support of the monitor).

USB OUT Port

Connect the USB cable into the USB OUTport

in the back of the monitor (this needs the support of

the monitor).

USB IN Port

Connect the USB cable into the USB IN port

in the back of the monitor (this needs the support of

the monitor).

Audio Interface

Connect the AUDIO cable to the AUDIO OUT port in

the back of the display (this needs the support of the

monitor).

Power Plug

Connect the power cord of the monitor into the

POWER port in the back of the monitor.

All specifications and informations are subject to change without notice.

* Warning: Always use the power

cord of standard configuration.

Model with inbuilt power supply

IV. User Setup

1. Schematic Diagram of Keys

2. Description of Keys' Functions

III. Connect the Monitor to PC

(The above pictures are for illustration only and the physical accessories shall govern.)

Before connecting the LCD monitor to the PC, please power down the PC and

the monitor.

26 7

Note: The physical keys of the specific model shall govern.

LED

indicator

light

Pops up the menu/Backs to the previous menu (in case of main menu,

exits from the whole menu).

When the OSD is opened, as the up/right function selection key,

the progress bar value increases,Hotkey for the specified shortcut

mode when the OSD is closed.

When the OSD is opened, as the down/left function selection key,

the progress bar value decreases.When the OSD is closed, as the

specified shortcut hotkey, with the atmosphere lamp machine, for

the atmosphere lamp switch shortcut key.

If the menu is activated, chooses the corresponding function.

When the menu is inactivated, press this button to enter the automatic

adjustment function; the automatic adjustment function will automatically

set the horizontal vertical position, always and focus (only for VGA signal)

Power switch: Powers on/off the monitor.

lighting: Turn on; Flash: stand-by.

▲

NONE

DVI

HDMI

NONE

VGA NONE

Adjust

NONE

NONE Adjust display contrast

DCR

On Activate dynamic contrast

Off Inactive dynamic contrast

Return Return to the previous menu

Exit Exit from the whole menu

Normal work mode

Adjust display brightness

NONE

Contrast

Brightness

NONENONE

NONE

Standard

Movie

FPS

NONE

RTS

EyeSaver

Return

Exit

Cool

Warm

Mode

Color Temp.User

Return

Exit

Auto

16:9

4:3

Return

Exit

Return

Exit

Aspect

Input

Red

Green

Blue

NONE

Movie mode

FPS game mode

RTS game mode

Eye protection ray filter application mode

Fine tuning of red color temperature

Return to the previous menu

Exit from the whole menu

Set as cold color temperature

Set as warm color temperature

Fine tuning of green color temperature

Fine tuning of blue color temperature

Return to the previous menu

Exit from the whole menu

Automatically adjust picture aspect ratio

Picture in 16:9 mode

Picture in 4:3 mode

Return to the previous menu

Exit from the whole menu

Return to the previous menu

Exit from the whole menu

First level

menu icon

Third level

menu icon

Second

level

menu icon

First level

menu item

Second level

menu item

Third level

menu item Description

Gamma1

Gamma2

Return

Exit

Gamma

Adjust color tone brightness grey 1

Adjust color tone brightness grey 2

Return to the previous menu

Exit from the whole menu

Automatically adjust the horizontal/vertical location,

focusing and clock of pictures

Adjust the white balance of pictures

NONE

Auto

adjust

Auto color

DVI (digital) signal input

of the monitor)

(this needs the support

HDMI (digital) signal input

of the monitor)

(this needs the support

Display port (digital) signal input

of the monitor)

(this needs the support

VGA (analog) signal input this needs the support

of the monitor)

(

V. Operation Menu (OSD) Function Descriptions

7All specifications and informations are subject to change without notice. 8

All specifications and informations are subject to change without notice.

Note: The functions may be adjusted due to specific model or the upgrade of software version.

The physical model shall govern.

Exit

Off

Return

Exit

YES

Return

Exit

Other

Language

Power

Off

Reset

Return to the previous menu

Exit from the whole menu

Automatically turn off after saving power for

1minute

Inactivate the function of timed switch-off

Return to the previous menu

Exit from the whole menu

Reset to factory setup

Exit from this function

Activate OD function

Return to the previous menu

Exit from the whole menu

Return

Exit

NONENONE

Exit NONENONE

Over

driver

Inactivate OD function

Return to the previous menu

Exit from the whole menu

Off

Return

Clock

Phase

Adjust the picture clock to reduce vertical line noise

(only for vga signals)

Adjust the picture phase to reduce horizontal noise

(only for vga signals)

0 50 100

English English English

Deutsch

Español

Deutsch

Español

Deutsch

Español

Русский Русский Русский

한국어 한국어 한국어

日本語日本語日本語

NONE

Return

Exit

Return to the previous menu

Exit from the whole menu

Off

Return

Exit

FreeSync

Activate FreeSync function,Only support AMD display (this

needs the support of the monitor)

Inactivate FreeSync function (this needs the support

of the monitor)

Return to the previous menu

Exit from the whole menu

Sound Adjusting the sound size (only with audio)

NONE

DVI

HDMI

NONE

VGA NONE

Adjust

NONE

NONE Adjust display contrast

DCR

On Activate dynamic contrast

Off Inactive dynamic contrast

Return Return to the previous menu

Exit Exit from the whole menu

Normal work mode

Adjust display brightness

NONE

Contrast

Brightness

NONENONE

NONE

Standard

Movie

FPS

NONE

RTS

EyeSaver

Return

Exit

Cool

Warm

Mode

Color Temp.User

Return

Exit

Auto

16:9

4:3

Return

Exit

Return

Exit

Aspect

Input

Red

Green

Blue

NONE

Movie mode

FPS game mode

RTS game mode

Eye protection ray filter application mode

Fine tuning of red color temperature

Return to the previous menu

Exit from the whole menu

Set as cold color temperature

Set as warm color temperature

Fine tuning of green color temperature

Fine tuning of blue color temperature

Return to the previous menu

Exit from the whole menu

Automatically adjust picture aspect ratio

Picture in 16:9 mode

Picture in 4:3 mode

Return to the previous menu

Exit from the whole menu

Return to the previous menu

Exit from the whole menu

First level

menu icon

Third level

menu icon

Second

level

menu icon

First level

menu item

Second level

menu item

Third level

menu item Description

Gamma1

Gamma2

Return

Exit

Gamma

Adjust color tone brightness grey 1

Adjust color tone brightness grey 2

Return to the previous menu

Exit from the whole menu

Automatically adjust the horizontal/vertical location,

focusing and clock of pictures

Adjust the white balance of pictures

NONE

Auto

adjust

Auto color

DVI (digital) signal input

of the monitor)

(this needs the support

HDMI (digital) signal input

of the monitor)

(this needs the support

Display port (digital) signal input

of the monitor)

(this needs the support

VGA (analog) signal input this needs the support

of the monitor)

(

V. Operation Menu (OSD) Function Descriptions

7All specifications and informations are subject to change without notice. 8

All specifications and informations are subject to change without notice.

Note: The functions may be adjusted due to specific model or the upgrade of software version.

The physical model shall govern.

Exit

Off

Return

Exit

YES

Return

Exit

Other

Language

Power

Off

Reset

Return to the previous menu

Exit from the whole menu

Automatically turn off after saving power for

1minute

Inactivate the function of timed switch-off

Return to the previous menu

Exit from the whole menu

Reset to factory setup

Exit from this function

Activate OD function

Return to the previous menu

Exit from the whole menu

Return

Exit

NONENONE

Exit NONENONE

Over

driver

Inactivate OD function

Return to the previous menu

Exit from the whole menu

Off

Return

Clock

Phase

Adjust the picture clock to reduce vertical line noise

(only for vga signals)

Adjust the picture phase to reduce horizontal noise

(only for vga signals)

0 50 100

English English English

Deutsch

Español

Deutsch

Español

Deutsch

Español

Русский Русский Русский

한국어 한국어 한국어

日本語日本語日本語

NONE

Return

Exit

Return to the previous menu

Exit from the whole menu

Off

Return

Exit

FreeSync

Activate FreeSync function,Only support AMD display (this

needs the support of the monitor)

Inactivate FreeSync function (this needs the support

of the monitor)

Return to the previous menu

Exit from the whole menu

Sound Adjusting the sound size (only with audio)

9All specifications and informations are subject to change without notice. 10

All specifications and informations are subject to change without notice.

VI. FAQ

Faults occurring

The power indicator

light is not on

Possible solutions

Dimming picture

Flickering picture or

picture with ripples

Color shortage

(red, green and blue)

Picture with color difference

(white looks not white)

◆Check if the power is on.

◆Check if the power cord is connected.

◆Adjust brightness and contrast.

◆

with electronic disturbance.

There may be electrical appliances or equipment

The power indicator

light is on (flickering),

but the monitor has no

pictures.

◆

◆ Check if the PC display card is inserted properly.

◆ Check if the signal cable of the monitor is correctly

connected with the PC.

◆ Check the signal cable plug of the monitor and make

sure every pin has no bending.

◆ Observe the indicator light by pressing the Caps

Lock key on the PC keyboard and check if the PC

is working.

Check if the PC power is on.

◆

sure every pin has no bending.

Check the signal cable of the monitor and make

◆ Adjust RGB color or reselect color temperature.

◆

is compatible with PC.

◆Check if the display card is compatible with the

plug-and-play function.

Check if the function of plug-and-play of the device

Check if the signal line 15 pin d joint bent◆

Impossible plug-and-play

Screen font blur under

VGA signal

◆ Select the "E" to automatically adjust the image.

Screen color error under

VGA signal

◆ Select “Auto color" in OSD to correct under the

white output screen.

The picture is not in the

middle, or the size is not right

◆ Hot key(AUTO)

VI. Product Specifications

Note: The actual application of the above parameters shall be subject to the

specific model.

Re m a r k : Wh en th e r es o l u t i o n ar e 2 56 0* 14 4 0 @ 6 0 Hz /3 4 4 0 * 1 4 4 0@ 60 H z /

1920*1080@144Hz/2560*1440@144Hz/3840*2160@30Hz connection via DVI

port, pls choose 24+1 pin double - channel DVI cables.

Humidity

Picture dimensions

(mm)

697.344x392.2344

697.3x392.3

597.9x336.3

Diagonal

dimensions


aspect ratio

0.18159x0.18159

0.272x0.272

0.311x0.311

Dot distance (mm)

68.6cm

(27"FHD) 16:9

Ambient

temperature

Storage temperature

Working temperature

RH for operation

-20℃ to 60℃

0℃ to 40℃

20% 80% to

80.0cm

(31.5"UHD) 16:9

Optimal

resolution

3840x2160

2560x1440

1920x1080

80.0cm

(31.5"QHD) 16:9

VIII. Table of Product Preset Modes

1680x1050

(60/120Hz)

1920x1080

(60/144Hz)

2560x1440

(60/120/144Hz)

720x400

(70Hz)

640x480

(60/72/75Hz)

800x600

(56/60/72/75Hz)

1024x768

(60/70/75Hz)

1280x1024

(60/75/120Hz)

1440x900

(60/120Hz)

31.5"QHD

(HDMI 2.0)

31.5"QHD

( DP )

1920x1080

(60/120/144Hz)

1280x1024

(60/75Hz)

2560x1440

(60/120/144Hz)

1024x768

(60/70/75Hz)

1440x900

(60Hz)

1680X1050

(60Hz)

1680x1050

(60/120Hz)

1920x1080

(60/120/144Hz)

2560x1440

(60Hz)

720x400

(70Hz)

640x480

(60/72/75Hz)

800x600

(56/60/72/75Hz)

1024x768

(60/70/75Hz)

1280x1024

(60/75/120Hz)

1440x900

(60/120Hz)

31.5"QHD

(HDMI 1.4)

720x400

(70Hz)

640x480

(60/72/75Hz)

800x600

(56/60/72/75Hz)

31.5"UHD

( DP )

720x400

(70Hz)

640x480

(60/72/75Hz)

800x600

(56/60/72/75Hz)

1024x768

(60/70/75Hz)

1280x1024

(60/75/120Hz)

1440x900

(60/120Hz)

1680x1050

(60/120Hz)

1920x1080

(60/144Hz)

27"FHD

( DP )

720x400

(70Hz)

640x480

(60/72/75Hz)

800x600

(56/60/72/75Hz)

1024x768

(60/70/75Hz)

1280x1024

(60/75/120Hz)

1440x900

(60/120Hz)

1680x1050

(60/120Hz)

1920x1080

(60/144Hz)

27"FHD

( HDMI )

720x400

(70Hz)

640x480

(60/72/75Hz)

800x600

(56/60/72/75Hz)

1024x768

(60/70/75Hz)

1280x1024

(60/75Hz)

1440x900

(60Hz)

1680x1050

(60Hz)

1920x1080

(60Hz)

27"FHD

( VGA )

Note: The actual application of the above parameters shall be subject to the

specific model.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Westinghouse

Westinghouse

Westinghouse LCM - 19v5 Manual de usuario

Westinghouse

Westinghouse LVM-42w2 Manual de instrucciones

Westinghouse

Westinghouse L2410NM - 24" LCD Monitor Manual de usuario

Westinghouse

Westinghouse LVM-42w2 Manual de usuario

Westinghouse

Westinghouse LVM-37w3se Manual de usuario

Westinghouse

Westinghouse LVM-37w3 Manual de usuario

Westinghouse

Westinghouse L1951NW - 19" - DVI Wide LCD Monitor Manual de usuario

Westinghouse

Westinghouse LCM - 19v5 Manual de usuario

Westinghouse

Westinghouse L1975NW - 19" LCD Monitor Manual de usuario

Westinghouse

Westinghouse LCM-20v5 Manual de usuario

Westinghouse

Westinghouse LCM-27w4 - Widescreen High Definition HD... Manual de usuario

Westinghouse

Westinghouse LCM-17W7 Manual de usuario

Westinghouse

Westinghouse W4207 - 42" LCD Flat Panel Display Instrucciones de montaje

Westinghouse

Westinghouse LCM-17v8 Manual de usuario

Westinghouse

Westinghouse W32001 Manual de usuario

Westinghouse

Westinghouse L1920NW Manual de usuario

Westinghouse

Westinghouse W4207 - 42" LCD Flat Panel Display Manual de usuario

Westinghouse

Westinghouse LCM-15V5 Manual de usuario

Westinghouse

Westinghouse L1928NV - 19" LCD Monitor Manual de usuario

Westinghouse

Westinghouse LVM-37w3 Instrucciones de montaje

Westinghouse

Westinghouse WE40UX8310 Manual de usuario

Westinghouse

Westinghouse LVM-37W1 Instrucciones de montaje

Westinghouse

Westinghouse LCM-22w2 Manual de usuario

Westinghouse

Westinghouse L2210NW - 22" LCD Monitor Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
