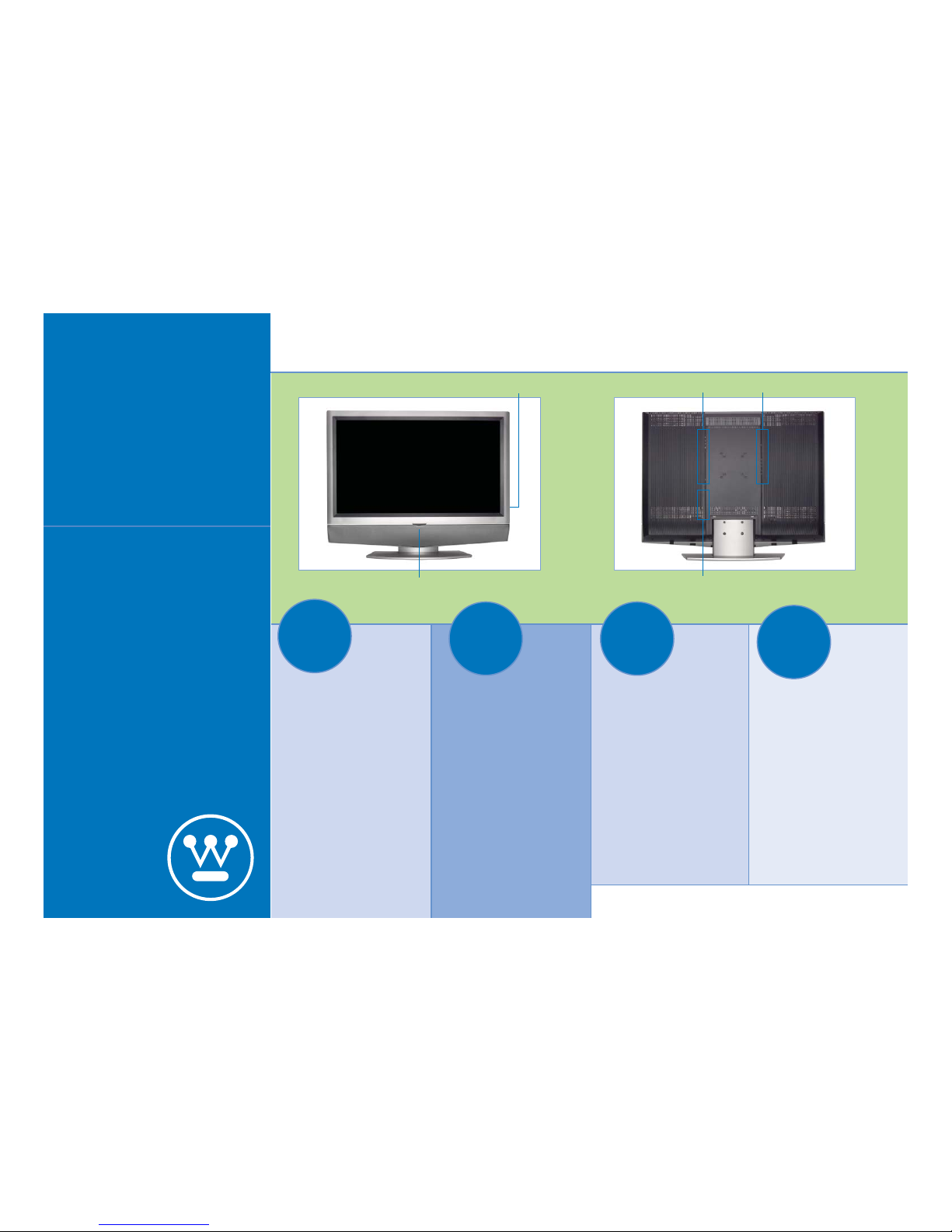

Westinghouse LTV-27w2 Instrucciones de montaje

Westinghouse Digital Electronics

POWER INDICATOR

KEYPAD VGA/YPbPr/DVI Inputs

CONGRATULATIONS on pur-

chasing a HD-ready LCD TV!

This Quick Connect Guide will

help you get started in 3 easy

steps. On the back you will

find information to maximize

your LCD TV experience. For

complete installation, usage

instructions, and safety pre-

cautions please refer to the

User’s Manual.

27”

QUICK

CONNECT

GUIDE

CONNECT THE

POWER

Use the enclosed A/C power

cable to connect the A/C

power to the power input on

the LCD TV.

CONNECT THE

TUNER

Connect either analog cable

or TV antenna wire to the

cable ready NTSC tuner

input labeled “ANT” on the

connection panel.

Note: this step can be skipped if

you do not use these options.

Refer to the table on the back for

connection to satellite set top box

or digital cable.

CONNECT A DVD

PLAYER

Connect a DVD player to

the component YPbPr input

(Red, Green, Blue) and the

corresponding component

audio inputs.

Press Power on the keypad

to turn on the LCD. The

power indicator on the front

panel of the LCD glows

blue.

123GO!

LTV-27w2 LCD TV

www.westinghousedigital.com

S-Video/AV Inputs

Antenna

Digital Cable/

Satellite Receiver Good Better Best

DVD Player Good Good Better Best

Game Console Good Better Best

VCR Good Better Best

YPbPr

AV S-VideoTV Tuner

VIDEO INPUTS

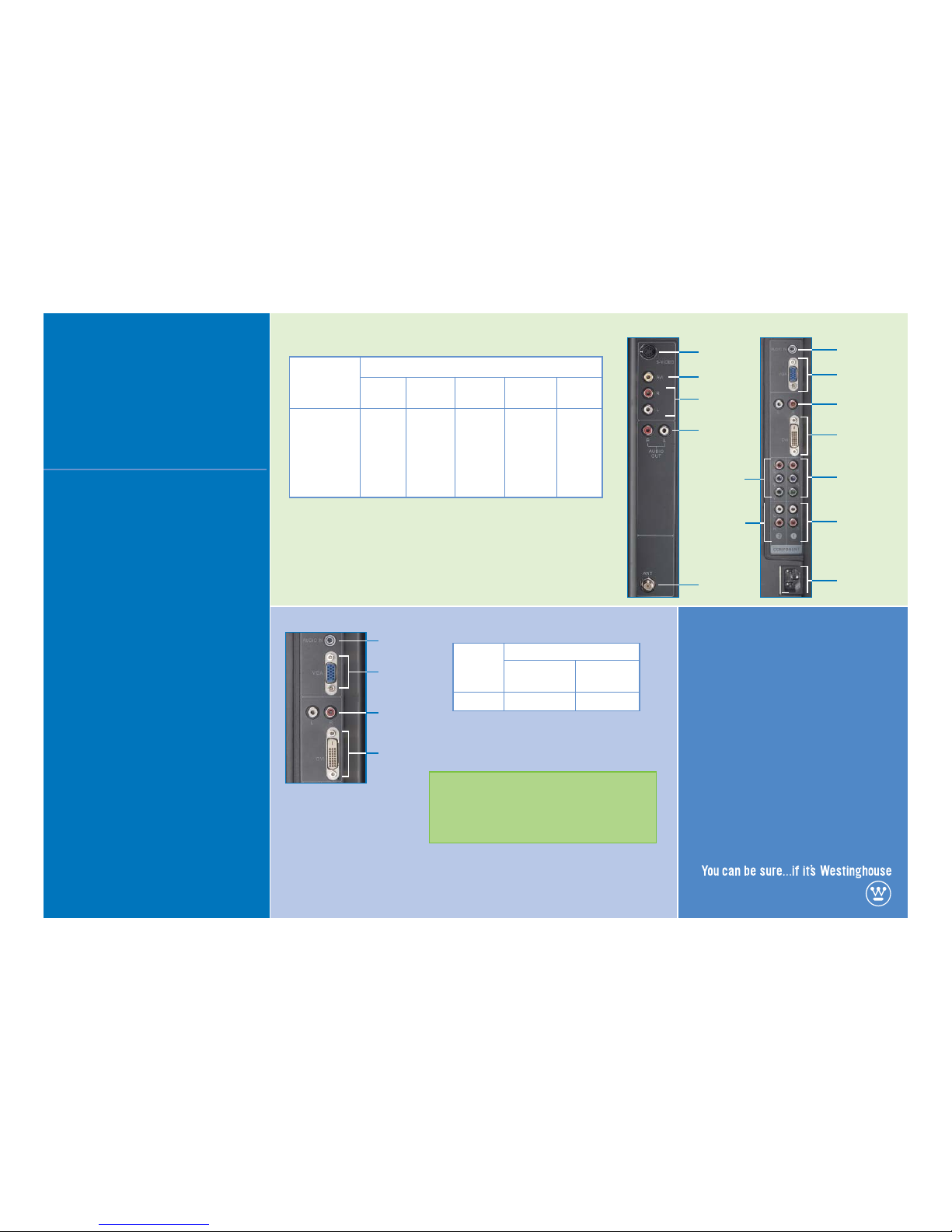

MAXIMIZE

YOUR LCD TV

EXPERIENCE

You can attach your LCD TV to

a variety of electronic devices

including a digital cable or

satellite set top box, a game

console, a VCR, or a computer.

The chart shows our recom-

mendations for the best quality

picture for these commonly

used devices. If you have

trouble connecting these or

other devices, please refer to

the User’s Manual.

VGA Audio Input

YPbPr 2

(Component)

YPbPr 2

Audio Input

(Component)

TYPICAL SETUP

•Progressive scan DVD players with YPbPr

•Game console action using AV

•VCR viewing and editing with S-Video

PC INPUTS

VGA

(RGB)

Monitor Good Best

DID YOU KNOW THAT

YOUR LCD TV ALSO HAS:

• Integrated 10 W Stereo Speakers

• Progressive Scan

• Inverse 3:2 Pull Down

CHECK OUT

www.westinghousedigital.com for our:

• Versatile Décor Wall Mounting options

• Décor Frames for LCD TVs with

Acoustical Mattes

reserved. Specifications subject to change without notice.

¼, Westinghouse and You can be sure... if it's Westinghouse are

trademarks of Westinghouse Electric Corporation and are

used under license.

MA-PS-0111-0501 Customer Service: 866.287.5555 • www.westinghousedigital.com

Use the input button on the remote

control or keypad to navigate between the

TV, S-Video, AV, YPbPr, DVI-HDCP or VGA inputs.

Note: The audio input is shared between AV and S-Video.

DVI-HDCP

•Set computer resolution to 1280 x 720

VGA

DVI-HDCP

DVI Audio Input

YPbPr 1

(Component)

YPbPr 1

Audio Input

(Component)

A/C In

(Power)

S-Video Input

Audio Output

Antenna/Cable

VGA Audio Input

VGA

DVI-HDCP

DVI Audio Input

S-Video/AV 1

Audio L/R Input

AV 1 Input
