LOW-PRO 300W

Tailgate Spreader

#91600

Owner's Manual and Installation Instructions

Original Instructions

This manual is for WESTERN®LOW-PRO 300W tailgate spreaders with

serial numbers beginning with 150401 and higher.

CAUTION

Read this manual before installing or

operating the spreader.

Western Products, PO Box 245038, Milwaukee, WI 53224-9538 • www.westernplows.com

www.storksplows.com

Lit. No. 43755/43757/43873, Rev. 00 3 May 15, 2015

TABLE OF CONTENTSTABLE OF CONTENTS

INTRODUCTION......................................................... 5

Owner's Information Form ....................................5

SAFETY INFORMATION............................................ 6

LOADING.................................................................. 11

Certiﬁcation......................................................... 11

Approximate Material Weights............................ 11

MOUNTING THE SPREADER ................................. 12

Assembly Instructions......................................... 12

Receiver Mount Spreader................................... 13

ELECTRICAL DIAGRAM ......................................... 14

OPERATING THE SPREADER................................ 15

Driving and Spreading on Snow and Ice ............ 15

Ensuring the Spreader has Power...................... 16

Starting and Stopping Motor............................... 16

Spreading Tips.................................................... 16

REMOVING THE SPREADER ................................. 17

WIRELESS CONTROL PAIRING AND

PROGRAMMING................................................... 18

MAINTENANCE........................................................ 20

Lubrication .......................................................... 20

After Each Use.................................................... 20

At the End of Each Season or after

Extended Storage............................................ 20

Storage ............................................................... 20

TROUBLESHOOTING.............................................. 21

www.storksplows.com

Lit. No. 43755, Rev. 00 5 May 15, 2015

INTRODUCTION

This manual has been prepared to acquaint you with

the safety information, operation and maintenance of

your new tailgate spreader. Please read this manual

carefully and follow all recommendations. This will

help ensure proﬁtable and trouble-free operation of

your spreader. Keep this manual accessible. It is a

handy reference in case minor service is required.

When service is necessary, bring your spreader to

your distributor. They know your spreader best and are

interested in your complete satisfaction.

NOTE: This spreader is designed to spread snow

and ice control materials only. Do not use it

for purposes other than those speciﬁed in this

manual.

OWNER'S INFORMATION

Owner's Name: ______________________________________________________________________

Date Purchased: _____________________________________________________________________

Distributor Name: __________________________________________ Phone:_________________

Distributor Address:___________________________________________________________________

Vehicle Model: _____________________________________________ Year: __________________

Spreader Model: _________________________ Serial #:__________________________________

Spreader Weight:_____________________lb/kg

www.storksplows.com

Lit. No. 43755/43757/43873, Rev. 00 6 May 15, 2015

SAFETY DEFINITIONS

NOTE: Indicates a situation or action that can lead

to damage to your spreader and vehicle or other

property. Other useful information can also be

described.

SAFETY INFORMATION

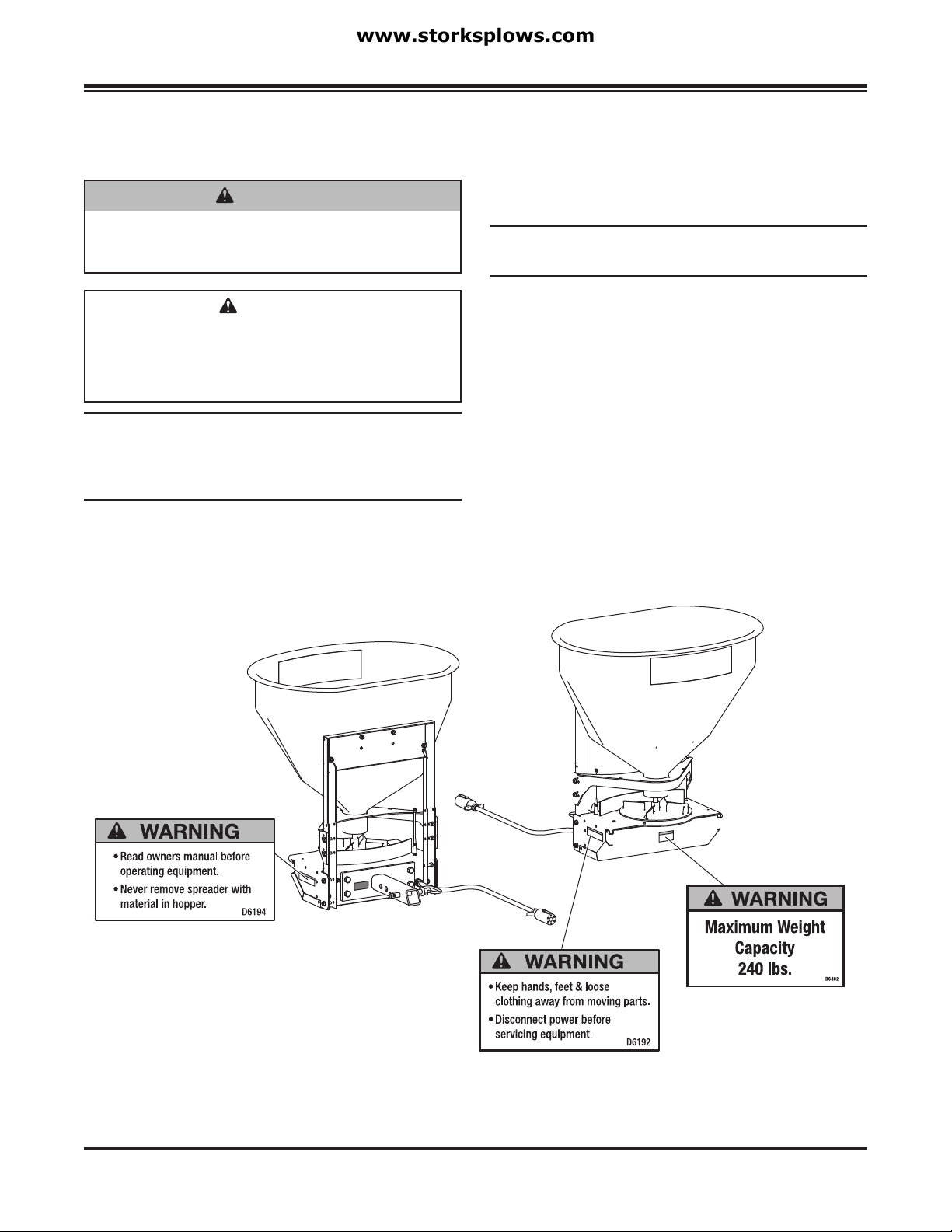

WARNING/CAUTION LABELS

Please become familiar with the Warning and Caution

labels on the spreader.

NOTE: If labels are missing or cannot be read, see

your sales outlet.

CAUTION

Indicates a potentially hazardous situation

that, if not avoided, may result in minor or

moderate injury. It may also be used to alert

against unsafe practices.

WARNING

Indicates a potentially hazardous situation

that, if not avoided, could result in death or

serious personal injury.

www.storksplows.com

Lit. No. 43755/43757/43873, Rev. 00 7 May 15, 2015

SAFETY INFORMATION

SERIAL NUMBER LABEL

Model No. 00000

Serial No. 000000000000000000

Code Deﬁnition

YY 2-Digit Year

MM 2-Digit Month

DD 2-Digit Day

LL 2-Digit Location Code

XXXX 4-Digit Sequential Number

ZZZZZZ Assembly Part Number

Model No. 00000

Serial No. YYMMDDLLXXXXZZZZZZ

www.storksplows.com

Lit. No. 43755/43757/43873, Rev. 00 8 May 15, 2015

CAUTION

Disconnect electric and/or hydraulic power

and tag out if required before servicing or

performing maintenance.

CAUTION

DO NOT leave unused material in

hopper. Material can freeze or solidify,

causing unit to not work properly.

Empty and clean after each use.

NOTE: Lubricate grease ﬁttings after each use.

Use a good quality multipurpose grease.

PERSONAL SAFETY

• Remove ignition key and put the vehicle in park or

in gear to prevent others from starting the vehicle

during installation or service.

• Wear only snug-ﬁtting clothing while working on

your vehicle or spreader.

• Do not wear jewelry or a necktie, and secure long

hair.

• Wear safety goggles to protect your eyes from

battery acid, gasoline, dirt and dust.

• Avoid touching hot surfaces such as the engine,

radiator, hoses and exhaust pipes.

• Always have a ﬁre extinguisher rated BC handy,

for ﬂammable liquids and electrical ﬁres.

SAFETY INFORMATION

SAFETY PRECAUTIONS

Improper installation and operation could cause

personal injury and/or equipment and property

damage. Read and understand labels and the

Owner's Manual before installing, operating or making

adjustments.

WARNING

• Driver to keep bystanders minimum of

25 feet away from operating spreader.

• Before working with the spreader, secure all

loose-ﬁtting clothing and unrestrained hair.

• Before operating the spreader, verify all

safety guards are in place.

• Before servicing the spreader, wait for

auger and spinner to stop.

• Do not climb into or ride on spreader.

WARNING

Overloading could result in an

accident or damage. Do not exceed

GVWR or GAWR ratings as found on

the driver-side door cornerpost of

the vehicle. See Loading Section to determine

maximum volumes of spreading material.

CAUTION

If rear directional, CHMSL light or brake

stoplights are obstructed by the spreader,

the lights shall be relocated, or auxiliary

directional or brake stoplights shall be

installed.

CAUTION

During the hopper spreader installation

we recommend the addition of an OSHA

compliant Backup Alarm. This alarm is

required for OSHA governed employers.

CAUTION

• Do not operate a spreader in need of

maintenance.

• Before operating the spreader, reassemble

any parts or hardware removed for cleaning

or adjusting.

• Before operating the spreader, remove

materials such as cleaning rags, brushes,

and hand tools from the spreader.

• While operating the spreader, use auxiliary

warning lights, except when prohibited by law.

• Tighten all fasteners according to the

Torque Chart. Refer to Torque Chart for the

recommended torque values.

www.storksplows.com

Lit. No. 43755/43757/43873, Rev. 00 9 May 15, 2015

FIRE AND EXPLOSION

Be careful when using gasoline. Do not use gasoline

to clean parts. Store only in approved containers away

from sources of heat or ﬂame.

CELL PHONES

A driver's ﬁrst responsibility is the safe operation of

the vehicle. The most important thing you can do

to prevent a crash is to avoid distractions and pay

attention to the road. Wait until it is safe to operate

Mobile Communication Equipment such as cell phones,

text messaging devices, pagers or two-way radios.

CAUTION

Batteries normally produce explosive gases

which can cause personal injury. Therefore,

do not allow ﬂames, sparks or lit tobacco

to come near the battery. When charging or

working near a battery, always cover your

face and protect your eyes, and also provide

ventilation.

• Batteries contain sulfuric acid which burns

skin, eyes and clothing.

• Disconnect the battery before removing or

replacing any electrical components.

WARNING

Vehicle exhaust contains lethal fumes.

Breathing these fumes, even in low

concentrations, can cause death. Never

operate a vehicle in an enclosed area without

venting exhaust to the outside.

WARNING

Gasoline is highly ﬂammable and gasoline

vapor is explosive. Never smoke while

working on vehicle. Keep all open ﬂames

away from gasoline tank and lines. Wipe up

any spilled gasoline immediately.

SAFETY INFORMATION

VENTILATION

BATTERY SAFETY

www.storksplows.com

Lit. No. 43755/43757/43873, Rev. 00 10 May 15, 2015

CAUTION

Read instructions before assembling.

Fasteners should be ﬁnger tight until

instructed to tighten according to torque

chart. Use standard methods and practices

when attaching spreader including proper

personal protective safety equipment.

TORQUE CHART

1/4-20 109 154

1/4-28 121 171

5/16-18 150 212

5/16-24 170 240

3/8-16 269 376

3/8-24 297 420

7/16-14 429 606

7/16-20

9/16-12

9/16-18

5/8-11

5/8-18

3/4-10

3/4-16

7/8-9

7/8-14 474 669

644 9091-8

1-12 704 995

1/2-13

1/2-20

11.9

13.7

24.6

27.3

43.6

26.9

53.3

148

49.4

69.8

77.9

106.4

120.0

8.4

9.7

17.4

19.2

30.8

35.0

49.4

55.2

75.3

85.0

M6 x 1.00

M12 x 1.75

M8 x 1.25

M14 x 2.00

M10 x 1.50

M27 x 3.00

M22 x 2.50

M30 x 3.50

M24 x 3.00

M20 x 2.5011.1

19.5

38.5

107

7.7

613

778

1139

1545

450

428

562

796

1117

M33 x 3.50

M36 x 4.00

2101

2701

1468

1952

325

M16 x 2.00 231

167

M18 x 2.50 318222

Recommended Fastener Torque Chart

Size Size

Torque (f t- lb)

Grade

Metric Fasteners Class 8.8 and 10.9

These torque values apply to fasteners

except those noted in the instructions.

Torque (f t- lb)

Grade

Size Size

Torque (f t- lb)

Class

8.8

Class

10.9

Torque (f t- lb)

Class

8.8

Class

10.9

Inch Fasteners Grade 5 and Grade 8

NOISE

Airborne noise emission during use is below 70 dB(A)

for the spreader operator.

VIBRATION

Operating snowplow vibration does not exceed

2.5 m/s2to the hand-arm or 0.5 m/s2to the whole

body.

SAFETY INFORMATION

www.storksplows.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Esparcidor de Western

Western

Western PRO-FLO 300W Instrucciones de funcionamiento

Western

Western Drop 250 Instrucciones de funcionamiento

Western

Western PRO-FLO Manual de usuario

Western

Western WB-160D Instrucciones de funcionamiento

Western

Western Striker 98805 Manual de usuario

Western

Western Striker 98810 Manual de usuario

Western

Western PRO-FLO 2 Manual de usuario

Western

Western tornado Manual de usuario

Western

Western LOW-PRO 300G Instrucciones de funcionamiento

Western

Western PRO-FLO Manual de usuario

Western

Western tornado Manual de usuario

Western

Western 78600 Manual de usuario

Western

Western PRO-FLO 2 Manual de usuario

Western

Western LOW-PRO 300 Instrucciones de funcionamiento

Western

Western Striker 98825 Manual de usuario

Western

Western ICE BREAKER Hopper Spreader Manual de usuario

Western

Western ICE BREAKER Manual de usuario

Western

Western Tornado 78000-1 Manual de usuario

Western

Western WB-100B Instrucciones de funcionamiento

Western

Western 110 Manual de usuario

Western

Western Striker Series Manual de usuario

Western

Western 1000 Manual de usuario

Western

Western Tornado 78000-1 Manual de usuario

Manuales populares de Esparcidor de otras marcas

PEQUEA

PEQUEA GT-100 Manual de usuario

Herculano

Herculano H2RS9 Manual de usuario

Epoke

Epoke SKE8 Manual de usuario

GEA

GEA EL44 Hoja de especificaciones

Boss Snowplow

Boss Snowplow TGS 800 Manual de usuario

Fisher

Fisher EMERSON 168 Series Manual de usuario

Fisher

Fisher POLY-CASTER 78601 Manual de usuario

TurfEx

TurfEx RS7200 Manual del propietario

Ferris

Ferris Pathfinder Series Manual de usuario

Fayat Group

Fayat Group DYNAPAC S100 Guía de solución de problemas

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manual de instalación y operación

EASTMAN

EASTMAN CR 500 Manual de usuario

Nogueira

Nogueira RoyalFlow-600 Manual de usuario

Buyers

Buyers TGS05B Manual de usuario

Magnum

Magnum V-BOX PV Series Suplemento

Meyer's

Meyer's VB280 Manual de usuario

SnowEx

SnowEx VX-4210 Manual de usuario

Kramer

Kramer VM-400HDCP Manual de usuario
