Western Digital My Book Mirror Edition Manual de usuario

External Desktop

My Book

Mirror Edition

User Manual

™

TABLE OF CONTENTS – i

Table of Contents

1 WD Service and Support . . . . . . . . . . . . . . . . . . . . . . .1

Registering Your WD Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Recording Your WD Product Information . . . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 About Your WD Drive . . . . . . . . . . . . . . . . . . . . . . . . . .5

Format and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

LED Indicators (Lights) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Power/Activity LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Capacity Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4 Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Windows®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Macintosh®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5 WD Drive Manager Status . . . . . . . . . . . . . . . . . . . . .12

WD Drive Manager Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . 12

6 WD RAID Manager for Windows. . . . . . . . . . . . . . . .13

Configuring RAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

RAID Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7 WD RAID Manager for Mac . . . . . . . . . . . . . . . . . . . .17

Configuring RAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

RAID Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

TABLE OF CONTENTS – ii

8 Turning Off/Disconnecting the Device . . . . . . . . . .21

Auto-off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Safe Shutdown™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Safe Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Unplugging the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

9 Replacing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

11 Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

MY BOOK MIRROR EDITION

USER MANUAL

WD SERVICE AND SUPPORT – 1

WD Service and Support

Should you encounter any problem, please give us an opportunity to address it before

returning this product. Most technical support questions can be answered through

our knowledge base or e-mail support service at support.wdc.com. If the answer is

not available or, if you prefer, please contact WD at the best telephone number

shown below.

Your product includes 30 days of free telephone support during the warranty period.

This 30-day period starts on the date of your first telephone contact with WD

technical support. E-mail support is free for the entire warranty period and our

extensive knowledge base is available 24/7. To help us keep you informed of new

features and services, remember to register your product online at https://

www.wdc.com/register.

Accessing Online Support

Visit our product support website at support.wdc.com and choose from these topics:

•Downloads - Download drivers, software, and updates for your WD product.

•Registration - Register your WD product to get the latest updates and special

offers.

•Warranty & RMA Services - Get Warranty, Product Replacement (RMA), RMA

Status, and Data Recovery Information.

•Knowledge Base - Search by keyword, phrase, or answer ID.

•Installation - Get online installation help for your WD product or software.

Contacting WD Technical Support

When contacting WD for support, have your WD product serial number, system

hardware, and system software versions available.

Registering Your WD Product

Your WD product includes 30 days of free technical support during the applicable

warranty period for your product. The 30-day period commences on the date of your

first telephone contact with WD technical support. Register online at

North America

Asia Pacific

English 800.ASK.4WDC Australia 1 800 42 9861

(800.275.4932) China 800 820 6682/+65 62430496

Spanish 800.832.4778 Hong Kong +800 6008 6008

India 1 800 11 9393 (MNTL)/

1 800 200 5789 (Reliance)

011 26384700 (Pilot Line)

Europe (toll free)*

00800 ASK4 WDEU

Indonesia +803 852 9439

(00800 27549338)

Japan 00 531 650442

Korea 02 703 6550

Europe

+31 880062100

Malaysia +800 6008 6008/1 800 88 1908/

+65 62430496

Middle East

+31 880062100

Philippines 1 800 1441 0159

Africa

+31 880062100

Singapore +800 6008 6008/+800 608 6008/

+65 62430496

Taiwan +800 6008 6008/+65 62430496

* Toll free number available in the following countries: Austria, Belgium, Denmark, France, Germany, Ireland, Italy,

Netherlands, Norway, Spain, Sweden, Switzerland, United Kingdom.

MY BOOK MIRROR EDITION

USER MANUAL

GETTING STARTED – 2

Getting Started

Thank you for purchasing My Book®Mirror Edition™. This user manual provides

step-by-step installation instructions and other important information regarding your

WD product. For the latest WD product information and news, visit our website at

www.westerndigital.com.

Kit Contents

• Dual-drive storage system

•USBcable

• AC adapter*

• Quick Install Guide

•SoftwareCD

*This product may ship with a different AC adapter configuration, depending on your region.

Accessories

Visit shopwd.com (U.S. only) to view additional accessories like cables, power

supplies, and carrying cases for this product. Outside the U.S., visit

support.wdc.com.

My Book Mirror Edition

AC adapter (U.S.-only)*

Quick Install Guide

USB cable

Software CD

Global AC adapter configurations*

MY BOOK MIRROR EDITION

USER MANUAL

GETTING STARTED – 3

Compatibility

Note: Compatibility may vary depending on user’s hardware configuration and operating system.

Recording Your WD Product Information

In the following table, write the serial number and model number of your new WD

product found on the label on the bottom of the device. Also, write the purchase date

and other notes such as your operating system and version. This information is

necessary for setup and technical support.

Windows ®Macintosh ®

• Available USB port • Available USB port

• Windows 2000/XP/Vista • Mac®OS X 10.4.11+

• Mac OS X 10.5.2+

Important: For highest performance and reliability, it is recommended that you

install the latest updates and service pack (SP). For Macintosh, go to the Apple

menu and select Software Update. For Windows, go to the Start menu and select

Windows Update.

Serial Number:

Model Number:

Purchase Date:

System and Software Notes:

MY BOOK MIRROR EDITION

USER MANUAL

GETTING STARTED – 4

Precautions

WD products are precision instruments and must be handled with care during

unpacking and installation. Drives may be damaged by rough handling, shock, or

vibration. Be aware of the following precautions when unpacking and installing your

external storage product:

• Do not operate this device outside the temperature range of 5°C–35°C

(41°F–95°F)

• Do not drop or jolt the device.

• Do not move the device when powered.

• Do not use the dual-drive storage system as a portable device.

• To avoid overheating, do not block air slots on the underside, top, or rear of the

enclosure. Do not stack any objects on top of the device that may block

ventilation.

MY BOOK MIRROR EDITION

USER MANUAL

ABOUT YOUR WD DRIVE – 5

About Your WD Drive

Format and Configuration

This WD device is preformatted as a single Windows NTFS* partition and is

pre-configured for RAID 1 (Mirrored) mode for extra data protection with

instantaneous and automatic data updates. If one drive fails, the dual-drive storage

system will still operate and your data will be preserved. You can replace the failed

drive and rebuild the dual-drive storage system.

This product also supports RAID 0 (Striped) mode for maximum capacity and

accelerated performance. For more information on this product including instructions

on changing the RAID configuration or drive format, see “WD RAID Manager for

Windows” on page 13 or “WD RAID Manager for Mac” on page 17.

* To use this device with a Macintosh computer, you must reformat it to HFS+ (Journaled) or FAT32.

See “WD RAID Manager for Mac” on page 17 for instructions.

LED Indicators (Lights)

The Power/Activity and capacity gauge indicators are represented by a single bar of

four LEDs (lights) on the front panel of the device.

Power/Activity LED Behavior

* If this condition occurs, read/write activity will stop and the drive will spin down. Disconnect and

power down My Book. Allow it to cool down for 1-2 hours then reconnect and power up the device.

Capacity Gauge

When the device is turned on, the capacity gauge indicates space used on the drive

by illuminating up to four sections in an upward vertical direction. Each section

represents approximately 25 percent of drive capacity. Because this drive is

preformatted, the first section is illuminated upon installation.

The capacity gauge is enabled only through installation of WD Drive Manager, which

must be installed on each system to which the device is connected. The capacity

gauge is updated automatically as the drive is used.

Appearance Drive State

Steady Power-on state or power-save mode

Slow flashing (every four seconds) System standby

Moving up and down Drive in use

Alternating checkerboard pattern Transitioning from one state to another

Alternate flashing between top and bottom LEDs RAID degraded mode

Cycling from bottom to top RAID rebuild mode

Fast flashing (every second) Over-temperature condition*

MY BOOK MIRROR EDITION

USER MANUAL

ABOUT YOUR WD DRIVE – 6

Interfaces

USB

The industry standard interface for most Windows-based computers.

Hi-Speed USB (USB 2.0) supports data transfer rates up to 480 Mb/s. USB 2.0 is

backward-compatible with USB 1.1. Connection to a USB 1.1 device transfers data

at USB 1.1 speed (up to 1.5 Mb/s).

Kensington Security Slot

For drive security, this device is equipped with a Kensington Security Slot, which

supports a standard Kensington security cable (sold separately). For more

information on the Kensington Security Slot and available products, visit

www.kensington.com.

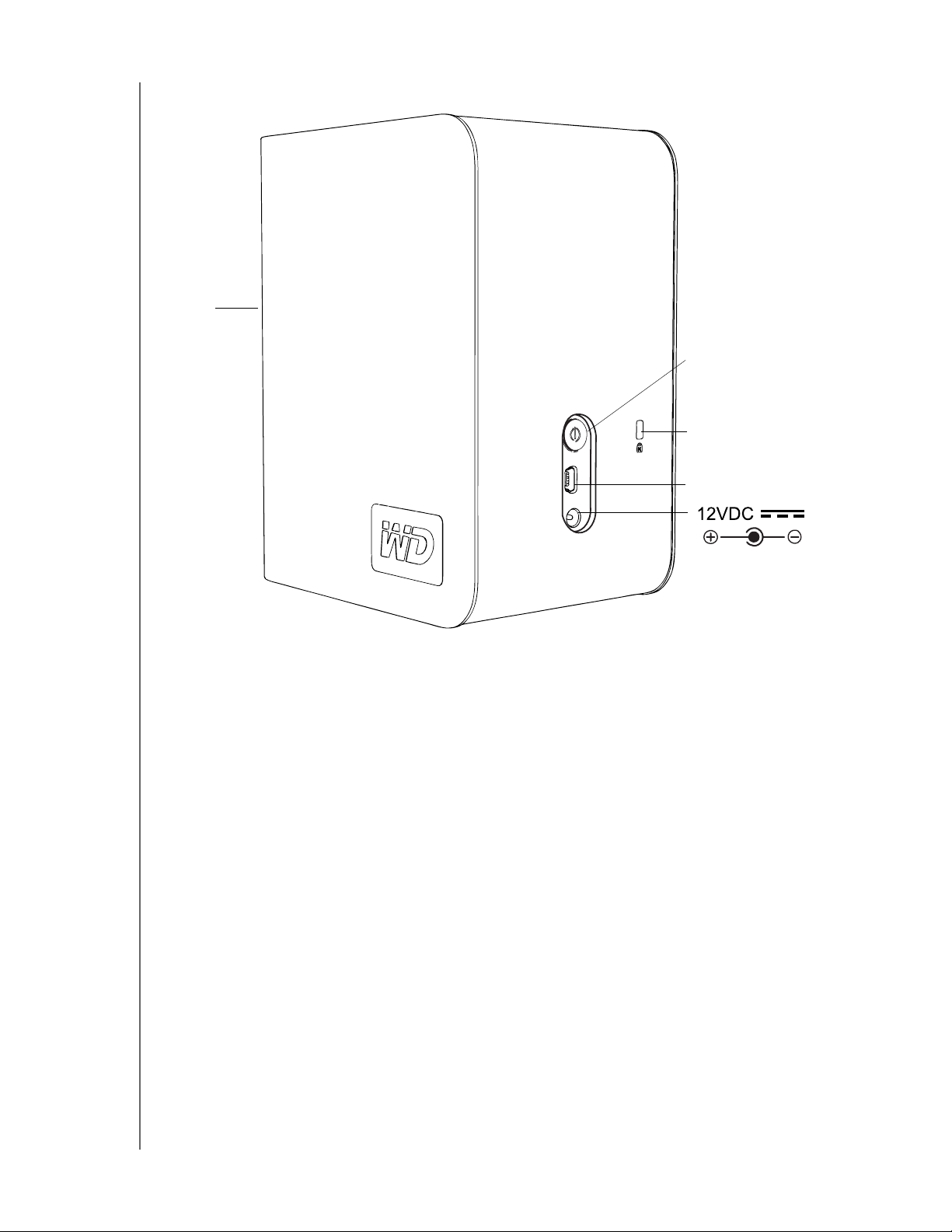

LED

Power button/

Safe Shutdown™

USB

Kensington®

Security Slot

MY BOOK MIRROR EDITION

USER MANUAL

ABOUT YOUR WD DRIVE – 7

Software

In addition to WD Drive Manager, this WD product is shipped with the following

bonus software.

WD Anywhere™Backup is an easy, one-time setup, backup application that allows

you to preserve your data files with around-the-clock protection. Features include

multiple destination backup and simple, intuitive file recovery.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Almacenamiento de Western Digital

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Western Digital

Western Digital WD3000F9YZ Guía del usuario

Western Digital

Western Digital My Book Essential Edition Instrucciones de instalación

Western Digital

Western Digital WDH1Q10000 - Studio Edition Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Western Digital

Western Digital Passport series Manual de usuario

Western Digital

Western Digital WDBAAJ0020HSL - My Book Studio Manual de usuario

Western Digital

Western Digital My Book Studio Manual de usuario

Western Digital

Western Digital Ultrastar DC HC310 Manual de usuario

Western Digital

Western Digital Caviar WD400BB Manual de usuario

Western Digital

Western Digital Se WD4000F9YZ Manual de usuario

Western Digital

Western Digital OpenFlex Data24 DCS0010 Manual de usuario

Western Digital

Western Digital My Book WDH1U10000 Manual de usuario

Western Digital

Western Digital WDXML400UE - Passport 40 GB External Hard... Manual de usuario

Western Digital

Western Digital My Passport Elite Manual de usuario

Western Digital

Western Digital Scorpio Black WD1200BEKT Manual de usuario

Western Digital

Western Digital WD5000LUCT Manual de usuario

Western Digital

Western Digital HDD-WD101PURZ Manual de usuario

Western Digital

Western Digital Scorpio Blue WD1200BEVE Manual de usuario

Western Digital

Western Digital My Passport WDME1600 Manual de usuario

Western Digital

Western Digital Caviar WD1001FALS Manual de usuario

Western Digital

Western Digital Ultrastar Data60 Manual de usuario

Western Digital

Western Digital My Book Office Edition Manual de usuario

Western Digital

Western Digital My Book Studio Manual de usuario

Manuales populares de Almacenamiento de otras marcas

QNAP

QNAP TS 32PXU Series Manual de usuario

LaCie

LaCie RUGGED RAID Manual de usuario

Freecom

Freecom CLS DOCK Manual de usuario

PNY

PNY Attache P-FD64MBATT3 Manual de usuario

HP StorageWorks MSL2024 Manual de usuario

OLT

OLT 6x6 Maximizer Manual de usuario

Transcend

Transcend JetFlash 160 Manual de usuario

LaCie

LaCie RUGGED MINI Manual de usuario

Thunderbolt

Thunderbolt 600 Manual de usuario

Panasonic

Panasonic LB-DH8 series Manual

Intel

Intel RAID High Availability Manual de usuario

LaCie

LaCie 12big Thunderbolt 3 Manual de usuario

Spectra Logic

Spectra Logic T-Series Spectra T50e Manual de usuario

Panasonic

Panasonic LKM-F931-1 Manual de usuario

Tabernus

Tabernus Enterprise Erase E2400 Manual de usuario

Rocstor

Rocstor COMMANDER 3F series Manual de usuario

HP P9000 Manual de usuario

Dell

Dell PowerVault MD3600f Series Manual de usuario
