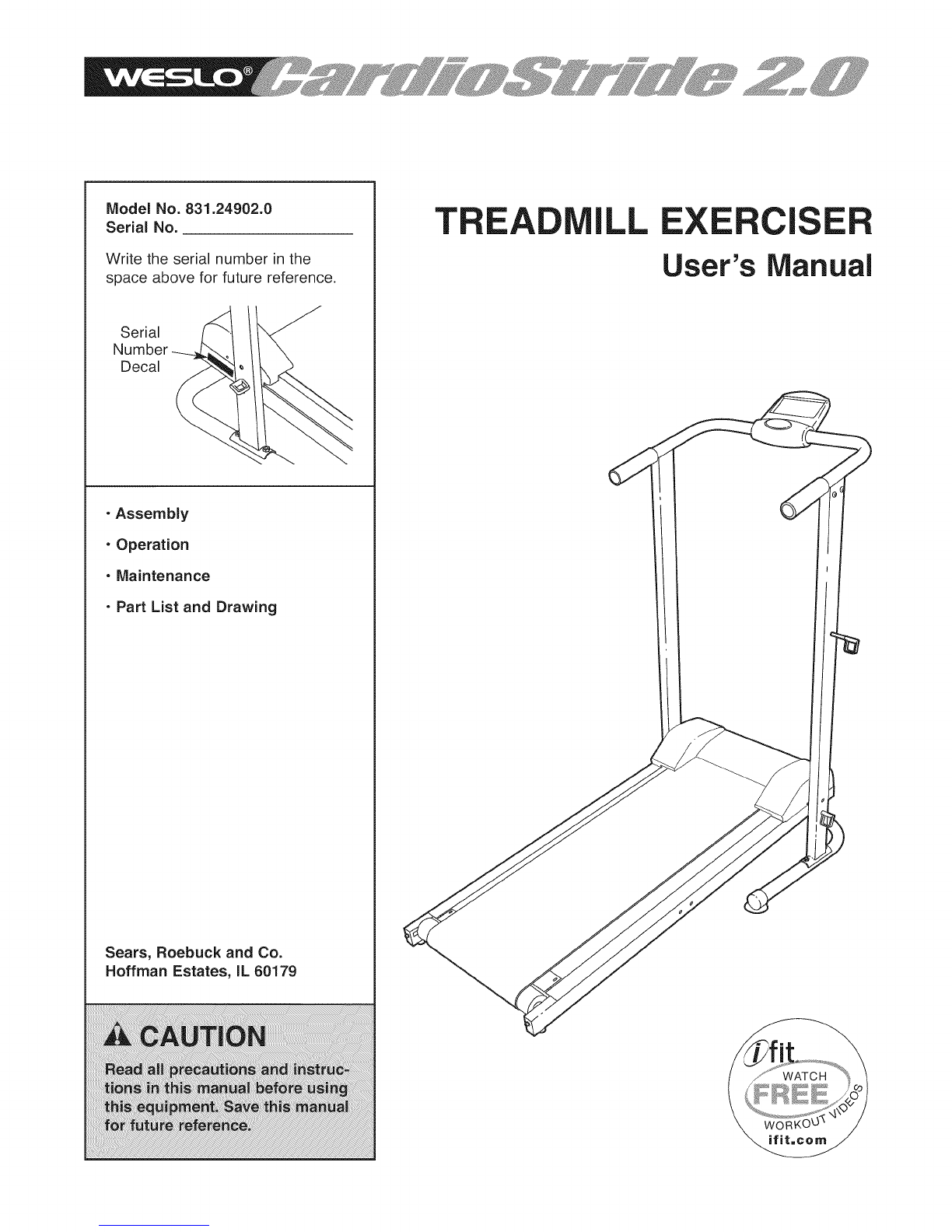

Weslo CardioStride 2.0 Manual de usuario

Model No. 831.24902.0

Serial No.

Write the serial number in the

space above for future reference.

Serial

Number

Decal

• Assembly

•Operation

• Maintenance

• Part List and Drawing

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

T A ILL

User's

ISE

Manual

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

TREADMILL OPERATION .................................................................... 9

HOW TO FOLD THE TREADMILL ............................................................. 11

TROUBLESHOOTING ...................................................................... 12

EXERCISE GUIDELINES ................................................................... 13

PART LIST ............................................................................... 14

EXPLODED DRAWING ..................................................................... 15

ORDERING REPLACEMENT PARTS .................................................. Back Cover

90 DAY FULL WARRANTY ........................................................... Back Cover

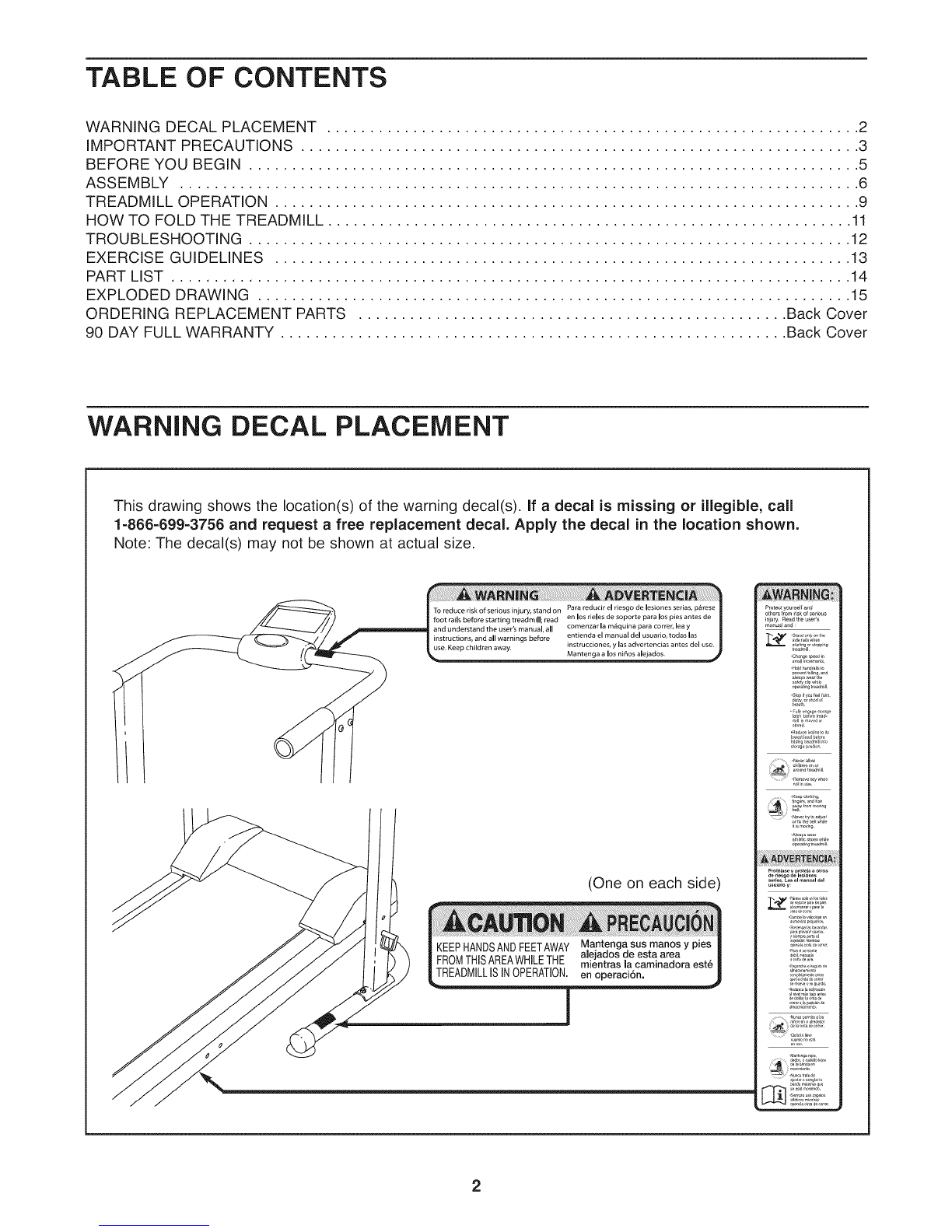

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, call

1-866-699-3756 and request a free replacement decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

Toreduceriskofseriousinjury, standon Parareducirelriesgodelesionesserias, "

foot rails before starting treadmill; read en los fieles de soporte para los pies antes de

and understand the user's manual, all comenzar la maquina para correr, lea y

instructions, and all warnings before entienda el manual del usuario, todas las

use Keep children away instrucdones, y las advertendas antes del use.

(One on each side)

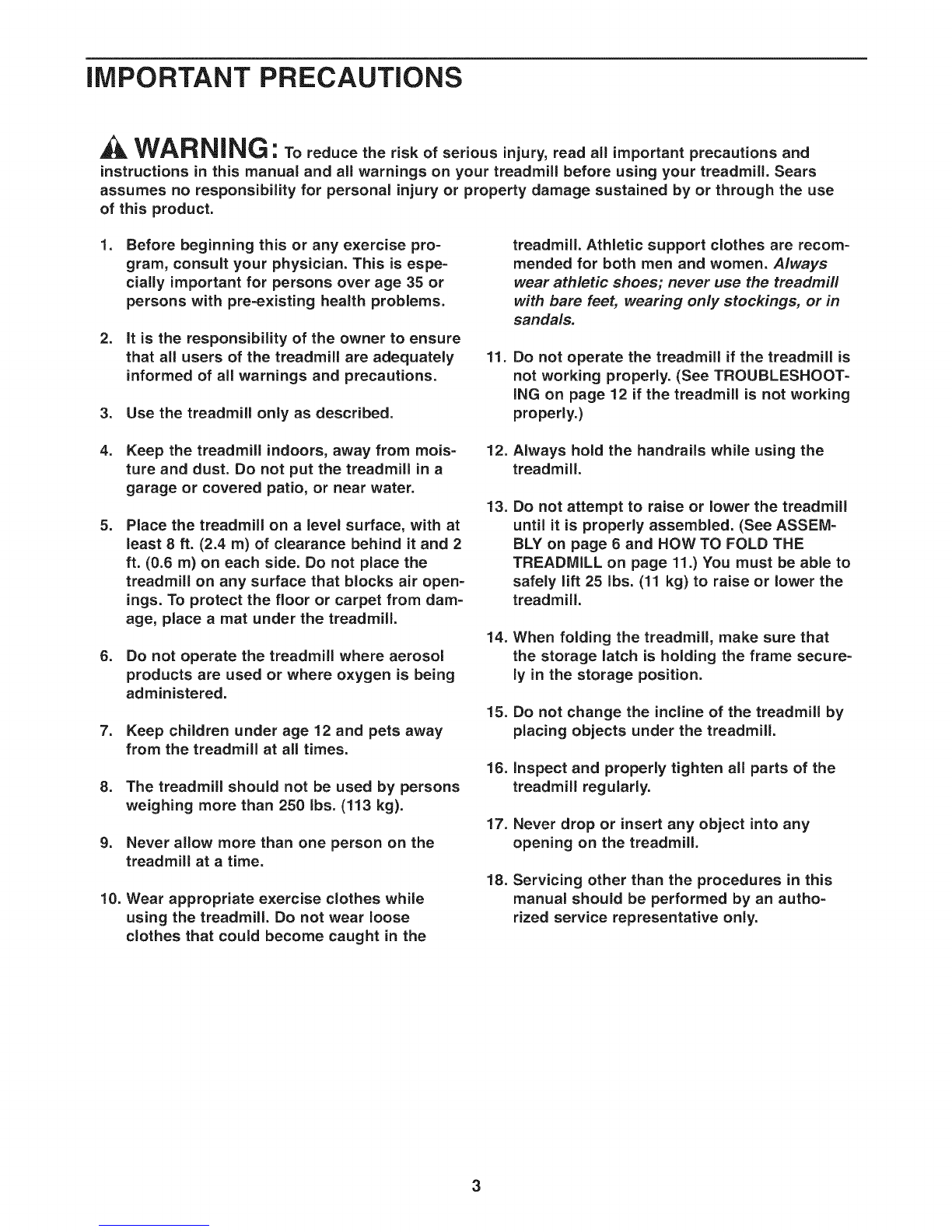

iMPORTANT PRECAUTIONS

WARNING: Toreducetheriskofseriousnjury,reada.importantprecautionsand

instructions in this manual and all warnings on your treadmill before using your treadmill. Sears

assumes no responsibility for personal injury or property damage sustained by or through the use

of this product.

Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

it is the responsibility of the owner to ensure

that all users of the treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

11.

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes; never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

Do not operate the treadmiJl if the treadmill is

not working properly. (See TROUBLESHOOT-

iNG on page 12 if the treadmill is not working

properly.)

10.

Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

Place the treadmill on alevel surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

Do not operate the treadmilJ where aerosol

products are used or where oxygen is being

administered.

Keep children under age 12 and pets away

from the treadmill at alJ times.

The treadmill should not be used by persons

weighing more than 250 Ibs. (113 kg).

Never allow more than one person on the

treadmill at a time.

Wear appropriate exercise clothes while

using the treadmill. Do not wear loose

clothes that could become caught in the

12.

13.

14.

15.

16.

17.

18.

Always hold the handrails while using the

treadmiJl.

Do not attempt to raise or lower the treadmill

unti! it is properly assembled. (See ASSEM-

BLY on page 6 and HOW TO FOLD THE

TREADMILL on page 11.) You must be able to

safely lift 25 Ibs. (11 kg) to raise or Jower the

treadmill.

When folding the treadmill, make sure that

the storage latch is holding the frame secure-

ly in the storage position.

Do not change the incline of the treadmill by

placing objects under the treadmill.

Inspect and properly tighten all parts of the

treadmill regularly.

Never drop or insert any object into any

opening on the treadmill

Servicing other than the procedures in this

manual should be performed by an autho-

rized service representative only.

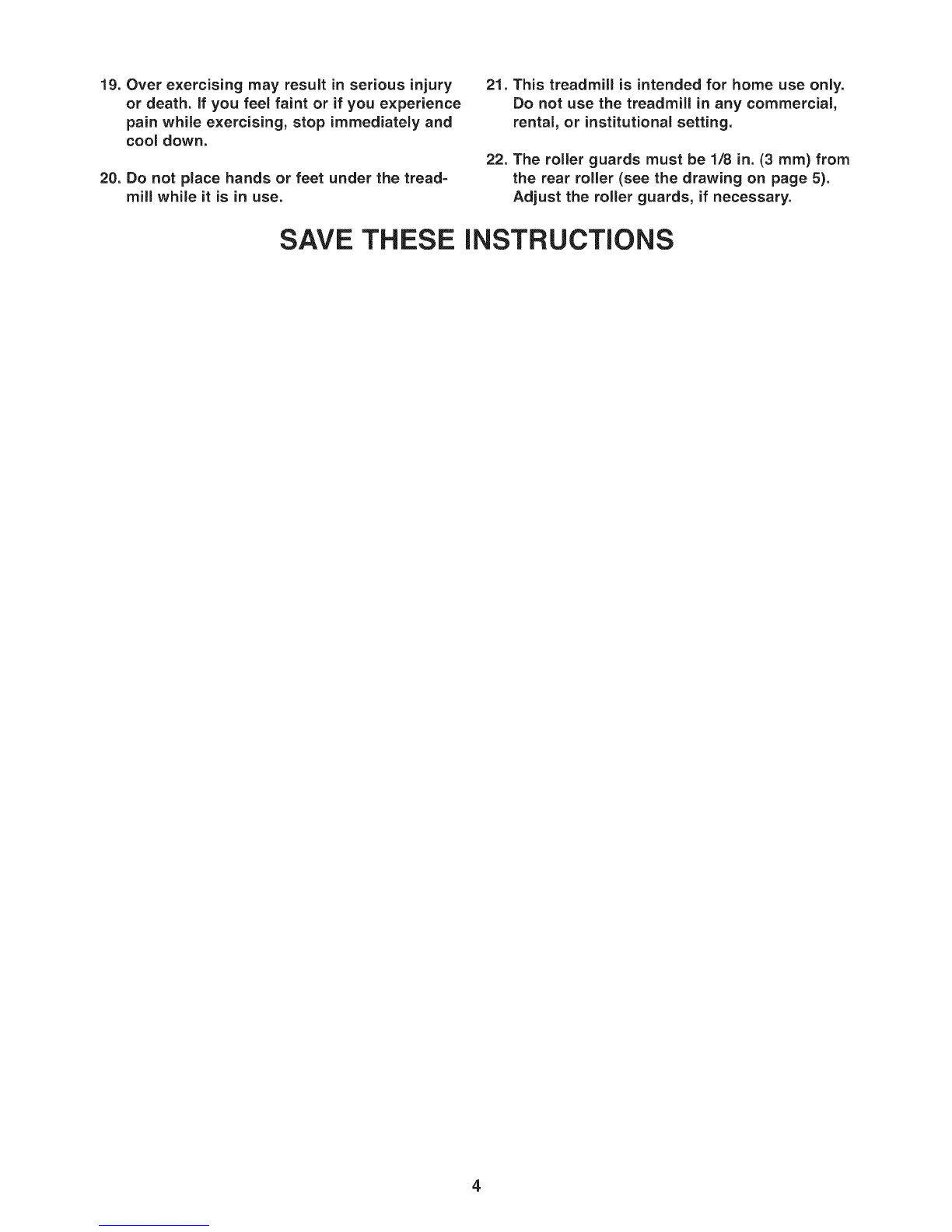

19. Over exercising may result in serious injury

or death, if you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

20. Do not place hands or feet under the tread-

mill while it is in use.

SAVE THESE

21. This treadmill is intended for home use only.

Do not use the treadmill in any commercial,

rental, or institutional setting.

22. The roller guards must be 1/8 in. (3 ram) from

the rear roller (see the drawing on page 5).

Adjust the roller guards, if necessary.

iNSTRUCTiONS

BEFORE YOU BEGIN

Thank you for selecting the new WESLO ®CARDIO

STRIDE 2.0 treadmill. The CARDIO STRIDE 2.0

treadmill offers a selection of features designed to

make your workouts at home more effective. And

when you're not exercising, the unique treadmill can

be folded up, requiring less than half the floor space of

other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

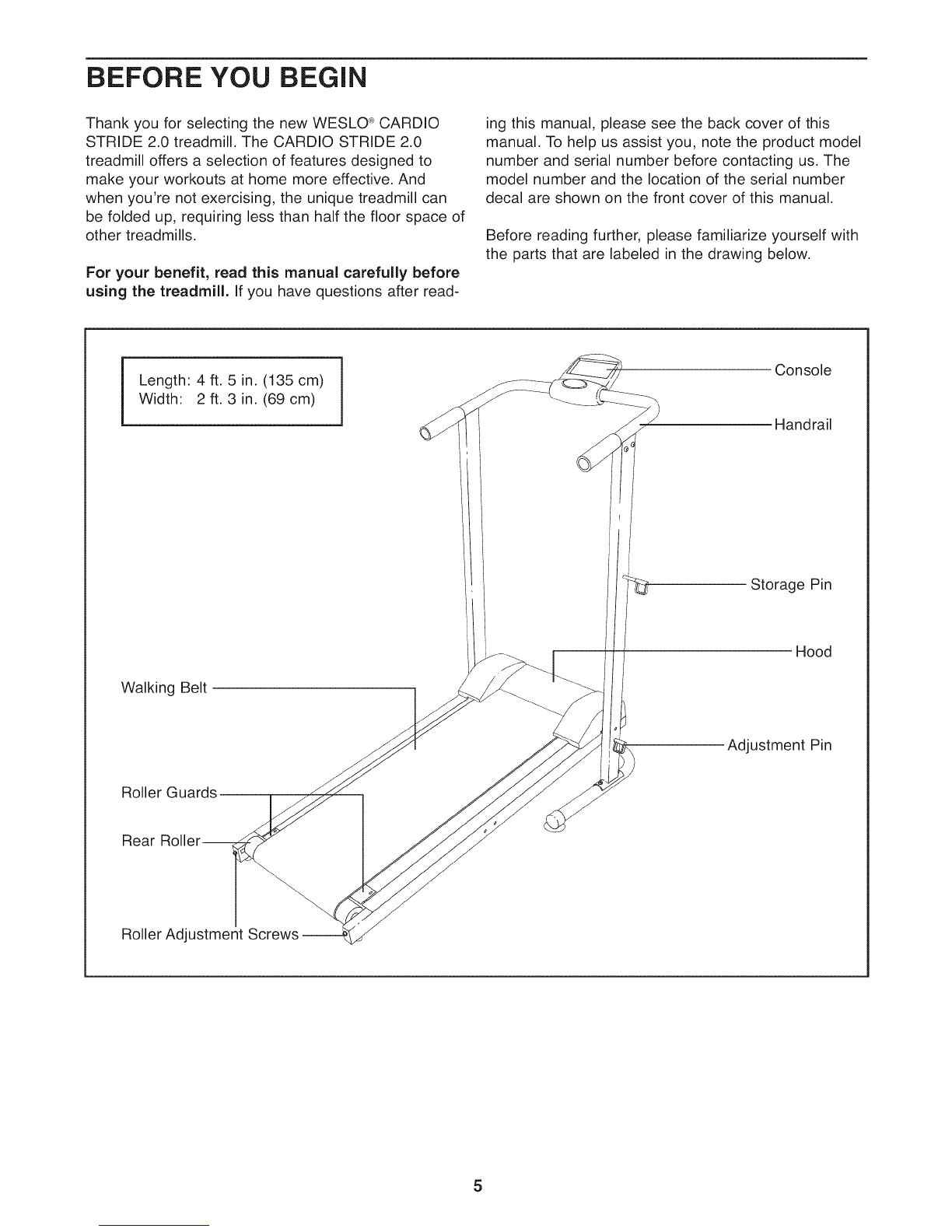

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Length: 4 ft. 5 in. (135 cm)

Width: 2 ft. 3 in. (69 cm)

Console

Handrail

Storage Pin

Walking Belt

Hood

Adjustment Pin

Roller

Rear

Roller Adjustment Screws

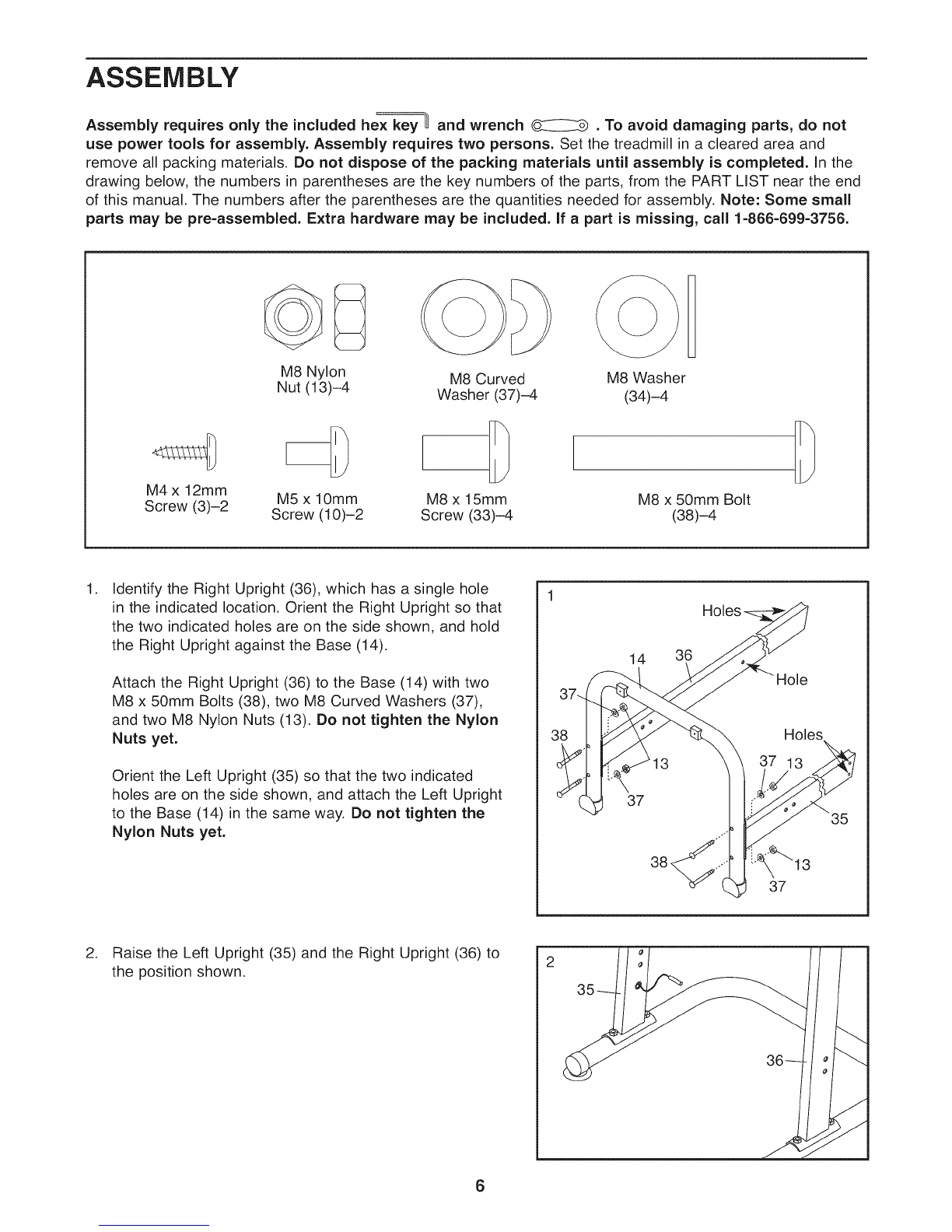

ASSEMBLY

Assembly requires only the included he_ and wrench _. To avoid damaging parts, do not

use power tools for assembly. Assembly requires two persons. Set the treadmill in a cleared area and

remove all packing materials. Do not dispose of the packing materials until assembly is completed. In the

drawing below, the numbers in parentheses are the key numbers of the parts, from the PART LIST near the end

of this manual. The numbers after the parentheses are the quantities needed for assembly. Note: Some small

parts may be pre-assembled. Extra hardware may be included. If a part is missing, call 1-866-699-3756.

M8 Nylon

Nut (13)-4 M8 Curved M8 Washer

Washer (37)-4 (34)-4

M4 x 12mm

Screw (3)-2 M5 x 10mm M8 x 15mm

Screw (10)-2 Screw (33)-4 M8 x 50mm Bolt

(38)-4

,Identify the Right Upright (36), which has a single hole

in the indicated location. Orient the Right Upright so that

the two indicated holes are on the side shown, and hold

the Right Upright against the Base (14).

Attach the Right Upright (36) to the Base (14) with two

M8 x 50mm Bolts (38), two M8 Curved Washers (37),

and two M8 Nylon Nuts (13). Do not tighten the Nylon

Nuts yet.

Orient the Left Upright (35) so that the two indicated

holes are on the side shown, and attach the Left Upright

to the Base (14) in the same way. Do not tighten the

Nylon Nuts yet.

38_

Holes

2. Raise the Left Upright (35) and the Right Upright (36) to

the position shown. 2

AttachtheHood(28)tothefrontoftheFrame(29)with

twoM5x 10mmScrews(10). 28

.See drawing 4a. Hold the front of the Frame (29)

between the Left Upright (35) and the Right Upright

(36). Align the holes near the front of the Frame with

one of the two sets of adjustment holes in the Uprights.

Insert the two Adjustment Pins (4) into the holes in the

Uprights and the Frame. Make sure that the

Adjustment Pins are fully inserted at the same

height.

Next, look under the Frame (29) near the Left Upright

(35). See drawing 4b. Locate the Reed Switch Clip (11)

attached to the underside of the Frame. Insert the Reed

Switch (6) into the Reed Switch Clip as shown. Next,

locate the Magnet (12) on the left Flywheel (9). Turn the

Flywheel until the Magnet is aligned with the Reed

Switch. Move the Reed Switch so that there is a 1/8"

(3 ram) gap between the Reed Switch and the

Magnet. Then, tighten the M5 x 12mm Screw (44).

1/8 in.

View from below

.Hold the Handrail (5) near the Left and Right Uprights

(35, 36). Connect the Handrail Wire (2) to the Reed

Switch Wire (6). Insert the Wires down into the Left

Upright.

Attach the Handrail (5) to the Uprights (35, 36) with four

M8 x 15mm Screws (33) and four M8 Washers (34). Be

careful not to pinch the Wires (2, 6). Do not fully

tighten the Screws yet.

Place the treadmill in the storage position (see page

11). Center the Frame (not shown) between the

Uprights (35, 36).

See step 1. Tighten the four M8 Nylon Nuts (13).

Then, tighten the M8 × 15ram Screws (33). Lower the

Frame (see page 11).

I34

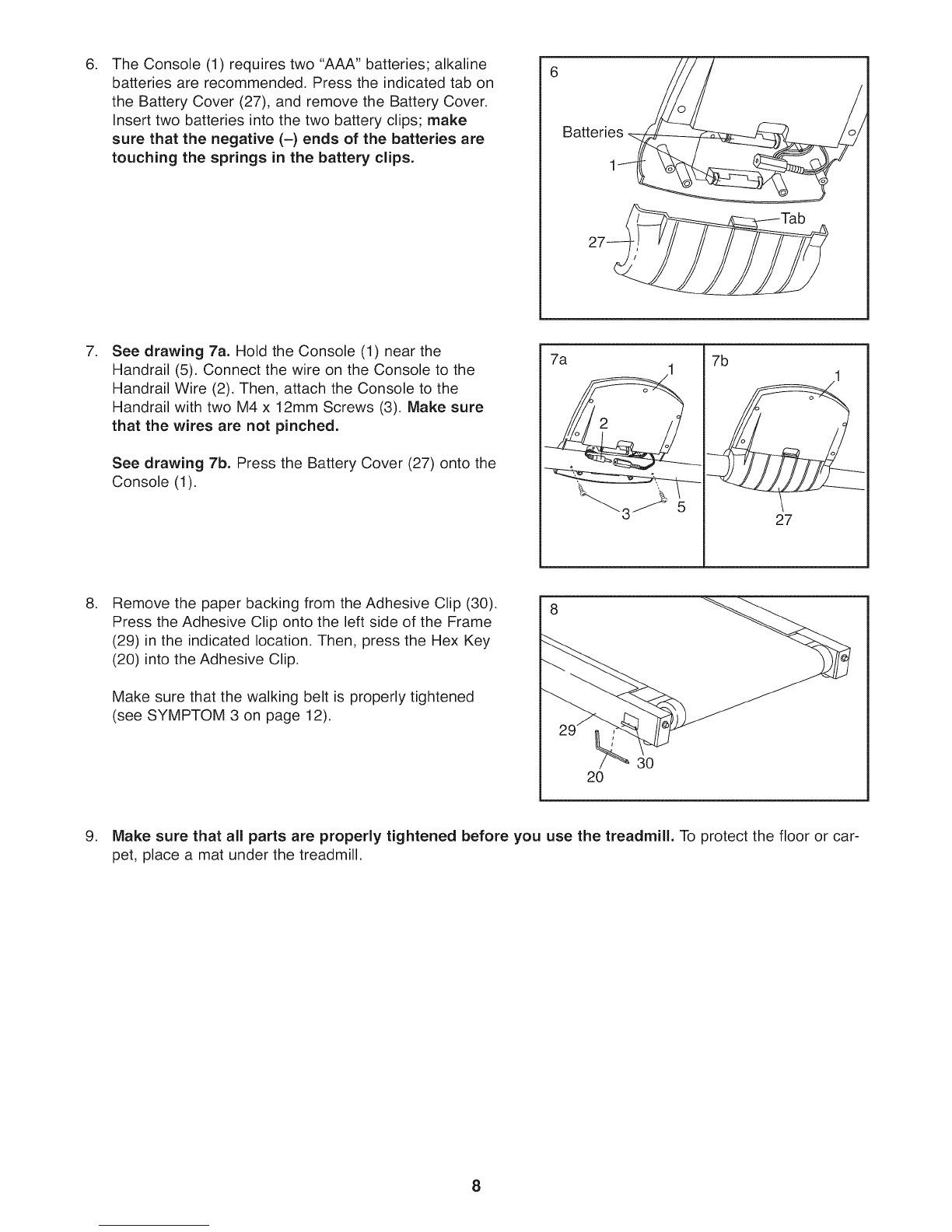

.The Console (1) requires two "AAA" batteries; alkaline

batteries are recommended, Press the indicated tab on

the Battery Cover (27), and remove the Battery Cover.

Insert two batteries into the two battery clips; make

sure that the negative (-) ends of the batteries are

touching the springs in the battery clips. attere

.See drawing 7a. Hold the Console (1) near the

Handrail (5), Connect the wire on the Console to the

Handrail Wire (2), Then, attach the Console to the

Handrail with two M4 x 12mm Screws (3). Make sure

that the wires are not pinched.

See drawing 7b. Press the Battery Cover (27) onto the

Console (1).

7a 7b

.Remove the paper backing from the Adhesive Clip (30).

Press the Adhesive Clip onto the left side of the Frame

(29) in the indicated location. Then, press the Hex Key

(20) into the Adhesive Clip.

Make sure that the walking belt is properly tightened

(see SYMPTOM 3 on page 12).

20 30

9. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or car-

pet, place a mat under the treadmill.

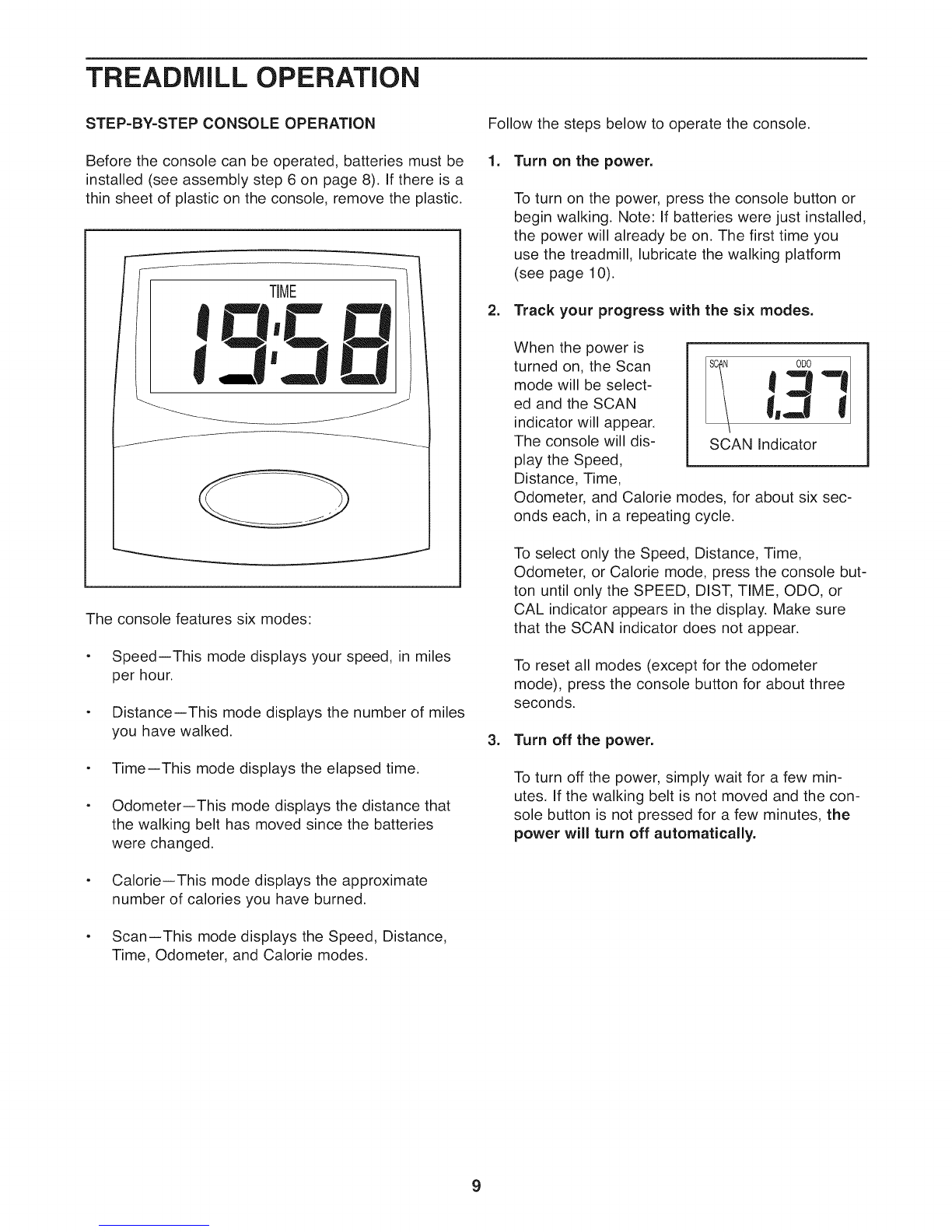

TREADMILL OPERATION

STEP-BY-STEP CONSOLE OPERATION

Before the console can be operated, batteries must be

installed (see assembly step 6 on page 8). If there is a

thin sheet of plastic on the console, remove the plastic.

_ J

The console features six modes:

Speed--This mode displays your speed, in miles

per hour.

Distance--This mode displays the number of miles

you have walked.

Time--This mode displays the elapsed time.

Odometer--This mode displays the distance that

the walking belt has moved since the batteries

were changed.

Calorie--This mode displays the approximate

number of calories you have burned.

Scan--This mode displays the Speed, Distance,

Time, Odometer, and Calorie modes.

Follow the steps below to operate the console.

1. Turn on the power.

To turn on the power, press the console button or

begin walking. Note: If batteries were just installed,

the power will already be on. The first time you

use the treadmill, lubricate the walking platform

(see page 10).

2. Track your progress with the six modes.

When the power is

turned on, the Scan

mode will be select-

ed and the SCAN

indicator will appear.

The console will dis-

play the Speed,

Distance, Time,

sI ,,__,'='°°°l

SCAN Indicator

Odometer, and Calorie modes, for about six sec-

onds each, in a repeating cycle.

To select only the Speed, Distance, Time,

Odometer, or Calorie mode, press the console but-

ton until only the SPEED, DIST, TIME, ODO, or

CAL indicator appears in the display. Make sure

that the SCAN indicator does not appear.

To reset all modes (except for the odometer

mode), press the console button for about three

seconds.

3. Turn off the power.

To turn off the power, simply wait for a few min-

utes. If the walking belt is not moved and the con-

sole button is not pressed for a few minutes, the

power will turn off automatically.

iNCLiNE ADJUSTMENT LUBRiCATiNG THE WALKING PLATFORM

The incline of the treadmill can be adjusted to two

positions. Hold the front of the Frame (29), and

remove the two Adjustment Pins (4). Raise or lower

the Frame, align the holes in the Frame with one of

the sets of holes in the Uprights (35, 36), and then

reinsert the Adjustment Pins.

Before the treadmill is used, the walking platform

should be lubricated. Open the included lubricant

packet. Reach under one side of the walking belt as

far as you can, and apply half of the lubricant to the

walking platform. Then, reach under the other side of

the walking belt and apply the remaining lubricant.

After you have applied the lubricant, walk on the

treadmill for a few minutes to spread the lubricant.

Apply

lubricant

here _..

pply

lubricant

here

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rueda de andar de Weslo

Weslo

Weslo Cadence 90 Treadmill Manual de usuario

Weslo

Weslo Relay Relay 660 Manual de usuario

Weslo

Weslo Cadence Ls 6 Manual de usuario

Weslo

Weslo Easy compact 2 treadmill Guía de referencia

Weslo

Weslo Cadence C62 Manual de usuario

Weslo

Weslo Cadence 200cs Manual de usuario

Weslo

Weslo Easy compact 2 treadmill Manual de usuario

Weslo

Weslo Cadence 1015 Manual de usuario

Weslo

Weslo WCTL19809.0 Manual de usuario

Weslo

Weslo Cadence C32 Treadmill Manual de usuario

Weslo

Weslo Cadence 21.5 Treadmill Manual de usuario

Weslo

Weslo Cadence 630 Manual de operación y mantenimiento

Weslo

Weslo Cadence 30.8ct Manual de usuario

Weslo

Weslo WLTL29013 Manual de usuario

Weslo

Weslo Cadence 300 Manual de usuario

Weslo

Weslo Cadence 3250 Manual de usuario

Weslo

Weslo Cadence Sl 20 Manual de usuario

Weslo

Weslo Crosstrainer 505s Treadmill Manual de usuario

Weslo

Weslo Cadence C6 Treadmill Manual del sistema

Weslo

Weslo Cadence S 8 Manual de usuario

Weslo

Weslo Cadence C22 Treadmill Manual de usuario

Weslo

Weslo WCTL39102 Manual de usuario

Weslo

Weslo Cadence M6 Elliptical Manual de usuario

Weslo

Weslo Cadence 10.0s Manual de usuario

Manuales populares de Rueda de andar de otras marcas

Treadly

Treadly TREADLY 2 Manual de usuario

HEALTH ONE

HEALTH ONE Walk Ro Manual de usuario

NordicTrack

NordicTrack NTL12941 Manual de usuario

NordicTrack

NordicTrack T7.5 S Manual de usuario

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manual de usuario

Merax

Merax MS282992 Manual de usuario

FYTTER

FYTTER RU-2SX Manual de usuario

Precor

Precor 903 Manual de usuario

FitLogic

FitLogic freewill d225 Manual de usuario

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manual de usuario

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manual de usuario

Stamia

Stamia InMotion II Manual de usuario

Smooth Fitness

Smooth Fitness EVO 3i Manual de usuario

NordicTrack

NordicTrack NETL81810.0 Manual de usuario

Schwinn

Schwinn 830/Journey 8.0 Manual de usuario

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manual de usuario

Spirit

Spirit XT8 Manual de usuario

NordicTrack

NordicTrack T 14.0 Treadmill Manual de usuario
