USER'S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts, we

will guarantee complete satis-

faction through direct assis-

tance from our factory.

TO AVOID UNNECESSARY

DELAYS, PLEASE CALL DIRECT

TO OUR TOLL-FREE CUSTOMER

HOT LINE. The trained techni-

cians on our customer hot line

will provide immediate assis-

tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Model No. WLEX27180

Serial No.

Patent Pending

Write the serial number in the

space above for reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before

using the WESLO¨PURSUIT 675s.

1. Read all instructions in this manual before

using the exercise cycle.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions. Use the

exercise cycle only as described in this

manual.

3. Use the exercise cycle indoors on a level

surface. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor or carpet.

4. Inspect and tighten all parts regularly.

Replace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

6. The exercise cycle should not be used by

persons weighing more than 250 pounds.

7. Wear appropriate clothing when exercising;

do not wear loose clothing that could

become caught on the exercise cycle.

Always wear athletic shoes when using the

exercise cycle.

8. Always keep your back straight when using

the exercise cycle. Do not arch your back.

9. If you feel pain or dizziness at any time

while exercising, stop immediately and

begin cooling down.

10. The exercise cycle is intended for in-home

use only. Do not use the exercise cycles in

a commercial, rental, or institutional setting.

11. CAUTION DECAL PLACEMENT: The decal

shown below has been placed on the exer-

cise cycle. If the decal is missing, or if it is

not legible, please call our Customer Service

Department toll-free at 1-800-999-3756 to

order a free replacement decal. Apply the

decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This is espe-

cially important for persons over the age of 35 or persons with pre-existing health problems. Read

all instructions before using. ICON assumes no responsibility for personal injury or property dam-

age sustained by or through the use of this product.

Decal shown at

75% actual size

Do not allow children on or

around machine.

Keep hands and feet away

from moving parts and contact

points.

Read owner's manual and

follow instructions.

BEFORE YOU BEGIN

Thank you for selecting the innovative WESLO¨

PURSUIT 675s. The PURSUIT 675s offers a unique

form of low-impact exercise that offers greater cardio-

vascular benefits and increased muscle toning. And

the 675s features adjustable resistance to let you tai-

lor your exercise to the level thatÕs perfect for you.

For your benefit, read this manual carefully before

you use the PURSUIT 675s. If you have additional

questions, please call our Customer Service

Department toll-free at 1-800-999-3756, Monday

through Friday, 6 a.m. until 6 p.m. Mountain Time

(excluding holidays). To help us assist you, please

mention the product model number and serial number

when calling. The model number is WLEX27180. The

serial number can be found on a decal attached to the

PURSUIT 675s (see the front cover of this manual for

the location of the decal).

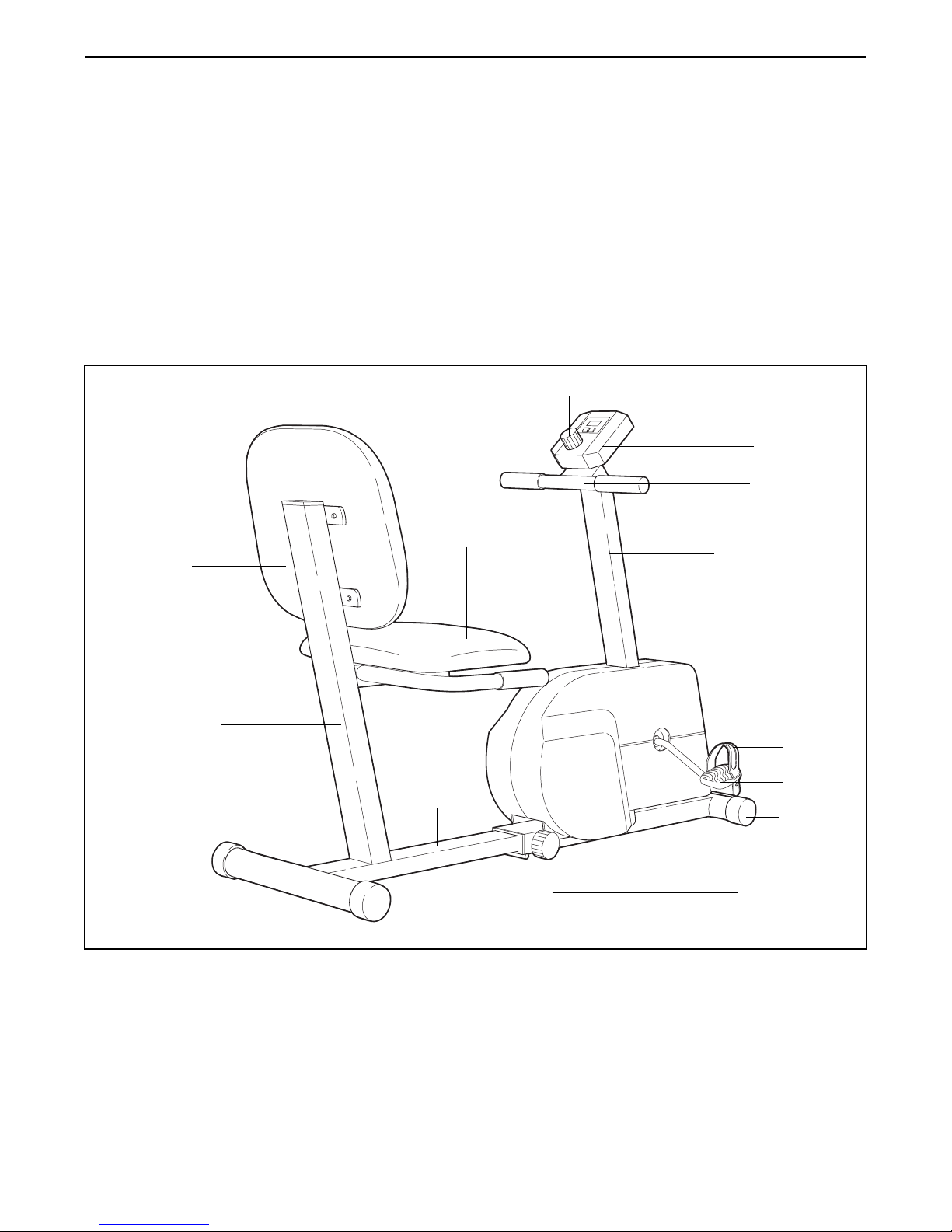

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

Seat Handle

Handlebar

FRONT

Seat

Seat Upright

Wheel

Frame Knob

Seat Frame

Backrest

Pedal

Strap

Console

Resistance Knob

Handlebar Post

LEFT SIDE

ASSEMBLY

Place all parts of the WESLO¨PURSUIT 675s in a cleared area and remove the packing materials. Do not dis-

pose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench , and phillips

screwdriver .

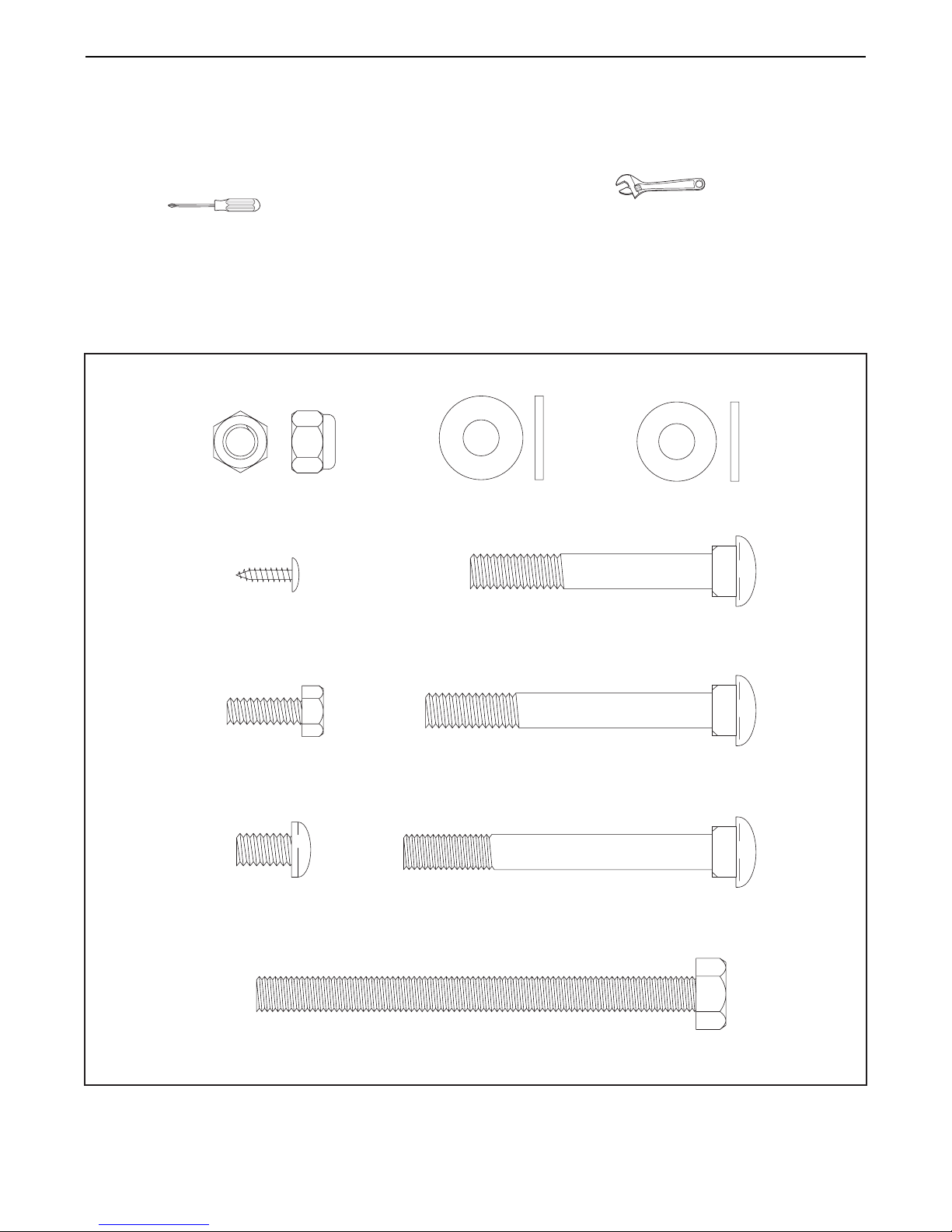

PART CHART

Use the drawings below to identify the small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part; the second number refers to the quantity used in assembly.

Note: Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check

M8 x 100mm Hex Head Bolt (12)Ð2

M6 x 16mm Hex Head

Screw (46)Ð8

#8 x 1/2Ó Screw (43)Ð5

M8 Nylon Locknut (55)Ð12

M8 x 70mm Carriage Bolt (27)Ð2

M8 x 65mm Carriage Bolt (52)Ð4

M8 x 55mm Carriage Bolt (11)Ð4

M8 Washer (26)Ð2

M8 x 15mm Button

Screw (53)Ð3

M8 x 19mm

Washer (54)Ð3

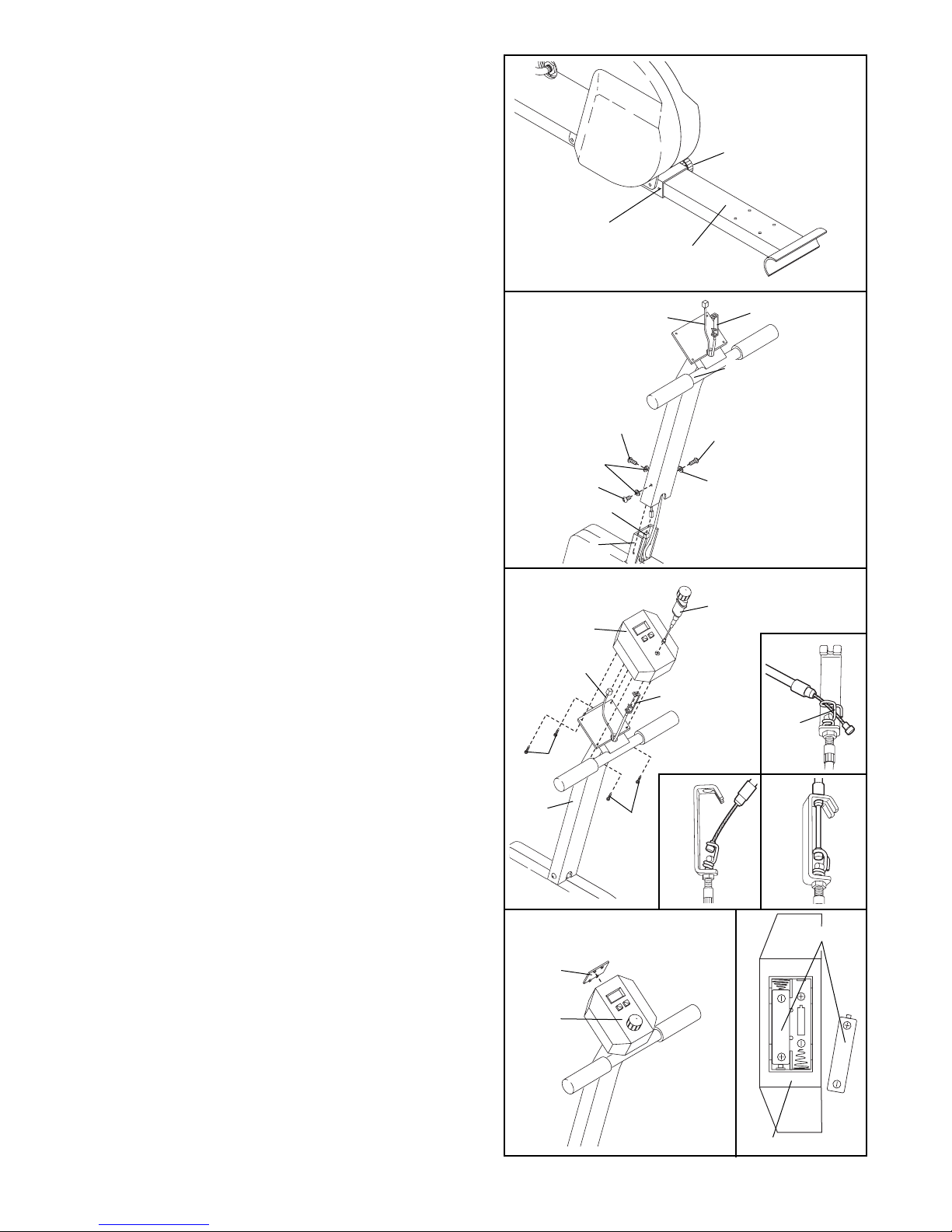

1. Loosen the Frame Knob (29) on the right side of the

Frame (1). Slide the Seat Frame (2) out until it

stops. Tighten the Frame Knob.

2. Run the Reed Switch Wire Extension (62) down

through the Handlebar Post (3) and plug it into the

Reed Switch Wire (42). Push the Resistance Cable

(61) up through the Handlebar Post. Attach the

Handlebar Post (3) to the Frame (1) with three M8 x

15mm Button Screws (53) and three M8 x 19mm

Washers (54). Be careful not to pinch the Reed

Switch Wire and its Extension (42,62) or the

Resistance Cable (61).

3. Plug the Reed Switch Wire Extension (62) into the

outlet on the back of the Console (33). Push the

Resistance Control (31) into its socket in the

Console. Next, attach the Console (33) to the

Handlebar Post (3) with four #8 x 1/2Ó Screws (43).

Next, connect the short cable on the Resistance

Control (31) to the Resistance Cable (61) as follows:

¥ Insert the tip of the short cable into the wire clip as

shown in drawing A.

¥ Firmly pull the short cable and slide it into the

metal bracket as shown in drawings B and C.

Make sure that the tip of the short cable is held by

the wire clip as shown.

3. The Console (33) requires two ÒAAÓ batteries (not

included)Ñalkaline batteries are recommended.

Remove the Battery Cover (59) on the top of the

Console. Refer to the inset drawing. Press two bat-

teries into the Console top. Make sure that the

negative (Ð) ends of the batteries are touching

the springs. Reattach the Battery Cover.

Batteries

Console Top

B C

Wire

Clip

6. Attach the Stabilizer (30) to the Seat Frame (2) with

two M8 x 70mm Carriage Bolts (27) and two M8

Nylon Locknuts (55).

7. Attach the Seat Bracket (56) to the Seat Upright

(57) with four M8 x 65mm Carriage Bolts (52) and

four M8 Nylon Locknuts (55).

5. Attach the Seat Upright (57) to the Seat Frame (2)

with four M8 x 55mm Carriage Bolts (11) and four

M8 Nylon Locknuts (55). Note: It may be helpful to

tip the exercise cycle on its side to attach the Seat

Upright.

55 57

211

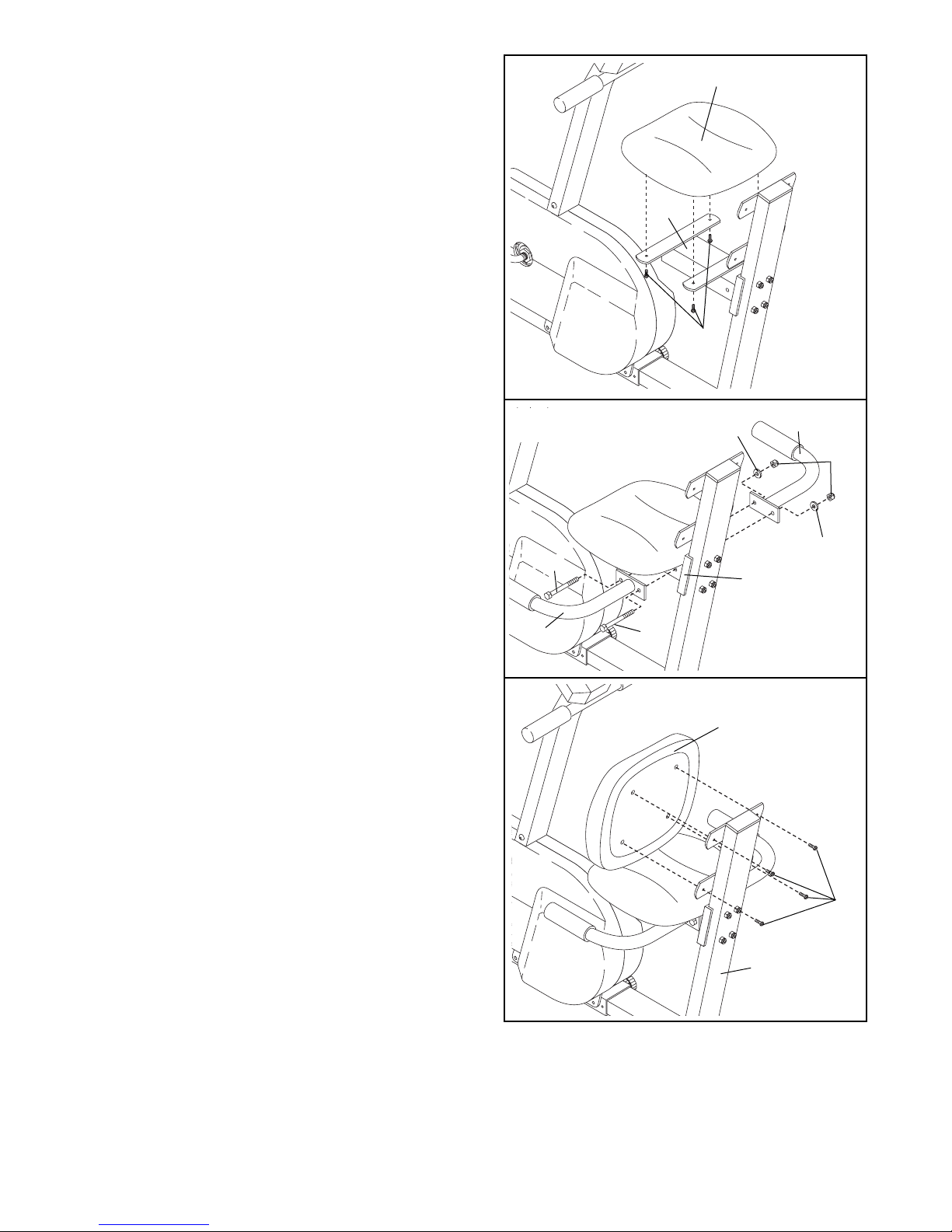

10. Attach the Backrest (45) to the Seat Upright (57)

with four M6 x 16mm Hex Head Screws (46).

26 25

9. Attach the Seat Handles (25) to the Seat Bracket

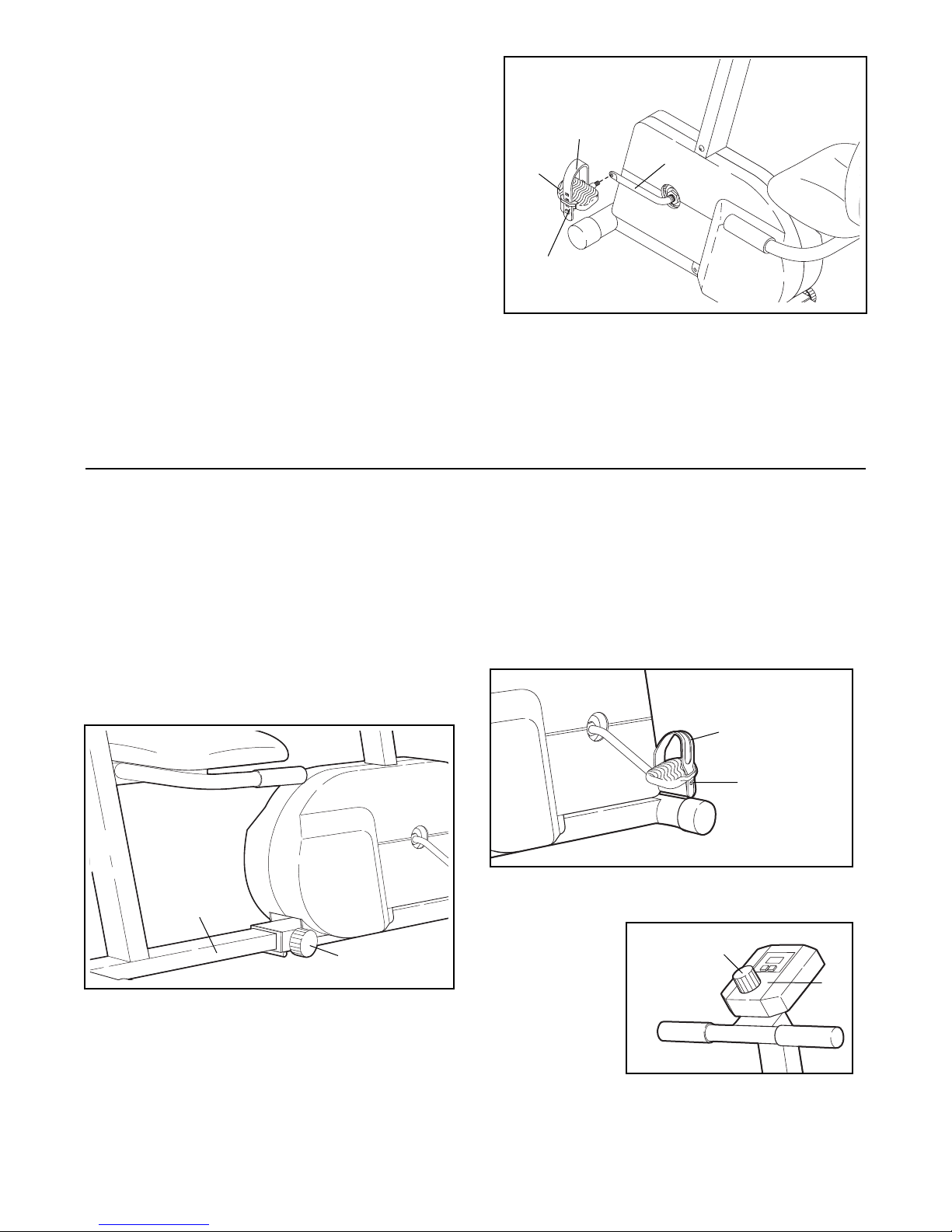

(56) with two M8 x 100mm Hex Head Bolts (12),

two M8 Washers (26) and two M8 Nylon Locknuts

(55).

8. Attach the Seat (44) to the Seat Bracket (56) with

four M6 x 16mm Hex Head Screws (46). 44

HOW TO USE THE EXERCISE CYCLE

HOW TO ADJUST THE POSITION OF THE SEAT

FRAME

The Seat Frame (2) can be adjusted to the position

that is the most comfortable for you. To adjust the

Seat Frame, first loosen the Frame Knob (29) on the

right side of the Frame. Slide the Seat Frame forward

or backward to the desired position. Tighten the

Frame Knob.

HOW TO ADJUST THE PEDAL STRAPS

To adjust each Pedal Strap (10), first pull the Pedal

Strap off the Adjustment Tab on the pedal. Align a dif-

ferent hole in the Pedal Strap with the adjustment tab.

Press the Pedal Strap onto the adjustment tab.

HOW TO ADJUST THE PEDALING RESISTANCE

The pedaling

resistance can

be adjusted

with the

Resistance

Knob (32) locat-

ed on the

Console (33).

To increase the

resistance, turn

the Resistance Knob clockwise; to decrease the resis-

tance, turn the Resistance Knob counterclockwise.

Adjustment Tab

Adjustment

Tab

12. Make sure that all parts are properly tightened before you use the exercise cycle.

11. Identify the Left Pedal (39) (there is an ÒLÓ on the

Left Pedal for identification). Using an adjustable

wrench, tighten the Left Pedal counterclockwise into

the left arm of the Crank (7).

Tighten the Right Pedal (not shown) clockwise into

the right arm of the Crank (7).

Adjust the Pedal Strap (10) on the Left Pedal (39) to

the desired position. Press the Pedal Strap onto the

Adjustment Tab on the Left Pedal.

Adjust the Pedal Strap on the Right Pedal (not

shown) in the same manner.

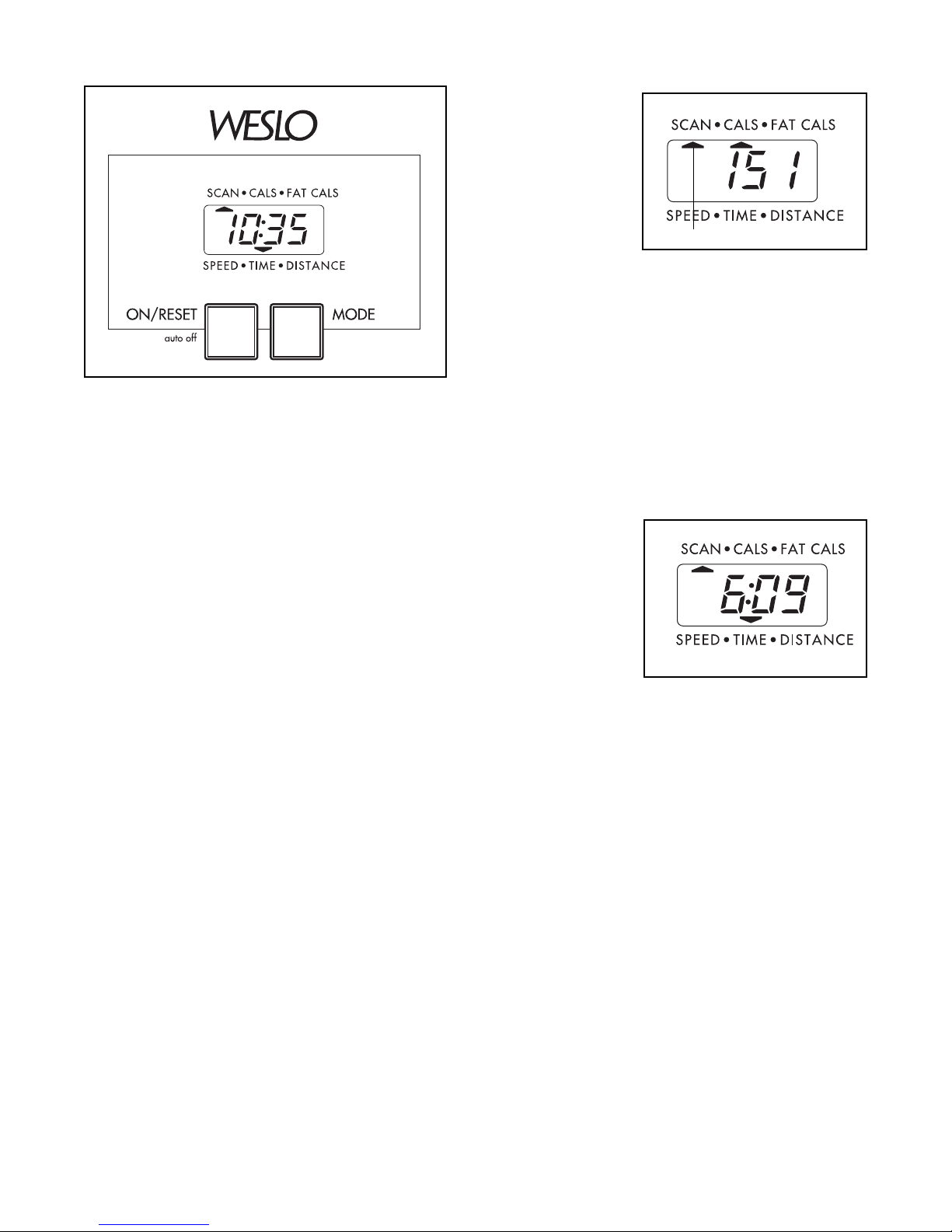

DESCRIPTION OF THE CONSOLE

The console features six modes that provide instant

exercise feedback during your workouts. The modes

are described below.

¥ SpeedÑDisplays your pedaling speed, in miles per

hour.

¥ TimeÑDisplays the elapsed time. Note: If you stop

pedaling for ten seconds or longer, the time mode

will pause until you resume.

¥ DistanceÑDisplays the total distance you have ped-

aled, in miles.

¥ Fat CaloriesÑDisplays the approximate number of

fat calories you have burned. (See BURNING FAT

on page 13.)

¥ CalorieÑDisplays the approximate number of

Calories you have burned.

¥ ScanÑDisplays the speed, time, distance, fat calo-

ries, and calorie modes, for 5 seconds each, in a

repeating cycle.

HOW TO OPERATE THE CONSOLE

1. To turn on the

power, press

the on/reset

button or simply

begin pedaling.

When the

power is turned

on, the entire

display will

appear for two

seconds. The console will then be ready for opera-

tion.

2. Select one of the six modes:

Scan modeÑWhen the power is turned on, the

scan mode will automatically be selected. One

mode arrow will show that the scan mode is select-

ed, and a flashing mode arrow will show which

mode is currently displayed. Note: If a different

mode is selected, you can select the scan mode

again by repeatedly pressing the mode button.

Speed, time,

distance, fat

calories, or

calorie modeÑ

To select one of

these modes for

continuous dis-

play, press the

mode button

repeatedly. The

mode arrows will show which mode is selected.

Make sure that the scan mode is not selected.

3. To reset the display, press the on/reset button.

4. To turn off the power, simply wait for about four

minutes. Note: The monitor has an Òauto-offÓ

feature. If the pedals are not moved and the

monitor buttons are not pressed for four min-

utes, the power will turn off automatically in

order to conserve the batteries.

Mode Indicator

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bicicleta estática de Weslo

Weslo

Weslo Pursuit 102 Guía de inicio rápido

Weslo

Weslo Pursuit 93 Bike Manual de usuario

Weslo

Weslo Pursuit 720s Manual de usuario

Weslo

Weslo Vector 503 Bike Manual de operación y mantenimiento

Weslo

Weslo Pursuit T 149 Bike Manual de usuario

Weslo

Weslo WLIVEX85212.0 Manual de usuario

Weslo

Weslo Pursuit 103 Bike Manual de usuario

Weslo

Weslo Pursuit T 89 Bike Manual de usuario

Weslo

Weslo Pursuit S 25 Exercise Bike Guía de inicio rápido

Weslo

Weslo Aero 750 Manual de usuario

Weslo

Weslo WLEX31510.3 Manual de usuario

Weslo

Weslo II.Ox Pro WLEX31810.0 Manual de usuario

Weslo

Weslo Pursuit 202 Guía de inicio rápido

Weslo

Weslo pursuit 525 CS WLEVEX14910 Manual de usuario

Weslo

Weslo Pursuit 203 Bike Manual de operación y mantenimiento

Weslo

Weslo Pursuit 103 Bike Manual de usuario

Weslo

Weslo Pursuit 655s Manual de usuario

Weslo

Weslo Pursuit 250 Fm Bike Manual de usuario

Weslo

Weslo WLIVEX57010.1 Manual de usuario

Weslo

Weslo X LINE Manual de usuario

Weslo

Weslo PURSUIT R62 Manual de usuario

Weslo

Weslo EasyFit WLIVEX83010.1 Manual de usuario

Weslo

Weslo Pursuit 655s Guía de inicio rápido

Weslo

Weslo WLEX28080 Manual de usuario

Manuales populares de Bicicleta estática de otras marcas

TOORX

TOORX BRX85 Manual de usuario

Matrix

Matrix KranKcycle Manual de usuario

Matrix

Matrix IC3 Manual de usuario

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manual de usuario

Monark

Monark 827E Manual de usuario

Stamina

Stamina 1310 Manual de usuario

American Fitness

American Fitness SPR-BK1072A Manual de usuario

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manual de usuario

BH FITNESS

BH FITNESS H9158H Manual del operador

Body Sculpture

Body Sculpture BC-7220G Manual de usuario

Cateye

Cateye EC-2300 Manual de usuario

FYTTER

FYTTER RACER RC MSR Manual de usuario

Kikos

Kikos HM-9090M Manual de usuario

Pro-Form

Pro-Form 345 Zlx Bike Guía del usuario

Fuel Fitness

Fuel Fitness SU135-40 Manual de usuario

NordicTrack

NordicTrack Gxr 4.2 Bike Manual de usuario

Vision Fitness

Vision Fitness U70 Manual de usuario

Stamina

Stamina 15-0340A Manual de usuario
