Weslo Pursuit E20 Manual de usuario

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing parts, we will guarantee

complete satisfaction through

direct assistance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER HOT LINE. The

trained technicians on our cus-

tomer hot line will provide imme-

diate assistance, free of charge to

you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Model No. WLEX13820

Serial No.

Patent Pending

Write the serial number in the

space above for reference.

USER'S MANUAL

Visit our website at

www.weslo.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WESLO is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the exercise cycle.

1. Read all instructions in this manual before

using the exercise cycle.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions. Use the

exercise cycle only as described in this

manual.

4. Use the exercise cycle indoors on a level

surface. Keep the exercise cycle away from

moisture and dust. Place a mat under the

exercise cycle to protect the floor or carpet.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the exercise cycle at all times.

7. The exercise cycle should not be used by

persons weighing more than 250 pounds.

8. Wear appropriate clothing when exercising;

do not wear loose clothing that could

become caught on the exercise cycle.

Always wear athletic shoes when using the

exercise cycle.

9. Always keep your back straight when using

the exercise cycle. Do not arch your back.

10. If you feel pain or dizziness while exercising,

stop immediately and begin cooling down.

11. The exercise cycle is intended for in-home

use only. Do not use the exercise cycles in

a commercial, rental, or institutional setting.

12. The exercise cycle does not have a free

wheel; the pedals will continue to move

until the flywheel stops.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health

problems. Read all instructions before using. ICON assumes no responsibility for personal injury

or property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for selecting the new WESLO®PURSUIT

E 20 exercise cycle. The PURSUIT E 20 exercise

cycle offers an effective form of low-impact exercise

that offers greater cardiovascular benefits and

increased muscle toning. And the exercise cycle fea-

tures adjustable resistance to let you tailor your exer-

cise to the level that’s perfect for you.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please mention the product model number and serial

number when calling. The model number is

WLEX13820. The serial number can be found on a

decal attached to the exercise cycle (see the front

cover of this manual for the location of the decal).

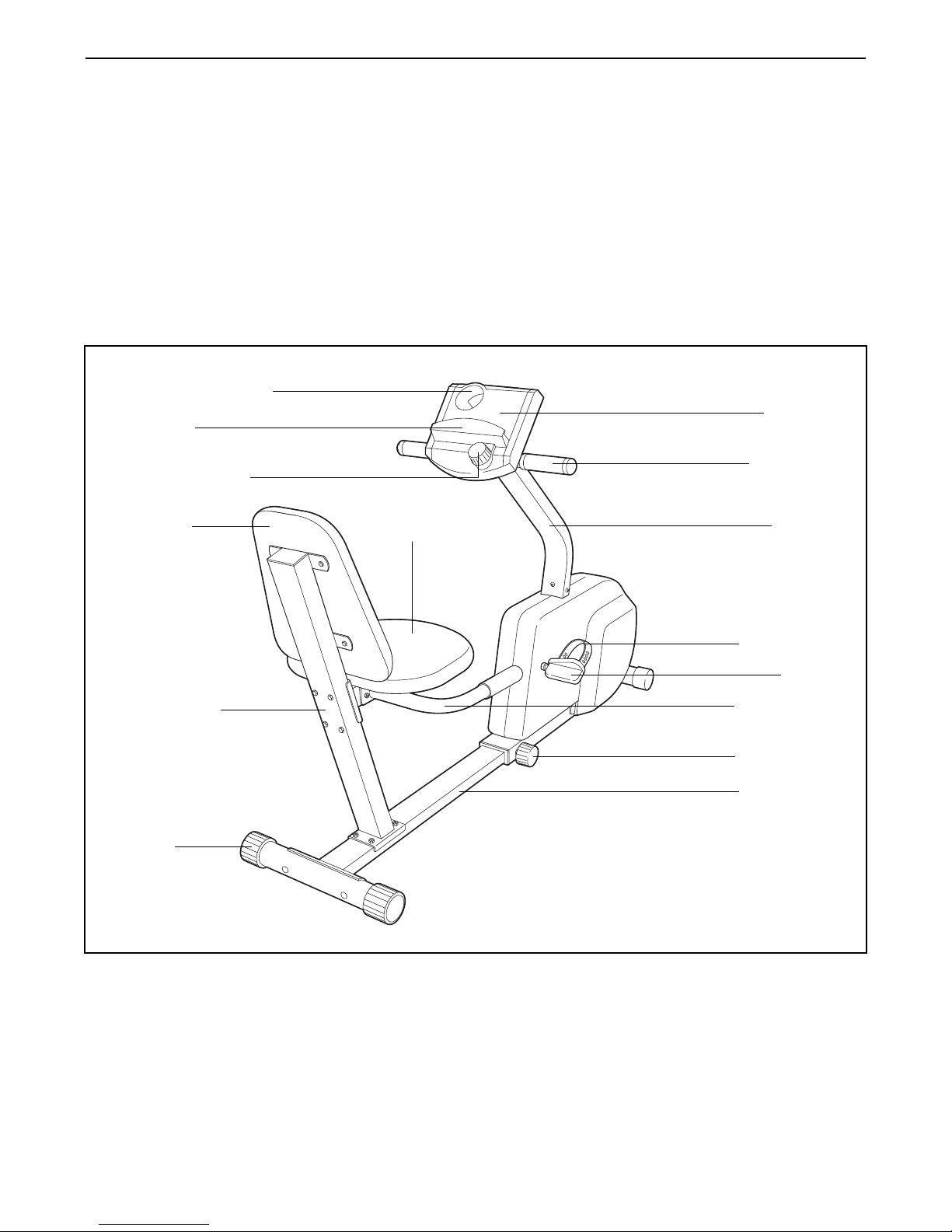

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Seat Handle

Handlebar

FRONT

Seat

Seat Upright

Wheel

Frame Knob

Seat Frame

Backrest

Pedal

Pedal Strap

Console

Resistance Knob

Bookrack

Upright

BACK

RIGHT SIDE

*No water bottle

is included

Water Bottle Holder*

ASSEMBLY

Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the

packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench and Phillips

screwdriver .

PART CHART

Use the drawings below to identify the small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part, from the PART LIST on page 14; the second number refers to

the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a

part is not in the parts bag, check to see if it has been pre-assembled.

M8 Flat

Washer (51)–8

M10 x 70mm Carriage Bolt (27)–2

M4 x 16mm

Screw (43)–4

M10 x 97mm Hex Head Bolt (12)–2

M8 x 66mm Carriage Bolt (52)–4

M8 x 54mm Carriage Bolt (11)–4

M10 Nylon

Locknut (26)–4

M8 Nylon

Locknut (55)–8

M6 x 16mm

Screw (46)–8

M10 x 25mm Button

Head Screw (53)–5

M10 Split

Washer (54)–5

3. Loosen the Frame Knob (29) on the right side of the

Frame (1). Slide out the Seat Frame (2) until it

stops. Tighten the Frame Knob.

2. Attach the Handlebar (37) to the Upright (3) with two

M10 Split Washers (54) and two M10 x 25mm

Button Head Screws (53).

1. Carefully slide the Upright (3) onto the Frame (1),

while pulling the excess Reed Switch Wire (42) and

Resistance Cable (31) up through the Upright.

Attach the Upright with three M10 x 25mm Button

Head Screws (53) and three M10 Split Washers

(54). Be careful not to pinch the Reed Switch

Wire or the Resistance Cable.

54 53

4. The Console (33) requires two “AA” batteries (not

included); alkaline batteries are recommended.

Open the battery door on the back of the Console.

Press two batteries into the Console. Make sure

that the negative (–) ends of the batteries are

touching the springs. Close the battery door.

Hole

Back of

Console

Battery Door

Batteries

Be careful not

to pinch the

Reed Switch

Wire or the

Resistance

Cable.

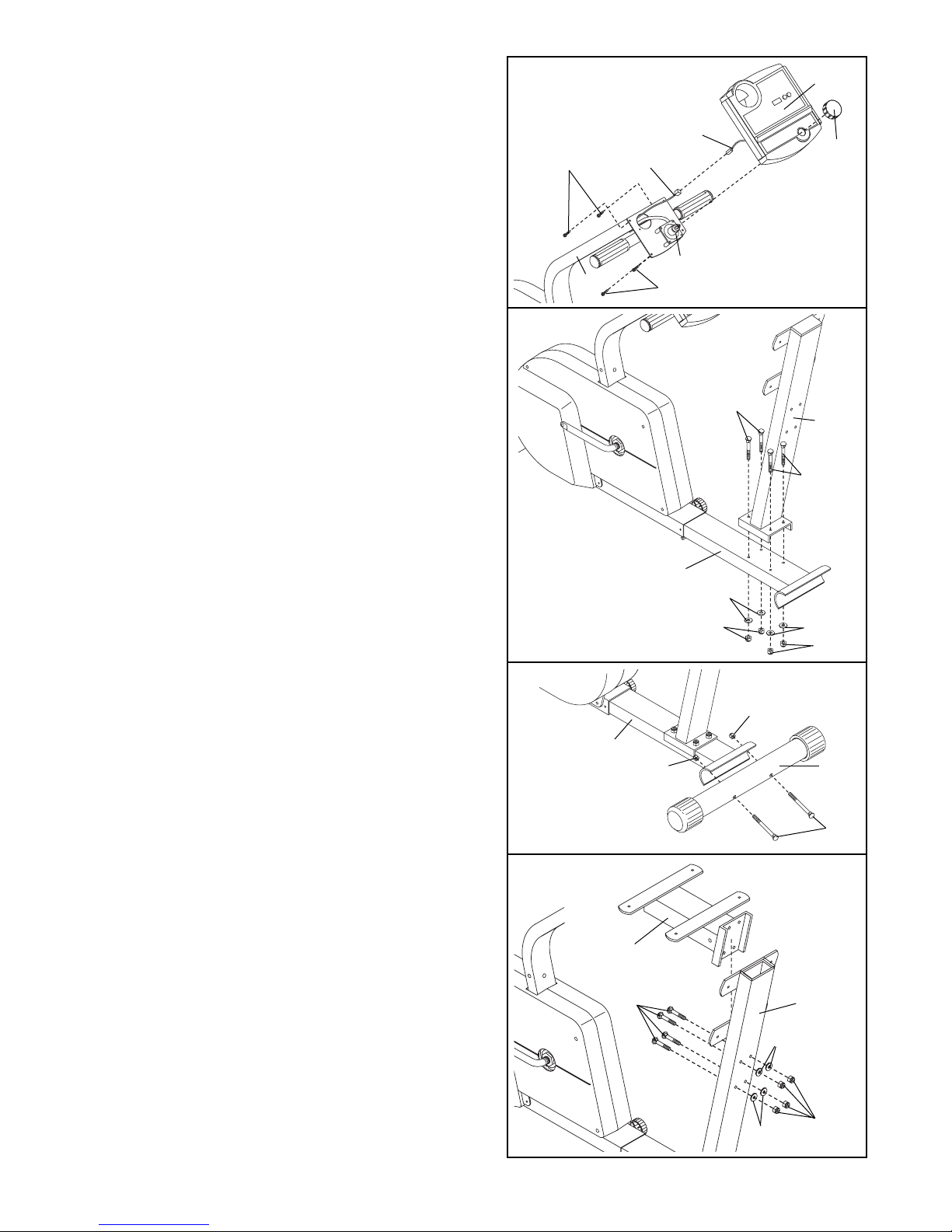

7. Attach the Stabilizer (30) to the Seat Frame (2) with

two M10 x 70mm Carriage Bolts (27) and two M10

Nylon Locknuts (26).

8. Attach the Seat Bracket (63) to the Seat Upright

(64) with four M8 x 66mm Carriage Bolts (52), four

M8 Flat Washers (51), and four M8 Nylon Locknuts

(55).

6. Attach the Seat Upright (64) to the Seat Frame (2)

with four M8 x 54mm Carriage Bolts (11), four M8

Flat Washers (51), and four M8 Nylon Locknuts (55).

Note: It may be helpful to tip the exercise cycle on

its side to attach the Seat Upright.

5. Connect the Reed Switch Wire (42) to the corre-

sponding console wire. Insert the excess wire into

the Upright.

Attach the Console (33) to the Upright (3) with four

M4 x 16mm Screws (43). Be careful not to pinch

the wires or the cable. Press the Resistance Knob

(32) onto the Resistance Control (31). Make sure

that the mark on the Resistance Knob is correctly

aligned.

Console

Wire

Be careful not to

pinch the wires

or the cable.

11. Attach the Backrest (45) to the Seat Upright (64)

with four M6 x 16mm Screws (46).

10. Attach the Seat Handles (25) to the Seat Bracket

(63) with two M10 x 97mm Hex Head Bolts (12) and

two M10 Nylon Locknuts (26).

9. Attach the Seat (44) to the Seat Bracket (63) with

four M6 x 16mm Screws (46). 44

HOW TO USE THE EXERCISE CYCLE

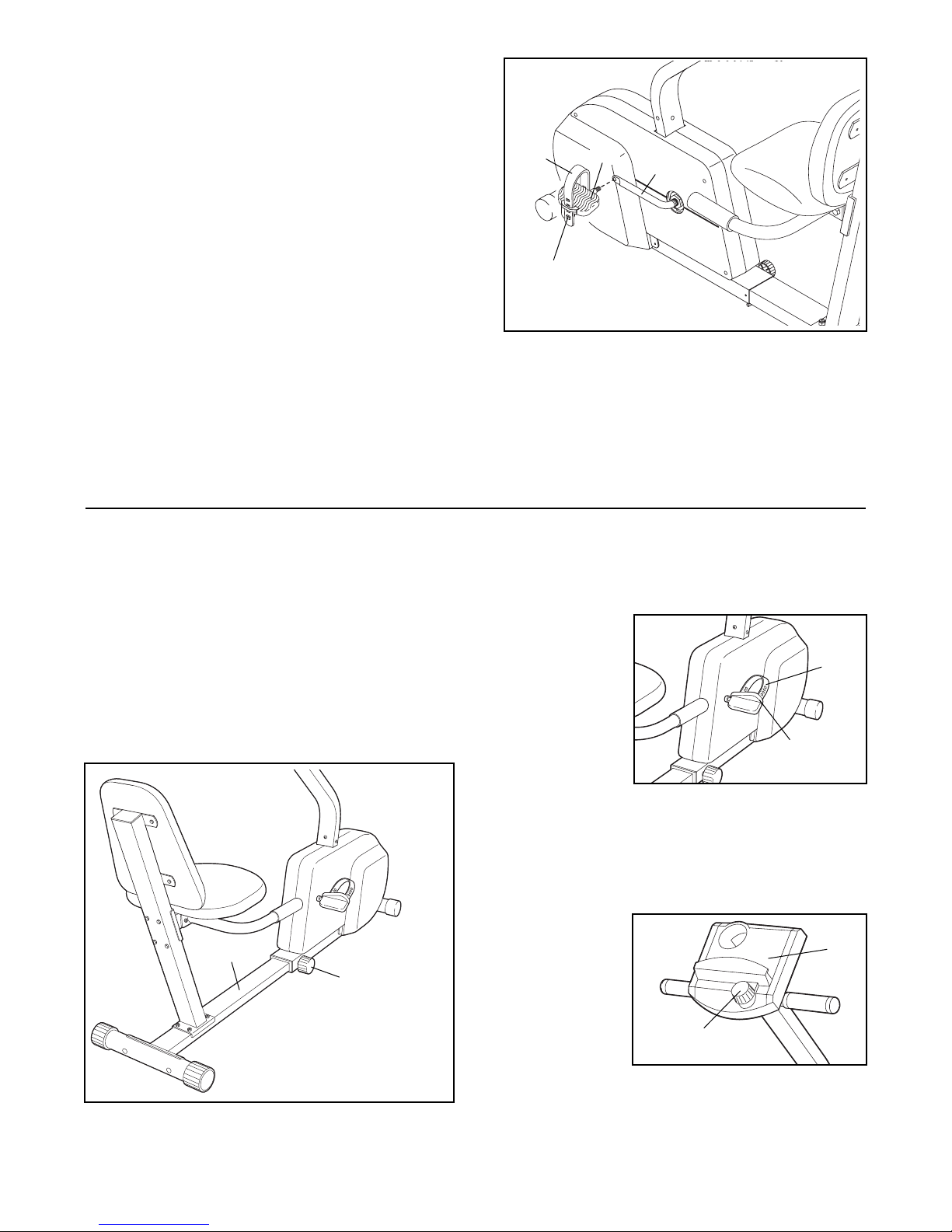

HOW TO ADJUST THE POSITION OF THE SEAT

FRAME

The Seat Frame (2) can be adjusted to the position

that is the most comfortable for you. To adjust the

Seat Frame, first loosen the Frame Knob (29) on the

right side of the Frame. Slide the Seat Frame forward

or backward to the desired position. Tighten the

Frame Knob.

HOW TO ADJUST THE PEDAL STRAPS

To adjust the

right Pedal Strap

(67), first pull the

Pedal Strap off

the adjustment

tab on the pedal.

Align a different

hole in the Pedal

Strap with the

adjustment tab.

Press the Pedal

Strap onto the adjustment tab. Adjust the left Pedal

Strap (not shown) in the same way.

HOW TO ADJUST THE PEDALING RESISTANCE

The pedaling

resistance can

be adjusted with

the Resistance

Knob (32) locat-

ed on the

Console (33). To

increase the

resistance, turn

the Resistance

Knob clockwise; to decrease the resistance, turn the

Resistance Knob counterclockwise.

Tab

13. Make sure that all parts are properly tightened before you use the exercise cycle. Note: There may

be some hardware left over after assembly is completed.

12. Identify the Left Pedal (39); there is an “L” on the

Left Pedal for identification. Using an adjustable

wrench, tighten the Left Pedal counterclockwise into

the left arm of the Crank (8). Tighten the Right

Pedal (not shown) clockwise into the right arm of the

Crank. Tighten both Pedals as fully as possible.

Important: After using the exercise cycle for one

week, retighten the pedals. For best performance,

the pedals must be kept properly tightened.

Adjust the Left Pedal Strap (68) to the desired posi-

tion. Press the Left Pedal Strap onto the adjustment

tab on the Left Pedal (39). Adjust the Right Pedal

Strap (not shown) in the same way.

Tab

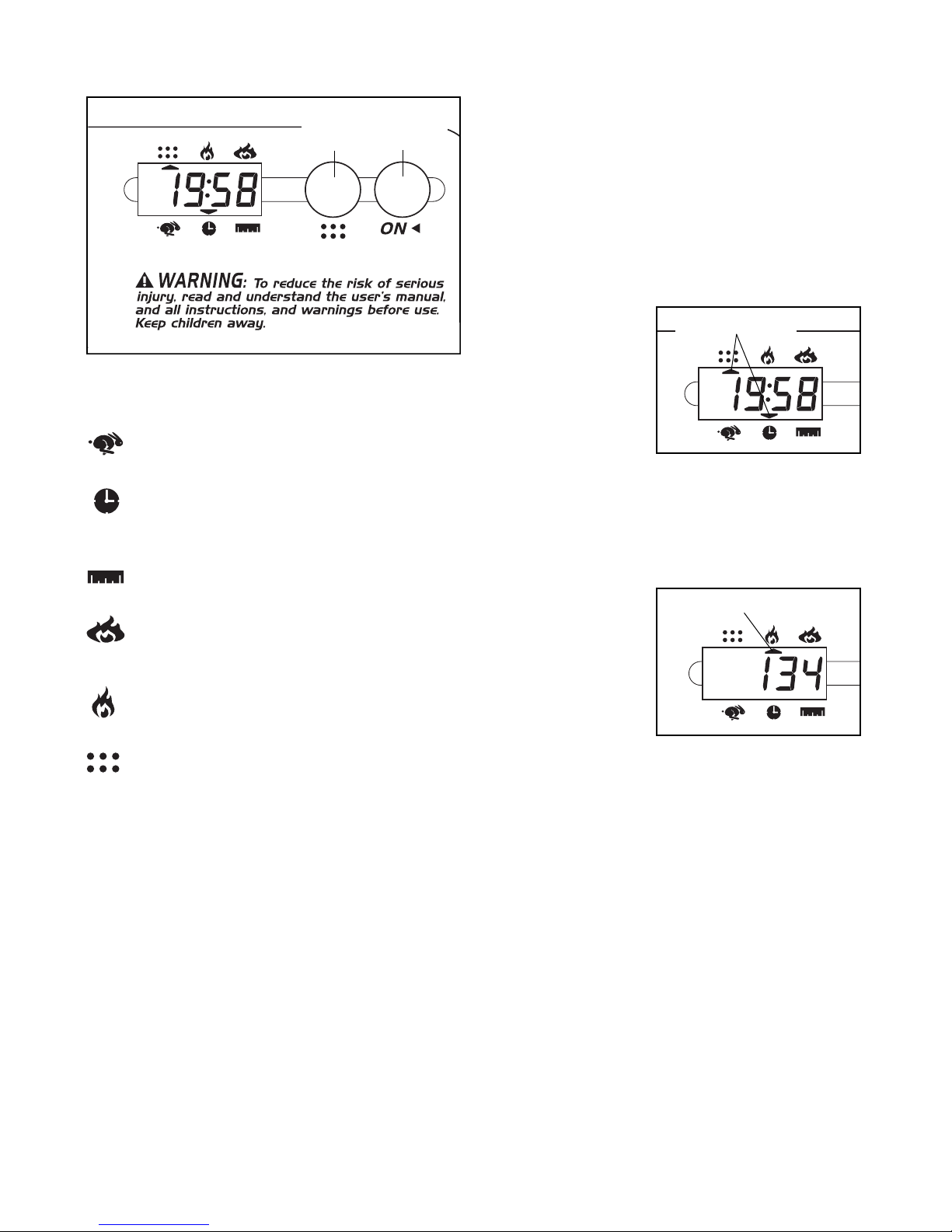

DESCRIPTION OF THE CONSOLE

The innovative console features six modes that pro-

vide instant exercise feedback during your workouts:

Speed—Displays your pedaling speed, in

miles per hour.

Time—Displays the elapsed time. Note: If you

stop pedaling for ten seconds or longer, the

time mode will pause until you resume.

Distance—Displays the total distance you

have pedaled, in miles.

Fat Calories—Displays the approximate num-

ber of fat calories you have burned. (See

BURNING FAT on page 13.)

Calories—Displays the approximate number

of calories you have burned.

Scan—Displays the speed, time, distance, fat

calories, and calories modes, for a few sec-

onds each, in a repeating cycle.

HOW TO OPERATE THE CONSOLE

Note: The console requires two “AA” batteries. See

assembly step 4 on page 6 for battery installation

instructions.

1. To turn on the power, press the on/reset button or

simply begin pedaling. When the power is turned

on, the entire display will appear for two seconds.

The console will then be ready for operation.

2. Select one of the six modes:

Scan mode—

When the power

is turned on, the

scan mode will

automatically be

selected. One

mode arrow will

show that the

scan mode is

selected, and a

flashing mode arrow will show which mode is cur-

rently displayed. Note: If a different mode is select-

ed, you can select the scan mode again by repeat-

edly pressing the mode button.

Speed, time, dis-

tance, fat calo-

ries, or calories

mode—To select

one of these

modes for contin-

uous display,

press the mode

button repeatedly.

The mode arrows

will show which mode is selected. Make sure that

the scan mode is not selected.

3. To reset the display, press the on/reset button.

4. To turn off the power, simply wait for a few minutes.

Note: The console has an “auto-off” feature. If

the pedals are not moved and the console but-

tons are not pressed for a few minutes, the

power will turn off automatically to conserve

the batteries.

Mode

Button

On/Reset

Button

Mode Arrows

Mode Arrow

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bicicleta estática de Weslo

Weslo

Weslo Pursuit 2.9 Bike Guía de configuración

Weslo

Weslo Pursuit R 30 Bike Guía del usuario

Weslo

Weslo Pursuit 620s Manual de usuario

Weslo

Weslo Pursuit S 35 Bike Manual de usuario

Weslo

Weslo Pursuit 2.9 Bike Manual del sistema

Weslo

Weslo Pursuit S 35 Bike Manual de usuario

Weslo

Weslo Vector 403 Bike Manual de operación y mantenimiento

Weslo

Weslo Pursuit 95 Guía del usuario

Weslo

Weslo WLEX28080 Manual de usuario

Weslo

Weslo Pursuit T 149 Bike Guía de inicio rápido

Weslo

Weslo Easy Fit WLIVEX38010.0 Manual de usuario

Weslo

Weslo Pursuit T 39 Exercise Bike Manual del sistema

Weslo

Weslo Pursuit easy 100 bike Manual de usuario

Weslo

Weslo Aero A6 Manual de usuario

Weslo

Weslo Pursuit 102 Manual del sistema

Weslo

Weslo Pursuit 2.9 Bike Manual de usuario

Weslo

Weslo Easy Fit WLIVEX85112.0 Manual de usuario

Weslo

Weslo Pursuit 103 Bike Guía del usuario

Weslo

Weslo WLCCEX31910.0 Manual de usuario

Weslo

Weslo Pursuit 530 Manual de usuario

Weslo

Weslo Pursuit 530 Manual de usuario

Weslo

Weslo Pursuit 612s Manual de usuario

Weslo

Weslo PRO 10.8x Manual de usuario

Weslo

Weslo Pursuit 620s Manual de operación y mantenimiento

Manuales populares de Bicicleta estática de otras marcas

TOORX

TOORX BRX85 Manual de usuario

Matrix

Matrix KranKcycle Manual de usuario

Matrix

Matrix IC3 Manual de usuario

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manual de usuario

Monark

Monark 827E Manual de usuario

Stamina

Stamina 1310 Manual de usuario

American Fitness

American Fitness SPR-BK1072A Manual de usuario

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manual de usuario

BH FITNESS

BH FITNESS H9158H Manual del operador

Body Sculpture

Body Sculpture BC-7220G Manual de usuario

Cateye

Cateye EC-2300 Manual de usuario

FYTTER

FYTTER RACER RC MSR Manual de usuario

Kikos

Kikos HM-9090M Manual de usuario

Pro-Form

Pro-Form 345 Zlx Bike Guía del usuario

Fuel Fitness

Fuel Fitness SU135-40 Manual de usuario

NordicTrack

NordicTrack Gxr 4.2 Bike Manual de usuario

Vision Fitness

Vision Fitness U70 Manual de usuario

Stamina

Stamina 15-0340A Manual de usuario
