Weslo PRO 10.8x Manual de usuario

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial

Number

Decal

Model No. 831.21832.0

Serial No.

Write the serial number in the

space above for reference.

• Assembly

• Operation

• Maintenance

• Part ist and Drawing

Sears, Roebuck and Co., Hoffman Estates, I 60179

BIKE EXERCISER

Userʼs Manual

TAB E OF CONTENTS

WARNINGDECA P ACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMB Y ...............................................................................5

HOWTOUSETHEEXERCISECYC E........................................................11

MAINTENANCEANDTROUB ESHOOTING ...................................................18

EXERCISEGUIDE INES ...................................................................19

PART IST ..............................................................................22

EXP ODEDDRAWING ....................................................................23

ORDERINGREP ACEMENTPARTS ..................................................BackCover

90DAYFU WARRANTY ..........................................................BackCover

WARNING DECA P ACEMENT

This drawing shows the location(s) of the

warning decal(s). If a decal is missing

or illegible, call 1-866-699-3756 and

request a free replacement decal.

Apply the decal in the location shown.

Note: The decal(s) may not be shown at

actual size.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

3. Your exercise cycle is intended for home use

only. Do not use your exercise cycle in a

commercial, rental, or institutional setting.

4. Keep your exercise cycle indoors, away from

moisture and dust. Place your exercise cycle

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is enough clearance around your exer-

cise cycle to mount, dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your exercise cycle at all times.

7. Your exercise cycle should not be used by

persons weighing more than 250 lbs.

(113 kg).

8. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

9. Wear appropriate exercise clothes while

exercising; do not wear loose clothes that

could become caught on your exercise

cycle. Always wear athletic shoes for foot

protection while exercising.

10. Keep your back straight while using your

exercise cycle; do not arch your back.

11. When you stop exercising, allow the pedals

to slowly come to a stop.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

13. Use your exercise cycle only as described in

this manual.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise cycle before using your exercise

cycle. Sears assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

Thank you for selecting the new WES O PRO™

10.8X exercise cycle. Cycling is one of the most effec-

tive exercises for increasing cardiovascular fitness,

building endurance, and toning the body. The 10.8X

exercise cycle offers a selection of features designed

to let you enjoy this healthful exercise in the conve-

nience and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please see the back cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Seat

Adjustment Knob

Pedal/Strap

Console

Pulse Sensor

Wheel

Backrest

Fan

Handlebar

BEFORE YOU BEGIN

ASSEMB Y

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-

ing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tools, assembly requires a Phillips screwdriver and an adjustable

wrench .

As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The

number in parentheses below each drawing is the key number of the part, from the PART IST near the end of

this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small

parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been pre-

assembled. If a part is missing, call 1-866-699-3756.

M10 Locknut

(63)–4

M8 Locknut

(60)–4

M8 Split

Washer (59)–5

M6 Washer

(55)–8

M8 x 25mm Button

Screw (33)–3

M8 x 70mm Button

Bolt (54)–2

M6 Locknut

(72)–4

M10 x 75mm Carriage Bolt (51)–4

M6 x 42mm Button

Screw (49)–4

M6 x 38mm Patch

Screw (48)–4

M6 x 38mm Button

Bolt (69)–4

M4 x 16mm

Screw (52)–4

While another person lifts the front of the Frame (1),

attach the Front Stabilizer (3) to the Frame with two

M10 x 75mm Carriage Bolts (51) and two M10

ocknuts (63).

3. Attach the Wheels (18) to the Rear Stabilizer (4)

with two M8 ocknuts (60). Press a Wheel Cap (19)

onto each Wheel.

Attach the Rear Stabilizer (4) to the Rear Frame (2)

with two M10 x 75mm Carriage Bolts (51) and two

M10 ocknuts (63).

2. Slide the Rear Frame (2) out of the Frame (1), and

then tighten the Adjustment Knob (17) into the

Frame.

To make assembly easier, read the information

on page 5 before you begin assembling the

exercise cycle.

5. Attach the Backrest (5) to the Seat Frame (7) with

four M6 x 38mm Patch Screws (48) and four M6

Washers (55). Do not tighten the Patch Screws

yet.

4. Attach the Seat Frame (7) to the Handlebar (6) with

two M8 x 70mm Button Bolts (54), two M8 Split

Washers (59), and two M8 ocknuts (60). Do not

tighten the Button Bolts yet.

Battery Cover

Batteries

7. The Console (16) can use four 1.5V “D” batteries

(not included); alkaline batteries are recommended.

IMPORTANT: If the Console has been exposed

to cold temperatures, allow it to warm to room

temperature before inserting batteries.

Otherwise, you may damage the console dis-

plays or other electronic components. Remove

the battery cover, insert the batteries into the bat-

tery compartment, and reattach the battery cover.

Make sure to orient the batteries as shown by

the diagram inside the battery compartment.

To purchase an optional AC adapter, contact the

store where you purchased this product or call

the telephone number on the cover of this man-

ual. To avoid damaging the console, use only a

manufacturer-supplied AC adapter. Plug one end

of the AC adapter into the jack on the console; plug

the other end into an outlet installed in accordance

with all local codes and ordinances.

6. Have another person hold the Seat Frame (7) under

the Rear Frame (2) as shown. Attach the Seat

Frame and the Seat (12) to the Rear Frame with

four M6 x 42mm Button Screws (49) and four M6

Washers (55).

See step 4. Tighten the two M8 x 70mm Button

Bolts (54).

See step 5. Tighten the four M6 x 38mm Patch

Screws (48).

9. While another person holds the Console (16) near

the Upright (13), connect the console wire to the

Upper Wire Harness (36). Then, connect the con-

sole pulse wires to the Pulse Wires (71). Insert the

excess wire downward into the Upright.

Tip: Do not pinch the wires. Attach the Console

(16) to the Upright (13) with four M4 x 16mm

Screws (52).

916

Console

Wire

Pulse Wires

13 Do not pinch

the wires during

this step

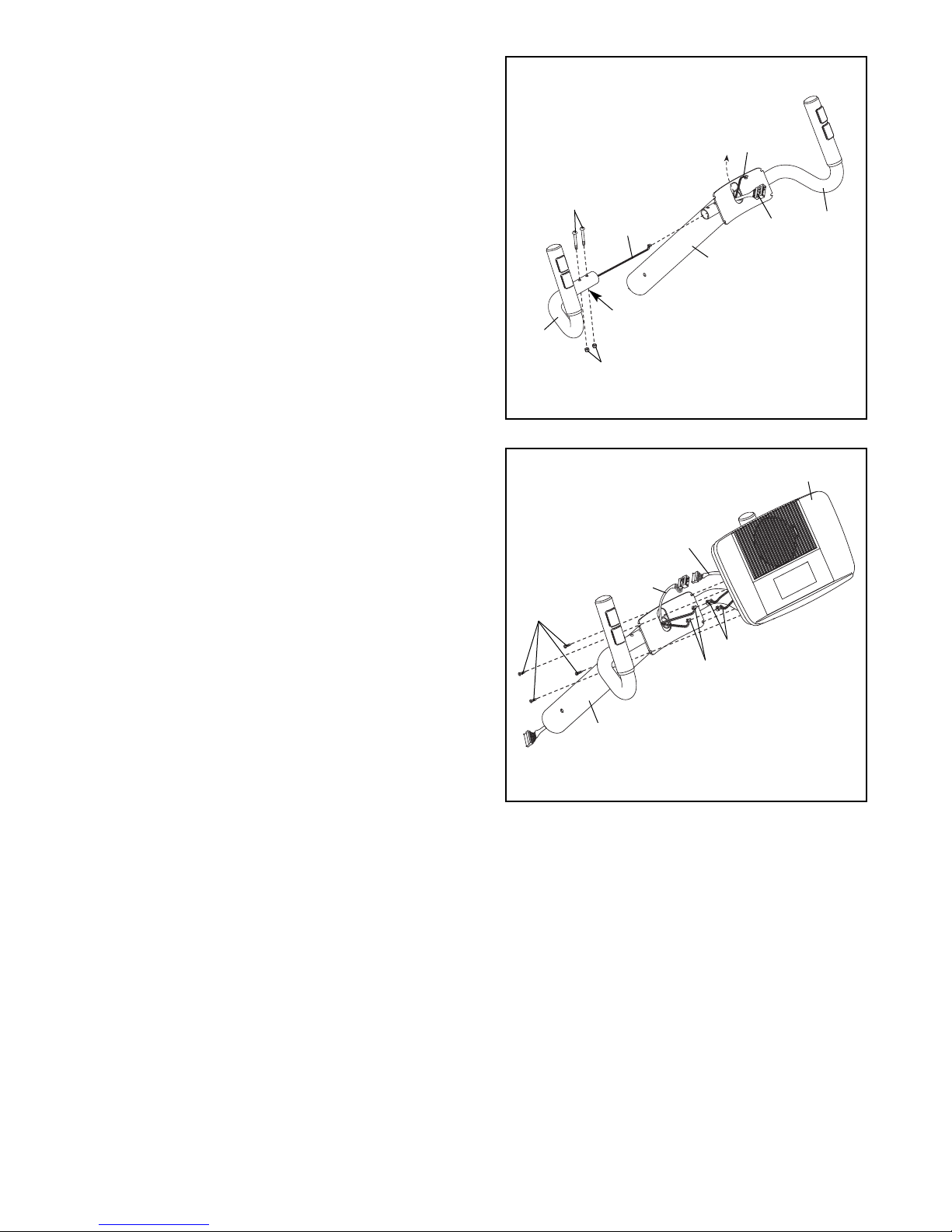

8. Identify the eft Pulse Bar (65), which is marked

with a “ eft” sticker.

Have another person hold the eft Pulse Bar (65)

near the left side of the Upright (13). Make sure

that the hexagonal holes are in the indicated

location.

Insert the left Pulse Wire (71) into the Upright (13)

and pull it upward out of the top of the Upright.

Tip: Do not pinch the wires. Slide the eft Pulse

Bar (65) onto the Upright (13). Attach the eft Pulse

Bar with two M6 x 38mm Button Bolts (69) and two

M6 ocknuts (72). Make sure that the ocknuts

are in the hexagonal holes.

Repeat this step for the Right Pulse Bar (66).

Do not pinch

the wires during

this step

Hexagonal

Holes

Tab

11. Identify the eft Pedal (24), which is marked with a

“ eft” sticker. Firmly tighten the eft Pedal counter-

clockwise into the left arm of the Crank (31).

Tighten the Right Pedal (not shown) clockwise into

the right arm of the Crank. IMPORTANT: Tighten

both pedals as firmly as possible. After using

the exercise cycle for one week, retighten the

pedals. For best performance, keep the pedals

tightened.

Adjust the eft Pedal Strap (25) to the desired posi-

tion, and press the end of the eft Pedal Strap onto

the tab on the eft Pedal (24). Adjust the Right

Pedal Strap (not shown) in the same way.

12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware

may be left over after assembly is completed. Place a mat beneath the exercise cycle to protect the floor.

10. While another person holds the Upright (13) near

the Frame (1), connect the Upper Wire Harness

(36) to the ower Wire Harness (8).

Tip: Do not pinch the Wire Harnesses (8, 36).

Slide the Upright (13) onto the Frame (1). Attach

the Upright with three M8 x 25mm Button Screws

(33) and three M8 Split Washers (59).

1Do not pinch the

Wire Harnesses (8, 36)

during this step

Otros manuales para PRO 10.8x

Este manual sirve para los siguientes modelos

Otros manuales de Bicicleta estática de Weslo

Weslo

Weslo Pursuit CT 5.9 Manual de usuario

Weslo

Weslo Pursuit E 25 Bike Manual de usuario

Weslo

Weslo Pursuit 250 Fm Bike Manual de operación y mantenimiento

Weslo

Weslo Pursuit E 23 Bike Manual de usuario

Weslo

Weslo Pursuit 625s Guía de inicio rápido

Weslo

Weslo Pursuit 530 Bike Manual de usuario

Weslo

Weslo Pursuit 935h Manual de usuario

Weslo

Weslo Pursuit 690s Guía de inicio rápido

Weslo

Weslo Pursuit 5.0r Bike Manual de usuario

Weslo

Weslo Pursuit R 30 Bike Manual de usuario

Weslo

Weslo Pursuit 655s Manual de operación y mantenimiento

Weslo

Weslo PURSUIT 103 WLEVEX19830 Manual de usuario

Weslo

Weslo Pursuit S 35 Bike Guía de inicio rápido

Weslo

Weslo Purcuit4.2 Bike Manual de usuario

Weslo

Weslo Pursuit 310 Cs Manual de usuario

Weslo

Weslo Pursuit R 20 Bike Manual de usuario

Weslo

Weslo Pursuit E25 WLEX0996.1 Manual de usuario

Weslo

Weslo WLEMEX14710 Manual de usuario

Weslo

Weslo WLEX09010 Manual de usuario

Weslo

Weslo Pursuit R 20 Bike Manual de usuario

Weslo

Weslo 795I Guía de inicio rápido

Weslo

Weslo Boomerang 203 Manual de usuario

Weslo

Weslo Vector 503 Bike Guía de inicio rápido

Weslo

Weslo Pursuit T 39 Exercise Bike Guía del usuario

Manuales populares de Bicicleta estática de otras marcas

TOORX

TOORX BRX85 Manual de usuario

Matrix

Matrix KranKcycle Manual de usuario

Matrix

Matrix IC3 Manual de usuario

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manual de usuario

Monark

Monark 827E Manual de usuario

Stamina

Stamina 1310 Manual de usuario

American Fitness

American Fitness SPR-BK1072A Manual de usuario

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manual de usuario

BH FITNESS

BH FITNESS H9158H Manual del operador

Body Sculpture

Body Sculpture BC-7220G Manual de usuario

Cateye

Cateye EC-2300 Manual de usuario

FYTTER

FYTTER RACER RC MSR Manual de usuario

Kikos

Kikos HM-9090M Manual de usuario

Pro-Form

Pro-Form 345 Zlx Bike Guía del usuario

Fuel Fitness

Fuel Fitness SU135-40 Manual de usuario

NordicTrack

NordicTrack Gxr 4.2 Bike Manual de usuario

Vision Fitness

Vision Fitness U70 Manual de usuario

Stamina

Stamina 15-0340A Manual de usuario
