Wenglor BLN0x1R10 Manual de usuario

BLN0x1R10

Scanner 1D – CCD array

Operating Instructions

Available as PDF ﬁle only

Status: 27.11.2017

Version: 1.6

www.wenglor.com

Index

1. Proper Use 4

2. Safety Precautions 4

3. Approvals and protection class 4

4. Technical Data 5

4.1. Scanner Connection 6

4.2. Housing Dimensions 7

4.3. Control Panel 7

4.4. Complementary Products (see catalog) 8

5. Mounting Instructions 9

6. Initial Operation 9

6.1. Initial Operation 9

7. Function Descriptions 10

7.1. Run 12

7.2. Pin Function 12

7.3. E/A Settings 12

7.3.1. Output – NPN/PNP 14

7.3.2. Output – NO/NC 14

7.3.3. Output – ON Delay 15

7.3.4. Output – OFF Delay 15

7.3.5. Output – Pulse Length 16

7.4. E/A Test 16

7.4.1. E/A Test – Testing A1 through A4 16

7.4.2. E/A-Test – Testing E1 through E4 17

7.5. Reading mode 17

7.6. Code Settings 18

7.7. Match code 18

7.8. Interface 18

7.8.1. Serial/Baude rate 19

7.8.2. Ethernet 19

7.8.2.1. IP-address 19

7.8.2.2. Subnet mask 19

7.8.2.3. Standard Gateway 20

7.8.2.4. DHCP 20

7.8.2.5. MAC Address 20

7.8.2.6. Network Reset 20

7.8.2.7. Accept 20

7.8.2.8. Cancel 20

7.9. Display 21

7.9.1. Display – Mode 21

7.9.2. Display – Intensity 21

7.10. Language 22

7.11. Info 22

7.12. Reset 22

7.13. Password 22

8. Network Settings 23

9. Web-Based Conﬁguration 23

9.1. Invoking the Administration Interface 23

9.2. Overview Page 24

9.3. Device Settings 25

9.4. Read Cycle 28

9.4.1. Reading mode 28

9.4.3. Code 29

9.4.4. Preamble and Postamble Characters 29

9.4.5. Match code Parameters 29

9.4.7. Match code 30

9.4.8. Current Match code 30

9.4.9. Match and Mismatch Performance 30

9.5. Code Settings 31

9.5.1. Code 39 31

9.5.2. Code 11 31

9.5.3. Code 128 31

9.5.4. Interleaved 2 of 5 32

9.5.5. Codabar 32

9.5.6. UPC/EAN 32

9.5.7. Code 93 32

9.5.8. Industrial 2 of 5 32

9.5.9. MSI Code 32

9.5.10. RSS-14 Expanded 32

9.5.11. RSS-14 Limited 33

9.5.12. RSS-14 Omnidirectional 33

9.5.13. Matrix 2 of 5 33

9.6. Digital I/O Settings 34

9.7. Diagnosis 35

10. Maintenance Instructions 35

11. Proper Disposal 35

12. EU Declaration of Conformity 37

1. Proper Use

This wenglor product has to be used according to the following functional principle:

Scanner 1D

These Scanners detect 1D Codes with the help of Laser Light respectively Red Light. The light sent out to the

barcode label is reﬂected back to a photo element and evaluated with a decoder.

2. Safety Precautions

• This operating instruction is part of the product and must be kept during its entire service life.

• Read this operating instruction carefully before using the product.

• Installation, start-up and maintenance of this product has only to be carried out by trained personal.

• Tampering with or modifying the product is not permissible.

• Protect the product against contamination during start-up.

• Not a safety component in accordance with the EU Machinery Directive.

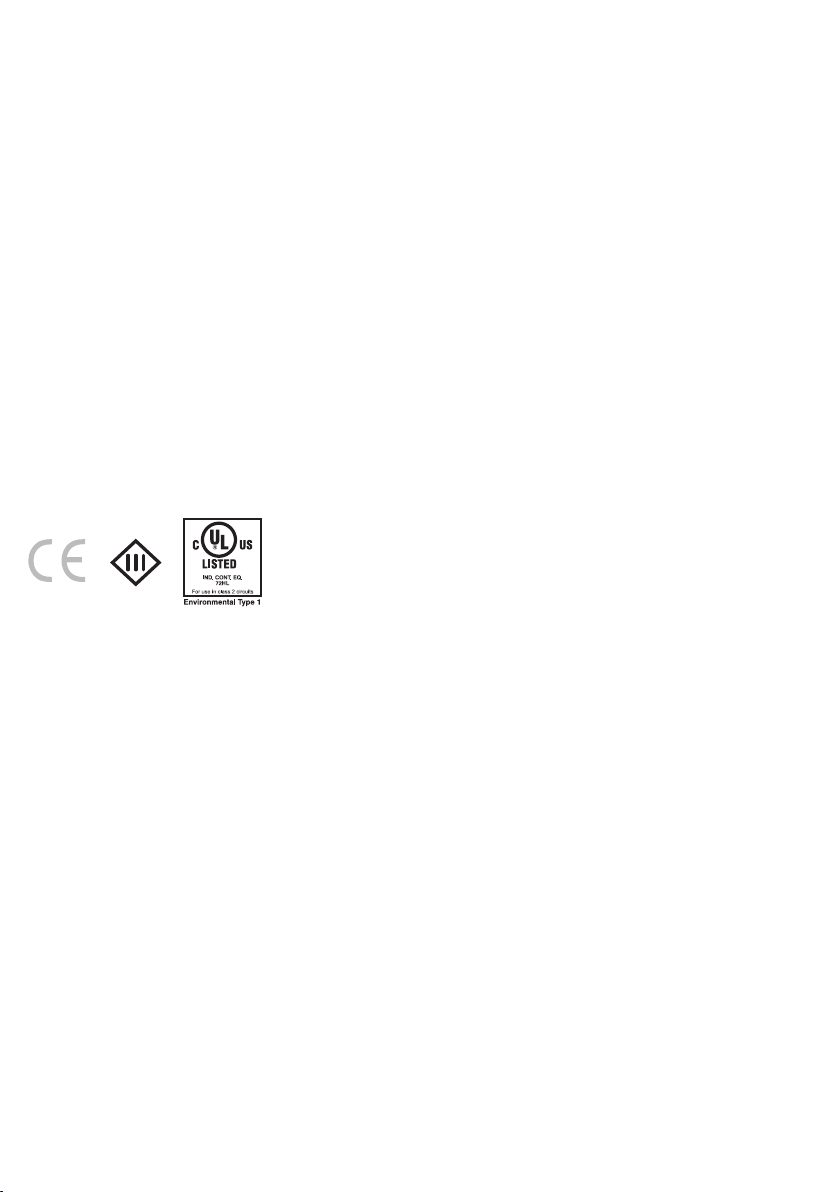

3. Approvals and protection class

Warning!

This is a class A device. This device may cause radio interference in residential areas. If this is the case, the

implementation of appropriate measures may be demanded of the user.

4. Technical Data

Order Number BLN0L1R10 BLN0H1R10

Light Source Red Light Red Light

Wave Length 660 nm 660 nm

Low Density yes

High Density yes

Read Range 35...320 mm 10...120 mm

max. Ambient Light 7000 Lux 7000 Lux

Opening Angle 35° 60°

Barcode Label Contrast 45 % 45 %

Supply Voltage 18...30 V DC 18...30 V DC

Current Consumption (Ub = 24 V) < 100 mA < 100 mA

Scan rate 530 scan/s 530 scan/s

Temperature Range –20...50 °C –20...50 °C

Inputs/Outputs 4 4

Switching Output Voltage Drop < 2,5 V < 2,5 V

Switching Output/Switching Current 100 mA 100 mA

Short Circuit Protection yes yes

Ports Reverse Polarity Protection yes yes

Ports Overload Protection yes yes

Interface RS-232*/Ethernet RS-232*/Ethernet

Housing Aluminum Aluminum

Protection Class III III

Protection IP67 IP67

Connection M12×1 M12×1

Baud Rate 10 Mbit/s / 100 Mbit/s 10 Mbit/s / 100 Mbit/s

Transmission Mode Full- /Half Duplex Full- /Half Duplex

Webserver yes yes

Default IP 192.168.100.1 192.168.100.1

Auto-Crossover yes yes

Auto-Negotiating yes yes

Auto-Polarity yes yes

* Maximum connection length: 30 m

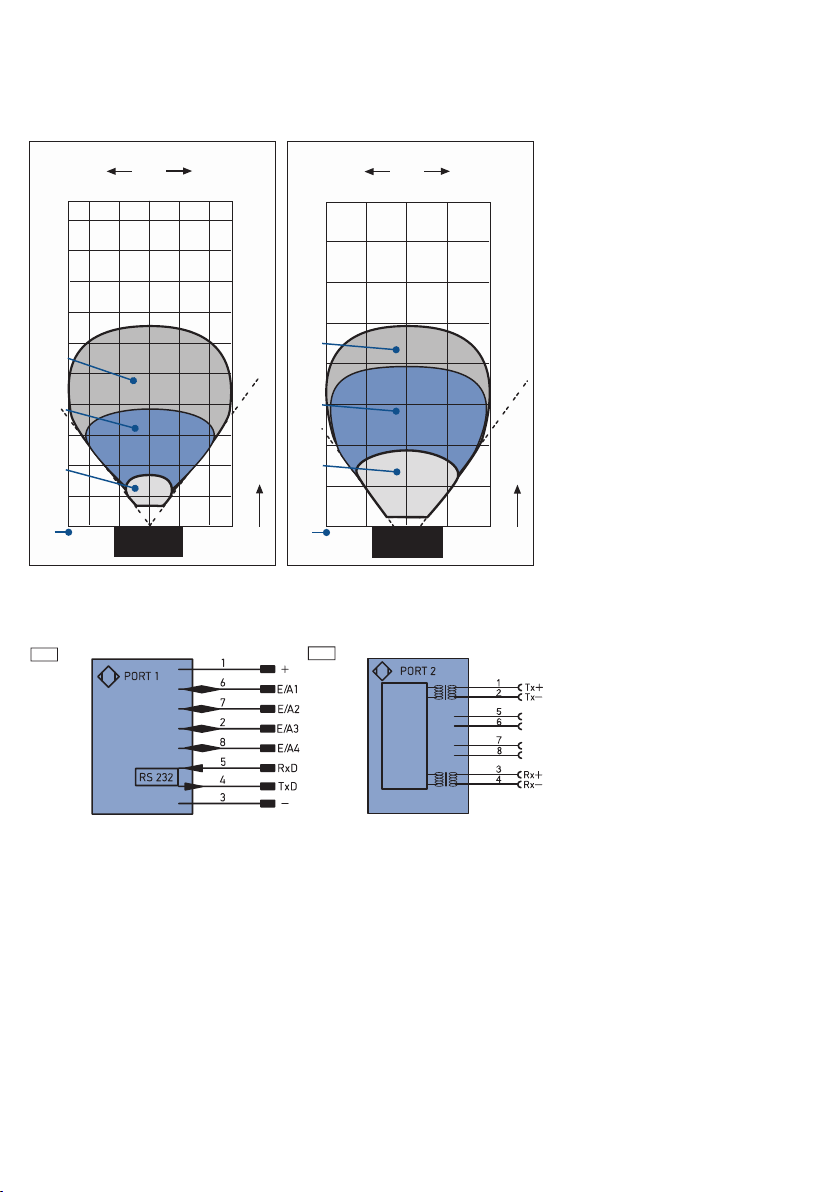

Scanning Distance Diagram:

Low Density

50 25 02550

200

175

150

125

100

High Density

BLN0H1R10 LA

in mm

0.254

0.127

0.380

100 50 050 100

525

350

300

250

200

150

100

BLN0L1R10 LA

in mm

0.508

0.254

0.127

400

450

500

125

4.1. Scanner Connection

786

Figure 1: Plug 1

002

Figure 2: Plug 2

+ Supply Voltage „+“

– Supply Voltage „0 V“

E/A Output/Input programmable

RxD RS-232 receive path

TxD RS-232 send path

Tx+/– Ethernet send path

Rx+/– Ethernet receive path

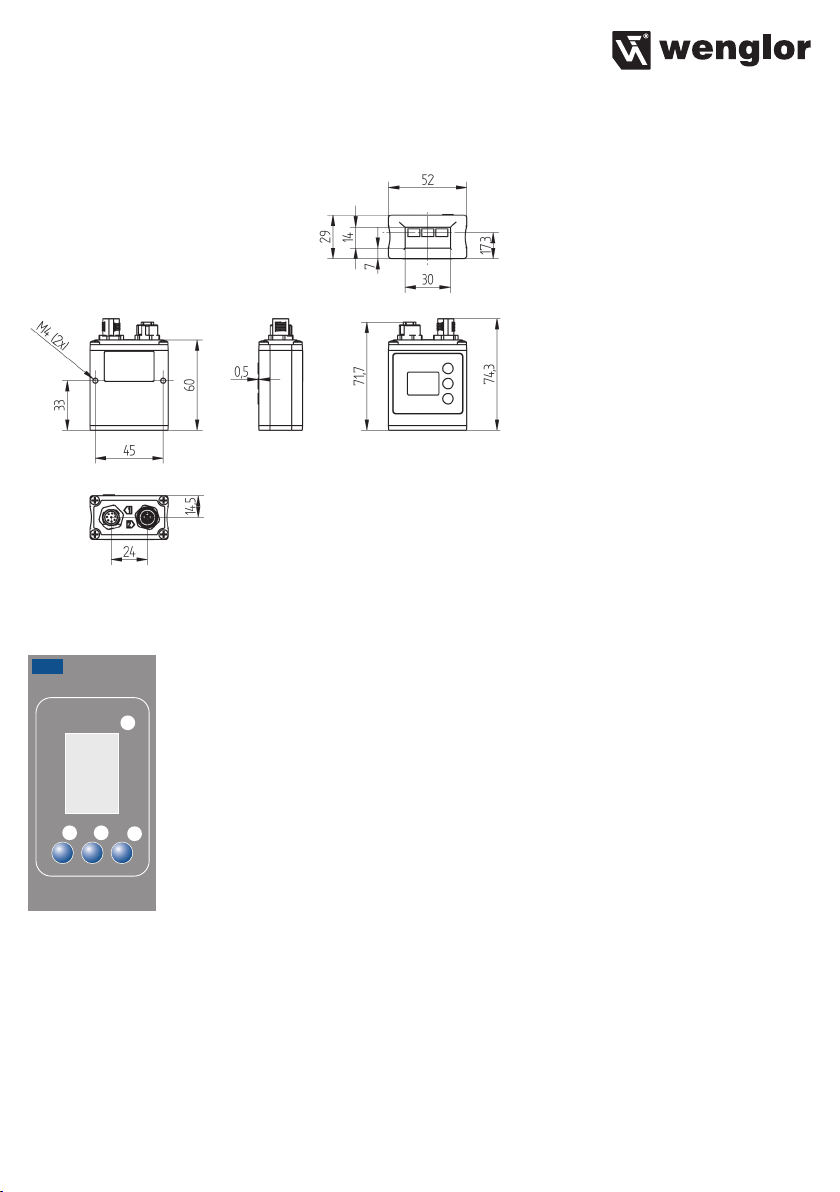

4.2. Housing Dimensions

4.3. Control Panel

23 20 22

20 = Enter Button

22 = Up Button

23 = Down Button

60 = Display

4.4. Complementary Products (see catalog)

wenglor offers Connection Technology for ﬁeld wiring.

Suiting Connection Technology No.

S80 S74

Connector cable M12×1, 8-pin (plug 1)

S74 ZAS89R201, M12×1 connector cable, 8-pin, 2 m, straight

ZAS89R202, M12×1 connector cable, 8-pin, 2 m, angled

ZAS89R501, M12×1 connector cable, 8-pin, 5 m, straight

ZAS89R502, M12×1 connector cable, 8-pin, 5 m, angled

ZAS89R601, M12×1 connector cable, 8-pin, 10 m, straight

ZAS89R602, M12×1 connector cable, 8-pin, 10 m, angled

ZAS89R701, M12×1 connector cable, 8-pin, 20 m, straight

ZAS89R702 , M12×1 connector cable, 8-pin, 20 m, angled

Interface cable (plug 1)

S10

S232W3 Interface cable, M12×1, 8-pin, 1,5 m, angled

Connector cable M12×1, 8-pin (plug 2)

S80

ZAV50R201, M12×1 connector cable, 8-pin, 2 m

ZAV50R501, M12×1 connector cable, 8-pin, 5 m

ZAV50R502, M12×1 connector cable, RJ45, 5 m

5. Mounting Instructions

All applicable electrical and mechanical regulations, standards and safety precautions must be adhered to

when installing and operating the scanner. The scanner must be protected against mechanical inﬂuences.

Install the product such that its installation position cannot be inadvertently changed.

6. Initial Operation

6.1. Initial Operation

Connect the Scanner to supply power (18 to 30 V DC). The display view appears. The Scanner is ready for

operation after 2 seconds.

The desired menu language must be selected after initial start-up, and after each reset (see section “7.10.

Language” on page 22).

Note: If no settings are adjusted in the conﬁguration menu for a period of 30 seconds, the scanner is automati-

cally returned to the display mode.

The Scanner accesses the last used menu view when the key is pressed twice. If a setting is conﬁgured, it

becomes active as soon as it is changed.

Letters or symbols such as “+” and “–” can also be assigned to the keys within a menu item. Quicker scrolling

through numbers is this made possible by pressing and holding the “+” or “–” key.

Meaning of the menu items:

3Back : Move up one level within the menu.

7Run : Switch to the display mode.

7. Function Descriptions

Run

Pin Function

E/A1

E/A2

E/A3

E/A4

Trigger

Trigger Level

Serial Trigger

Continuous

Read timeout

Good Read

No Read

Match

Mismatch

Trigger Input

New Master

At Ub

At 0 V

ON

OFF

PNP

NPN

Pushpull

NO

NC

Value in ms

NPN/PNP

NO/NC

ON Delay

OFF Delay

Impulse

Depends on pin function E/A1:

A1 Good Read

A1 No Read

A1 Match

A 1 Mismatch

E1 Trigger

E1 New Master

Depends on pin function E/A2:

A2 Good Read

A2 No Read

A2 Match

A2 Mismatch

E2 Trigger

E2 New Master

Depends on pin function E/A3:

A3 Good Read

A3 No Read

A3 Match

A3 Mismatch

E3 Trigger

E3 New Master

Depends on pin function E/A4:

A4 Good Read

A4 No Read

A4 Match

A4 Mismatch

E4 Trigger

E4 New Master

Depends on pin function E/A1:

Test A1

Test E1

Depends on pin function E/A2:

Test A2

Test E2

Depends on pin function E/A3:

Test A3

Test E3

Depends on pin function E/A4:

Test A4

Test E4

E/A Test

Reading mode

E/A configure If switching output

If switching output

If input

Run Mode Input

Value in ms

If input
