Wen 2301 Manual de usuario
OPERATOR’S MANUAL
9.6V Cordless
Rotary Tool Set
Model # 2301
Specications3
Rules for Safe Operation 4
General Instructions for All Power Tools 5–8
Specic Safety Instructions 9–11
Charging Ppocedure11–12
Operating the Cordless Rotary Tool 13–14
Using the Rotary Tool15
Operating Speeds & Accessories16
Maintenance17
Warranty18
3
SPECIFICATIONS
Model Number 2301
Charger Input 120V~60Hz
Power Source 9 6 Volt Ni-Cd Batteries
Speed 5,000-25,000 RPM
Collet Capacity 3/32", 1/8"
Charging Time 3 hours
Package Contents:
• 1–Cordless Rotary Tool
• 1–Charger
• 1–Adapter
• 2–9 6 Volt Battery Packs
• 1–Flexable Shaft
• 1–LED worklight attachment
• 1–Storage Case
100 pc. Accessory Kit Contents:
• 2–Dressing Stone
• 2–Felt Polishing Wheels
• 2–Cloth Polishing Wheels
• 1–Drum Sander
• 4–Sander Bands
• 10–Cut-Off Wheels
• 60–Sanding Disc
• 10–Grinding Stone
• 2–High Speed Cutters
• 3–Drill Bits
• 2–Mandrels
• 1–Collet
• 1–Bit Changing Wrench
The purpose of safety symbols is to attract your attention to possible dangers
The safety symbols, and the explanations with them, deserve your careful
attention and understanding The safety warnings do not by themselves
eliminate any danger The instructions or warnings they give are not
substitutes for proper accident prevention measures
Safety Alert Symbol:
Indicates danger, warning, or caution, may be used in conjunction
with other symbols or pictographs Always follow the safety
precautions to reduce the risk of re, electric shock and
personal injury
Note: Advises you of information or instructions vital to the operation or
maintenance of the equipment
IMPORTANT
Servicing requires extreme care and knowledge and should be performed only
by a qualied service technician For service we suggest you return the tool to
WEN PRODUCTS for repair When servicing, use only identical WEN®
replacement parts
Safe operation of this power tool requires that you read and understand this
operator’s manual and all labels afxed to the tool Safety is a combination of
common sense, staying alert, and knowing how your tool works
Do not attempt to operate this tool until you have read thoroughly
and understand completely all instructions, safety rules, etc…
contained in this manual Failure to comply can result in accidents
involving re, electric shock, or serious personal injury Save this
operator’s manual and review frequently for continuing safe
operation and instructing others who may use this tool
• Know your power tool Read the operator’s manual carefully Learn the appli-
cation and limitations as well as specic potential hazards related to this tool
• Keep guards in place and in working order Never operate the tool with any
guard or cover removed Make sure all guards are operating properly before
each use
• Remove adjusting keys & wrenches Form a habit of checking to see keys and
adjusting wrenches are removed from tool before turning it on
• Keep work area clean Cluttered work areas and workbenches invite accidents
• Do not use in dangerous environments Do not use power tools near gasoline
or other ammable liquids, in damp or wet locations or expose them to rain
Keep work area well lighted
• Keep children and visitors away All visitors should wear ANSI-Z871 approved
safety glasses and be kept a safe distance from work area
• Make workshop childproof with padlocks, master switches, or by removing
starter keys
• Don’t force the tool It will do the job better and safer at the rate for which it was
designed
• Use the right tool Do not force the tool or attachment to do a job for which it
was not designed
• Wear proper apparel Do not wear loose clothing, neckties, or jewelry that can
get caught in the tool’s moving parts and cause personal injury Non-slip foot-
wear is recommended when working outdoors Wear protective hair covering
to contain long hair
• Always wear ANSI-Z871 approved safety glasses with side shields Everyday
eyeglasses have only impact-resistant lenses; they are NOT safety glasses
• Secure work Use clamps or a vise to hold work when practical It’s safer than
using your hand and it frees both hands to operate the tool
• Do not overreach Keep proper footing and balance at all times
• Maintain tools with care Keep tools sharp and clean for best and safest
performance Follow instructions for lubricating and changing accessories
• Disconnect all tools When not in use, before servicing, or when changing
attachments, blades, bits, cutters, etc, all tools should be disconnected from
power source
• Reduce the risk of unintentional starting Be sure switch is off when plugging in
• Use recommended accessories Consult the operator’s manual for
recommended accessories The use of improper accessories may cause
risk of injury
• Never stand on tool Serious injury could occur if the tool is tipped or if the drill
is unintentionally contacted
• Never leave tool running unattended Turn power off Don’t leave tool until it
comes to a complete stop
• Check damaged parts Before further use of the tool, a guard or other part that
is damaged should be carefully checked to determine that it will operate prop-
erly and perform its intended function Check for alignment of moving parts,
binding or moving parts, breakage of parts, mounting and any other conditions
that may affect its operation A guard or other part that is damaged must be
properly repaired or replaced by an authorized service center to avoid risk of
personal injury
• Protect your hearing Wear hearing protection during extended periods of
operation
• Keep tools dry, clean, and free from oil and grease Always use a clean cloth
when cleaning Never use brake uids, gasoline, petroleum-based products, or
any solvents to clean tool
• PROTECT YOUR LUNGS Wear a face or dust mask if the operation is dusty
• Guard against electrical shock by preventing body contact with grounded
surfaces For example: pipes, radiators, ranges, and refrigerator enclosures
• Inspect tool cords and extension cords periodically and, if damaged, have
repaired by a qualied service technician Stay constantly aware of cord
location and keep it away from the rotating wheel
• Never use in an explosive atmosphere Normal sparking of the motor could
ignite fumes
• Use only outdoor extension cords with approved ground connection that are
intended for use outdoors and so marked
• Avoid awkward operations and hand positions where a sudden slip could cause
your hand to move into the drill ALWAYS make sure you have good balance
• Allow the motor to come up to full speed before starting a cut to avoid binding or
stalling
• Do not use tool if switch does not turn it on and off Have defective switches
replaced by an authorized service center
• Replacement parts All repairs, whether electrical or mechanical, should be
made by a qualied service technician at an authorized service center
• Keep hands away from working area Do not hand hold pieces so small that
your ngers go under the tool Do not reach underneath work or in tool path
with your hands and ngers for any reason
• Before using the tool, be sure all adjustments are secure
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals known
to cause cancer, birth defects or other reproductive harm Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other
masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this
type of work To reduce your exposure to these chemicals, work in a well
ventilated area, and work with approved safety equipment, such as those
dust mask that are specially designed to lter out microscopic particles
• Do not remove jammed cut-off pieces until tool rotation has stopped
• Never start the tool when the accessory is in contact with the work piece
• Never touch the rotating portion of the tool or other moving parts during use
• Before changing the setup, removing covers, guards or blades, unplug the tool
and remove the switch key
• Always turn off tool before disconnecting it to avoid accidental starting when
reconnecting to a power source
• Stay alert and exercise control Watch what you are doing and use common
sense DO NOT operate tool when you are tired DO NOT RUSH!
• Make sure work area has ample lighting to see the work and that no obstruc-
tions will interfere with safe operation BEFORE performing any work using this
tool
• Save these instructions Refer to them frequently and use them to instruct
other users If you loan someone this tool, loan them these instructions also
• Don’t abuse cord Never carry tool by the cord or yank it to disconnect from
receptacle Keep cord from heat, oil, and sharp edges
when servicing use only identical WEN® replacement
parts Use of any other parts may create a hazard or cause
product damage
SAVE THESE INSTRUCTIONS!
• Before using charger, read all instructions and cautionary markings on
(1) charger, (2) battery pack, and (3) product using battery pack
• DANGER: 120 volts present at charging terminal Do not probe with conductive
objects Danger of electrical shock or electrocution
• DANGER: If battery pack case is cracked or damaged, do not insert into
charger Danger of electric shock or electrocution
• The charger and battery pack are designed to work together Do not attempt to
charge the battery pack with any other charger
• Do not expose charger to rain, sleet or snow Do not allow any liquid to get
inside of charger Electric shock may result
• Do not immerse charger in water or any other liquid
• Pull the plug from the power outlet rather than yanking on the cord This will
reduce the risk of damage to the electrical plug and cord
• Do not operate charger with damaged cord or plug; have them replaced by an
authorized repair shop before using
• Do not operate charger if it has been dropped, received a sharp blow or is
damaged in any way Have the unit checked by an authorized repair center
• Do not block ventilation vents located on top of the charger by placing an object
on the vents Do not place the charger on a soft surface that may block the
ventilation vents located on the bottom of the unit Place the charger away from
any heat source
• Unplug the charger before attempting any cleaning This will reduce the risk of
electrical shock
• The charger operates on standard household current (120Volts) Do not attempt
to use it on any other voltage
The battery pack is not fully charged out of the carton First read the safety in-
structions below Then follow charging procedure
• Do not incinerate the battery pack even if it is severely damaged or no longer
holds a charge The battery pack can explode in a re
• Under severe conditions, a small leakage of liquid from the battery pack is nor-
mal This does not indicate a failure However, if the case is cracked or the seal
is broken and this leakage gets on your skin:
a) Wash quickly with soap and water
b) Neutralize with a mild acid such as lemon juice or vinegar
c) If battery liquid gets into your eyes, ush them for a minimum of 10 minutes
and seek immediate medical attention
Note: The liquid is a 25-35% solution of potassium hydroxide
• Never attempt to open the battery pack for any reason If the plastic housing of
the battery pack breaks or cracks, immediately stop its use and do not attempt
to recharge
• NOTE: The batteries in the battery pack are nickel-cadmium type Cadmium is
considered to be a toxic material by the Environmental Protection Agency Do
not discard the batteries in any manner Exchange old battery packs for recy-
cling when purchasing new ones
• Use only battery packs produced by the original manufacturer
• The Cordless Rotary Tool is a high-speed power tool It serves as a carver, a
grinder, polisher, sander, cutter, power brush, drill and more
• Your Cordless Rotary Tool has a small, powerful electric motor, is comfortable in
the hand, and is made to accept a large variety of accessories including abra-
sive wheels, drill bits, wire brushes, polishers, engraving cutters, router bits, and
cutting wheels Accessories come in a variety of shapes and permit you to do a
number of different jobs As you become familiar with the range of accessories
and their uses, you will learn just how versatile your Cordless Rotary Tool is
You’ll see dozens of uses you hadn’t thought of before now
Tabla de contenidos
Otros manuales de Herramientas de Wen
Wen
Wen 10711 Manual de usuario
Wen
Wen 61711 Manual de usuario
Wen
Wen LA3424 Manual de usuario
Wen
Wen 43012 Manual de usuario
Wen

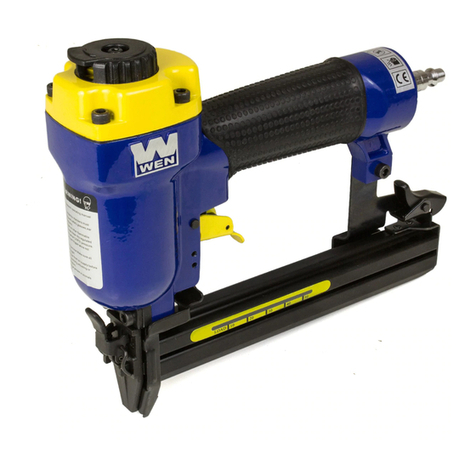

Wen 61710 Manual de usuario
Wen
Wen WA1527 Manual de usuario
Wen
Wen MB500 Manual de usuario
Wen
Wen 61635 Manual de usuario
Wen
Wen BL067D Manual de usuario
Wen
Wen BG9910 Manual de usuario
