Wemars WS-ST38G Manual de usuario
WS-ST38G
Contents
Introduction.....................................................................2
Safety..............................................................................4
Assembly......................................................................8
Operation......................................................................12
Maintenance................................................................. 16
Technical Data ........................................................... 18
Introduction
Product description
The product is a grass trimmer with a combustion
engine.
Work is constantly in progress to increase your safety
and efficiency during operation. Speak to Wemars
service for more information.
Intended use
The product can be used with a trimmer head to cut
grass. Do not use the product for other tasks than grass
trimming and grass clearing.
Note: National or local regulations may regulate the use.
Comply to given regulations.
Bevel Gear Shaft A
U-Handle
Throttle Trigger
Stop Switch
Spark Plug
Shaft Coupling
Fuel Tank
Handle Adjustment
Trigger Lockout
Starter Handle
Spacer
Harness Eyelet
Product overview
Harness Trimmer Head 3 T Blade Manual
Shaft B
Knob
Troubleshooting............................................................ 19
Gasoline Container
02
Cutting Attachment Guard
Symbols on the product
Be careful and use the product correctly.
This product can cause serious injury or
death to the operator or others.
Read the operator's manual carefully and
make sure that you understand the
instructions before you use this product.
Use a protective helmet in locations where
objects can fall on you. Use approved
hearing protection. Use approved eye
protection.
Use approved protective gloves.
Use heavy-duty slip-resistant boots.
The product can cause objects to eject,
which can cause injury.
Maximum speed of the output shaft.
50FT
15 m
50FT
15 m
Keep a minimum of 15 m distance to
persons and animals during operation of the
product.
Hex Wrench Screwdriver
Wrench Allen Key
Tools Bag
Tools bag
Choke off
Fuel.
Product liability
As referred to in the product liability laws, we are not
liable for damages that our product causes if:
•the product is incorrectly repaired.
• the product is repaired with parts that are not from
the manufacturer or not approved by the
manufacturer.
• the product has an accessory that is not from the
manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service
center or by an approved authority.
Choke on
Air Primer Bulb
03
Spacer Catcher
Safety

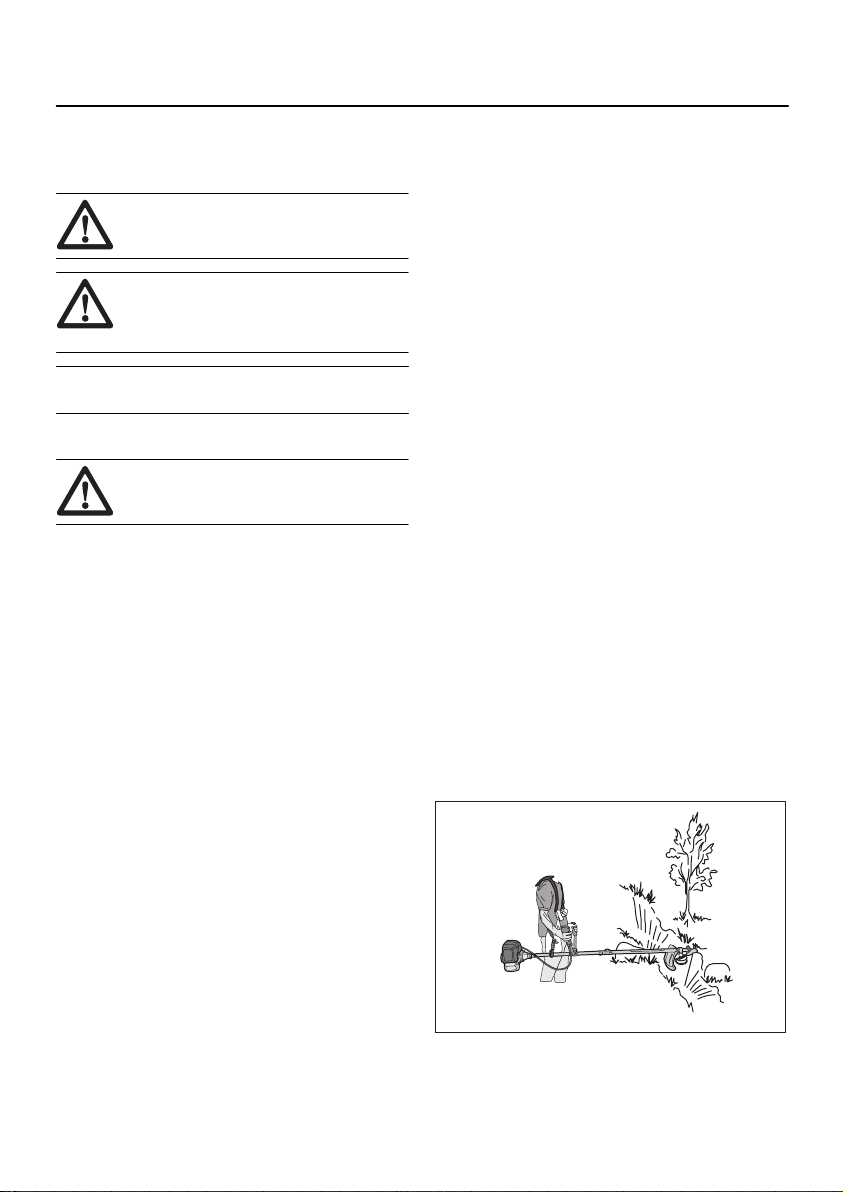

Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of injury or
death for the operator or bystanders if the
instructions in the manual are not obeyed.
CAUTION: Used if there is a risk of damage
to the product, other materials or the
adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary in
a given situation.
Safety instructions for operation
WARNING: Read the warning instructions
that follow before you use the product.
• You must understand the difference between grass
clearing and grass trimming before use.
•If you encounter a situation where you are uncertain
how to proceed you should ask an expert. Contact
Wemars service . Avoid all usage which you
you consider to be beyond your capability .
• Never use a product that is faulty. Carry out the
safety checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists.
• All covers, guards and handles must be fitted before
you start the product. Ensure that the spark plug cap
and ignition lead are undamaged to avoid the risk of
electric shock.
• Never use the product if you are fatigued, while
under the influence of alcohol or drugs, medication
or anything that could affect your vision, alertness,
coordination or judgement.
• Do not use the product in bad weather such as
dense fog, heavy rain, strong wind, intense cold,
etcetera. Working in bad weather is tiring and often
brings added risks, such as icy ground,
unpredictable felling direction, etcetera.
• The only accessories you can operate with this
engine unit are the cutting attachments that we
recommend.
• Never allow children to use or be in the vicinity of the
product. As the product is equipped with a spring-
loaded start/stop switch and can be started by low
speed and force on the starter handle, even small
children under some circumstances can produce the
force necessary to start the product. This can mean
a risk of serious personal injury. Therefore remove
the spark plug cap when the product is not under
close supervision.
• Running an engine in a confined or badly ventilated
area can result in death due to asphyxiation or
carbon monoxide poisoning.
• The complete clutch cover and shaft must be fitted
before the product is started, otherwise the clutch
can come loose and cause personal injury.
• Ensure that no people or animals come closer than
15 m while you work. When several operators are
working in the same area the safety distance should
be at least 15 m. Otherwise there is a risk of serious
personal injury. Stop the product immediately if
anyone approaches. Never swing the product
around without first checking behind you to make
sure that noone is within the safety zone.
• Ensure that people, animals or other things can not
affect your control of the product or that they do not
come in contact with the cutting attachment or loose
objects that are thrown out by the cutting
attachment. However, do not the product unless you
are able to call for help in the event of an accident.
• Always inspect the working area. Remove all loose
objects such as stones, broken glass, nails, steel
wire, string, etcetera, that could be thrown out or
become wrapped around the cutting attachment.
• Make sure that you can move and stand safely.
Check the area around you for possible obstacles
(roots, rocks, branches, ditches, etcetera) in case
you have to move suddenly. Take great care when
you work on sloping ground.
04
• Keep a good balance and a firm foothold at all times.
Do not overreach.
•Always hold the product with both hands. Hold the
product on the right side of your body.
• Keep the cutting attachment below waist level.
• Switch off the engine before you move to another
area. Fit the transportation guard before you carry or
transport the equipment any distance.
• Never put the product down with the engine running
unless you have it in clear sight.
• Stop the engine and cutting equipment before you
remove material that has wound around the blade
shaft. Neither the operator of the product nor anyone
else may attempt to remove the cut material while
the engine is running or the cutting equipment is
rotating, as this can result in serious injury. The
bevel gear can get hot during use and may remain
so for a while afterwards. You could get burnt if you
touch it.
•Watch out for thrown objects. Always wear approved
eye protection. Never lean over the cutting
attachment guard. Stones, rubbish, etcetera, can be
thrown up into the eyes which can cause blindness
or serious injury.
• Sometimes branches or grass get caught between
the guard and cutting attachment. Always stop the
engine before you clean the product.
• Always slow the engine to idle speed after each
working operation. Long periods at full throttle
without any load on the engine can lead to serious
engine damage.
• Listen out for warning signals or shouts when you
wear hearing protection. Always remove your
hearing protection as soon as the engine stops.
• Overexposure to vibration can lead to circulatory
damage or nerve damage in people who have
impaired circulation. Contact your doctor if you
experience symptoms of overexposure to vibration.
These symptoms include numbness, loss of feeling,
tingling, pricking, pain, loss of strength, changes in
skin color or condition. These symptoms normally
appear in the fingers, hands or wrists.
• Do not use a product with a damaged spark plug
cap.
• Do not use a product with a defective muffler.
• Keep all parts of your body away from the rotating
cutting attachment and hot surfaces.
• Never use a product with a faulty muffler
• Never start or use the product indoors, near
combustible material or in spaces that lacks proper
ventilation. The exhaust fumes from the engine
contain carbon monoxide, an odorless, poisonous
and highly dangerous gas. Also, the exhaust fumes
are hot and may contain sparks that can start a fire.
Personal protective equipment
WARNING: Read the warning instructions
that follow before you use the product.
• Always use approved personal protective equipment
when you use the product. Personal protective
equipment cannot fully prevent injury but it
decreases the degree of injury if an accident does
occur. Let your dealer help you select the right
equipment.
• Use a protective helmet where there is a risk of
falling objects.
• Use approved hearing protection that provides
adequate noise reduction. Long-term exposure to
noise can result in permanent hearing impairment.
• Use approved eye protection. If you use a visor, you
must also use approved protective goggles.
Approved protective goggles must comply with the
ANSI Z87.1 standard in the USAs or EN 166 in EU
countries.
• Use gloves when necessary, for example when you
attach, examine or clean the cutting equipment.
05
• Use protective boots with steel toes and non-slip
soles.
• Use clothing made of a strong fabric. Always use
heavy, long pants and long sleeves. Do not use
loose clothing that can catch on twigs and branches.
Do not wear jewelry, short pants, sandals or go with
bare feet. Put your hair up safely above shoulder
level.
• Keep first aid equipment close at hand.
Safety devices on the product
WARNING: Read the warning instructions
that follow before you use the product.
In this section the product’s safety features, its purpose
and how checks and maintenance should be carried out
to ensure that it operates correctly. See instructions
under the heading to find where these parts are located
on your product.
The life span of the product can be reduced and the risk
of accidents can increase if product maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact Wemars service .
WARNING: Never use a product with
defective safety components. The product's
safety equipment must be inspected and
maintained as described in this section. If
your product fails any of these checks,
contact Wemars service to get it repaired.
CAUTION: All servicing and repair work on
the machine requires special training. This is
especially true of the machine′s safety
equipment. If your machine fails any of the
checks described below you must contact
Wemars service .
To do a check of the throttle trigger lockout
The throttle lockout is designed to prevent accidental
operation of the throttle control.
1. Press the throttle trigger lockout (A) and make sure
that the throttle control (B) is released . When you
release the handle the throttle control and the throttle
trigger lockout both move back to their initial
positions. This movement is controlled by two
independent return springs. This arrangement
means that the throttle control is automatically
locked at the idle setting.
2. Make sure that the throttle control is locked at the
idle setting when the throttle trigger lockout is
released.
3. Press the throttle trigger lockout and make sure that
it returns to its intial position when you release it.
4. Do a check of the throttle control and throttle trigger
lockout move freely and that the return springs work
properly.
06
A
B
B
Ａ
B
A
5. Start the product
and apply full throttle.
6. Release the throttle and make sure that the cutting
attachment stops and remains at a standstill. If the
cutting attachment rotates with the throttle in the idle
position the carburettor idle setting must be checked.
See instructions under the chapter
.
To do a check of the stop switch
1. Start the engine.
2. Move the stop switch to the stop position and make
sure that the engine stops.
To do a check of the cutting attachment guard
WARNING: Do not use a cutting attachment
without an approved and correctly attached
cutting attachment guard.
WARNING: Always use the recommended
cutting attachment guard for the cutting
attachment that you use. If an incorrect or
faulty cutting attachment guard is fitted this
can cause serious personal injury.
The cutting attachment guard prevents injuries from
objects that eject in the direction of the operator. It also
prevents injuries that occur if you touch the cutting
attachment.
1. Do a visual check for damages, for example cracks.
2. Replace the cutting attachment guard if it is
damaged.
To do a check of the muffler
WARNING: Bear in mind that the exhaust
fumes from the engine are hot and may
contain sparks which can start a fire. Never
start the product indoors or near
combustible material!
WARNING: Never use the product indoors
or in spaces lacking proper ventilation.
Exhaust fumes contain carbon monoxide, an
odorless, poisonous and highly dangerous
gas.
WARNING: Never use a product with a
faulty muffler.
The muffler keeps noise levels to a minimum and sends
exhaust fumes away from the operator.
•Do a visual check for damage and deformation.
• Make sure that the muffler is correctly attached to
the product.
Safety instructions for maintenance
WARNING: Read the warning instructions
that follow before you use the product.
• Only use cutting attachments with the guards we
recommend.
• Always stop the engine before you do any work on
the cutting attachment. The cutting attachment
continues to rotate even after the throttle has been
released. Ensure that the cutting attachment has
stopped completely and disconnect the spark plug
before you start to work on it.
• A faulty cutting attachment may increase the risk of
accidents.
• Make sure that the trimmer cord is wound tightly and
evenly around the drum, otherwise the product will
generate harmful vibration.
07
B
Assembly
4.Turn the output shaft until one of the holes in the
drive disc aligns with the related hole in the gear
housing.
5. Put the locking (allen key) in the hole to lock the shaft.
1. Install the grass catcher
To assemble the cutting attachment
guard and trimmer head
08
U Handle
Introduction
WARNING: Before you assemble the
product, you must read and understand the
safety chapter.
1. Remove the Handle Adjustment screws.
To assemble the U handle
2.Install the u handle and tighten the screws .
Catcher
Cutting Attachment Guard
3. Tighten the screws .
attachment guard
Spacer
2. Install the spacer and attachment guard on the shaft.
6. Remove the shaft nuts clockwise by Hex wrench.
Drive disc Washer Cover Nuts
Drive disc
Trimmer Head.
Hold the allen key turn the trimmer head anti-clockwise
Remove the nuts cover and washer .
To assemble the two-piece shaft
1. Remove the shaft A cap
3. Align the tab of the cutting attachment (A) with the
arrow of the coupling (B).
B
2. Turn the knob to loosen the coupling.
Knob
A
A
To assemble the 3T blade head
Drive disc Washer Cover Nuts
Blade head
Hold the allen key turn the nuts anti-clockwies
To assemble the trimmer head
WARNING:
guard all the time .
If not you can’t take down the trimmer head .
Keep the drive disc in the shaft
09
To wear the harness
1. Take out harness from the package .
2. Pull the snap and open the lock .
3. The rope on the back plate faces out.
5. Make sure soft side is down . the shoulder strap
4 Make sure you back looks like this ..
6. Make sure the board is on the right side of your body.
7. Wearing the harness . (Front / Right )
4. Carefully push the shaft(A) into the coupling until you
hear a click.
A
B
5.Push the coupling down and tighten the knob fully .
A
10
Tabla de contenidos
