Weller WAD 101 Manual de usuario

WELLER

Hot Air

Hot Air.........

.....the Solution for selective Reflow - Processes

For small Components

up to about15 X 15 mm

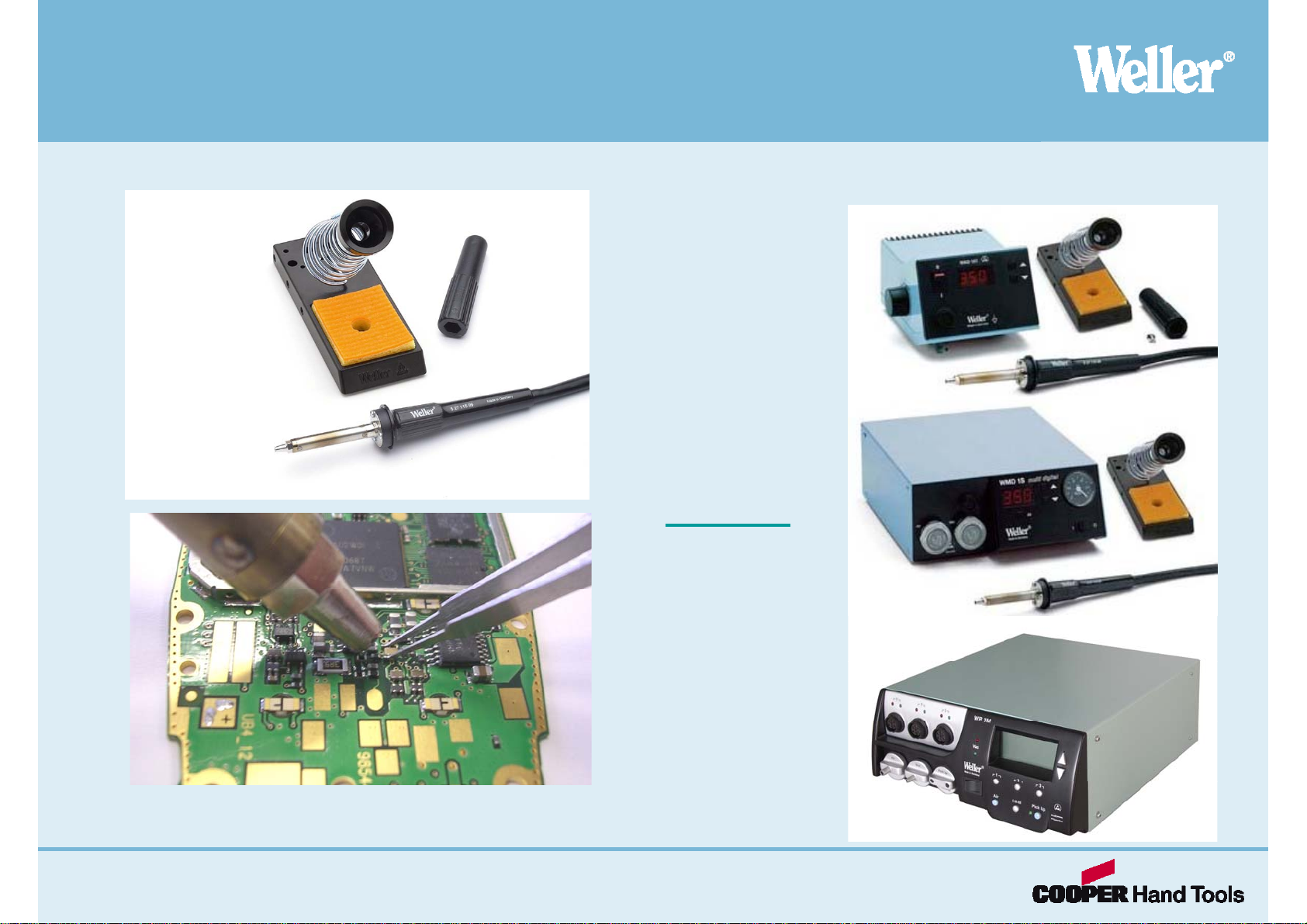

HAP 1

Connectable to an....

WAD 101

WMD 1A

WR 3M

WAD 101

Hot Air Station

WAD 101 Hot Air Station

The cost effective solution for

external compressed Air -, or Inert

Gas supply

WAD 101

Hot Air Unit

Consists of:

•Power supply

•Hot air pencil HAP1

•Support KH27

•Socket wrench 8mm

•2 m air hose 6mmØ

WAD 101

- Soft Ware Features

•Digital control electronic with micro controller

•Automatic tool recognition

•Digital display for PRE-SET and READ value (auto return)

•Temperature control from 50 to 450°C for soldering and

550°C for hot air

•Standard setback of 20 min. without WCB

•Calibration box can be connected for programming, time

setback and lock-out

•User Window – access to change temperature in lock-out

mode within a predefined range

•ESD confirm, protection class 1

•Accuracy ± 30°C for Hot Air Tools

± 2% of final value for Soldering Irons

WMD 1A

Hot Air Station

with integrated Pump

Consists of:

•Power Unit WMD 1S

with integrated

Rotation pump

•HAP 1 Hot Air Pencil 100

Watt

•AK10 Safety Rest

WMD 1A

Independent and Versatile

•Temperature setting infinitely

variable from 50 to 550°C

•Automatic Tool recognition

for tools up to 150 Watt

•Antistatic Metal box

•Potential balance (delivery

condition – direct grounded)

•Temp.Accuracy t ± 2% of final

value

•Maintain less free quick

starting Rotation Pump

WMD 1A

Soft Ware Function

•Automatic Tool recognition

corrects automatically physically based temperature variation of

different tools

•Automatic over load Protection

In case the electronic has to heat any tool uncontrolled for more

than 30 Min continuously, the power will be reduced to 80% to

avoid any damage.

•Setback

Temperature reduction to 150°C adjustable from 0 to 99 min.

•Offset

•To compensate temperature variations up to ±40°C

For large Packages

up to about 43 X 43 mm

HAP3000 hand - operated

Permanent connected

to....

WHA 900

without Nozzle

Vacuum

WHA 3000V

with Nozzle

Vacuum

WHA 3000P with

Nozzle Vacuum

HAP3000

Hot Air Nozzles

WHA 900 – no integrated

Vacuum possible

Mounted to....

WHA 3000V & WHA 3000P

• „Man“- Modus Press “VAC”

Button to activate the Nozzle

Vacuum

•„Auto “- Modus Nozzle

Vacuum will be activated

automatically in the end of the

Temperature Profile

Nozzle Vacuum
