Weiser SmrtCode 5 Instrucciones de funcionamiento

Programming and Troubleshooting Guide

Mastercode 2

Troubleshooting: Locked Turnbutton 6

Troubleshooting: Keypad 7

Troubleshooting: Battery 8

Battery FAQ 9

62816 / 01

1 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

Mastercode

Programming timeout: If no button is pressed for ve seconds, the system will time out

and you will need to restart the procedure.

1. Keep door open. Press and HOLD the Program button until the keypad

ashes green (about 5 seconds).

2. Enter new Mastercode.

3. Press Lock button once.

4. Re-enter Mastercode.

5. Press Lock button once.

If programming is successful, the keypad will flash green once with

one beep.

If programming is unsuccessful, the keypad will ash red three times

with three beeps. Make sure the Mastercode has not already been

programmed. Attempt the procedure again, making sure to enter the

same new Mastercode in step 2 and 4.

6. Make sure switch #3 is on, and press the Program button once. If

you hear three beeps and see the keypad ash green three times, the

Mastercode is enabled.

Note: The lock will time out after ve seconds.

Using a Mastercode is an optional, added-security measure. It is not enabled by default. A Mastercode is

used to add and delete user codes, but it cannot unlock the door (unless the same code is programmed

as a user code, though this is not recommended). The Mastercode must be 4-8 digits.

62816 / 01

2 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

About the Mastercode

Enabling and Setting the Mastercode

1. Keep door open. Press the Program button once. The keypad will ash

green and you will hear three beeps.

2. Enter Mastercode.

3. Press Lock button once.

4. Press the Program button the number of times that corresponds to

the user code position being programmed.

Example: If programming the third code, press the button three times.

5. Enter new user code.

6. Press Lock button once.

The procedure for adding user codes is different when the Mastercode is enabled. For instuctions on how

to add user codes when the Mastercode is disabled, see the Installation and User Guide that came with

your lock.

Procedure continued on next page

62816 / 01

3 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

CAdding User Codes with the Mastercode Enabled

If programming is successful, the keypad will flash green once with

one beep.

If programming is unsuccessful, the keypad will ash red three times

with three beeps. Make sure the user code is not a duplicate and that it

is between 4 and 8 digits during your next attempt. Make sure to enter a

valid Mastercode in step 2.

7. While the door is open and locked, test the user code to make

sure it unlocks the door.

62816 / 01

4 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

1. Keep door open. Press and HOLD the Program button until the keypad

ashes green (about 5 seconds).

2. Press Lock button once.

3. Enter Mastercode.

4. Press Lock button once.

5. Re-enter Mastercode.

6. Press Lock button once.

If programming is successful, the keypad will flash green once with

one beep.

If programming is unsuccessful, the keypad will ash red three times with

three beeps. Make sure the Mastercode has been enabled before trying

to disable it. Attempt the procedure again, making sure to enter the same

Mastercode in steps 3 and 5.

7. Make sure switch #3 is on, and press the Program button once. If you

don’t immediately hear three beeps and see the keypad ash green

three times, the Mastercode is disabled.

Note: The lock will time out after ve seconds.

62816 / 01

5 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

DDisabling and Deleting the Mastercode

Troubleshooting: Locked Turnbutton

The set screw in the lever was not fully

tightened.

Fully tighten the pre-installed set screw at the bottom of the interior

lever.

62816 / 01

6 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

AThe turnbutton cannot rotate.

BBThe lock beeps, the keypad ﬂashes red, and the door cannot lock or unlock.

Troubleshooting: Keypad

Keypad error test

Install a fresh set of batteries and turn switch #3 to the ON position. Test

each button on the keypad (one at a time) and listen for a beep on each

button press. If beeping is not heard on all buttons, contact Technical

Support for further troubleshooting.

Keypad lockout

If three incorrect codes were entered within one minute, the keypad will

lock for 60 seconds.

No user codes are programmed.

If there are no codes in the lock, the lock button will not lock the door.

This is indicated by the keypad ashing red three times with three

beeps. Program at least one user code and test the Lock button again.

The battery is too low to lock the door.

This is indicated by the keypad ashing red three times with three beeps.

Remove the batteries and replace with a fresh set.

The set screw in the lever was not fully

tightened.

Fully tighten the pre-installed set screw at the bottom of the interior

lever.

62816 / 01

7 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

The keypad is unresponsive.

The Lock button does not lock the door.

Troubleshooting: Battery

The lock must be replaced. Contact Technical Support.

Keypad error.

See “Keypad error test” on page 7.

62816 / 01

8 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

The batteries drain within one day.

The batteries drain within one week.

Battery FAQ

How long will the lock operate on a set of

batteries?

Based on 10 operations per day, a single, new set of Alkaline batteries

will operate the lock for over a year.

What type of batteries do you recommend?

For best results, use new non-rechargeable Alkaline batteries only.

I am planning to be away for several months.

Will my lock operate when I get back?

When the system is idling, it consumes minimum power (very close to

battery shelf life.) With alkaline batteries, the lock should be operable

after years of idle.

I replaced my batteries less than a year ago

and need to replace them again.

Check your door alignment. If the deadbolt makes several unsuccessful

attempts to lock or unlock the door, it may mean that the door is warped

and the latch does not line up correctly with the strike. Operating the

lock excessively reduces battery life. Avoid turning on the keypad light

unnecessarily.

What settings should I use to get the

maximum battery life out of my lock?

Set switches #1, #2, and #3 to the OFF position.

62816 / 01

9 / 9

USA: 1-800-677-5625

Canada: 1-800-501-9471

www.weiserlock.com

Tabla de contenidos

Otros manuales de Cerradura de puerta de Weiser

Weiser

Weiser Aura Manual de usuario

Weiser

Weiser Kwikset 60729 Manual de usuario

Weiser

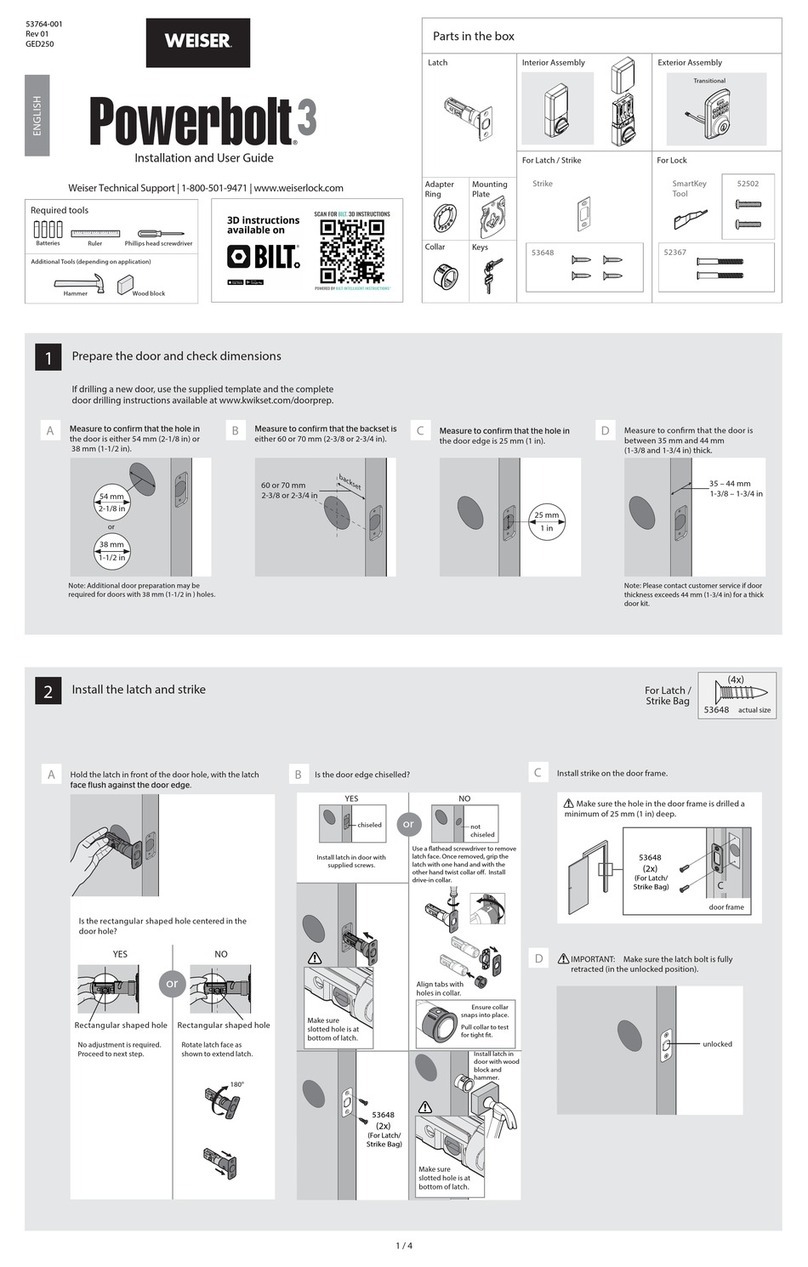

Weiser PowerboIt 3 Manual de usuario
