Tried-and-tested I/K/N 2000 awnings

I2000 |K2000 |N2000

weinor I/K/N 2000

Contents

Product highlights 4

Awning fabrics 8

Frame colours 8

BiConnect remote control 9

Automatic weather control

and accessories 10

Planning/measuring 11

Cross-sections 12

Installation options 14

Extraction forces 18

The I/K 2000 is the tried-and-tested, classic cassette awning – as

an I 2000 without back-plate for level building facades, as the K2000

with back-plate for uneven bases. The sturdy weinor awning with its

support pipes can be used almost anywhere. As the decor on the front

rail and the end caps suggest, the I/K 2000 tends towards a more

traditional design. The optional LED light bar makes the awning part

of any stylish evening. The N 2000 is an awning designed especially

for niche fixing. With it’s unique flat front rail the awning disappears

almost completely into the facade – with simple straight lines it is

designed for a specific need, and is very common for installation above

shop-fronts.

weinor I 2000, K 2000, N 2000 –

proven technology, timeless design

weinor I/K/N 2000 at a glance

I/K/N 2000 highlights

K 2000

with back-plate

I 2000

without back-plate

weinor

LongLife arm

Multi-section units with

sliding support or

jockey cover

N 2000

for niches

Product benefits in detail

Sophisticated design and technology: highlights of the weinor I/K/N 2000

Multi-section units – to shade especially large areas

I 2000: open cassette – perfect for wall installation

The N 2000 is specially designed for

niche installation.

• embedded in the building facade

• edge of front rail fits flush with the

building facade

• tilting member closes the front rail

firmly

N 2000: niche cassette – for flush fit at facade

The I 2000 cassette awning is open

on the side facing the wall.

• extremely well suited to wall

mounting, e.g. beneath roof over-

hangs

• shapely front rail allows it to close

precisely and provide perfect pro-

tection for fabric and fittings

The I/K 2000 also comes as a com-

bined multi-section unit for very

large patios – coupled or in series.

• as a 2-part unit up to 1,200 cm

• jockey cover or sliding support

with continuous fabric

The LongLife arm features an excep-

tionally robust high-tech belt.

• tested to more than 100,000 cycles

• extremely quiet operation

• no maintenance required

• drop-forged aluminium in joint –

light but highly robust

weinor LongLife arm – resilient and durable

K 2000: closed cassette – back-plate for extra protection

The K 2000 features an additional

back-plate, completely closing it off.

• for every building situation

• back-plate profile makes it equally

suitable for

- wall installation

- ceiling installation

- rafter installation

I/K 2000 N 2000

Technology

Max. width,

1-section/2-section with jockey cover or sliding support 700 cm/1,200 cm 600 cm

Max. projection 400 cm 350 cm

Cassette size (W x H) 198/200 mm x 211 mm 200 mm x 185 mm

Coupled systems  

Crank drive  

Motor drive as standard as standard

Setting awning pitch 5° to 40° 5° to 40°

Installation options can be installed on walls, ceilings and rafters

LED lighting: Design light bar  

Design

47 standard frame colours  

Over 150 other RAL colours  

9 trend colours  

Other textured colours  

weinor fabric collection  

Accessories

Tempura heating system ﬁxes in place with universal bracket

Controls

Remote control see p. 9

No remote fully wired and ready to plug in fully wired and ready to plug in

Quality

Tested up to wind Force 5 on the Beaufort scale and wind resistance class 2 according

to DIN 13561

I/K/N 2000 versions

standard

optional



unavailable

Product benefits in detail

Fabrics and frame colours

• high-quality acrylic

• proven for decades

• fabric width: 120 cm/240 cm

• innovative polyester quality

• high-stretch with memory effect®

• fabric width: 120 cm

For an attractive awning you need a

high-quality fabric. The ‘colours by

weinor®’ collections provide a wide

selection.

• solution-dyed to make them

colour-fast

• stay beautiful thanks to dirt- and

water-repellant nano-coating

• optional: wide range of collections

by other manufacturers

Fabrics – attractive, brilliant long-lasting colours

weinor coats all of its products in

its own workshop. This ensures that

they have the best-possible colour

tonality and identical gloss levels.

• 47 standard RAL frame colours,

silk gloss (gloss level 70 ± 5%

when measured at a 60° angle)

• 9 scratchproof, resistant trend

colours with a textured look

• over 150 special RAL colours

Wide range of frame colours – abundance of choices

47 standard frame colours

RAL 1002

Sandy yellow RAL 1003

Signal yellow RAL 1014

Ivory RAL 1015

Light ivory RAL 1023

Trac yellow RAL 1034

Pastel yellow RAL 2000

Yellow orange RAL 2002

Vermilion RAL 2011

Deep orange

RAL 3002

Carmine red RAL 3004

Magenta red RAL 3007

Black red RAL 4005

Blue lilac RAL 4006

Trac purple RAL 5005

Signal blue RAL 5009

Azure blue RAL 5014

Pigeon blue RAL 5021

Water blue

RAL 5022

Night blue RAL 5024

Pastel blue RAL 6005

Moss green RAL 6009

Fir green RAL 6011

Reseda green RAL 6012

Black green RAL 7015

Slate grey RAL 7016

Anthracite grey RAL 7021

Black grey

RAL 7030

Stone grey RAL 7032

Pebble grey RAL 7035

Light grey RAL 7039

Quartz grey RAL 7040

Window grey weinor 7319

weinor grey RAL 8001

Ochre brown RAL 8003

Clay brown RAL 8014

Sepia brown

RAL 8016

Mahagony brown RAL 8017

Chocolate brown RAL 8019

Grey brown RAL 8022

Black brown weinor 8077

weinor dark brown RAL 9001

Cream RAL 9005

Jet black RAL 9006

White aluminium RAL 9007

Grey aluminium

RAL 9010

Pure white RAL 9016

Trac white

9 trend colours

WT 29/10797

Approx.RAL 9010

WT 29/50704

Approx.RAL 6009 metallic

WT 29/60740

Chestnut 04 metallic

WT 29/70786

Sparkling iron eect

WT 29/71289

Approx.RAL 7016

WT 29/80077

Approx.DB 703 metallic

WT 29/80081

Iron glimmer eect P7

WT 29/90146

Approx.RAL 9006 metallic

WT 29/90147

Approx.RAL 9007 metallic

As a result of the ban on the use of heavy metals in powder

coatings, paint manufacturers can no longer guarantee colour

stability despite making every eort to do so. It therefore can-

not be excluded that colours in general, and Fire Red (RAL 3000)

in particular, may fade with time. For technical reasons, the

colours may appear signiﬁcantly dierent when printed.

weinor is an eco-friendly company. To ensure

compliance with high environmental standards,

manufacturing processes and materials under-

go regular testing by experts.

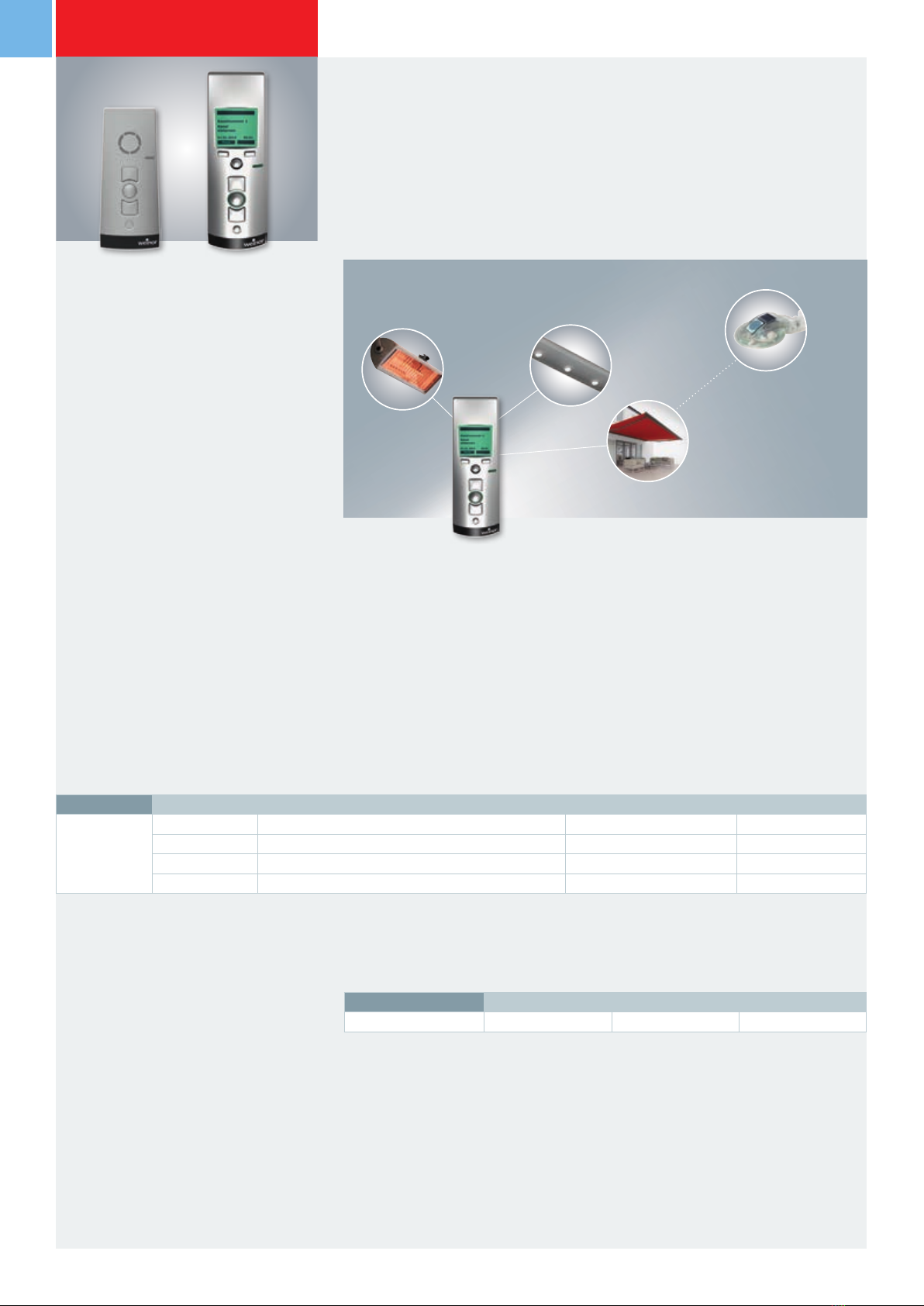

Remote control

weinor BiEasy handheld

transmitter

•safe to operate on protected

frequency (868 MHz)

• range of up to 100 m

The awning comes as standard with

one motor and can optionally be

controlled with the pre-programmed

BiConnect remote control.

BiRec remote-controlled receiver

• various remote-controlled receivers

depending on functions used

• to suit awning fittings – e.g. to

extend and retract the awning or

dim the lights

There are handheld transmitters

with different numbers of channels:

choose from 1, 5 or 15 channels

with a display.

weinor BiConnect – coordinated control for awning,

light and heating (optional)

BiConnect remote control

All awnings and shades

Light bar systems

BiSens

weather sensors

Tempura heating system

BiEasy 15M

with display

BiEasy 5M

Product BiConnect Somfy RTS Somfy io

I/K/N 2000 

available not available

Product Comes with (integrated) Remote receiver

Handheld transmitter

I/K/N 2000

awning motor BiRec MA BiEasy 1M/5M/15M

Tempura heating system

*BiRec HD BiEasy 5M/15M

+ LED Design light bar*BiRec MLED BiEasy 5M/15M

Tempura heating system

* + LED Design light bar*BiRec MLED + BiRec HD BiEasy 5M/15M

Requires: awning with BiConnect remote control; sensors require at least a BiEasy 1M, 5M or 15M

* option

Automatic weather control and accessories

Select LED components for top

weinor quality:

• atmospheric light thanks to special

glass lenses

• especially energy-efficient

• lifetime of 30,000 hours

• remote dimming with BiConnect

• fitted to support pipe using angle

bracket

• easy to service: simply replace

individual LED lights without

uninstalling the awning

• patent pending

LED Design light bar – 30,000 hours of lighting with

minimal energy consumption (optional)

Some options incur a surcharge. Please refer to the weinor awnings price list for costs.

BiSens SWR-230 V

The energy-efficient Tempura

infrared heating system has an im-

pressive heating capacity of over

1,500 watt in a tiny housing.

• instant heat: no warm-up time

• turn as required for

targeted warmth

• operate and dim using BiConnect

remote control

• splash protection

• comes in 47 standard frame

colours plus 9 scratchproof,

resistant trend colours with a

smart, textured look

• option: 150 special RAL colours

• universal bracket makes it easy

to retrofit

• TÜV tested

The awning retracts when the wind

protection sensor BiSens Agido-3V is

activated by suitable wind levels.

• threshold value adjustable

• only sold with BiConnect

The BiConnect series remote sensors

automatically extend the awning

when the sun shines and reliably

retract it in the wind or rain.

• energy-saving technology

• battery life 2 years

• awning remains in place approx.

20 minutes after retraction

• fitted into front rail

Available types:

• BiSens SWR-230 V

sun, wind and rain sensor

• BiSens SW-230 V

sun and wind sensor

• also solar-run:

BiSens SW-Solar

Sun, wind and rain sensors – automatically protect your

product and prevent excess heat (optional)

Tempura Universal heating system, high-performance level

(optional)

Product protection sensor BiSens Agido-3V

Otros manuales para I 2000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios de weinor

weinor

weinor I 2000 Instrucciones de funcionamiento

weinor

weinor Cassita II Manual

weinor

weinor PergoTex II Instrucciones de montaje

weinor

weinor Plaza Viva Instrucciones de montaje

weinor

weinor BiSens Sun-Solar Manual de usuario

weinor

weinor Semina Life Guía

weinor

weinor BiConnect BiSens Agido-3V Guía

weinor

weinor Plaza Viva Manual

weinor

weinor Kubata Manual

weinor

weinor Kubata Instrucciones de montaje

weinor

weinor Kubata Especificaciones técnicas

weinor

weinor WGM Sottezza Guía del usuario

weinor

weinor BiConnect BiSens Agido-3V Manual de usuario

weinor

weinor Opal Design II LED Manual

weinor

weinor Terrazza Originale Instrucciones de montaje

weinor

weinor Topas Manual de usuario

weinor

weinor Sottezza II Stretch Manual

weinor

weinor Semina Manual de usuario

weinor

weinor Topas Manual

weinor

weinor Cassita II Instrucciones de montaje

weinor

weinor WGM 1030 Manual de servicio

weinor

weinor VertiTex WeiTop Guía rápida

weinor

weinor Semina Manual

weinor

weinor WGM Sottezza Guía del usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

weinor I 2000 Manual de usuario

Manuales populares de Accesorios de otras marcas
