CU-12

CU-12-HP

Instruction manual

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

CU-12

CU-12-HP

2/12

CU-12

CU-12-HP

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

3/12

CONTENTS

1INTRODUCTION........................................................................................................................................ 4

2INSTALLATION ......................................................................................................................................... 4

2.1 FRONT PANEL .......................................................................................................................................... 4

2.2 REAR PANEL............................................................................................................................................. 4

2.3 ASSEMBLY WITH THE WELDING POWER SOURCE................................................................................ 5

3TECHNICAL DATA.................................................................................................................................... 6

4SPARE PARTS.......................................................................................................................................... 7

5ELECTRICAL DIAGRAM ......................................................................................................................... 10

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

CU-12

CU-12-HP

4/12

1INTRODUCTION

IMPORTANT!

This handbook must be consigned to the user prior to

installation and commissioning of the unit.

Read the "General prescriptions for use" handbook supplied

separately from this handbook before installing and

commissioning the unit.

The meaning of the symbols in this manual and the associated

precautionary information are given in the "General

prescriptions for use”.

If the "General prescriptions for use" are not present, it is

mandatory to request a replacement copy from the

manufacturer or from your dealer.

Retain these documents for future consultation.

KEY

DANGER!

This pictogram warns of danger of death or serious injury.

WARNING!

This pictogram warns of a risk of injury or damage to property.

CAUTION!

This pictogram warns of a potentially hazardous situation.

INFORMATION

This pictogram gives important information concerning the execution

of the relevant operations.

NOTES

The figures in this manual are purely guideline and the images may

contain differences with respect to the actual equipment to which they

refer.

INTRODUCTION

The cooling unit CU-12/CU-12-HP can be connected to the generator,

allowing the liquid cooling of the TIG torch.

2INSTALLATION

2.1 FRONT PANEL

Connector for coolant hose:

power source cooler

Connector for coolant hose:

cooler power source

Switch for switching on and off.

2.2 REAR PANEL

Fuse.

Type: Delayed acting (T)

Amperage: 2.5 A

Voltage: 250 V a.c.

CU-12

CU-12-HP

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

5/12

Power cable.

Total length (including internal part): 0,95 m

Number and cross section of wires: 5 x 1 mm2

Power plug type: ILME 16 A 230 / 400 Va.c.

Inlet for jerrycan filling.

2.3 ASSEMBLY WITH THE WELDING POWER SOURCE

DANGER!

Lifting and positioning

Read the warnings highlighted by the following symbols in the

“General prescriptions for use”.

Set the welding power source ON/OFF switch to “O” (unit de-

energized).

Remove the screws from the power source cabinet.

Loosen the screws of the upper brackets of the cooler and open

out the brackets slightly.

Place the power source on top of the cooler.

Secure the cooler brackets to the power source using the

previously removed screws.

Connect the plug of the cooler power cable to the cooler power

socket on the rear panel of the welding power source.

Plug the power cable plug into a mains socket outlet.

Set the welding power source ON/OFF switch to “I” to switch on

the unit.

Set the cooler ON/OFF switch to “I” (unit powered).

WARNING!

Periodically checking the level of the liquid in the indicator on the

side of the cooling unit.

Be careful when choosing the cooling liquid: it must not be an

electricity conductor.

Do not use polypropylene liquids because they damage the seals

and generate incrustations.

Read the warnings highlighted by the following symbols in the

“General prescriptions for use”.

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

CU-12

CU-12-HP

6/12

3TECHNICAL DATA

Model

CU-12

Construction standards

EN 60974-2

EN 60974-10 Class A

Supply voltage

1 x 230 V~ ± 15 % / 50-60 Hz

Dimensions ( L x D x H )

530 x 230 x 210 mm

Weight

12.0 kg (15.8 kg with liquid)

Tank capacity

4.5 l

Protection rating

IP23

Maximum input current (A)

1.3 A (50 Hz)–1.53 A (60 Hz)

Cooling power

700 W (1l/min)–1.1 KW (max

l/min)

Maximum pressure

0.33 MPa (50 Hz)–0.44 MPa (60

Hz)

Model

CU-12-HP

Construction standards

EN 60974-2

EN 60974-10 Class A

Supply voltage

1 x 230 V~ ± 15 % / 50-60 Hz

Dimensions ( L x D x H )

530 x 230 x 210 mm

Weight

12.0 kg (15.8 kg with liquid)

Tank capacity

4.5 l

Protection rating

IP23

Maximum input current (A)

1.5 A (50 Hz) –1.78 A (60 Hz)

Cooling power

700 W (1l/min)–1.1 KW (max

l/min)

Maximum pressure

0.41 MPa (50 Hz)–0.51 MPa (60

Hz)

The technical characteristics of the antifreeze liquid supplied with this

appliance are found below:

Basis

Refrigerants polymers with low

pour point

Appearance

Liquid

Color

Colorless

Odor

Odorless

Specific gravity

1.030 g/cm3

Viscosity

< 100 cP

7 / 8

Refractive index

1.369 nD (20 °C)

Boiling point

102 °C

Specific heat

3.9 kJ/kg K

Thermal conductivity

0.45 W/m k (25 °C)

Electrical conductivity

2.3 mS/cm (20 °C)

Dissolved chloride

< 2 ppm

Dissolved sulfides

< 2 ppm

Hardness

< 0.1 mol/m3(Ca++, Mg++)

Biodegradation

Complete

Foaming power

Solubility

Soluble in water

CU-12

CU-12-HP

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

7/12

4SPARE PARTS

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

CU-12

CU-12-HP

8/12

N°

CODE

DESCRIPTION

018.0002.0004

QUICK CLUTCH 1/8 GAS

017.0003.0055

F=1/8 - M=1/8 NIPPLE CONNECTOR

011.0012.0016

FRONT PLATE

017.0003.0056

F= 1/4 - M= 1/4 NIPPLE CONNECTOR

016.5001.3041

SLEEVE HOSE ADAPTER FOR RUBBER HOSE Ø= 10 mm F= 1/8 M

012.0006.0000

FRONT-REAR PLASTIC PANEL

011.0012.0060

FAN SUPPORT

011.0012.0036

FRONT/REAR PLATE

003.0002.0016

FAN

040.0001.0004

SWITCH

016.0009.0003

RUBBER FOOT

011.0012.0017

LOWER CASE

011.0000.1011

LEFT SIDE COVER

040.0006.1420

FUSE HOLDER

045.0000.0014

CABLE CLAMP

011.0012.0015

REAR PLATE

003.0003.0015

CAP

011.0012.0013

CLAMPING PLATE

011.0012.0012

UPPER COVER

017.0003.0022

DOUBLE HOLLOW BOLT M= 1/4

003.0003.0003

RADIATOR

011.0000.1001

RIGHT SIDE COVER

017.0003.0021

HOLLOW BOLT M= 1/4

003.0004.0027

PUMP CU-12

003.0004.0031

PUMP CU-12-HP

011.0012.0018

TANK FIXING PLATE

003.0003.0012

TANK

003.0003.0016

GASKET

016.5001.3042

SLEEVE HOSE ADAPTER FOR RUBBER HOSE d= 10 mm F= 1/4 M

017.0003.0024

HYDRAULIC SWIVEL JOINT LF= 1/4

022.0002.0082

POWER SUPPLY CABLE

017.0006.0007

PRESSURE SWITCH

017.0003.0027

90° F= 1/4 - M= 1/4 NIPPLE CONNECTOR

011.0012.0061

RADIATOR SUPPORT

016.1001.1001

WASHER 1/4 GAS NYLON

N°

CODE

DESCRIPTION

003.0004.0017

PUMP BODY ¼ GAS

003.0004.0018

IMPELLER

003.0004.0019

SEAL BODY

003.0004.0020

SEAL SEEGER

003.0004.0008

COVER FAN

003.0004.0007

FAN

003.0004.0021

MECHANICAL COMPLETE SEAL

003.0004.0023

BODY O-RING

003.0004.0022

SHAFT KEY

CU-12

CU-12-HP

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

9/12

COUPLINGS KIT ALREADY ASSEMBLED

010.0000.0068

PRESSURE SWITCH CONNECTOR KIT

010.0000.0071

PUMP CONNECTION KIT (B)

010.0000.0072

PUMP CONNECTION KIT (C)

Cod.006.0001.1880

22/11/2016 v2.2

ENGLISH

CU-12

CU-12-HP

10/12

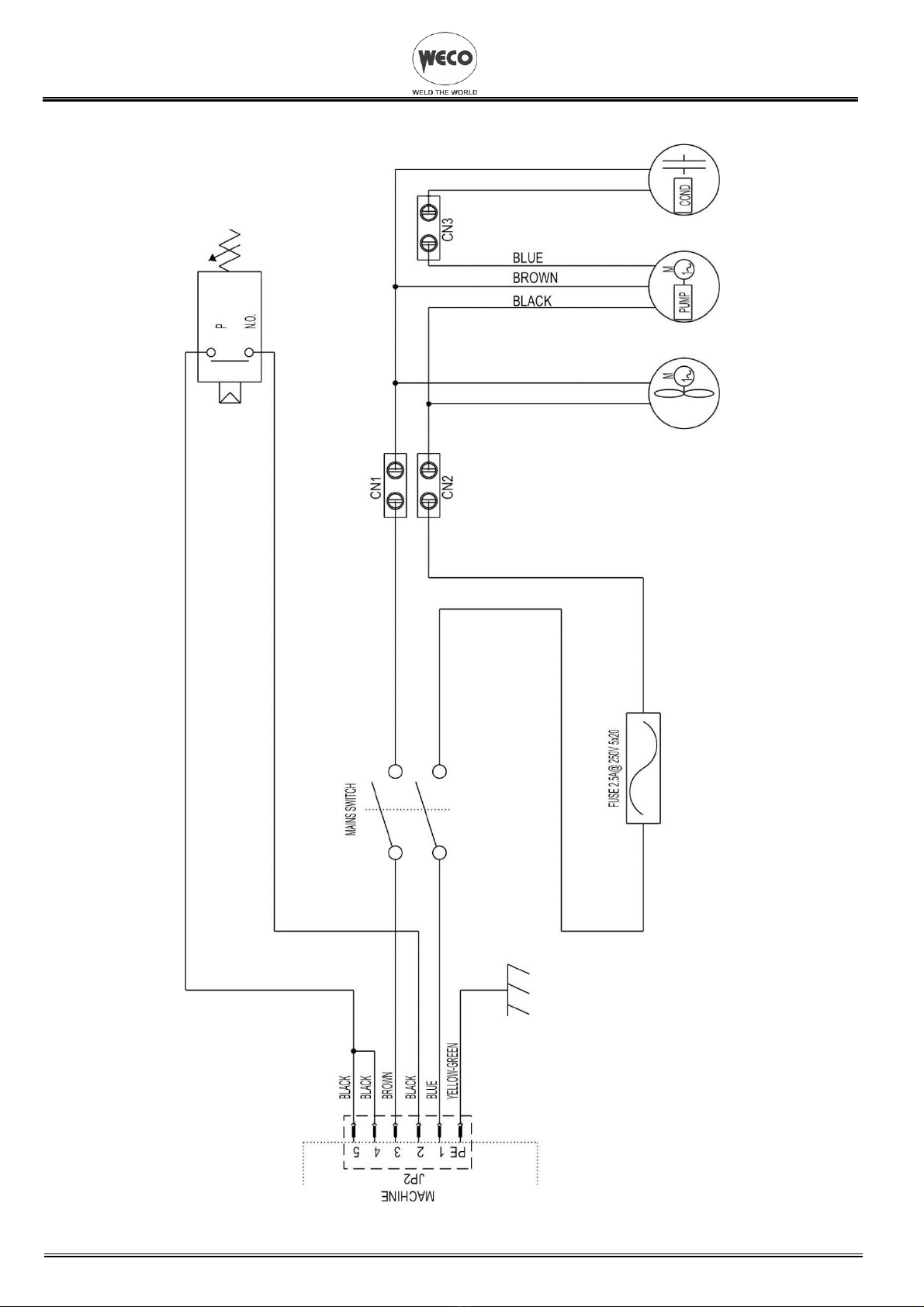

5ELECTRICAL DIAGRAM
