Weber Summit Series Manual de usuario

56559 US 02/28/11

LP/NG

ENGLISH

#56559

Assembly Instructions

WWW.WEBER.COM®3

24"

(610 mm)

24"

(610 mm)

CLEARANCE FROM SURFACES OR STRUCTURES

CONSIDERATIONS BEFORE ASSEMBLING THIS GRILL

WARNING: Clearance from any adjacent surface or structure

is 24" (610 mm) from the back and sides of the grill.

NOTE: If you have questions on what materials are considered

noncombustible, contact your local building materials supplier or fire

department.

Be sure to consider placement options before unpacking or beginning

assembly.

Unpack main grilling unit near the area where Summit Grill Center will reside.

Weber recommends installing on a level, solid surface such as concrete,

brick, or wood. Do not install on on dirt, gravel, or flagstone.

DO NOT MOVE SUMMIT GRILL CENTER AFTER FULLY ASSEMBLED.

Do not attempt to assemble Grill Center in a location where surface

pitch is greater than 2 inches.

Natural Gas source

(NG units only)

Main Grilling Unit

HARDWARE LIST

TOOLS NEEDED

If any parts or hardware are damaged or missing, Contact the Customer Service Representative in

your area using the contact information on our website. Log onto www.weber.com®.

Wire Shelf Frame Clip - 4

Plastic Plug - 11

J-clip - 16

Wrench - 1

Screw - 20

(1/4 - 20 x 1/2 In.)

Hex Bolt - 4

(1/4 - 20 x 1/2 In.)

Screw - 11

(#10 - 16 x 3/4 In.)

Washer - 24

Smoker Box - 1

MAIN GRILLING UNIT PARTS LIST

Catch Pan Holder - 1

Catch Pan - 1

Disposable Drip Pan - 2

Cooking Grate - 3

Warming Rack - 1

Battery Housing - 1

Rotisserie Fork - 4

Rotisserie Spit - 1

Rotisserie Motor - 1

Slide-out Grease Tray - 1

Flavorizer®Bar - 12

Smoker Bar - 1

LEFT CABINET PARTS LIST

Left Cabinet

Side Table - 1

Left Cabinet

Water Deflector - 1

Left Cabinet Door - 1

Left Door Handle - 1

Left Cabinet

Bottom Panel - 1

Left Cabinet

Back Panel - 1

Paper Towel Holder - 1

Left Side End Skirt - 1

Left Frame - 1

Height-adjustable Leg - 2

Wire Shelf Frame - 2

Wire Shelf - 2

SIDE BURNER CABINET PARTS LIST

Side Burner Lid - 1

Wok Ring (see Owner's Guide) -1

Side Burner Grate - 1

Side Burner inner Ring - 1

Side Burner Outer Ring - 1

Side Burner Head - 1

Side Burner Assembly- 1

Sideburner Cabinet

Water Deflector - 1

Side Burner

Cabinet Door - 1

Right Door Handle - 1

Side Burner Cabinet

Back Panel - 1

Side Burner Cabinet

Bottom Panel - 1

Right Frame -1

Right Side End Skirt - 1

Side Burner Knob - 2

Height-adjustable Leg - 2

Wire Shelf Frame - 2

Left Cabinet Wire Shelf - 2

13-

Remove protective film from all stainless steel surfaces before using grill.

WWW.WEBER.COM®9

cd3

1-1/2" (38 mm)

Adjust legs on the Main Grilling Unit

Your patio may not be a level surface, which is why your Grill Center

is equipped with height-adjustable legs. The legs on the main grilling

unit are pre-set to their minimum height of 3/4". You will need to slightly

extend these legs, which shall allow levelling adjustments to be made

as assembly progresses.

1) Use an adjustable wrench and turn clockwise to extend the height-

adjustable legs to 1½ inches (38 mm).

Be sure to level Main Grilling Unit front

to back and side to side. Use cooking

grates as levelling surface. Make further

adjustments to legs (if necessary).

Do not extend legs beyond 1½ inches (38mm).

WWW.WEBER.COM®11

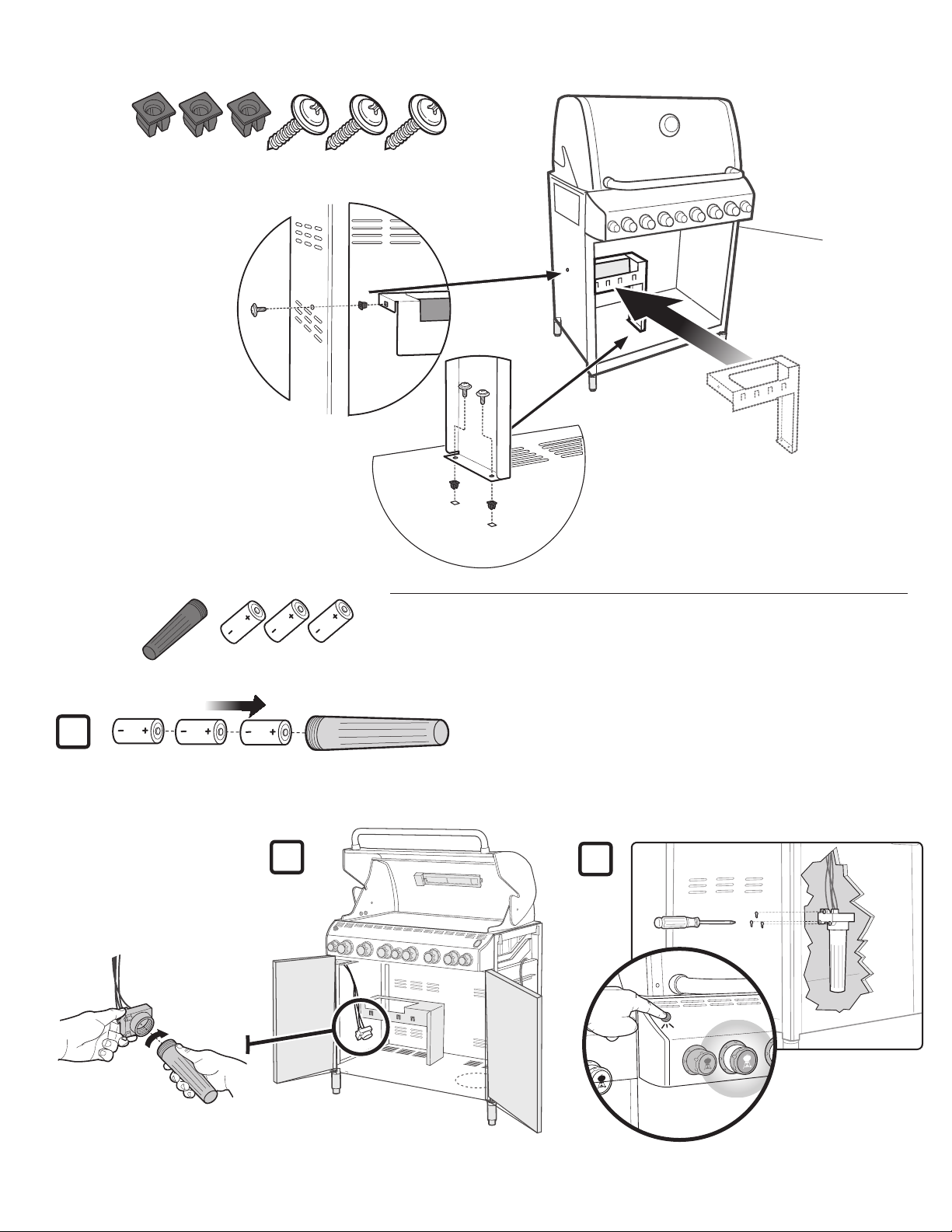

Requires 3 “D” alkaline batteries (included). Use alkaline

batteries only. Do not mix old and new batteries or different types

of batteries (standard, alkaline, or rechargeable).
