WeatherMaster Verishade XT Manual de usuario
Verishade XT
Product Manual
2 | P a g e
FEATURES & BENEFITS
A contemporary take on a classic window covering, Verishade XT combines the versatility
of a vertical blind with the elegant appeal of a soft window furnishing.
Featuring the premium Edge Vertical Track system and soft Verishade XT fabric, the new
Verishade XT collection provides the perfect balance of style, durability and child safety
features to complement any home interior style and living needs.
FEATURE BENEFIT
Unique Design Individually curved fabric vanes feature an
alternating light filtering and room
darkening fabric panel. Simply turn the
fabric vanes for sheer light control or total
privacy.
Child Safe Designed with child safety in mind,
Verishade XT fabric has no connecting
bottom chains or weights, providing a
safer home environment for children and
pets.
Functional Living For seamless indoor-outdoor living,
conveniently walk through the individual
fabric vanes whether they are opened or
closed.
Easy Breezy Free from noisy connecting chains and
bottom weights, Verishade XT operates
quietly and softly settles back into position.
Two Operating Options Available with two operating options:
Chain and Cord or Traversing Wand,
Verishade XT fabric can be easily tilted
with option to stack to the left, right or split
stack for an unobstructed view.
Uniform Appearance Seamless colour coordination between
fabric and hardware for a cohesive interior
look. The modern headrail design is
available in 6 matching colours (anodised,
white, birch white, stoney beige, gunmetal
and black).
Total Light Control Take advantage of beautiful light control
with Verishade XT. The soft vertical fabric
provides daytime privacy whilst allowing a
soft view through. Easily adjust the level of
privacy and light to suit your requirements
by rotating the fabric vanes halfway. To
block light, close the shades completely.
3 | P a g e
Durable Qualities Made from 100% polyester, Verishade XT
fabric offers durable properties such as
fade resistance and Ultraviolet (UV)
protection to help preserve the fabric and
home furnishings from fading.
Easy Maintenance With dirt and dust resistant properties,
maintenance is made easy. Simply dust,
spot clean or gently detach Verishade XT
fabric vanes from the track to hand wash.
Opacity Options Featuring alternating opacity fabric folds:
light filtering when opened or room
darkening when closed.
Dirt Resistant Treated to effectively repel dust and grime
for easy maintenance.
Fade Resistant All colours meet Australian Standards for
colour fastness to resist fading
(AS2001.4.21).
UV Protection UV stabilised fabric material features an
Ultraviolet Protection Factor (UPF) of 50+.
5 Year Warranty Enjoy total piece of mind with a 5 year
warranty.
4 | P a g e
OPERATING OPTIONS
Featuring the Australian designed and developed Edge Vertical System, Verishade XT
offers a premium hardware and operating system for ultimate performance, durability and
smooth control.
Available with two operating options: Chain and Cord or Traversing Wand, Verishade XT
fabric can be easily tilted with option to stack to the left, right or split stack for an
unobstructed view.
CHAIN & CORD OPERATION
Featuring a heavy duty roller blind chain and cord (available in 4 colours white, ivory, grey
& black), the beaded chain allows you to rotate the fabric vanes to the desired position,
while the cord can be used to stack the shade.
Available in left, right and split stack.
TRAVERSING WAND OPERATION
For a cordless and enhanced child safe solution, opt for the Traversing Wand operation
(available in 4 colours: white, anodised, gunmetal and black). Using just one hand, simply
rotate the fabric blades and draw the vanes across.
Available in left and right stack only.
Available in 4 colours: White, Anodised, Black &
Gunmetal
Standard Length: 750mm & 1250mm
Cord Colour: White, Black, Grey & Magnolia
Chain Colour: White, Black, Grey & Magnolia (continuous
loops - refer to below for sizes)
5 | P a g e
BLIND DROP
CHAIN & CORD CONTROL
LENGTH
TRAVERSING WAND CONTROL
LENGTH
1001 –1200MM
750MM
750MM
1201 –1500MM
1000MM
750MM
1501 –1800MM
1250MM
750MM
1801 –2100MM
1500MM
1250MM
2101 –2400MM
1750MM
1250MM
2401 –2700MM
2000MM
1250MM
>2700MM
2000MM
1250MM
NOTE: Drops that require chain longer than 2000mm must be noted on the order form and
are only available in white. A chain and cord tensioner will be supplied with all chain and
cord Verishade XT.
CALCULATION FOR NUMBER OF FABRIC BLADES
Fabric Blades = [Width(mm)] / 102 (roundup)
CONTROL PLACEMENT - WAND/CHAIN & CORD
•Chain & Cord: Blades stack on same side for split stack, choose left or right control.
•Travelling Wand: blades stack on side opposite wand. (Single side stack only)
BLADE CLOSURE GAP
•Blades are designed to overlap 25mm for privacy.
•Light leakage may occur due to the closure gap,
which may increase with the length of the blade.
•The closure gap is most visible when viewed from
the side. It is a normal, inherent characteristic of
the product and should not be considered a
defect.
•Blade closure is tighter in one direction than the other when the blades are rotated
closed.
SPLIT STACK CENTRE GAP
•The gap distance between fabric panels of split stack
design when open is approximately 10-15mm.
6 | P a g e
MEASURING & LIMITATIONS
OPTIONS & LIMITATIONS
MINIMUM WIDTH
1000MM
MAXIMUM WIDTH
5950MM
MINIMUM DROP
1000MM
MAXIMUM DROP
3600MM
MAXIMUM AREA
21M²
REVEAL DEPTH (VANE END TO END)
200MM
REVEAL DEPTH (FRONT OF HEADRAIL
TO BACK OF VANE)
100MM
FULLY RECESSED BOX MOUNT
220MM
BRACKET SIZE ON FACE FIT
102MM
MINIMUM SURFACE MOUNT ON FACE
50MM
FABRIC OVERLAP
25MM
STACK CALCULATIONS
APPROX. 10% to 20% OF TRACK WIDTH
TRACK DIMENSIONS
HEIGHT
DEPTH
25MM
46MM
Available Wand Sizes: 750mm & 1250mm in White, Anodised, Black & Gunmetal
7 | P a g e

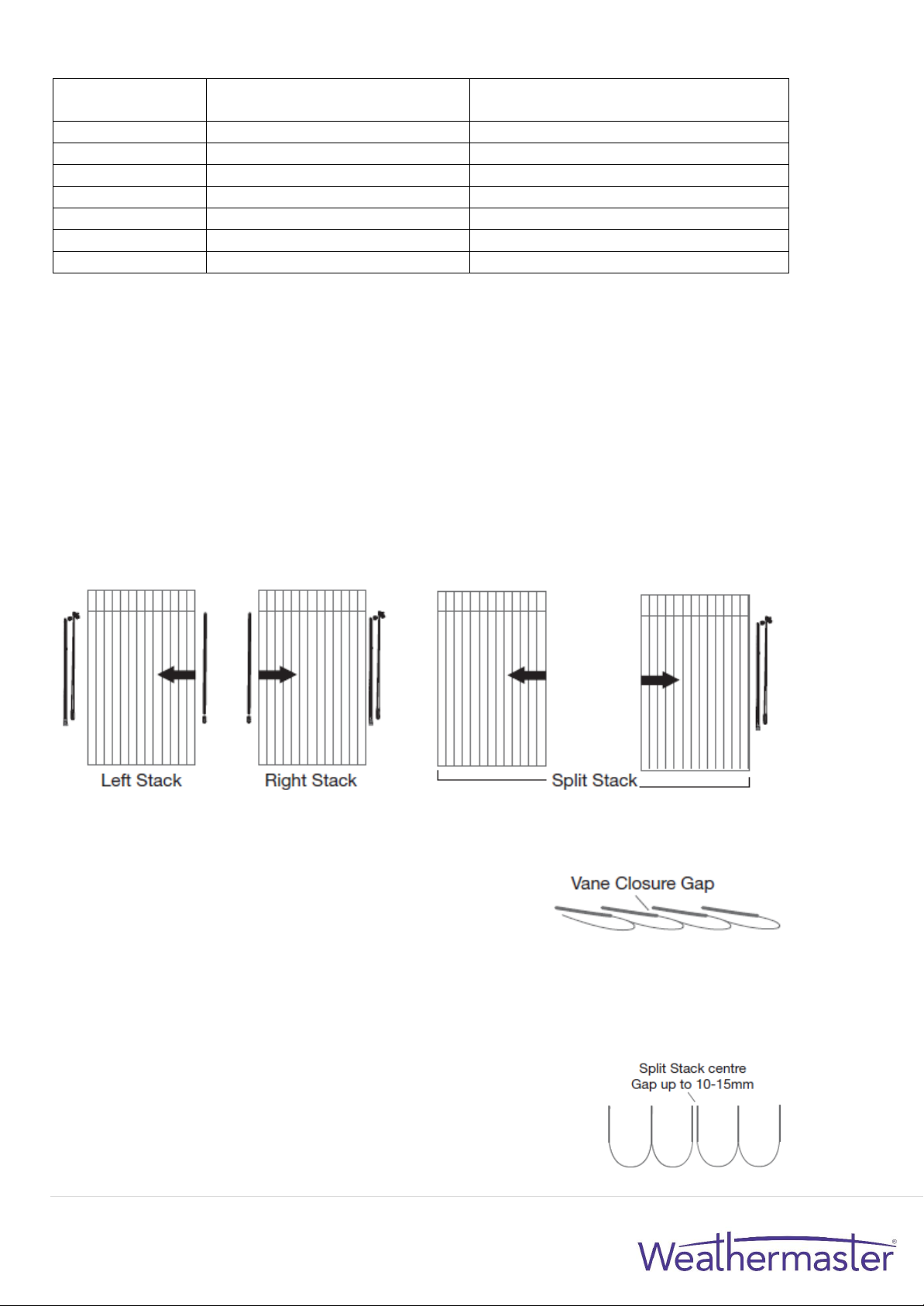

STACKING OPTIONS
Note: The wand will provide a smoother operation than the chain and cord due to the
fabric weight of this product.
STACKBACK INFORMATION
The stackback on a Verishade XT refers to the fabric when it is comes together in the open
position. The table below should be used as a guide to calculate the stackback based on the
width of the shade.
•0-2000mm: 20% of the shade width
•2001-4500mm: 15% of the shade width
•4500mm+: 10% of the shade width
Please note that the stackback is based on the Std Fabric Range and as with any textile
products, some variation can be expected based on fabric thickness.
8 | P a g e
MEASURING & DEDUCTIONS
When measuring for a Verishade XT, we recommend measuring as follows:
Face Fit Application
Width: Measure wood to wood and add 200mm to total width
Drop: Measure top to bottom and add 50mm to total drop
Reveal Fit Application
Width: Measure wood to wood
Drop: Measure top to bottom
Deductions
Deductions are made to ensure a snug fit of the Verishade XT product.
•3mm is deducted from the total width
•15mm is deducted from the drop supplied
9 | P a g e
PRODUCT CHARATERISTICS
When vanes are open the fabric provides a diffused view through.
Light colour fabrics will provide a soft glow effect when vanes are
closed.
Darker colour fabrics will have a more room darkening effect.
Note: Fabric is available in only one opacity
There will be a distance from the end of the track to the finish
position of the wand for the left & right stack of wand control.
The non-control end will finish short of the track due to vane
requirement for closing.
The gap for split stack is approximately 10-15mm when the vane is
open due to the finish fold of the end vane.
Due to the fabric’s elegant nature, the light gap will vary as you
go down the vane.
10 | P a g e
BRACKET OPTIONS MEASURING
28.669.063
Clip-In Mounting Bracket
28.682.XXX
102mm Face Fit Mounting Bracket
*Available in 6 colours, Zinc, Stoney beige, White Birch,
White, Gunmetal & Black.
28.685.XXX
Optional Mounting Plate Specify if required
*Available in 6 colours, Zinc, Stoney beige, White Birch,
White, Gunmetal & Black.
TRACK OPTIONS
COLOURS
Available in 6 colours, Anodised, White, Stoney Beige, White Birch, Black & Gunmetal.
NOTE:
•All Verishade XT are manufactured on the Edge vertical system.
•Verishade XT is setup to automatically default to the appropriate hardware colour
to match the fabric. Selecting your own headrail colour is also available. Hardware
will match the headrail.
