Installation and Maintenance

Instructions

Wall Luminaire Surface Mounted and

Street and Area Lighting Luminaire

FLA441 LED

FLA461 LED

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Wall Luminaire Surface Mounted and

Street and Area Lighting Luminaire

FLA441

FLA461

)/$:  ,3&ODVV,WDů&

)/$:  ,3&ODVV,WDů&

)/$:  ,3&ODVV,WDů&

)/$: ,3&ODVV,WDů&

385 295

260

145

410530

350

200

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Attention: The housing Hcontaining the LED light

source is factory-sealed and does not need to be

opened during installation.

Installation Procedure

1) Switch off mains electrical supply.

2) Remove gear box cover Bby loosening screws C.

3) Check that rating shown on luminaire label conforms

with mains electrical supply.

4) Feed mains supply cable Kthrough cable gland G

(Fig. I), while attaching luminaire Dto mounting

accessory.

5) Secure luminaire by tightening sealnuts Eevenly

with tool L(17 mm ring spanner not supplied by

WE-EF).

Attention: Ensure sealnuts ESURYLGHGDUHƂWWHG

as shown with gasketed surface towards pole or

mounting bracket. Do not substitute this fastener.

6) Connect mains supply cable Kleads, and control

lines where applicable,to respective terminals in

terminal connector F:

a) ON/OFF or WE-EF Control Advanced (L = Phase,

N = Neutral, = Earthing)

b) WE-EF Control Basic (L = Phase, N = Neutral,

= Earthing, Ls = Switching Phase)

c)9'$/, orWE-EF Control Dynamic (L=Phase,

N = Neutral, = Earthing, DA/DA = DALI control

OLQH'' 9

control line).

7) Tighten cable gland G.

 Reposition gear box cover Band retighten screws C.

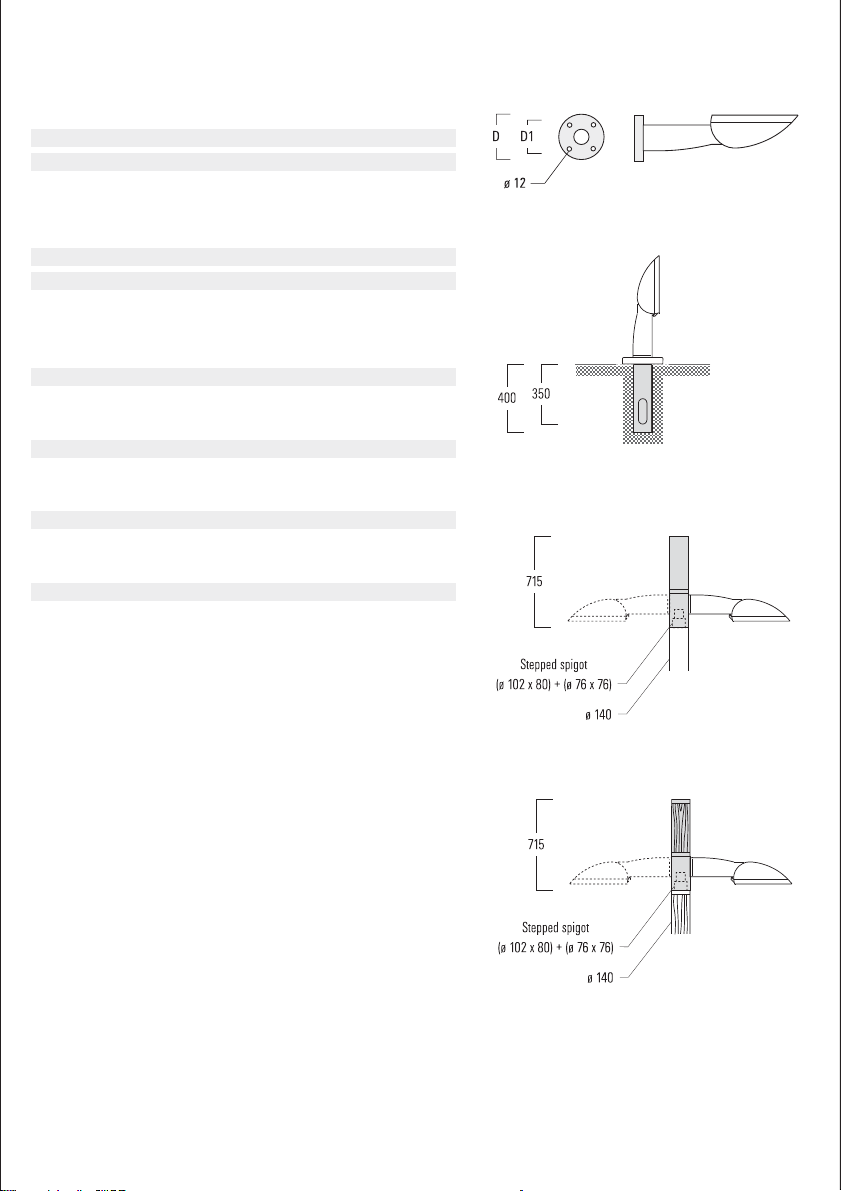

Mounting Accessories

8QLYHUVDOPRXQWLQJƃDQJH D/D1

80) IRU)/$ 310-9110   

80) IRU)/$ 310-9109   

)DFLOLWDWHVLQVWDOODWLRQWRƃDWYHUWLFDODQGKRUL]RQWDOVXUIDFHV

Planted root – Galvanised steel.

(69 IRU)/$ 300-9100

(69 IRU)/$ 300-0824

3URYLGHVLQJURXQGVHFWLRQIRUXQLYHUVDOPRXQWLQJƃDQJHLQODQGVFDSHGDUHDV

6LQJOHFROXPQƂWWHU

(% IRU)/$ 310-9134

'RXEOHFROXPQƂWWHU

(% IRU)/$ 310-9135

6LQJOHFROXPQƂWWHU – Aluminium/wood.

(% IRU)/$ 310-9136

'RXEOHFROXPQƂWWHU– Aluminium/wood.

(% IRU)/$ 310-9137

ESV

UMF

EB1/EB2

(aluminium/wood)

Fig. I. Feed mains supply cable through cable gland

www.we-ef.com

72::(()

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.

WE-EF LEUCHTEN

Germany

7HO

)D[

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

)D[

info.france@we-ef.com

WE-EF HELVETICA

6ZLW]HUODQG

Tel +41 22 752 49 94

Fax +41 22 752 49 74

LQIRVZLW]HUODQG#ZHHIFRP



WE-EF LIGHTING

Thailand

7HO

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

7HO

)D[

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel 

Fax 

info.usa@we-ef.com

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Planted Root

ESV4

ESV2

ESV6

Planted Root

ESV4 300-0461

ESV4 300-0586

ESV4 300-0464

ESV4 300-0459

Suitability

1. KTX234

2. KTY234

3. ZFY230

4. GRY224

5. Short post

Suitability

1. XRY334

2. XRZ334

3. RRY334

4. RRZ334

Suitability

1. CFY259

2. GRY234

3. RRY324

4. RRZ324

5. XRY324

6. XRZ324

Suitability

1. QSI254

Planted Root

ESV2 300-9115

ESV6 300-0824

ESV6 300-0457

Suitability

1. PSY414/424

Suitability

1. AML-C

2. FLA461

Suitability

1. LTM440

2. LTM444

3. AMW-C

4. AMF-C

5. AMF-S

6. AML-C
