Wattbike ATOM Manual de usuario
QUICK START GUIDE
ATOM QUICK START GUIDE
WELCOME
TO YOUR
WATTBIKE
ATOM
01
This guide will show you how to
build and setup your Atom, connect
your devices and give you tips to get
the most from your Atom’s features.
ATOM
QUICK START GUIDE
02 I N
THE
BOX
– 2, 4, 5, 6 and 8mm
Allen keys
– Power adaptor
– Combination pedals
– Device holder
– Tri-bars
– Atom Tri-pads
– Atom

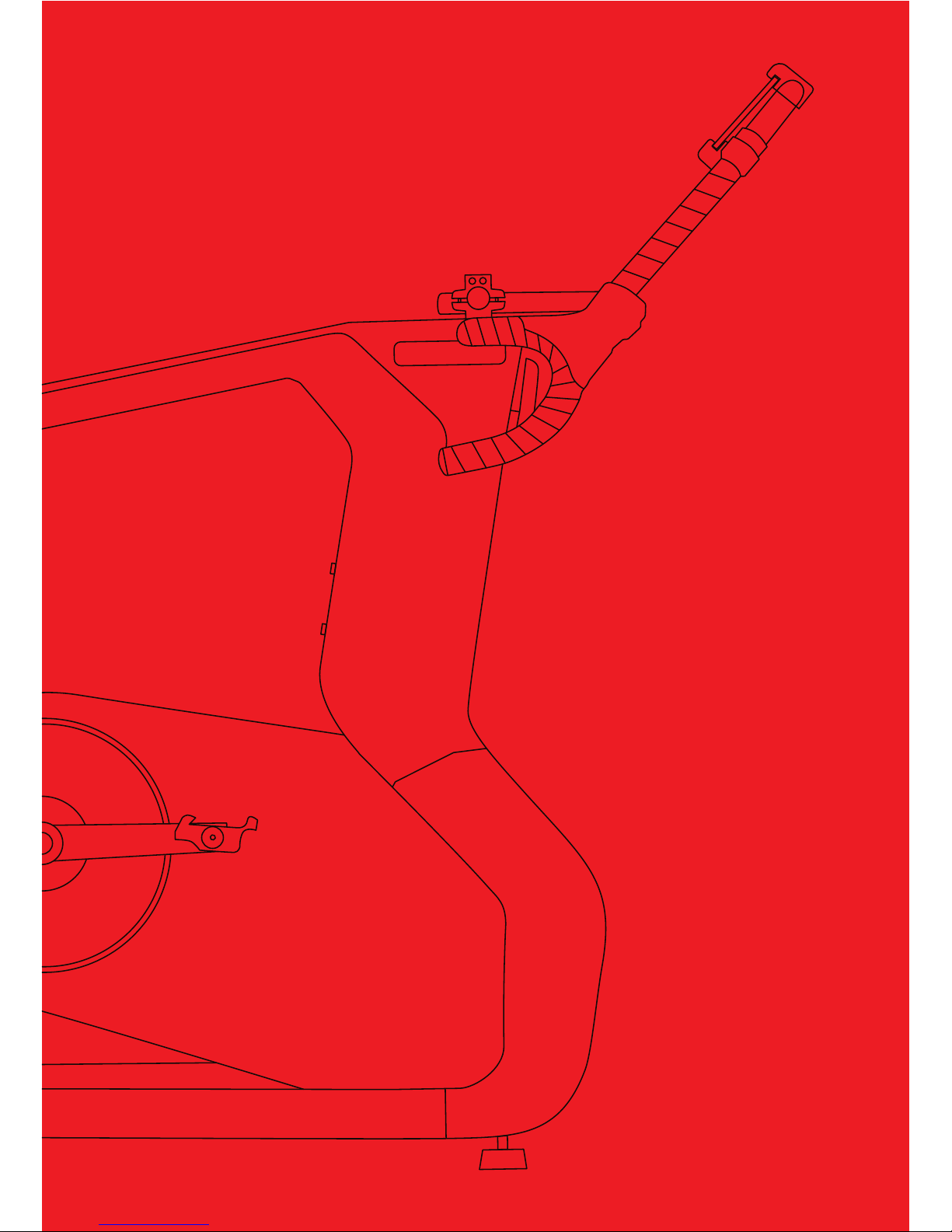

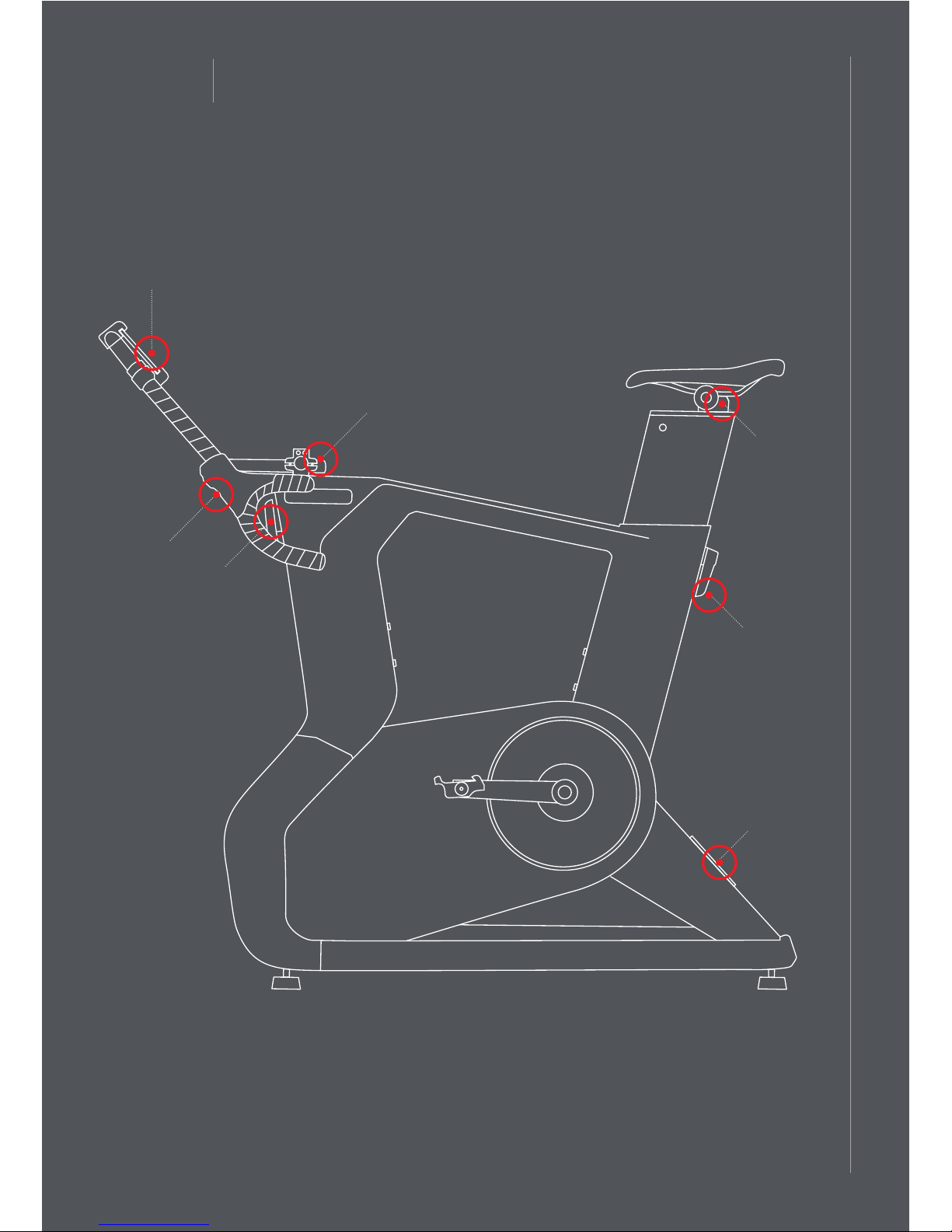

03 FEATURES
Device
holder
Shifter
Handlebar
lever
Handlebar
adjuster

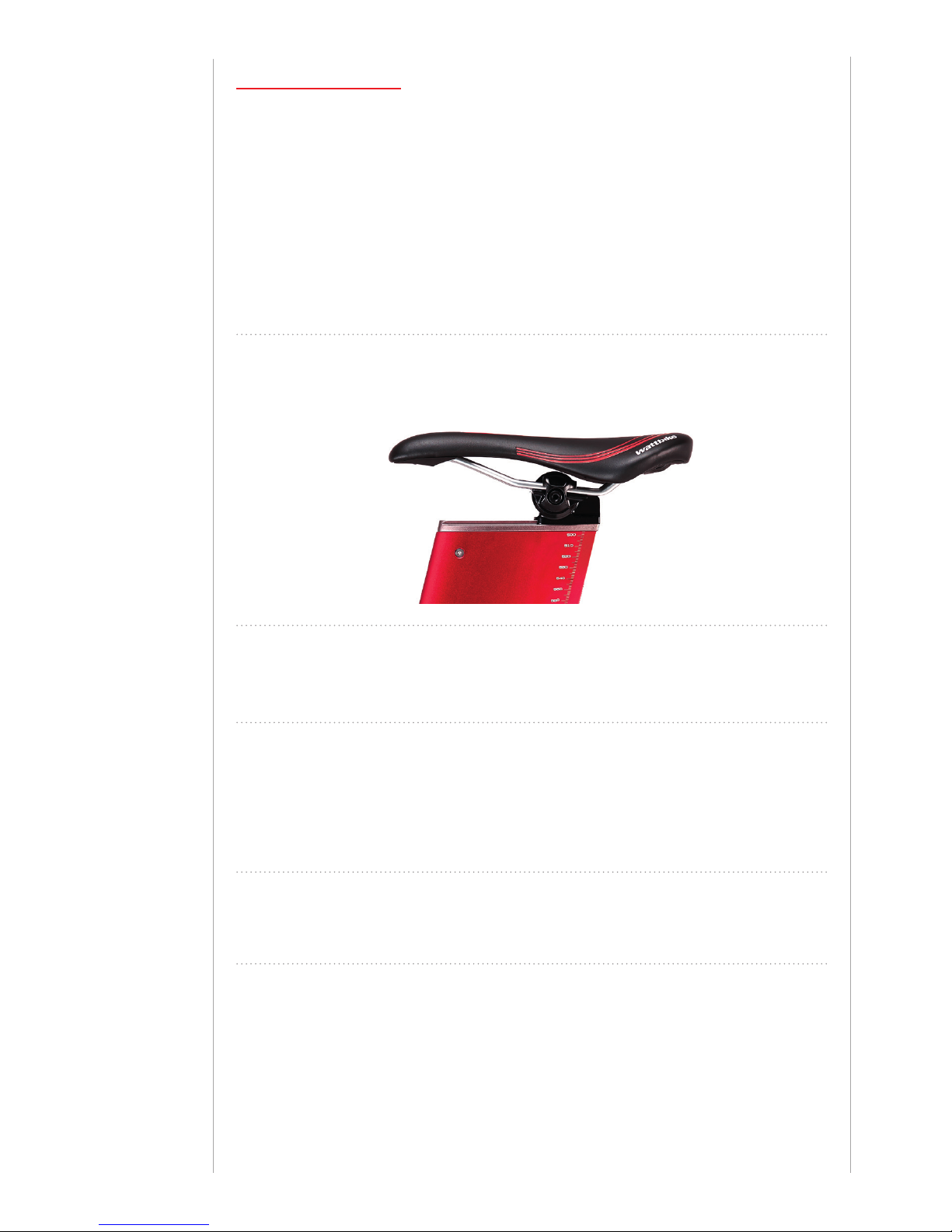

Saddle
lever
Saddle
adjuster
Power inlet
and on/off
button
ATOM QUICK START GUIDE
1Remove the Atom and its accessories from the packaging.
2A Screw the right pedal onto the right crank.
Tighten clockwise securely using a 6mm Allen key.
2B Screw the left pedal onto the left crank.
Tighten anti-clockwise securely using a 6mm Allen key.
3A Take the two Tri-bars and insert them into the
Tri-bar clamps.
3B Level up the two Tri-bar ends in the clamps,
tighten the securing screw using the 4mm Allen key.
4To mount the Tri-pads, remove the Velcro pad from the
Tri-pad cup. Remove the screws from the mount. Line up
the holes in the mount with the Tri-pad cup. Insert the two
screws and tighten using the 4mm Allen key.
5Before riding the Atom ensure all bolts are tight to secure
the handlebar xings.
6Plug your Atom into a wall outlet using the power
adaptor provided. Make sure the switch on the
outlet and on the rear of the Atom are turned on.
04 GET READY
TO RIDE
BUILD
FIG 01
Tighten the Tri-bar bolts
(suggested torque 5 Nm or 3.7 ft.lb.)
SET UP
Use the corresponding levers and adjusters to set up the
Atom to your preferred cycling position.
Make all adjustments off the bike.
1Raise or lower your saddle height using the lever
on the rear of the saddle stem. Loosen the lever
to adjust the stem and tighten to secure.
2Adjust your saddle fore/aft position using a 4mm
Allen key to loosen the saddle slider. After adjusting,
tighten to secure.
3Set your handlebar height using the lever on the front of
the handlebar stem. Loosen the lever to raise or lower the
handlebars, tighten to secure.
4Adjust your handlebar fore/aft position using the 5mm
Allen key to loosen the handlebar. After adjusting, tighten
to secure.
TIP: We recommend you have your handlebars
between 4-10cm lower than your saddle height.
5Open the red locking rings on the device holder and
slide your device into place. Rotate the red locking rings
backwards to secure.
6Visit wabike.com/biket to accurately replicate your real
ride bike gures onto the Atom.
FIG 02
Once your Atom is set up, you’ll need to link your devices before
you can start riding.
1Turn your devices Bluetooth™ on.
2Download the Wattbike app
from your app store.
3Open the app, login or sign up. To connect your Atom:
• tap just ride
• tap the top right corner (FIG 03)
• select your Atom ID from the list.
4Connect your heart rate monitor. The Atom can connect
to Bluetooth™, ANT+, ANT and Polar heart rate monitors.
They can be paired up in the Wattbike Hub before starting
your session.
TIP: Wear your heart rate belt before
trying to connect it to your Atom.
ATOM QUICK START GUIDE
05 GET CONNECTED
HR SensorClose Wattbike
Click here to connect your HR belt Click here to connect the Atom
FIG 03
You can connect to other training apps via
Bluetooth™ or ANT+.
ATOM
QUICK START GUIDE
06 STORAGE
After each session, wipe any sweat,
water or foreign objects from the
Atom. If you need to store your Atom,
make sure it is unplugged and use
the wheels to guide it to a safe place.
ADDITIONAL
RESOURCES
For more information and full
set up guides, visit the support
section of wattbike.com
