Wansview ForISmartViewPro Manual de usuario

【

【C

a】

】

April, 2014

Rev1.0

If the user manual doesn’t help you to resolve the problem, please contact us via our website

for technical support.

1、Installation Environment

Keep away from the places of high-temperature, heat sources and direct sunlight.

Keep away from water and if wet, cut off the power immediately.

Avoid using in a damp environment; the reference range for operation humidity is below

85%RH.

Avoid using in too hot or too cold environments, the reference range for operation

temperature is -10℃~ +50℃.

Please install it horizontally or wall mount, avoid strenuous vibration and do not place

other items on top of the unit.

2、Transport and Handling

Please handle the item with care.

Do not use in areas around condensation.

Please disconnect the item from the mains before moving.

Notice:

1. Be careful not to damage the camera or subject it to strong impacts or shocks.

2. Do not touch the optical components for the image sensor, such as the lens, if necessary,

please place a clean and moistened cloth with alcohol and wipe the dirt gently; When not

in use, please place the dust cover on to the item to protect the image sensor.

3. Do not aim the camera directly into the sun or at other intense light sources that could

affect the image quality, this will also shorten the service life for the image sensor.

4. Keep away from laser when it is working, otherwise the image sensor can be damaged.

5. If the equipment is not working properly, please contact the store or the service centre, do

not disassemble or modify the equipment in any way.

Notice

Statement

Index

1. iSmartViewPro Summary..........................................................................................................4

2. Required computer....................................................................................................................4

3. Installing iSmartViewPro...........................................................................................................5

4. iSmartViewPro Application .......................................................................................................5

5. Device list menu.........................................................................................................................6

5.1. Add device....................................................................................................................6

5.1.1. Search to add device in LAN.............................................................................6

5.1.2.Add device manually...........................................................................................6

5.2. Edit Device.......................................................................................................................7

5.3. Delete device...................................................................................................................8

5.4. Device right-click Menu..................................................................................................8

6. View Video and video setting menu........................................................................................9

6.1. Play Video........................................................................................................................9

6.2. Audio&Video/Image parameters/PTZ control.............................................................9

7. Local Menu ...............................................................................................................................10

7.1. System Setting..............................................................................................................10

7.1.1. Trigger alarm......................................................................................................11

7.1.2. Play automatically after launching the software............................................11

7.1.3. Default Record Plan..........................................................................................11

8. Operation Log and Alarm Management ...............................................................................12

9. Play back recording and inquire recording file ....................................................................13

1. iSmartViewPro Summary

iSmartViewPro is a Cloud IP camera centralization management software provided

by the manufacturer. It provides the central control of monitoring, video capture, record,

alarm detection, etc for multiple IP cameras on LAN or WAN.

iSmartViewPro can be running in Windows OS.

The iSmartViewPro features:

Support P2P camera connection;

Support DDNS connection;

Support international language switching;

Support local scheduled recording;

Support alarm recording and snapshot;

Support monitoring and talking;

Support image setting;

Support PTZ setting;

Customized change skin.

2. Required computer

For using the iSmartViewPro stably,your computer should meet the following

configuration,recommend minimum computer configuration：

CPU:Dual core CPU

RAM: above 1G

Hard Disk: above 500G

OS:Windows XP or above

Monitor resolution:≥1024*768

3. Installing iSmartViewPro

Obtain iSmartViewPro installation software:

Obtain the software from attached CD

Download the software from our website

Please create desktop shortcut icon when installing the iSmartViewPro.

4. iSmartViewPro Application

Double click the iSmartViewPro desktop shortcut icon to run the iSmartViewPro, it shown

as below.

Figure 1

A：Camera list area

B：View video and video setup area

C：Local Menu setting area

D：Camera operation log

E：Search bar

F：System language switching functions etc

Desktop shortcut icon

5. Device list menu

5.1. Add device

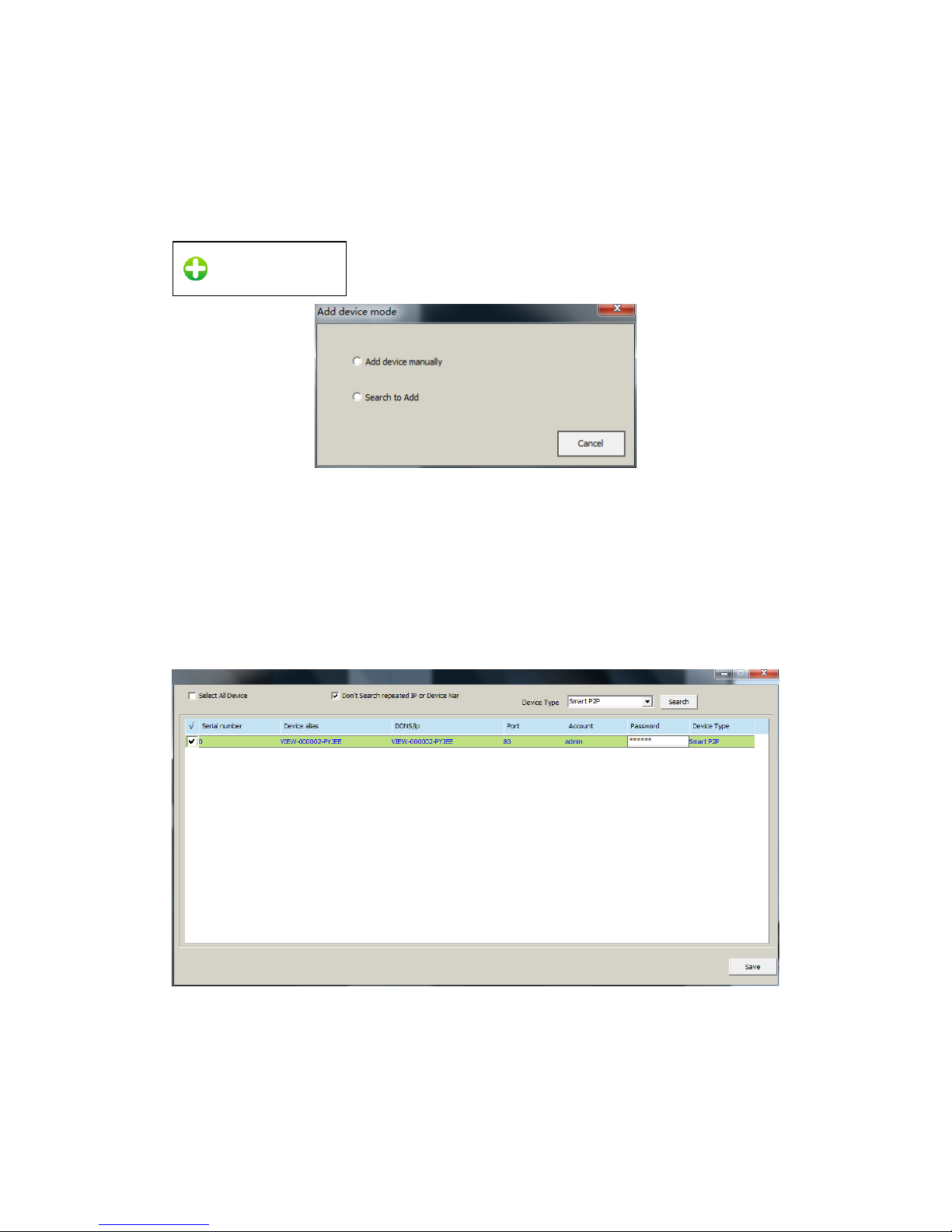

Figure 2

5.1.1. Search to add device in LAN

Select “Search to Add” to access search interface, and then select corresponding device

type to search, fill in correct username and password in searched device and save as

Figure 3.

Tips: The device will be displayed in device list after saving.

Figure 3

5.1.2. Add device manually

Select “Add device manually” to access add interface, the item marked * must be filled as

Add device icon

Figure 4

Tips: please select correct Device Type when you add camera.

Figure 4

5.2. Edit Device

Select the camera added in device list, click Edit Device button to set up user

management parameters as Figure 5.

Figure 5

Edit Device icon

5.3. Delete device

Select the camera added in device list, click Delete Device button to delete the device.

5.4. Device right-click Menu

Select the camera added in device list, right click it, it will pop up Right-click Menu as

Figure 6.

Figure 6

Query Log: query operation log and alarm log of the camera, same as section 8;

Set Plan: You can perform single camera recording plan after adding recording plan.(need

to add “default record plan” in system setting, then you set up it, detail see section 7.1.3);

Edit Device: the function same as 5.2 Edit Device;

Local Property: view information of selected device as Figure 7

Figure 7

Tips: Right click any here, it will pop up a menu as Figure 8 when you don’t select any

camera, then you can use one key to perform all operation.

Delete Device icon

Figure 8

6. View Video and video setting menu

6.1. Play Video

Select the camera you want to play in device list, right click “Play Video” or double click to

play the video as Figure 9.

Figure 9

6.2. Audio&Video/Image parameters/PTZ control

You can perform monitoring, talking, snapshot, record, image parameter setting and PTZ

control etc when viewing video.

Talking button;

monitoring button;

Snapshot button;

Record and status display (two mode: indicate record manually, indicate

scheduled record);

Image Parameters Setting button, the setting of image parameters may be different

due to camera model or series as Figure 10.

Figure 10

PTZ control button

7. Local Menu

7.1. System Setting

You can set up snapshot, alarm recording, recording save path, play automatically after

reboot and recording plan here as Figure 11.

Up, Down, Left, Right, cruise vertically, horizontally and center.

Play all device in device list

Close all device in device list

Eyeplayer

Multiple image window option

Mange device Log

Full screen mode

System Setting

System Setting icon
