Vuzix M4000 Manual de usuario
M400
User Manual V2.0
Model 472
CONGRATULATIONS ON YOUR NEW VUZIX M400 SMART GLASSES SYSTEM
Your M400 Smart Glasses System is an ergonomically designed,
wearable Android-based computer with Wi-Fi connectivity,
voice-command functionality and HD camera — right out of the
box, including:
• M400 viewer with adjustable display screen
• USB-C Battery
• USB-C to USB-C power cable
• USB-A to USB-C cable (for charging the USB-C Battery)
• M-Series Lens-less frames
• Soft case for storage
02
03
CHARGING FOR FIRST-TIME USE
Charge battery before use with wall charger, wait until all
three LEDs are solid.
Can take up to two hours if the battery is fully empty.

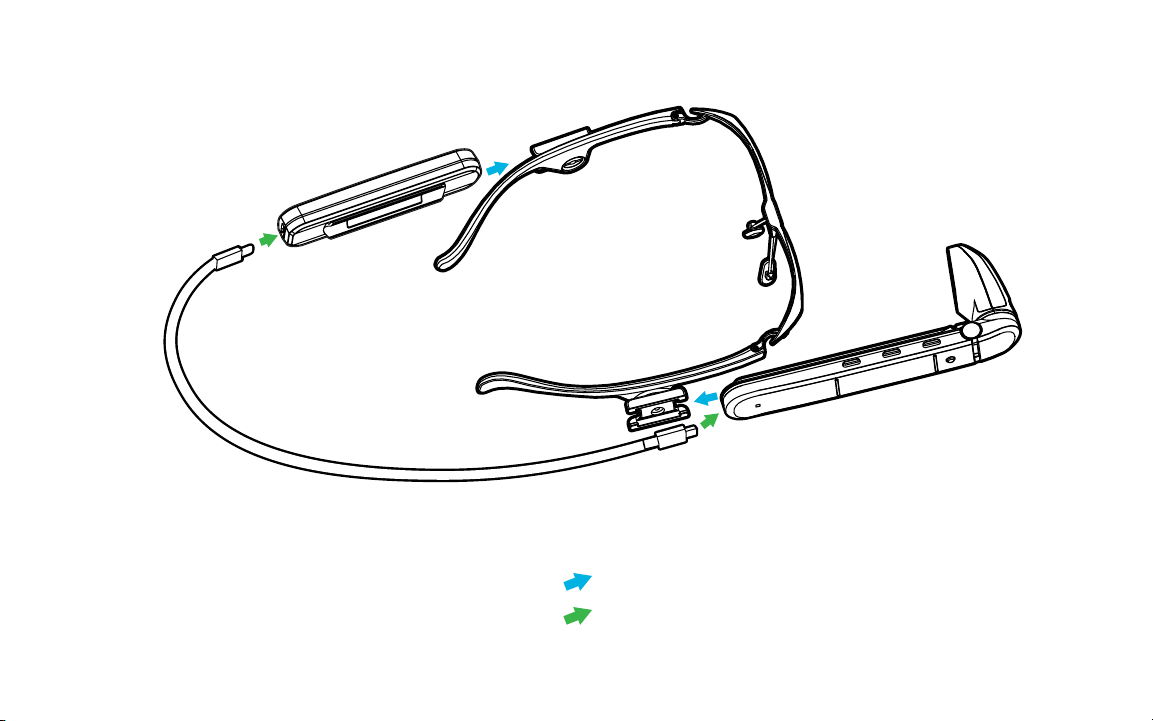

Assembling the M400 mounting system
Power to M400 from Battery
USB-C Battery
USB-C to
USB-C Cable
Viewer
04
05
ASSEMBLING YOUR M400 SMART GLASSES SYSTEM
1. The viewer will be worn on the dominant eye. Before attaching the viewer to either side of the
Smart Glasses frames, determine your dominant eye for optimum use of M400 capabilities.
2. Attach viewer to the side of the frame by sliding the mounting rail onto the temple mount on
the frames. Once properly fitted, the unit will be adjustable by sliding forward and backward.
3. Using the same mounting process, attach the USB-C battery onto the other side of the frames.
4. Plug one end of the USB-C cable into the viewer and the other end into the battery.
5. When ready to wear your M400 Smart Glasses, lift the power cable over
your head to rest on your shoulders as you place the Smart Glasses as
you would a pair of glasses.
6. Ear hooks and alternate nose pads are available for proper fit.
DETERMINE YOUR DOMINANT EYE
Extend your hands, placing them together to make a small triangle between your thumbs
and knuckle. Keeping both eyes open, center a nearby object inside the triangle. Close each
eye one at a time. Notice how the object moves out of view when one eye is closed? When
the object remains in view, the open eye is your dominant eye.
06
FOCUSING NEAR-FIELD
First time users may find some challenges focusing their near-field
vision on the M400 display. Making sure to keep both eyes open,
some users may need up to 20 minutes to adjust.
1. Make sure the Smart Glasses frames are resting comfortably on your head. Frames can
be worn over the top of the majority of regular prescription eyewear. The nosepiece of
the frames can be adjusted to fit comfortably and securely.
2. After mounting the viewer, adjust the viewer as shown until it is a comfortable distance
and preferred position from your dominant eye.
3. Adjust the eyepiece as shown until you can see the full image.
4. Additional mounting options, including frames with prescription lenses, safety frames,
hard hat, headband mounts, and more, can be found online at Vuzix.com under
Products > M400 Smart Glasses > Accessories.
07
WEARING THE M400
08
NAVIGATING THE M400
Touchpad
Power Button
Back
Navigation Buttons
Mounting Rail
Display
Camera
Flash/Flashlight
Recording LED
Power LED
USB-C Port
Center Front
TOUCHPAD
One finger:
• Tap to activate selection or
turn on the screen
• Hold to activate menu
• Swipe up/down/left/right to
move selection
Two fingers:
• Tap to go back or return
• Hold to go to home screen
• Swipe back for backspace
• Swipe forward for delete
• Swipe up to raise volume
• Swipe down to lower volume
Three fingers:
• Tap to turn off screen
BUTTONS
Short Press for primary functions:
Front: Forward navigation
Center: Back navigation
Back: Select
Long Press (approx. one sec) touch for secondary functions:
Front: Open menu
Center: Exit to home menu
Back: Back one step
VOICE
The M400 can be activated by “Hello Vuzix” when
properly configured. The M400 will listen for voice
commands for 15 seconds by default.
To activate Voice control, open the Settings menu and
navigate to System -> Speech Recognition. Enable the
speech recognition.
A full list of voice control commands can be viewed from
that same settings menu. 09
10
M400 POWER LED
Color Meaning
Green On
Blinking red Too low to power on, keep plugged in to USB to charge
IF THE BATTERY RUNS OUT DURING USE
If the battery runs out of power the viewer will display a message on the screen
1. Unplug the USB cable from the battery
2. Remove the battery from the mount and replace with a charged one
3. Plug the USB cable back in
