Vulcan-Hart ECO22D Manual de usuario

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

Item # __________________________

C.S.I. Section 11420

A2780

ISO9001

Vulcan-Hart Co.

F-32205 (03-08)

MODEL: ECO22D Double Deck Half Size Electric Convection Oven

STANDARD FEATURES

■Stainless steel front, sides, top and rear enclosure panel.

■Stainless steel doors with double pane window.

■Cool to the touch oven door handles.

■Stainless steel oven door gaskets.

■11 KW total input (5.5 KW per section).

■Solid state temperature controls adjust from 200° to 500°F.

■60 minute electric timers with time expired buzzer.

■1/3H.P. two speed fan motor per deck.

■Oven cool switch for rapid cool down when door is open.

■Oven interior liners are porcelain on steel.

■Nine position rack guides with five nickel plated racks

per section.

■163/4" adjustable stainless steel legs.

■Requires 208/240 volt, 60 Hz, 1 or 3 phase power supply.

■One year limited parts and labor warranty.

OPTIONS

163/4" adjustable stainless steel legs with casters.

Additional oven racks.

Rack hanger(s).

Second year extended limited parts and labor warranty.

MODEL ECO22D

DOUBLE DECK HALF SIZE ELECTRIC

CONVECTION OVEN

SPECIFICATIONS:

Double deck half size electric convection oven, Model No.

ECO22D, Manufactured by Vulcan Hart. Each porcelain enamel

on steel oven interior measures 151/4"w x 21"d x 20"h.

Furnished with nine position nickel plated rack guides and five

nickel plated racks measuring 143/8" x 207/8" per section.

Heated by enclosed tubular heating elements rated at 5.5 KW

per section. 11 KW total input. Stainless steel front, sides, top

and rear enclosure panel. Insulation applied to the top, rear,

both sides, bottom and door. Stainless steel doors with double

pane window. Solid state temperature controls adjustable

from 200° to 500°F. 60 minute electrical timers with continu-

ous sounding buzzer. Two speed 1/3H.P. permanently

lubricated oven blower motors. Requires 208/240 volt, 60 Hz,

1 or 3 phase power supply.

Exterior dimensions: 30"w x 281/4"d x 683/8"h on 163/4" legs.

NSF listed. U L listed. U L listed to Canadian safety standards.

Model ECO22D

Shown on optional casters

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

Printed On Recycled Paper

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

specifications without notice.

F-32205 (03-08)

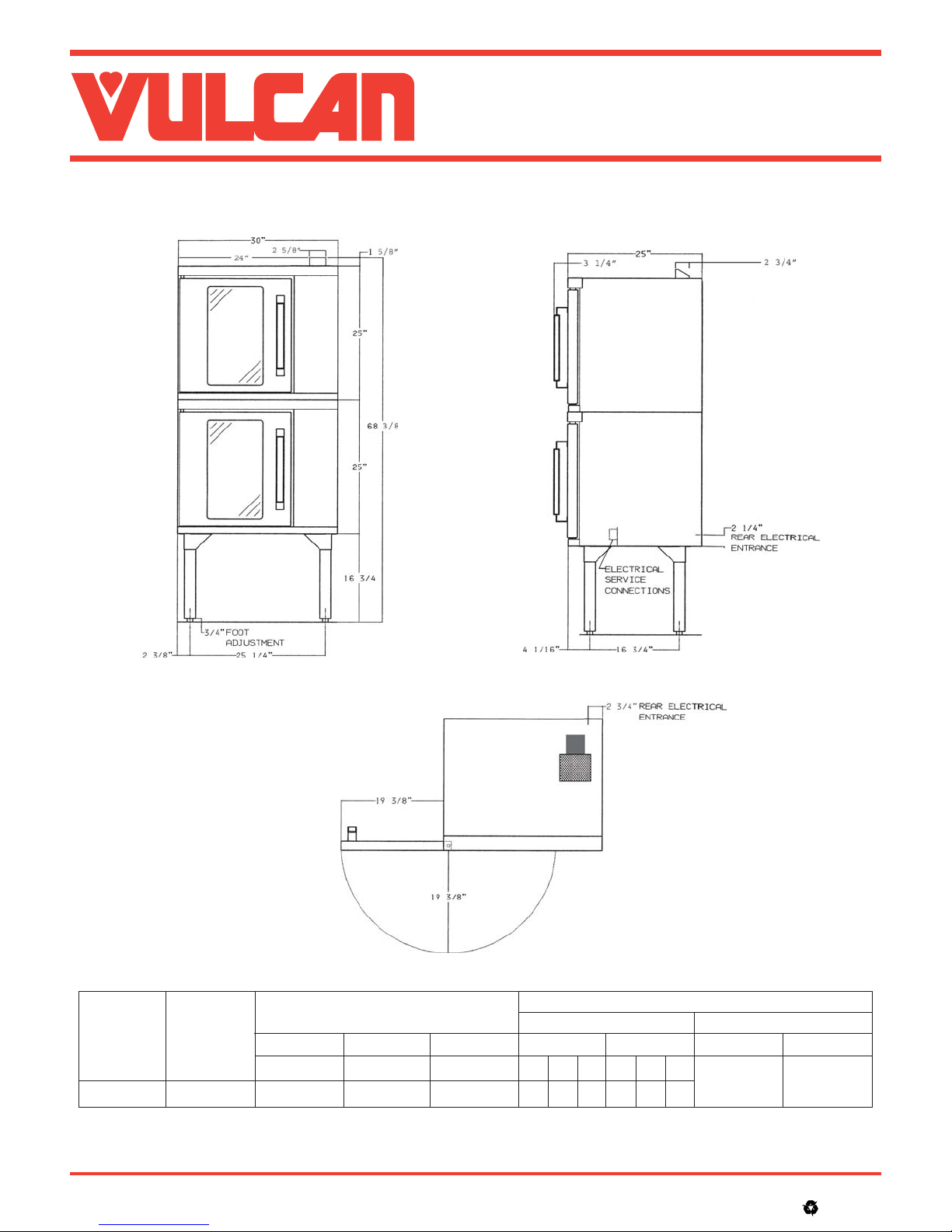

NOTE: This appliance may be installed with 1.0" clearance at

the rear and 0" clearance on both sides adjacent to combustible

construction.

This appliance is manufactured for commercial installation only

and is not intended for domestic/household installation.

MODEL ECO22D

DOUBLE DECK HALF SIZE ELECTRIC

CONVECTION OVEN

ELECTRICAL DATA

208, 240Volt - 3 PHASE LOADING NOMINAL AMPS PER LINE WIRE

MODEL TOTAL KW PER PHASE 3 PHASE 1 PHASE

KW 208V 240V 208V 240V

L1-L2 L2-L3 L1-L3 L1 L2 L3 L1 L2 L3

ECO22D 11.0 5.0 0 6.0 46 20 24 40 18 22 52 46
