VSV Aquatic U Manual de usuario
INSTALLATION
AND
USER'S GUIDE
FILTRATION
BLOCKS

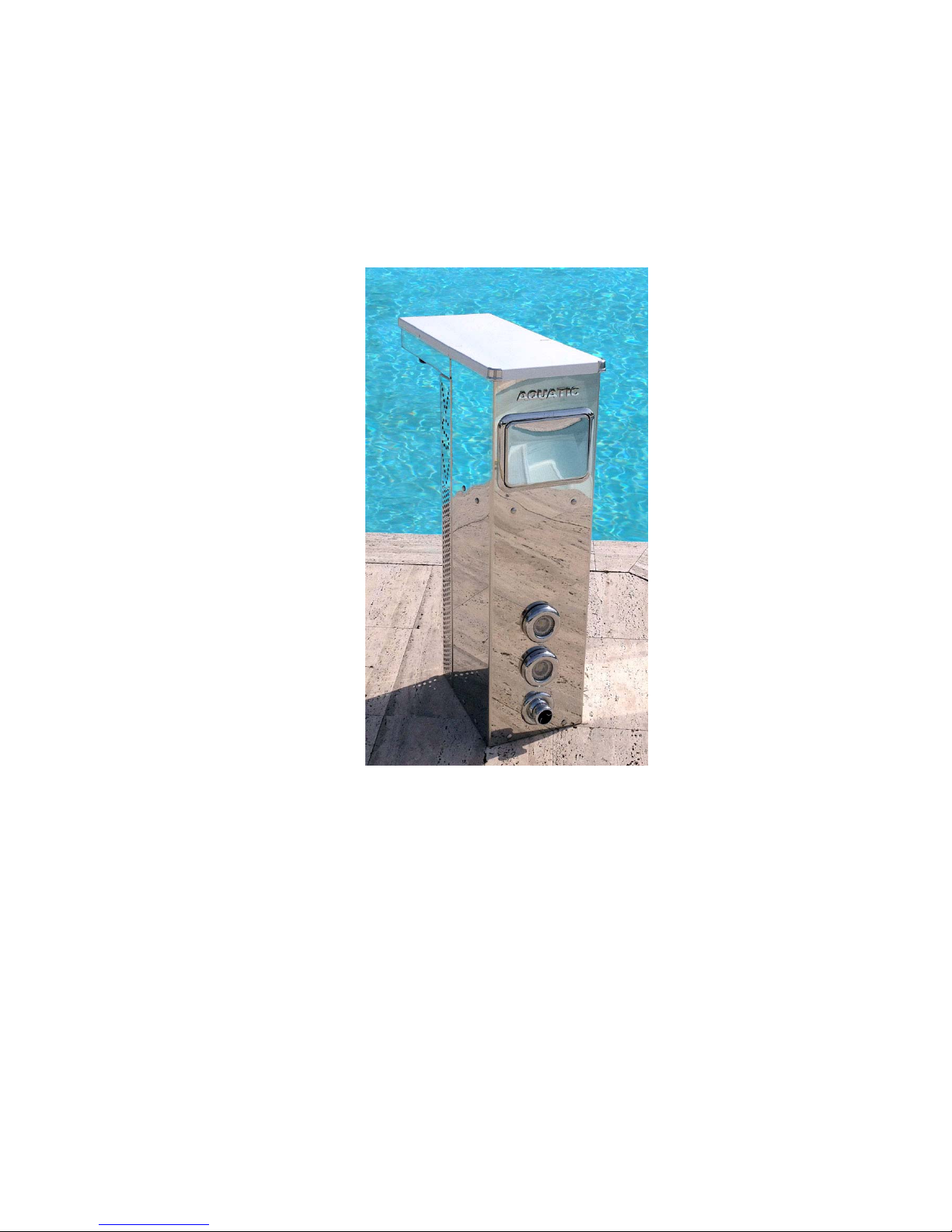

Aquatic (U)
15 m3/hour
Equipment of high-alloy steel
for cleaning and filtering water
in the pool
www.vsv-group.com
2
www.vsv-group.com
3
TABLE OF CONTENTS
Page
APPLICATION …………………………………………………………………………………………………………. 4
SHORT IMPORTANT INFORMATION …………………………………………………………………………….. 4
DISPOSAL of PACKAGING …………………………………………………………………………………........... 4
1 – INTRODUCTION TO THE FILTRATION BLOCKS AQUATIC (U)
COMPLETE SET .......................................................................................................................... 5-8
The general scheme ……………………………………………………………………………………………. 5
AQUATIC without heating ……………………………………………………………………………………. 6
AQUATIC + heat exchanger with electronic thermostat …………………………………………….. 7
AQUATIC + electric heater flow type with a control unit ……………………………………………. 8
2 - DIMENSIONS OF EQUIPMENT ………………………………………………………………………………... 9
3 - INSTALLATION AND CONNECTION …………………………………………………………………………. 10-13
Installation of the technical part .………………………………………………………………………….. 11
Ventilation …………………………………..…………………………………………………………………… 11
Grounding ………………………………………………………………………………………………………… 11
Connecting to water supply network ……………………………………………………………………… 12
Compound filtration compartment with the technical part …………………………………………. 13
Connection to drainage system ……………………………………………………………………............ 13
4 - SAFETY AND WARNINGS ………………………………………………………………………………………. 14
Electrical safety …………………………………………………………………………………………………. 14
Electrical cables …………………………………………………………………………………………………. 14
Differential switch ……………………………………………………………………………………………… 14
Other security measures ……………………………………………………………………………………… 14
5 – ELECTRICAL CONNECTIONS ……………………………………………………………………….............. 15-20
Electrical control panel ……………………………………………………………………………………….. 15
Wiring diagram of the electrical control panel ………………………………………………………….. 16
Connecting boxes …………………………………………………...……………………………................. 17-18
Electrical wiring diagram of heat exchanger ……………………………………………………………. 18
Hydraulic wiring diagram of heat exchanger ……………………………………………………………. 19
Table of circulation pumps for heat exchanger …………………………………………………………. 19
Wiring diagram of electric heater ………………………………………………………………………….. 20
6 – PUTTING INTO OPERATION ………………………………………………………………………………….. 21
Filling of swimming pool ……………………………………………………………………………………… 21
Adjusting the device of automatic water adding ………………………………………………………. 21
Initial start-up …………………………………………………………………………………………………… 21
Timer setting for electrical control panel ………………………………………………………………… 21
7 – FILTRATION MEMBRANE .…………………………………………………………………………………….. 22
Replacement and cleaning …………………………………………………………………………………… 22
8 - VACUUM CLEANER CONNECTION AND OPERATION ……………………………………………………. 23
9 – REPLACING THE BULB IN SPOTLIGHT ……………………………………………………………………. 23
10 – DISINFECTION OF SYSTEM …………………………………………………….................................... 24
Parameters of a weekly chlorination …………………………………………………………………….... 24
рН …………………………………………………………………………………………………………………… 24
11 – CARE PRODUCT ………………………………………………………………………………………………… 25
12 – MALFUNCTIONS ……………………………………………………………………………………………….. 25
13 - MAINTENANCE OF EQUIPMENT IN THE WINTER ……………………………………………………… 26
14 – TECHNICAL SUPPORT CENTER …………………………………………………………………………….. 26
www.vsv-group.com
4
APPLICATION
Congratulations on the purchase of modern high-quality products. Filtering block Aquatic is designed for
cleaning and filtering water in the pools of all types. The combination of efficiency and a more simplified
operation will bring you satisfaction. Please carefully read this guide for a secure connection, effective
operation and proper maintenance of the product. Keep the user guide for subsequent use or for next
owner. Serial number of the filtration unit is shown below. This will help get more detailed answers to
your questions at the center of technical support.
№.
__________________________________________________________________________________________
The guide is structured in such a way that you step by step to carry out the necessary work. The manual
contains instructions for connection, operation and maintenance of this product. To facilitate access to
information manual provided with the content. Follow the advice and guidance contained in this user
guide, and VSV Aqua Group products will make you happy for a long time.
SHORT IMPORTANT INFORMATION
Do not use Filtering block Aquatic (U):
- without grounding;
- in pools with sea water;
- in pools with ozone or electrolysis system.
To avoid corrosion it is important to follow these instructions:
1. The pool must maintain required pH, chlorine, salts, etc. The pH in the pool should be in the range
from 7,2 to 7,6. If the level of pH above 7,6, then in water will precipitate calcium salts,
which will fall on the stainless steel equipment. If the pH is below 7,0, the water is
highly corrosive, which also adversely affects the status of stainless steel products. The
content of free chlorine in the pool water should not be higher than 0,5 mg / liter. Excess chlorine
contributes to the formation of rust.
2. Adding to the pool of chemicals should be performed at a sufficient distance from parts made from
stainless steel to avoid getting chemicals on stainless steel equipment. Otherwise, on the surface of
stainless steel can form rust and turbidity.
3. Spread the chemicals in various fields of the basin. Do not add the chemical in one place, it could
lead to the formation of regions with high acidity, which can lead to corrosion of the equipment pool.
Always use floating dispensers when you adding chemicals. A complete description, see Section 10
"Disinfection System."
4. Check the filter membrane. Keep your pool clean, do not allow accumulation of leaves, grass, etc.
Their decay can lead to increased pH-factor.
5. Do not allow that on the surface of stainless steel remained dust, cement, dirt during the
construction of a swimming pool. Avoid contact of stainless steel with other materials (especially
iron), as this may lead to the formation of yellow pigments, especially at the welded joints in
filtration unit.
6. All the polished surface of the product require periodic care by special means (not use abrasive
cleansers). In the indoor pool concentration of corrosive vapors resulting from the use of chemicals,
higher than outdoor pools, so the indoor pool cleaning parts from stainless steel should be
performed more frequently than in the open.
7. Stainless steel parts should not be stored and transported close to the chemical reagents and dosing
devices.
In case of violation of these requirements, the manufacturer is not liable for the loss of the appearance of
products, qualities and properties needed for full operation.
DISPOSAL of PACKAGING
The packaging material was used to protect equipment during transportation. The packaging recyclable
and does not harm the environment. Please make a contribution to environmental protection and return
the packaging for environmental disposal.
Warning! Do not let children play with the packaging. They can choke locked in a box or entangled in
the packaging film!
The manufacturer reserves the right to make changes without notice in design and
component products.
www.vsv-group.com
5
1 – INTRODUCTION TO THE FILTRATION BLOCKS
AQUATIC (U)
COMPLETE SET
This guide is valid for several models of filtration blocks Aquatic. Therefore, can be some differences in
the drawings.
The general scheme
15 m3/hour
The filtering part includes pre-filter basket + cover for connection with water vacuum
cleaner, standard filter membranes (6-15 microns), front skimmer, nozzle, LED lights
2x10W 10000K, the device of automatic water adding, the suction pipe with pre-filter,
grounding bolt.
Technical part includes one-speed pump 220V, the transformer spotlights, drain
outlet, connection box, connecting pipes, grounding bolt. The technical part can be
installed at distance of 3 meters (minimum) and 7 meters (maximum) from the pool.
Electrical control panel includes a timer, a differential
switch (breaker), fuses, mode selector switch, LED lights
switch.
www.vsv-group.com
6
AQUATIC without heating
BLOCK Aquatic (U) 15 m3/ hour
Total assigned power of 0,47 kW (with spotlights 2х10W):
- one-speed pump 0,45kW (50Hz)
- performance (capacity) – 15 m3/hour
-height (H) max. 13,5 m
The technical part without heat exchanger / electric heater
www.vsv-group.com
7
AQUATIC + heat exchanger with electronic thermostat
(for use with boilers)
Heat transfer 15 kW min. - 70 kW max.
BLOCK Aquatic (U) 15 m3/ hour + heat exchanger
Total assigned power of 0,473 kW (with spotlights 2х10W):
- one-speed pump 0,45kW (50Hz)
- performance (capacity) – 15 m3/hour
- height (H) max. 13,5 m
The technical part with heat exchanger
www.vsv-group.com
8
AQUATIC + electric heater flow type with a control unit
(capacity 9 kW)
BLOCK Aquatic (U) 15 m3/ hour + electric heater
Total assigned power of 0,47kW (with spotlights 2х10W)
9,47kW (with electric heater 9 kW)
- one-speed pump 0,45kW (50Hz)
- performance (capacity) - 15 m3/hour
- height (H) max. 13,5 m
The technical part with electric heater
www.vsv-group.com
9
2 - DIMENSIONS OF EQUIPMENT
www.vsv-group.com
10
3 – INSTALLATION AND CONNECTION
Place the block on the wall of the pool, as shown below, taking care not to damage the waterproofing
coating (liner). If necessary, align it with the water level and fasten the block mounting bolts in a
projected place.
TOP VIEW POSITION OF THE HOLES FOR FIXING BOLTS
