Voltronic Power 1K Online UPS For Dual-mains Input Manual de usuario

1K Online UPS

For Dual-mains Input

Uninterruptible Power Supply System

User Manual

Table of Contents

1. IMPORTANT SAFETY WARNING .................................................................................... 2

1-1. Transportation .................................................................................................... 2

1-2. Preparation ........................................................................................................ 2

1-3. Installation......................................................................................................... 2

1-4. Operation........................................................................................................... 2

1-5. Maintenance, service and faults........................................................................... 3

2. INSTALLATION AND SETUP ........................................................................................... 4

2-1. Rear panel view.................................................................................................. 4

2-2. Setup the UPS.................................................................................................... 4

3. OPERATIONS............................................................................................................. 7

3-1. Button operation ................................................................................................ 7

3-2. LCD Panel .......................................................................................................... 8

3-3. Audible Alarm..................................................................................................... 9

3-4. LCD display wordings index................................................................................. 9

3-5. UPS Setting...................................................................................................... 10

3-6. Operating Mode Description .............................................................................. 12

3-7. Faults Reference Code....................................................................................... 13

3-8. Warning indicator ............................................................................................. 13

4. TROUBLESHOOTING..................................................................................................14

5. STORAGE AND MAINTENANCE..................................................................................... 16

6. SPECIFICATIONS ..................................................................................................... 17

1. Important Safety Warning

Please comply with all warnings and operating instructions in this manual strictly. Save this

manual properly and read carefully the following instructions before installing the unit. Do not

operate this unit before reading through all safety information and operating instructions

carefully.

1-1. Transportation

Please transport the UPS system only in the original package to protect against shock

and impact.

1-2. Preparation

Condensation may occur if the UPS system is moved directly from cold to warm

environment. The UPS system must be absolutely dry before being installed. Please

allow at least two hours for the UPS system to acclimate the environment.

Do not install the UPS system near water or in moist environments.

Do not install the UPS system where it would be exposed to direct sunlight or near

heater.

Do not block ventilation holes in the UPS housing.

1-3. Installation

Do not connect appliances or devices which would overload the UPS system to the

UPS output sockets.

Place cables in such a way that no one can step on or trip over them.

The UPS can be operated by any individuals with no previous experience.

Connect the UPS system only to an earthed shockproof outlet which must be easily

accessible and close to the UPS system.

Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your

computer) to connect the UPS system to the building wiring outlet (shockproof

outlet).

Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS

system.

When installing the equipment, it should ensure that the sum of the leakage current

of the UPS and the connected devices does not exceed 3.5mA.

1-4. Operation

Do not disconnect the mains cable on the UPS system or the building wiring outlet

(shockproof socket outlet) during operations since this would cancel the protective

earthing of the UPS system and of all connected loads.

The UPS system features its own, internal current source (batteries). The UPS output

sockets or output terminals block may be electrically live even if the UPS system is not

connected to the building wiring outlet.

In order to fully disconnect the UPS system, first press the OFF/Enter button to

disconnect the mains.

Prevent no fluids or other foreign objects from inside of the UPS system.

1-5. Maintenance, service and faults

The UPS system operates with hazardous voltages. Repairs may be carried out only

by qualified maintenance personnel.

Caution - risk of electric shock. Even after the unit is disconnected from the mains

(building wiring outlet), components inside the UPS system are still connected to the

battery and electrically live and dangerous.

Before carrying out any kind of service and/or maintenance, disconnect the batteries

and verify that no current is present and no hazardous voltage exists in the terminals

of high capability capacitor such as BUS-capacitors.

Only persons are adequately familiar with batteries and with the required

precautionary measures may replace batteries and supervise operations.

Unauthorized persons must be kept well away from the batteries.

Caution - risk of electric shock. The battery circuit is not isolated from the input

voltage. Hazardous voltages may occur between the battery terminals and the

ground. Before touching, please verify that no voltage is present!

Batteries may cause electric shock and have a high short-circuit current. Please take

the precautionary measures specified below and any other measures necessary when

working with batteries:

－remove wristwatches, rings and other metal objects

－use only tools with insulated grips and handles.

When changing batteries, install the same number and same type of batteries.

Do not attempt to dispose of batteries by burning them. This could cause battery

explosion.

Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin

and eyes. It may be toxic.

Please replace the fuse only with the same type and amperage in order to avoid fire

hazards.

Do not dismantle the UPS system.

2. Installation and setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is

damaged. Please keep the original package in a safe place for future use.

2-1. Rear panel view

IEC Type

Schuko Type

India Type

NEMA Type

1. Output receptacles

2. AC input

3. Input circuit breaker

4. External battery connection (only available for L model)

5. Modem/Phone line/Network surge protection

6. Intelligent slot

2-2. Setup the UPS

Step 1: UPS input connection

Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension

cords.

Step 2: UPS output connection

Simply plug devices to output sockets. During power failure, UPS will provide power to

connected devices.

Step 3: Communication connection

RS-232 port Intelligent slot

To allow for unattended UPS shutdown/start-up and status monitoring, connect the

communication cable one end to the RS-232 port and the other to the communication port of

your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and

monitor UPS status through PC.

This intelligent slot is perfect for SNMP, RS-232, USB or AS-400 card. When installing with

communication card in the UPS, it will provide advanced communication and monitoring

options.

Step 1:

Step 2:

Step 3:

Remove cover of intelligent

slot.

Insert communication card

into the slot

Screw card tightly and

complete installation.

Step 4: Network connection

Network/Fax/Phone surge port

Connect a single modem/phone/fax line into surge-protected “IN” outlet on the back panel of

the UPS unit. Connect from “OUT” outlet to the equipment with another modem/fax/phone line

cable.

Step 5: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to power on the UPS.

Note: The battery charges fully during the first five hours of normal operation. Do not

expect full battery run capability during this initial charge period.

Step 6: Install software

For optimal computer system protection, install UPS monitoring software to fully configure UPS

shutdown. You may insert provided CD into CD-ROM to install the monitoring software. If not,

please follow steps below to download and install monitoring software from the internet:

1. Go to the website http://www.power-software-download.com

2. Click ViewPower software icon and then choose your required OS to download the software.

3. Follow the on-screen instructions to install the software.

4. When your computer restarts, the monitoring software will appear as an orange plug icon

located in the system tray, near the clock.

Step 7: External battery connection

Follow the below chart to make external battery connection.

To external

battery

To external

battery

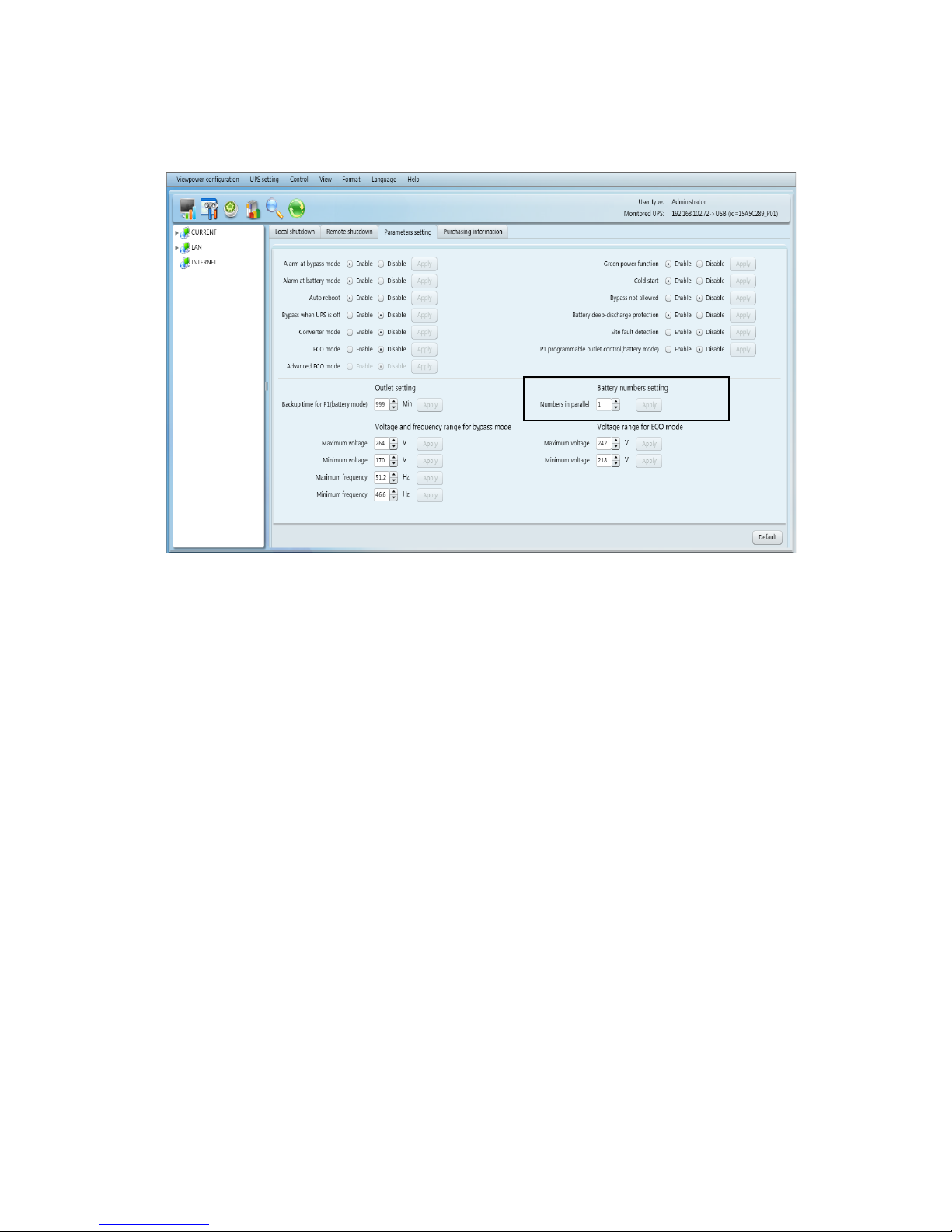

Step 8: External battery capacity configuration in software

To calculate accurate backup time of external batteries, it’s necessary to configure battery

numbers in software. The standard calculated capacity for one battery is 9Ah. If connecting

to 100Ah batteries, then it’s equal to 11 in parallel (100Ah / 9Ah ≈11 sets).

3. Operations

3-1. Button operation

Button

Function

ON/Mute Button

Turn on the UPS: Press and hold ON/Mute button for at least 2

seconds to turn on the UPS.

Mute the alarm: After the UPS is turned on in battery mode, press

and hold this button for at least 5 seconds to disable or enable the

alarm system. But it’s not applied to the situations when warnings or

errors occur.

Up key: Press this button to display previous selection in UPS setting

mode.

Switch to UPS self-test mode: Press ON/Mute buttons simultaneously

for 5 seconds to enter UPS self-testing while in AC mode or converter

mode.

OFF/Enter Button

Turn off the UPS: Press and hold this button at least 2 seconds to turn

off the UPS in battery mode. UPS will be in standby mode under

power normal or transfer to Bypass mode if the Bypass enable setting

by pressing this button.

Confirm selection key: Press this button to confirm selection in UPS

setting mode.

Select Button

Switch LCD message: Press this button to change the LCD message

for input voltage, input frequency, battery voltage, output voltage

and output frequency. It will return back to default display when

pausing for 10 seconds.

Setting mode: Press and hold this button for 5 seconds to enter UPS

setting mode when UPS is in standby mode or bypass mode.

Down key: Press this button to display next selection in UPS setting

mode.

ON/Mute + Select

Button

Switch to bypass mode: When the main power is normal, press

ON/Mute and Select buttons simultaneously for 5 seconds. Then UPS

will enter to bypass mode. This action will be ineffective when the

input voltage is out of acceptable range.

ON/Mute + Select

Button

Switch to UPS self-test mode: Press ON/Mute and OFF/Enter buttons

simultaneously for 5 seconds to enter UPS self-testing while in AC

mode or converter mode

3-2. LCD Panel

Display

Function

Backup time information

Indicates the backup time in pie chart.

Indicates the backup time in numbers.

H: hours, M: minute, S: second

Fault information

Indicates that the warning and fault occurs.

Indicates the warning and fault codes, and the codes are listed in

details in 3-5 section.

Mute operation

Indicates that the UPS alarm is disabled.

Output & Battery voltage information

Indicates the output voltage, frequency or battery voltage.

Vac: output voltage, Vdc: battery voltage, Hz: frequency

Load information

Indicates the load level by 0-25%, 26-50%, 51-75%, and

76-100%.

Indicates overload.

Indicates the load or the UPS output is short circuit.

Mode operation information

Indicates the UPS connects to the mains.

Indicates the battery is working.

Indicates the bypass circuit is working.

Indicates the Inverter circuit is working.

Indicates the output is working.

Battery information

Indicates the Battery level by 0-25%, 26-50%, 51-75%, and

76-100%.

Indicates the battery is fault.

Indicates low battery level and low battery voltage.

Input & Battery voltage information

Indicates the input voltage or frequency.

Indicates battery voltage.

Vac: Input voltage, Hz: input frequency, Vdc: battery voltage

Indicates battery charge/discharge voltage

3-3. Audible Alarm

Battery Mode

Sounding every 4 seconds

Low Battery

Sounding every second

Overload

Sounding twice every second

Fault

Continuously sounding

Bypass Mode

Sounding every 10 seconds

3-4. LCD display wordings index

Abbreviation

Display content

Meaning

ENA

Enable

DIS

Disable

ESC

Escape

HLS

High loss

LLS

Low loss

BAT

Battery

Converter

Temperature

Charger

Otros manuales para 1K Online UPS For Dual-mains Input

Tabla de contenidos

Otros manuales de Unión Postal Universal de Voltronic Power

Voltronic Power

Voltronic Power 1K Online UPS For Dual-mains Input Manual de usuario

Voltronic Power

Voltronic Power 6K Manual de usuario

Voltronic Power

Voltronic Power Giant 3P/3P Manual de usuario

Voltronic Power

Voltronic Power Nano 400 Manual de usuario

Voltronic Power

Voltronic Power Galleon II 3P Manual de usuario

Voltronic Power

Voltronic Power Taurus UPS-7.5 Manual de usuario

Voltronic Power

Voltronic Power 6K Manual de usuario

Voltronic Power

Voltronic Power Galleon One 6K Manual de usuario

Voltronic Power

Voltronic Power 6K Manual de usuario

Voltronic Power

Voltronic Power Winner series Manual de usuario

Voltronic Power

Voltronic Power Bonnie 50W Manual de usuario

Voltronic Power

Voltronic Power +Power 30U-90 Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
