VOLTCRAFT DSO-6202F Manual de usuario

Quick Guide

Front Panel

1. Display area

2. Control (button and knob) area

3. Probe Compensation: Measurement signal (5V/1kHz) output.

4. EXT Trigger Input

5. Signal Input Channel

6. Copy button: You can save the waveform by just pressing this button in any user

interface.

7. USB Host port: It is used to transfer data when external USB equipment connects to

the oscilloscope regarded as "host device". For example: Saving the waveform to USB

flash disk needs to use this port.

8. Power on/off

Backlight of this button:

Red light: The oscilloscope is turned off (connects with AC Power);

Green light: The oscilloscope is turned on.

Quick Guide

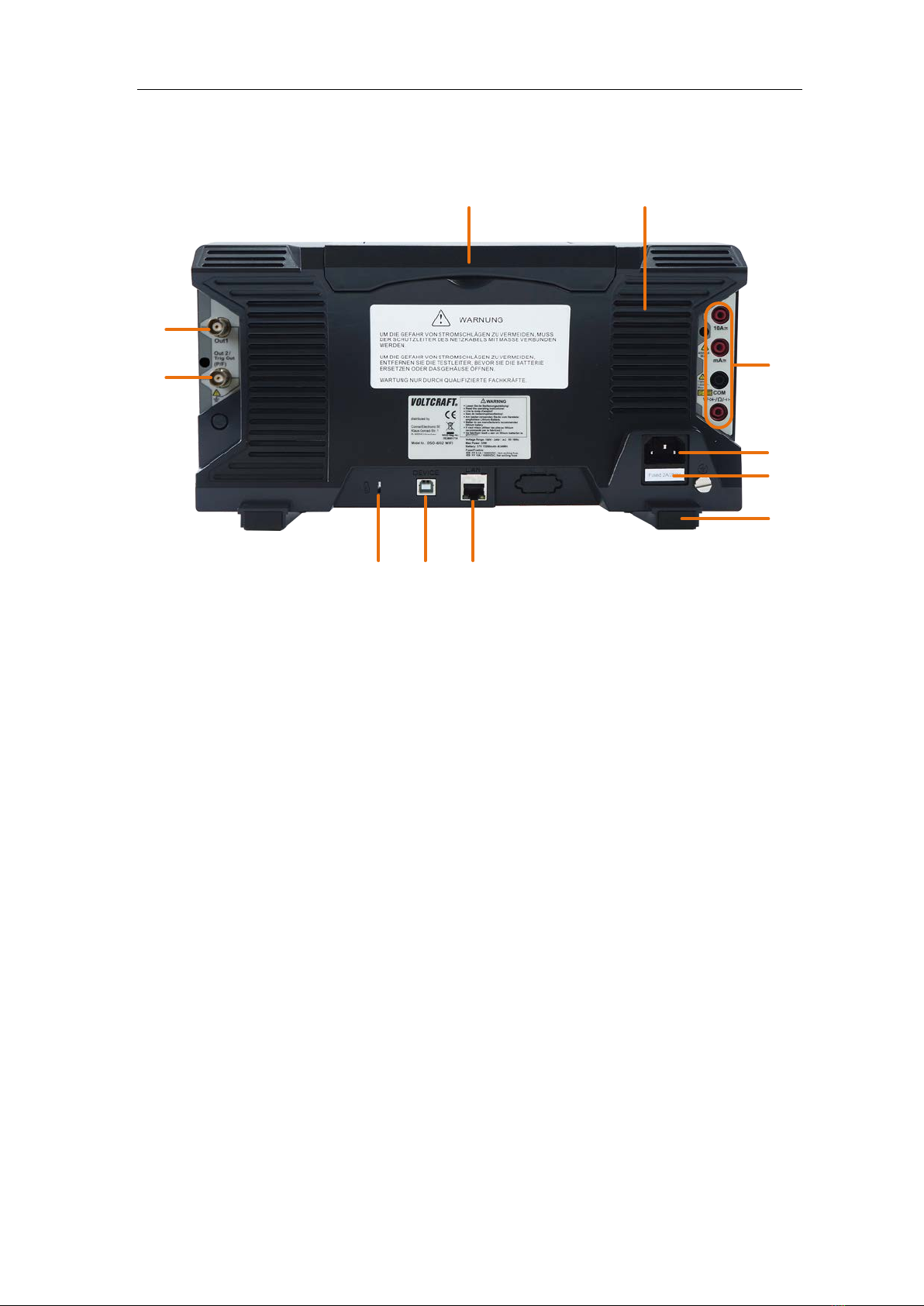

Rear Panel

9 8 7

1. Handle

2. Air vents

3. Input terminals of optional multimeter

4. AC power input jack

5. Fuse

6. Foot stool: Adjust the tilt angle of the oscilloscope.

7. LAN port: the network port which can be used to connect with PC.

8. USB Device port: It is used to transfer data when external USB equipment connects to

the oscilloscope regarded as "slave device". For example: to use this port when

connect PC to the oscilloscope by USB.

9. Lock Hole: You can lock the oscilloscope to a fixed location using the security lock

(please buy it yourself) to secure the oscilloscope.

10.Trig Out(P/F) port: Trigger signal output or Pass/Fail output, also can be used as the

port of CH2 Output of optional dual-channel waveform generator. The output type can

be set on the menu (Utility menu→Output→Output).

11.Out 1 port: CH1 Output of optional dual-channel waveform generator.

Quick Guide

Control Area

1. Function button area: Total 11 buttons

2. Waveform generator controls (optional)

DAQ: Multimeter (optional) recorder

P/F: Pass/Fail

W.REC: Waveform Record

3. Trigger control area with 2 buttons and 1 knob.

The Trigger Level knob is to adjust trigger voltage. Other 2 buttons refer to trigger

system setting.

4. Horizontal control area with 1 button and 2 knobs.

"HOR" button refer to horizontal system setting menu, "Horizontal Position" knob

control trigger position, "Horizontal Scale" control time base.

5. Vertical control area with 3 buttons and 4 knobs.

"CH1" and "CH2 " correspond to setting menu in CH1 and CH2. "Math" button

provides access to math waveform functions (+, -, ×, /, FFT, user function, digital

filter). Two "Vertical Position" knob control the vertical position of CH1/CH2, and

two "Scale" knob control voltage scale of CH1, CH2.

6. Default: Call out the factory settings.

7. Print: Print an image of what appears on the instrument screen.

8. Decode: Turn on/off Decode function.

9. DMM (optional Digital Multimeter) or Snapshot (Shortcut button for measurement

snapshot)

10.Direction key:Move the cursor of the focused parameter.

11.Mknob (Multipurpose knob): when a symbol appears on the menu, it indicates

Quick Guide

you can turn the M knob to select the menu or set the value. You can push it to close

the menu on the left and right.

User Interface Introduction

1310

8911 12

246

1. Waveform DisplayArea.

2. Run/Stop (touchable)

3. The state of trigger, including:

Auto: Automatic mode and acquire waveform without triggering.

Trig: Trigger detected and acquire waveform.

Ready: Pre-triggered data captured and ready for a trigger.

Scan: Capture and display the waveform continuously.

Stop: Data acquisition stopped.

4. Click to show/hide the touchable menu pane.

5. Turn on/off the magnifier function.

6. The two blue dotted lines indicates the vertical position of cursor measurement.

7. The T pointer indicates the horizontal position for the trigger.

8. The pointer indicates the trigger position in the record length.

9. It shows present triggering value and displays the site of present window in

internal memory.

10. Touchable icon is to enable ( ) or disable ( ) the touchscreen controls.

Quick Guide

11. It shows setting time.

12. It indicates that there is a USB disk connecting with the oscilloscope.

13. Multimeter window.

14. The pointer shows the trigger level position.

15. The waveform of CH1.

16. The two blue dotted lines indicate the horizontal position of cursor measurement.

17. The waveform of CH2.

18. It indicates the measured type and value of the corresponding channel. "T" means

period, "F" means frequency, "V" means the average value, "Vp" the peak-peak

value, "Vr" the root-mean-square value, "Ma" the maximum amplitude value,

"Mi" the minimum amplitude value, "Vt" the Voltage value of the waveform's

flat top value, "Vb" the Voltage value of the waveform's flat base, "Va" the

amplitude value, "Os" the overshoot value, "Ps" the Preshoot value, "RT" the rise

time value, "FT" the fall time value, "PW" the +width value, "NW" the -Width

value, "+D" the +Duty value, "-D" the -Duty value, "PD" the Delay A->B

value, "ND" the Delay A->B value, "TR" the Cycle RMS, "CR" the Cursor

RMS, "WP" the Screen Duty, "RP" the Phase, "+PC" the +Pulse count, "-PC"

the - Pulse count, "+E" the Rise edge count, "-E" the Fall edge count, "AR" the

Area, "CA" the Cycle area.

19. The icon shows the selected trigger type, e.g. represents triggering on the

rising edge for an Edge trigger. The reading shows the trigger level value of the

corresponding channel.

20. Channel identifier of current bottom menu.

21. The readings show the record length.

22. The frequency of the trigger signal.

23. The readings show current sample rate.

24. The readings indicate the corresponding Voltage Division and the Zero Point

positions of the channels. "BW" indicates bandwidth limit.

The icon shows the coupling mode of the channel.

"—" indicates direct current coupling

"～" indicates AC coupling

" " indicates GND coupling

25. The reading shows the setting of main time base.

26. It is cursor measure window, showing the absolute values and the readings of the

cursors.

27. The blue pointer indicates the grounding datum point (zero point position) of the

waveform of the CH2 channel. If the pointer is not displayed, it means that this

channel is not opened.

28. The yellow pointer indicates the grounding datum point (zero point position) of

the waveform of the CH1 channel. If the pointer is not displayed, it means that

the channel is not opened.

Technical Specifications

Oscilloscope

Vertical Resolution (A/D) Bandwidth Rise Time

8 bits mode

200 MHz

≤ 1.75 ns

12 bits mode

150 MHz

≤ 2.33 ns

14 bits mode

20 MHz

≤ 17.5 ns

Performance

Characteristics

Instruction

Horizontal Scale 1ns/div-1000s/div, step by 1 – 2 - 5

Sample rate

(real time)

Dual CH

8 bits mode

1 GS/s

12 bits mode

500 MS/s

14 bits mode

100 MS/s

Single CH

8 bits mode

1 GS/s

12 bits mode

500 MS/s

14 bits mode

100 MS/s

Waveform Refresh

Rate

75,000 wfms/s

Display 8" color LCD, TFT display , 800×600 pixels

Channel 2 + 1 (External)

Max Record length 40M

Input coupling DC, AC , Ground

Input impedance 1MΩ±2%，in parallel with 15pF±5pF; 50Ω±2%

Max. input voltage 1MΩ：≤300 Vrms;

50Ω：≤5 Vrms

DC gain accuracy

1 mV 3%

2 mV 2%

≥ 5 mV 1.5%

Vertical sensitivity 1 mV/div-10 V/div

Trigger type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C,

SPI, RS232, CAN

Decoding Type

RS232, I2C, SPI, CAN

Trigger mode Auto, Normal, Single

Line/field frequency

(Video)

Support standard NTSC, PAL and SECAM broadcast systems

Automatic

measurement

Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude,

Overshoot, Preshoot, Rise Time, Fall Time, +Pulse Width, -Pulse Width,

+Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B ,Cycle RMS,

Cursor RMS, Screen Duty, Phase, +Pulse Count, -Pulse Count,

Rise Edge Count, Fall Edge Count, Area, and Cycle Area.

Waveform Math ＋, －, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter

(low pass, high pass, band pass, band reject)

Waveform storage 100 waveforms

Communication

interface

USB, USB flash disk storage, Trig Out(P/F), LAN,

Power supply 100V - 240 VACRMS, 50/60 Hz, CAT Ⅱ

Power Consumption ＜33 W

Technical Specifications

Waveform Generator (Optional)

Max Frequency

Output 25 MHz (Sample 125 MS/s) or 50 MHz (Sample 250 MS/s) (optional)

Channel 2

Vertical Resolution 14 bits

Amplitude Range 2 mVpp - 6 Vpp

Waveform length 8K

Standard Waveforms Sine, Square, Ramp, and Pulse

Multimeter (Optional)

Full scale reading 3¾ digits (Max 4000 – count)

Diode 0 V - 1.5 V

Input impedance 10 MΩ

On/Off measurement <50(±30)Ω beeping

Capacitance 51.2nF - 100uF: ±(3%±3 digit)

Voltage

DCV: 400mV, 4V, 400V: ±(1%±1digit) Max. input: DC 1000V

ACV: 4V,40V,400V:±(1%±3digit)

Frequency: 40Hz-400Hz, Max. input: AC 750V (virtual value)

Current

DCA: 40mA,400mA: ±(1.5%±1 digit) 10A: ±(3%±3digit)

ACA: 40mA: ±(1.5%±3 digit) 400mA: ±(2%±1 digit) 10A: ±(3%±3digit)

Resistance 400Ω: ±(1%±3 digit), 4KΩ~40MΩ: ±(1%±1 digit)
