VOLTA VB1 Manual de usuario
www.volta.com.tr
VB2
VB1
VB3
Read this guide as whole carefully before using your electric bicycle.
ELECTRIC BICYCLE
INSTRUCTIONS FOR USE
PREFACE
This product has been designed as environment friendly. In these
instructions for use, there are safety, maintenance and basic
storage instructions. This high technology vehicle that you purchased,
consists of following parts:
These instructions for use will be an irreplaceable part of your vehi-
cle. Make sure that you receive these instructions together with the
vehicle you purchased.
When there is a problem about your vehicle, do not use parts except
the original ones presented by authorized service shop.
These instructions for use have been prepared mutual for Volta Motor
electric bicycles. Used visuals and technical characteristics may not be
the same with the vehicle you purchased. The main purpose of these
instructions for use, is to ensure introduction of the product and using
safely.
We thank you for preferring our product. We wish pleasant and safe
rides with your electric bicycle.
• High eciency and brushless dc motor
• Low voltage protected digital smart driver
• Circuit breaker brake sensor for safe riding
• Long range and high performance with high capacity battery
• Pleasant and comfortable riding with high quality suspension system
• Bicycle equipment ensuring European standards
- As per the laws of some countries, there might be need for a minimum age for using
this product and a driving license. In this type of situations, make sure that you ensure legal
conditions of the country you live to use the vehicle.
- Do not demount, replace or modify any part on the vehicle without approval of author-
ized service shop. Processes those are made without approval of authorized service shop,
will impair originality of the vehicle and the vehicle will be out of the scope of guarantee.
Please make all replaces at authorized service shops.
WARNING
WARNING These headings have been written in order to present personal accidents and
not to cause possible fatal accidents.
ATTENTION - These headings have been written to protect you from important personal
injuries and mechanic damages.
www.volta.com.tr
4www.volta.com.tr
4

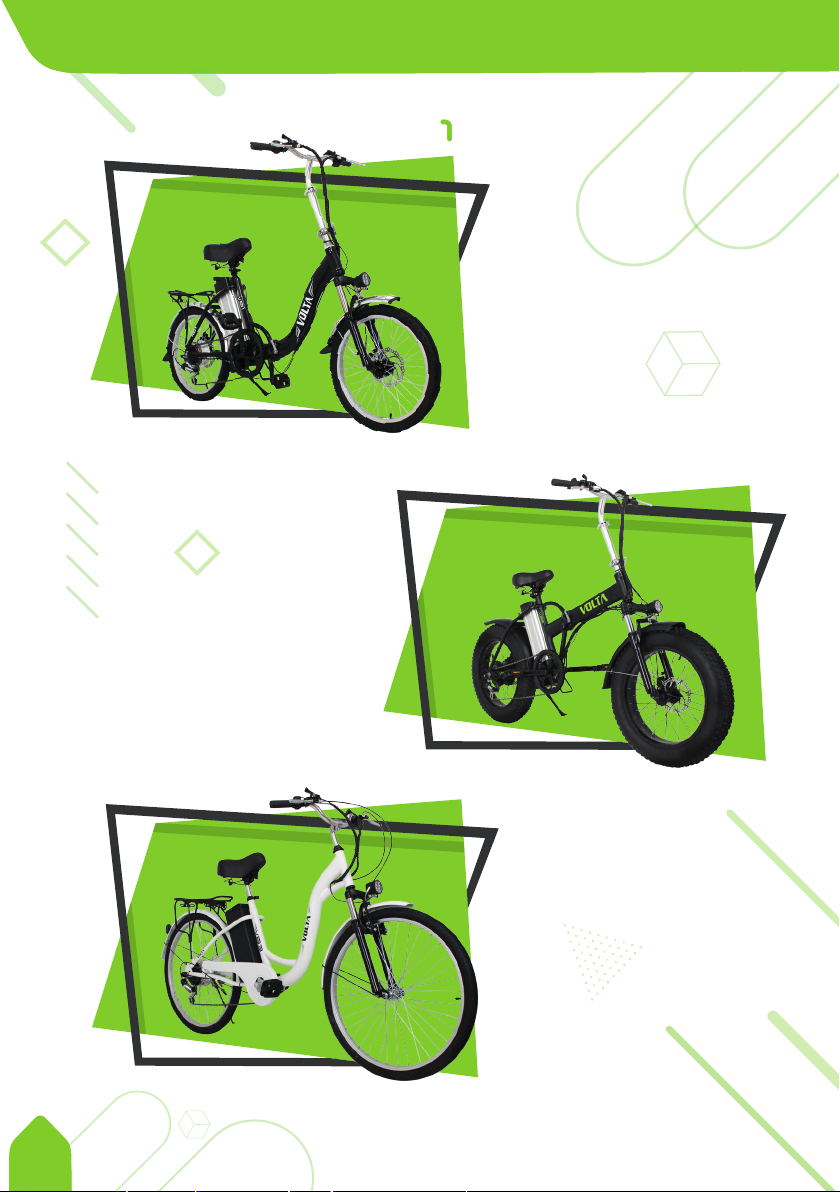

VB1
VB2
VB3
www.volta.com.tr 5
www.volta.com.tr 5
TABLE OF CONTENTS
Preface ....................................................................................................................02
1. The Vehicles and Accessories ......................................................................06
2. Functions .............................................................................................................09
3. Assembling the Vehicle ...................................................................................13
4. Charging the Vehicle .........................................................................................14
5. Riding Instructions ..............................................................................................17
6. Safe Use Instructions ...........................................................................................18
7. Folding and Transporting ...............................................................................21
8. Maintenance and Storing ...............................................................................22
9. Storing Guide for the Vehicle ...........................................................................24
10. Technical Specs ...........................................................................................25
11. Authorized Service ················································································26
12. Warranty ·································································································27
www.volta.com.tr
6www.volta.com.tr
6
VB1
1. THE VEHICLES AND ACCESSORIES
Products
12
3
4
5
6
89
10
11
12
14
13
7
1. Indicator
2. Gear Lever
3. Start- up Support Assistant
4. Headlamp
5. Disc Brake
6. Charge Input
7. Saddle
8. Accumulator Contact
9. Back Carrying Iron
10. Folding Apparatus
11. Pedal
12. Abutment
13. Engine
14. Rider
www.volta.com.tr 7
www.volta.com.tr 7
1. THE VEHICLES AND ACCESSORIES
VB2
1
4
2
3
5
6
8
7
10
11
9
12
13
1. Indicator
2. Gear Lever
3. Start- up Support Assistant
4. Headlamp
5. Disc Brake
6. Folding Apparatus
7. Charge Input
8. Accumulator Contact
9. Pedal
10. Rider
11. Abutment
12. Engine
13. Saddle
www.volta.com.tr
8www.volta.com.tr
8
VB3
1. THE VEHICLES AND ACCESSORIES
1
2
3
4
5
6
10
8
7
12
9
13
11
1. Indicator
2. Gear Lever
3. Start-up Support Assistant
4. Headlamp
5. Brake Mechanism
6. Rider
7. Charge Input
8. Accumulator Contact
9. Engine
10. Pedal
11. Abutment
12. Saddle
13. Back Carrying Iron
www.volta.com.tr 9
www.volta.com.tr 9
2. FUNCTIONS
Indicator
1- Function indicator, speed, remained battery signs, error, total range,
single round range, voltage, operation period.
2- Control, adjustment function, power button control, rim diameter adjust-
ment, idle period adjustment, holding ready automatically, rear lamp bright-
ness control, starting mode adjustment, rider mode adjustment, voltage level
adjustment, rider current limit adjustment.
3- 3- Type of communication: UART
You can view all indicator content as follows (it demonstrates all signs 1 sec-
ond after opening)
88 8
8
.
8888
ODO
12
11 1
24
MILE
MPH
KM/H ASSIST
Km
TRIP
!
M
EC U
I
I
I
I
I
I
I
www.volta.com.tr
10 www.volta.com.tr
10
3.5 Error codes
E-01: Hall sensor warning;
E-02: Brake, Start-up Support Assistant;
E-03: Driver warning;
E-04: Brake lever warning;
E-05: Low voltage warning;
E-06: Communication warning (it means that speedometer cannot
take data from rider)
E-07: Communication warning (it means that rider cannot take data
from speedometer
3.4 In order to adjust electric bicycle support level, 8ASSIST you can use
1, 2, 3 levels for speed options.
3.5 Electric bicycle indicator signals:
: Headlamp : Brake, :Start-up Support Assistant,
: Driver warning : Batttery warning : Speed fixing warning
8
ASSIST
!
M
EC U
!
EC U
2. FUNCTIONS
3.1 Voltage and battery power
3.2 Multiple function display
Single round DIS, Total range ODO (unit: mile, km)
3.3 Speed indicator
Unit Mp/h, km/h
Speed signal comes from hall sensor of engine, it is sent to speedometer
by control device (circle period of each hall sensor, unit: IMS) speedometer
measures real speed according to rim diameter and signal data. If your rim
diameter is entered wrong, your speed will also be calculated wrong. Please
make sure that correct rim diameter is entered
Content View
8888.8
MILE
Km
ODO
TRIP
88
MPH
KM/H
