Volkswagen 1969 Model Manual de usuario
Customer Identification Card
Thit is another feature of Volkswagen Service that
adds to your convenience. Just present this Manual
whenever you stop for service et your Authorized
Volkswegen Dealer. Your identification Card will
quickly furnish the Service Adviser with your name
and address and all pertinent vehicle data.
Volkswagen Owner's Manual
1969 Models
Warranty Voucher
for the new VW automobile
Type:
Chassis No.
Engine No.
In accordance with the terms of warranty printed overleaf.
VOLKSWAGEN PACIFIC, INC.
11300 PLAYA STREET, CULVER CITY, CALIF.
SELLING DEALER: CIRCLE MOTORS INC. #177
The warranty commences at the data the VW automobile is
delivered to the original purchaser,
viz. on
(To be filled in by selling VW dealer)
and covers a period of 24 months or the period before the
vehicle has been driven 24000 miles, whichever event shall first
occur. Should any warranty claim arise, you are requested to
submit this voucher to your VW Dealer.
VOLKSWAGEN OF AMERICA, INC.
No warranties, express or implied, as to Volkswagen vehicles sold in the United States are
made either by Volkswagen of America, Inc. or by the manufacturer or by the selling dealer,
except the following warranty by Volkswagen of America, Inc.
Warranty for new Volkswagen vehicles
This warranty Is issued by Volkswagen of America, Inc. (''VWoA"), the authorized United States importer of Volkswagen vehicles.
Free repair or replacement in
United States and Canada of
defective parts for 24
months or 24,000 miles
1. VWoA warrants that every Volkswagen vehicle imported by VWoA and sold as a new vehicle to a retail
customer by an authorized United States Volkswagen dealer will be free from defects in material and
workmanship under normal use and service for 24 months after the date of delivery of the vehicle to the
original retail customer or until the vehicle has been driven 24,000 miles, whichever comes first. This
warranty is limited, however, to the following: If any pan of the vehicle becomes defective during this
period under normal use and service and the vehicle is brought to the workshop of any authorized
Volkswagen dealer in the continental United States, Hawaii or Canada, the dealer will, without charge,
either repair the defective part or replace it with a new or factory reconditioned part.
Maintenance and validation by
owner required to keep
warranty in effect
2. In order to keep this warranty in effect, the owner must do two things:
FIRST: The owner must have the vehicle maintained and serviced as prescribed in the Volkswagen
Maintenance Schedule (See page 55).
SECOND: Every twelve months during the warranty period the owner must obtain from an authorized
United States Volkswagen dealer a Validation Stamp on the Maintenance Card to show that the vehicle has
been maintained and serviced in accordance with the Volkswagen Maintenance Schedule. Validation will be
made upon presentation of bills or other evidence sufficient to satisfy the dealer that the required service
and maintenance have been performed. The validated Maintenance Card must be submitted whenever a
claim is made under this warranty.
Items not covered by warranty 3. VWoA's warranty does not cover:
(i) Defects damage or deterioration due to normal use, wear and tear or exposure; (ii) normal maintenance
services, such as fuel system cleaning and wheel, brake or clutch adjustments; (iii) the replacement of
service items, as, for instance, spark plugs, ignition points, V-belts, wiper blades or brake and clutch
linings; (iv) deterioration of upholstery, soft trim and appearance items; (v) damage or defects due to
misuse, alteration, negligence or accident; and (vi) damage or defects due to the repair of the vehicle by
someone other than an authorized Volkswagen dealer or the installation of parts other than genuine
Volkswagen parts.
Warranty outside United
States and Canada
No other warranties made
4. If the vehicle is brought to an authorized Volkswagen workshop outside the continental United States,
Hawaii or Canada, VWoA's warranty will not be applicable, and defective parts will be repaired or replaced
free of charge with new or factory reconditioned parts only within the terms and limitations of the
warranty for new Volkswagen vehicles in effect in the country where such authorized Volkswagen
workshop is located.
5. This warranty is in lieu of all other express or implied warranties of VWoA. the
manufacturer and the selling dealer, including any implied warranty of
merchantability or fitness for any particular purpose. Neither VWoA nor the
manufacturer assumes, or authorizes any person to assume, on its behalf, any
other obligation or liability.
Let us explain the warranty . . .
Volkswagen of America, Inc is proud of the quality of automobiles it imports. It warrants new vehicles for a period of 2 years or 24,000 miles from the date of
purchase, whichever comes first. In general the complete vehicle including battery and tires is covered under the provisions of the Volkswagen New Vehicle
Warranty. It will be honored by any Authorized Volkswagen Dealer in all 50 States, the District of Columbia and Canada.
This warranty is transferable if the ownership of the vehicle changes within the above period.
In order to keep the warranty in force, you as the owner of the vehicle have certain responsibilities. It is important that the vehicle be maintained properly. To
facilitate record keeping, this booklet provides on pages 57 to 59 space for listing maintenance services and oil changes as they are performed. Maintenance
services should be performed by Authorized Volkswagen Dealers. They offer with their factory-trained Volkswagen mechanics
and special tools, fast, efficient service in accordance with Volkswagen quality standards.
Validation is a requirement of the Volkswagen New Vehicle Warranty. One year after the date of delivery the warranty must be validated for the second year.
This can be done at any Authorized Volkswagen Dealership in the USA or Canada. For that purpose, you should present to the Authorized Volkswagen Dealer the
maintenance record for your vehicle. Provided that maintenance services or oil changes were performed in accordance with Volkswagen specifications, dated
bills of other than Authorized Volkswagen Dealers will be accepted as proof that these services were performed on time.
Not all repairs, adjustments and replacements, however, are the result of defects in material or workmanship. There are other circumstances beyond the control
of the manufacturer that might make a workshop visit necessary. These depend mainly on where you drive and how you drive. They would include weather and
atmospheric conditions, varying road surfaces, individual driving habits and vehicle usage.
For example, you are required to pay for the following:
Maintenance services and oil changes
Wheel alignment and wheel balancing —the frequency of such services depends on driving conditions such as rapid starts and stops, tire skidding,
hitting pot holes end curbs, etc.
Mechanical adjustments —including brake, clutch, door locks are required as a matter of normal operation of a motor vehicle. This protects you against
early or expensive replacements.
Brake end clutch linings —are directly affected by driving habits and use. The replacement of these linings and the reconditioning of brake drums should be
performed whenever necessary
Spark plugs and ignition points —are subject to wear. Periodic replacements ensure you of maximum engine performance and gasoline economy.
Wiper blades —life expectancy will vary widely depending on climatic conditions and extent of use. You are the best judge to decide when they should be
replaced.
Light bulbs and fuses —are service items.
Paint, chrome, trim and other appearance items —are affected by normal wear and exposure. Proper care of these items can add to their
appearance and durability. (Imperfections are normally apparent during New Vehicle pre-delivery inspection. For your protection, please report any imperfection
to your Dealer immediately after you notice it.)
Tires and batteries —are subject to wear. If there is a defect you pay only for the amount of use you have gotten. An adjustment for tires is based on the
remaining tread depth, for batteries on time used based on 36 months of service. This is known as the pro-rata method of adjustment.
Contents
Getting acquainted . ....................................... . 3
Winter operation ................. 23
Care of car . . ........................ ................ 25
Minor repairs and adjustments ....................................... . . 28
Trouble shooting 37
How to lubricate . . . . . . . . . . . . . . . . . . . . . . . . . 40
Technical data ............... . ....................... ................ 47
Identification plate, Chassis and Engine numbers 52
Index .............................................. 53
Lubrication and maintenance . ............................................. 55
Maintenance Record .................................. 57
All pictures are of the Volkswagen Fastback Sedan with four speed synchromesh transmission and the text is based on this vehicle. Where the
controls. equipment and technical data of the Squareback Sedan and the Automatic Transmission differ considerably, attention is drawn to the
difference.
Specifications are subject to alteration without notice
This sticker assures you that your 1969 Volkswagen complies with ail US Motor Vehicle Safety
Standards which were in effect at the time when the vehicle was produced.
Volkswagenwerk AG
certifies to the dealer that
this vehicle conforms to all US
federal motor vehicle safety
standards applicable at time
of manufacture.
The tires of your Volkswagen conform to the US Motor Vehicle Safety Standards. When purchasing
replacement tires, make sure that their label shows the same specifications for tire size, load carrying
capacity etc.
Getting acquainted
It is advisable
to read this Owner's Manual carefully. You will then
get to know your new car quickly and will be able to
start off on your trip with complete confidence. You
will notice, your Volkswagen has many features
designed with your safety in mind.
The first part of this manual deals with the
operation of your Volkswagen. Everything about
winter driving, tips on care of the vehicle and
numerous points on carrying out small repairs and
adjustments are given in the second half. It further
contains information on lubrication and
maintenance and some interesting technical data.
Additionally, this book contains the warranty
voucher and the terms of warranty as well as a
punchcard for the free-of-charge maintenance
service and a maintenance schedule. An easy-to-
use maintenance record provides a stamping field.
so you can tell at a glance when a maintenance
service is due. The stamps in the squares show that
the oil changes and maintenance services have
been carried out regularly.
Only one key
is required to open the doors and start the engine.
Be sure the key number is recorded in the front of
the manual If you should lose the key. you can
obtain a replacement from your Authorized
Volkswagen Dealer.
3

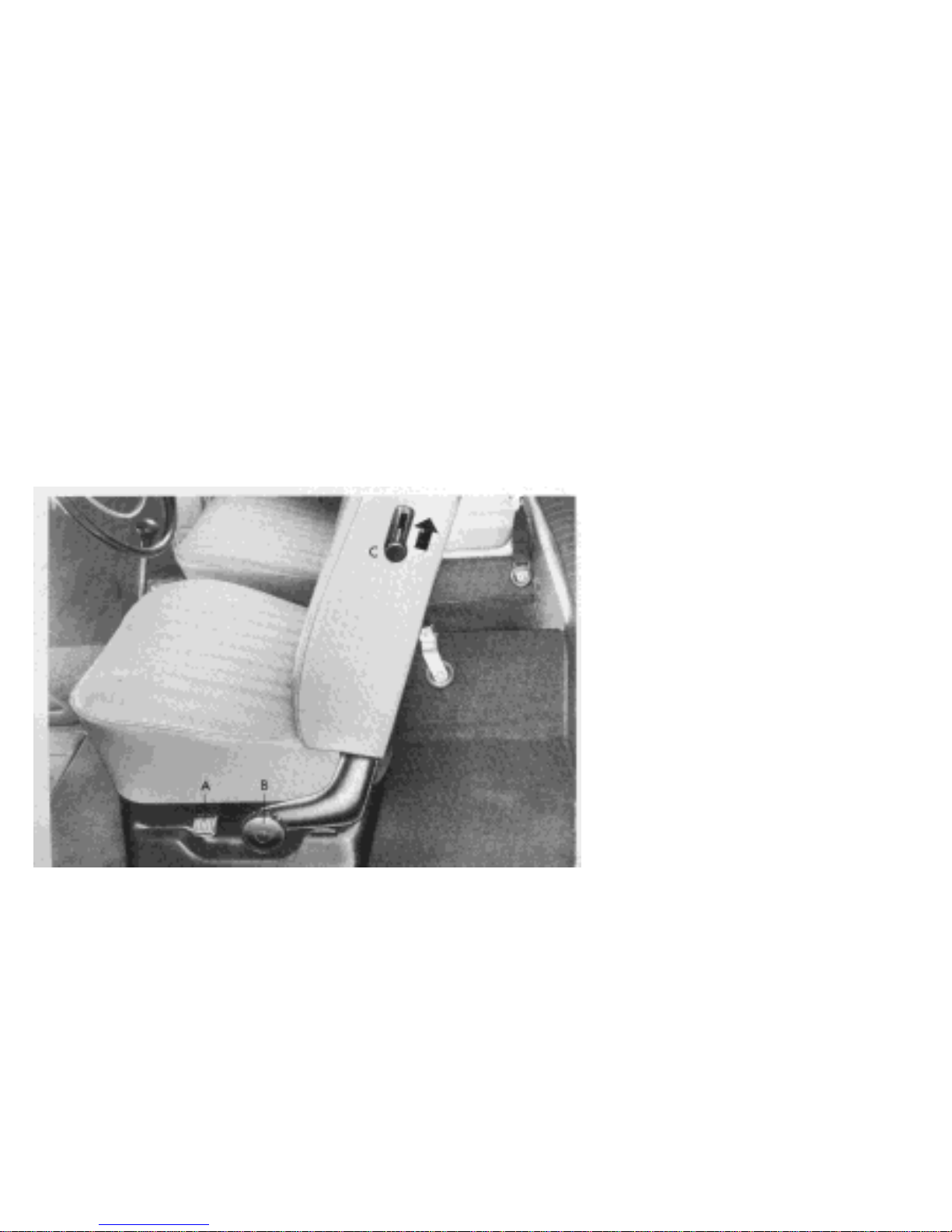

Sit down and make yourself comfortable
When driving, you must be comfortable. That is why
the Volkswagen has separate front seats which are
built so that you can alter seat position and
backrest rake to suit your require-
ments. This is quite simple-just lift the lever-A-on
the side of the seat and slide the seat forward or
backward. After adjusting, be sure the seat is
securely locked in position.
The backrest angle can also be set to eight
different angles by turning the large knob-B-. Try
them out until you find the angle which suits you
best.
As a safety feature, the backrests of your
Volkswagen are secured against tilting forward. To
release the lock. just pull the knob-C-on the side of
the backrest upward.
To take the seats out, press the leaf spring on the
inner runner down and slide seat to the front.
4
