Vixen Horns VXH1490B Manual de usuario

VXH1490B

INSTALLATION GUIDE

PAGE 1 of 2

BEFORE BEGINNING YOUR INSTALLATION

Read through the instruction guide before getting started with the installation. Professional installation is recommended for

this product.

CONTENTS

Single Trumpet Horn (Black)

12V Heavy Duty Air Compressor

4-PIN 12V/30A Relay

3/8" OD Air Line

Mounting Hardware

SAFETY INSTRUCTIONS

Make sure you never attempt to disassemble this horn kit’s electrical components.

Never use your bare hands to any part of the compressor immediately after or during use.

Avoid operating this product in an area with risk of falling or submergence into a liquid (water).

Do not reach out for or touch any component that has fallen or been submerged into water.

Make sure you set up in areas with good ventilation.

Never sound the air horn anywhere near your ear(s) or that of another person.

Make sure your battery ground is detached before getting your installation started.

Employ equipment for eye protection during drilling operations.

The specific voltage requirement for this horn kit is 12 volt DC, therefore installation must be done to a DC power

source of 12 volts.

HORN MOUNTING

Identify a suitable area for mounting, preferably an unobstructed sheet-metal surface like the frame or body of

the vehicle so as to provide a firm platform which will help protect the horn from damage due to excessive

shaking. Do not attach the horn to any plastic or other flexible material.

Using the bracket as a guide estimate and mark the positions for the holes and then perforate to size using a

drill.

Use the provided mounting hardware to fasten the horn.

VXH1490B

INSTALLATION GUIDE

PAGE 2 of 2

COMPRESSOR MOUNTING

The ideal location for the compressor to be installed is a dry area inside your engine compartment where it

will be safe from exhaust and engine manifold heat.

To make the compressor firm and secure, drill a hole of 3/16". IMPORTANT: The compressor must be

mounted vertically (with air exhaust port facing downward).

Install the bolt’s head into the compressor housing’s slot. Tighten the compressor firmly to the vehicle with the

provided lock washer and nut.

AIR LINE INSTALLATION

Connect one side of the airline to the compressor’s air exhaust port and the other side to the trumpet's barbed

fitting.

Do not make any sharp bends or kinks in the tubing which could alter the sound of the horn or even restrict

airflow.

IMPORTANT: Airlines are sometimes already pre-installed. In such situation, ensure that they are inserted

entirely into the fittings on the trumpet and compressor.

ELECTRICAL CONNECTIONS (FACTORY HORN SWITCH)

For vehicles with a two-terminal factory horn, transfer the wires to the compressor’s terminals. If the horn

doesn’t sound even if the compressor motor turns on, simply reverse the wires.

For vehicles with one-terminal factory horns, make sure you transfer the wire to the compressor’s positive (+)

terminal. The negative (-) terminal uses a 16-gauge wire or heavier to connect to ground.

ELECTRICAL CONNECTIONS (NEW HORN BUTTON)

In a dry location, install the relay provided making sure that terminals face downwards near the horn.

Using a 16-gauge wire or heavier, connect PIN 87 of the relay to the positive (+) terminal of the compressor.

Connect PIN 85 of the relay to the horn button (not provided). The other horn button terminal is attached to

any rust and paint free metal to ground. Connect using an 18-gauge wire or heavier.

Connect PIN 30 and 86 of the relay to the battery, alternator or other positive (+) of 12-volts. Make sure the

wire used is a 16-gauge wire or heavier. Use a 20A fuse (not provided) to protect the electrical circuit.

Tabla de contenidos

Otros manuales de Bocina de Vixen Horns

Vixen Horns

Vixen Horns VXO8330/1175C Manual de usuario

Vixen Horns

Vixen Horns VXO8805/4114 Manual de usuario

Vixen Horns

Vixen Horns VXO8350/3114C Manual de usuario

Vixen Horns

Vixen Horns VXO8330/1164Y Manual de usuario

Vixen Horns

Vixen Horns VXH1175C Manual de usuario

Vixen Horns

Vixen Horns VXO8315B/4114B Manual de usuario

Vixen Horns

Vixen Horns VXO4114 Manual de usuario

Vixen Horns

Vixen Horns VXO8560 Manual de usuario

Vixen Horns

Vixen Horns VXO8560/4124C Manual de usuario

Vixen Horns

Vixen Horns VXH6805B Manual de usuario

Vixen Horns

Vixen Horns VXO8350B/3318B Manual de usuario

Vixen Horns

Vixen Horns VXO8805/3118 Manual de usuario

Vixen Horns

Vixen Horns VXO8330B/1167B Manual de usuario

Vixen Horns

Vixen Horns VXO8705/3118 Manual de usuario

Vixen Horns

Vixen Horns VXH3418C Manual de usuario

Vixen Horns

Vixen Horns VXO8330/1264Y Manual de usuario

Vixen Horns

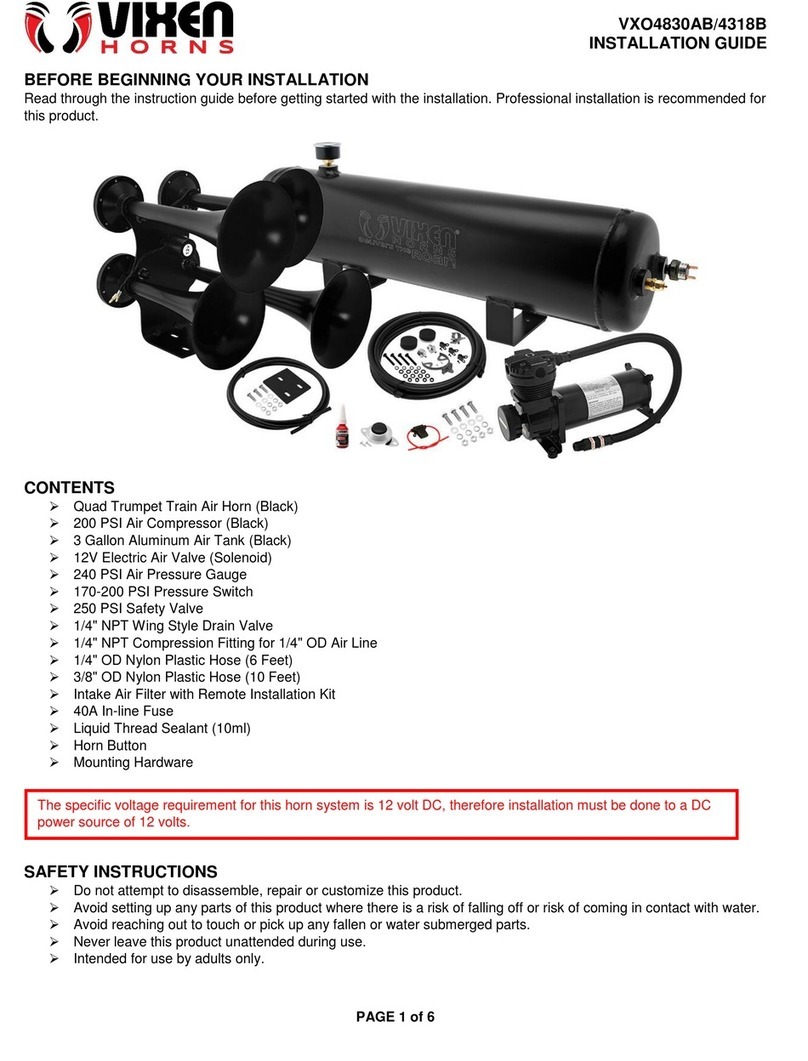

Vixen Horns VXO4830AB Manual de usuario
