Vivotek AE-153 Manual de usuario

VIVOTEK

Installation Guide

AM-117

AM-114

AE-153

473 mm

184

107.86

114.38

34.45

Installation

A pendant head (AM-114) is required.

You can either use standard pendant pipes, AM-116 (20cm) and AM-117 (40cm).

AE-153 Installation Guide

(Weather-proof Housing and Bracket for

SC8131)

QIG part no.: 625044900G

VIVOTEK

2 - Installation Guide

1. Determine a hard surface ceiling location, and use the included alignment sticker for

marking three mounting holes as where the holes will be drilled to secure the pendant

head.

2. Hammer in the plastic anchors.

Installing the Pendant Head and Pendant Pipe

n 50.8

200

1 1/2" PS11

n 50.8

400

1 1/2" PS11

AM-116, AM-117 Mechanical Drawings

VIVOTEK

Installation Guide

3. Secure the pandant head using the included screws.

4. Install the pendant pipe of a preferred length.

5. Tighten the socket hex screw using the hex wrench.

6. Install the AE-153 top bracket.

7. Secure the installation by tightening the socket hex screw.

AM-114

AM-117

AE-153

8. Prepare the AE-153 bracket components. The components are shown below:

SC8131

Slide bracket

Housing

Cable gland

Side cover

Thermal pads

This side with a

model name tag.

The default camera

front side.

VIVOTEK

4 - Installation Guide

9. Route a CAT5e Ethernet cable through the pendant pipe, and install the cable gland

components to the Ethernet cable.

4.3 ~ 6.4mm

Sliding edge towards

the clamp head.

10. Remove the side cover from the side with a name tag, and remove slide bracket from

the chassis.

Slide bracket

Model name tag.

11. Remove two retention screws from the back of camera.

VIVOTEK

Installation Guide

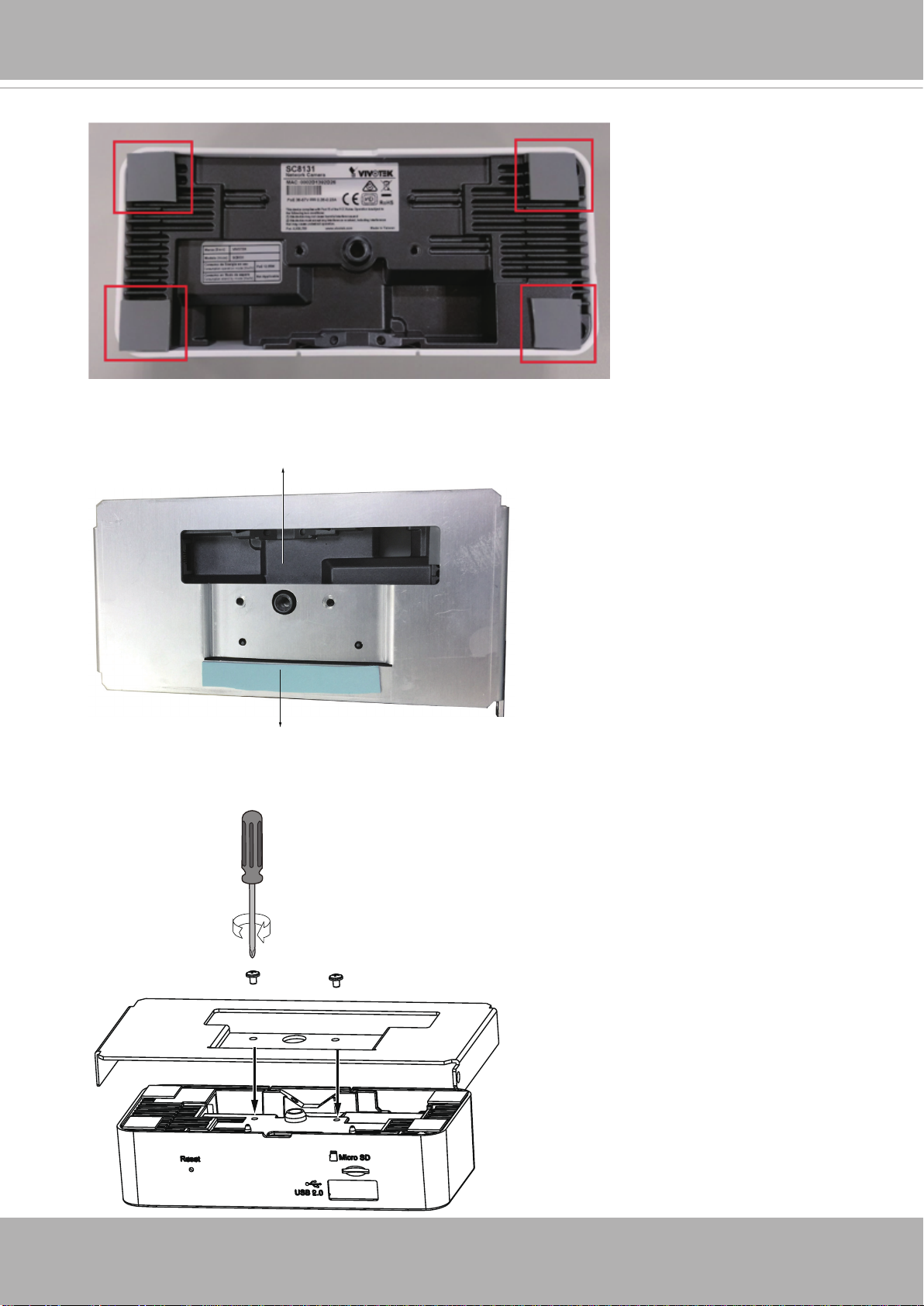

12. Attach 4 thermal pads to the 4 corners on the back of the SC8131 camera.

13. Place the slide bracket on top of the camera. The opening should provide access to the

indented area on the back of the camera. Make sure another long piece of thermal pad

is properly installed on the slide bracket.

Indented area

Thermal pad

14. Secure the slide bracket to camera using 2 M3 screws.

VIVOTEK

6 - Installation Guide

15. You can install the waterproof cable gland to chassis. Leave some of the Ethernet

cable at the outside of the chassis for making the connection. Do not completely tighten

the cable gland yet.

17. Connect the Ethernet connector to the camera's RJ45 socket. When done, slide the

camera into the chassis by aligning with the grooves within the chassis.

16. Before you install the camera into

chassis, remove the protective sheet from

the camera.

VIVOTEK

Installation Guide

18. Secure the slide bracket by driving an M3 screw.

19. Tighten up the cable gland, adjust the cable length, and install the side cover.

20. Secure the chassis to bracket by driving 4 M3 screws.

VIVOTEK

8 - Installation Guide

22. Remove the protective sheet from the bottom of the chassis.

21. Loosen the hex socket crew and adjust the orientation, the shooting angle, or the tilt

angle if necessary.
