Vivo CART-PC02HB Manual de usuario

Black 24” Mobile Computer Workstation

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/cart-pc02hb

SKU: CART-PC02HB

[email protected]om www.vivo-us. 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

A(x1)

Desktop

B(x1)

Base

C (x1)

Pole with

Handle

D (x1)

Keyboard

Shelf

E(x1)

Printer

Shelf

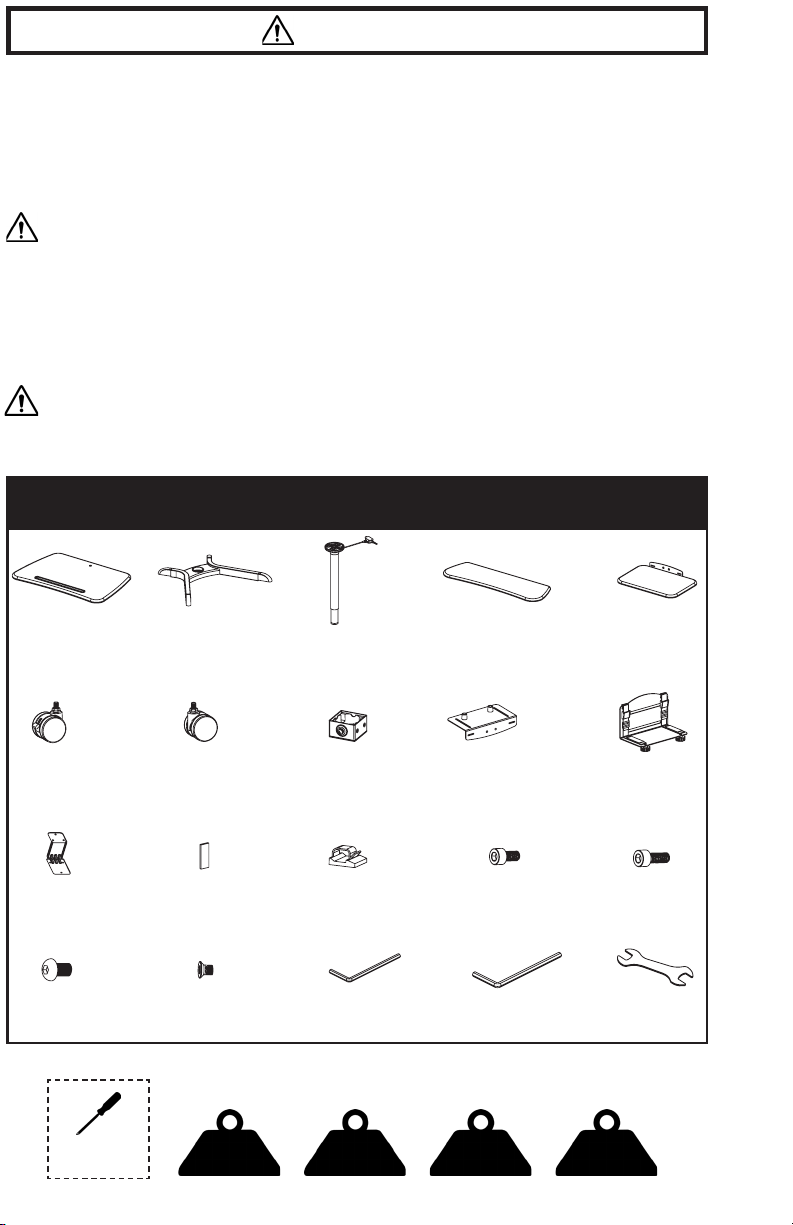

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF CART.

• USE TIPOVER RESTRAINT OR ANCHOR CART TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

TOOLS NEEDED

Phillips

Screwdriver

F(x2)

Caster

G(x2)

Locking

Caster

H (x1)

Lower Shelf

Bracket

I (x1)

CPU Holder

Mount

J(x1)

CPU Holder

K(x2)

Keyboard

Shelf Bracket

L(x4)

Adhesive Pad

M (x2)

Cable Clip

N (x3)

M6x12

Cheesehead

Bolt

O(x4)

M6x16

Cheesehead Bolt

P(x14)

M6x12 Panhead

Bolt

Q(x4)

M6x8

Flathead Bolt

R (x1)

4mm Allen

Wrench

S (x1)

5mm Allen

Wrench

T(x1)

Wrench

22 lbs

(10 kg)

Per Tray

17.5 lbs

(8 kg)

Worksurface

4.4 lbs

(2 kg)

Keyboard

Platform

22 lbs

(10 kg)

CPU Mount

ASSEMBLY STEPS

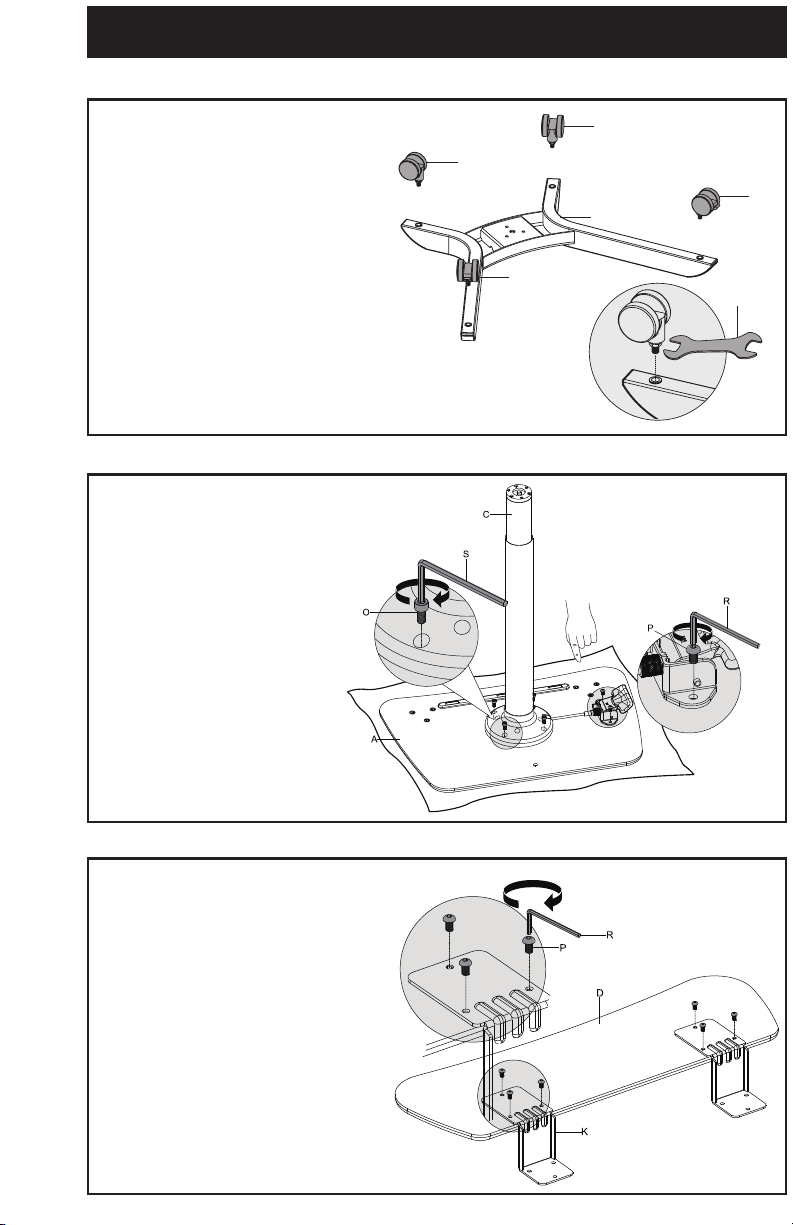

STEP 1

Screw the casters (F, G) into the base

(B). Adjust casters to sit level on the

floor if needed, then tighten the nut

on each stem against the base using

the wrench (T).

STEP 2

Assemble the pole with handle(C) to the

desktop (A) using four M6x12 cheesehead

bolts (O) for the pole and two M6x12

panhead bolts (P) for the handle.

Tighten bolts with Allen wrenches (R, S).

STEP 3

Assemble keyboard shelf brackets

(K) to keyboard shelf (D) using

M6x12 panhead bolts (P) and tighten

with the 4mm Allen wrench (R).

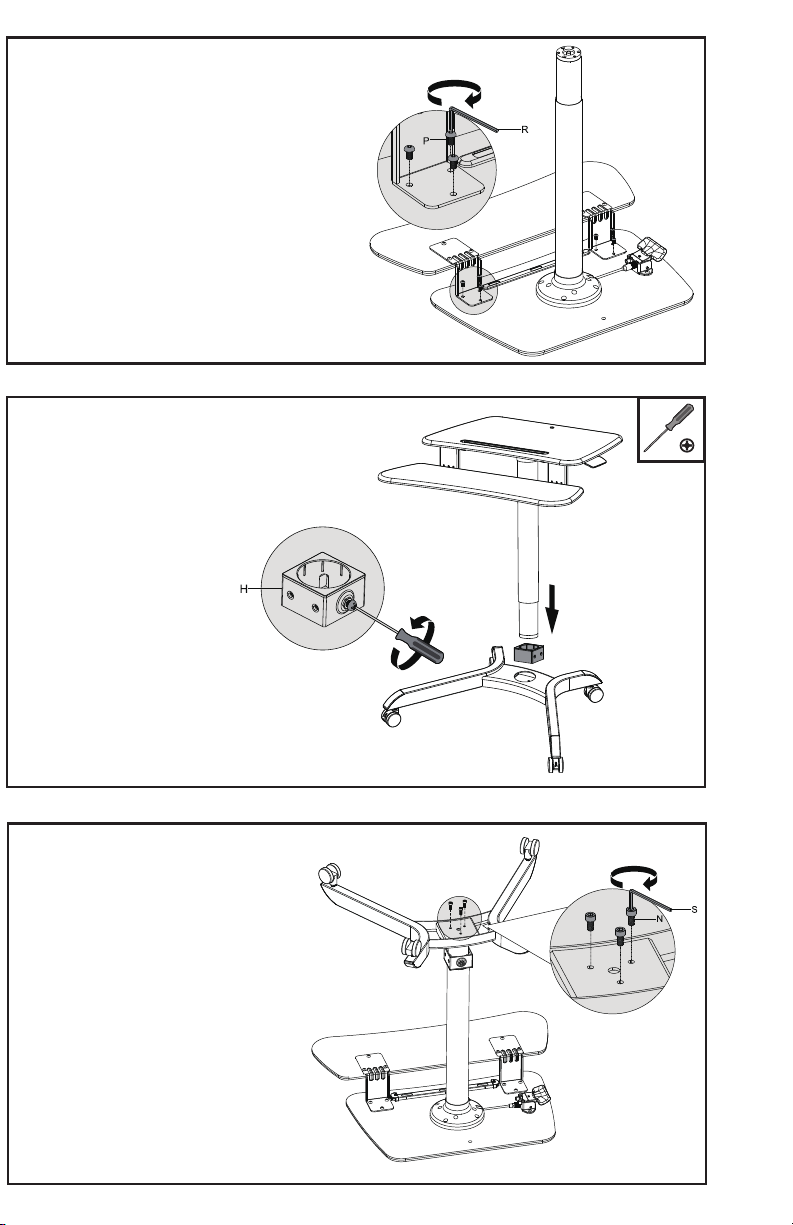

STEP 4

Attach assembled keyboard shelf to desktop

using M6x12 panhead bolts (P) and tighten with

the 4mm Allen wrench (R).

Loosen the screw on the lower shelf bracket (H)

using a Phillips screwdriver. Slide the bracket

onto the bottom of the pole, then place the pole

into the base.

STEP 5

Secure the base to the pole using

M6x12 cheesehead bolts (N) and

tighten with the 5mm Allen wrench (S).

STEP 6

STEP 7

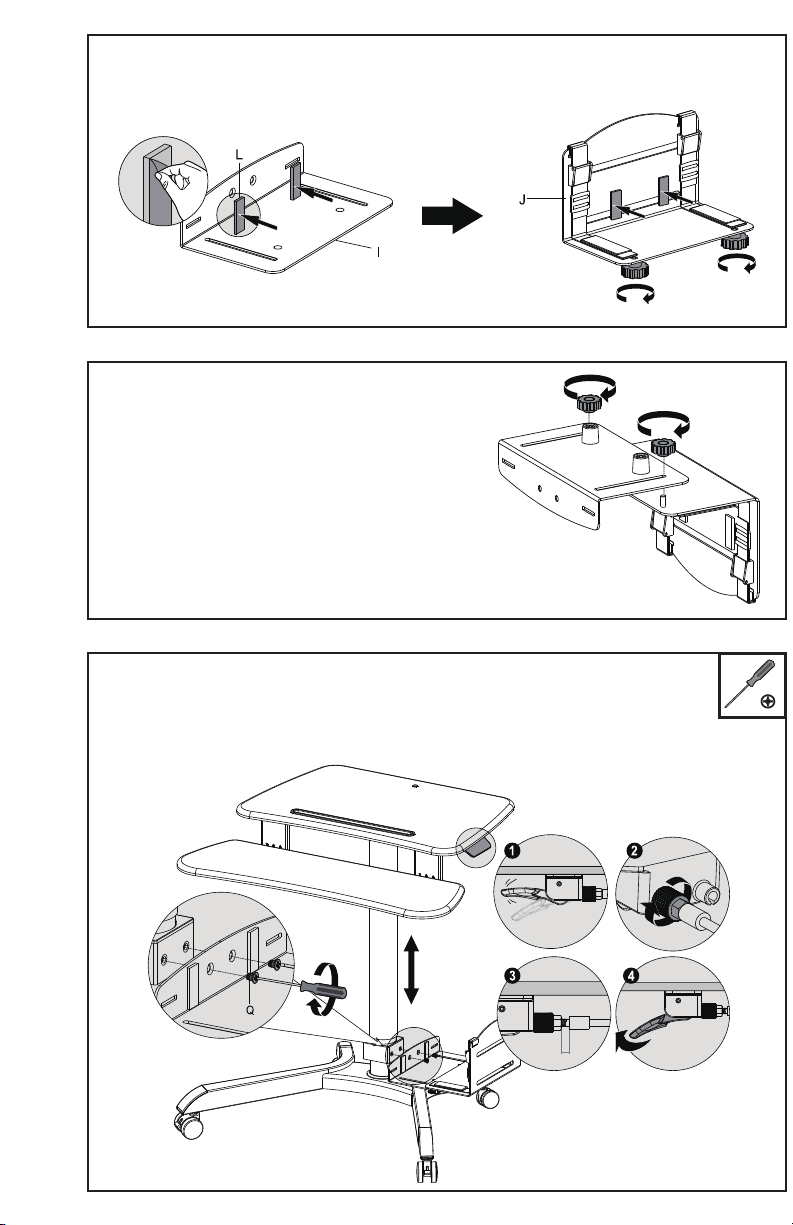

Peel backing from the adhesive pads (L) and apply pads to CPU holder mount (I) and CPU

holder (J). Remove knobs from the CPU holder.

Attach assembled CPU holder to le or right side of lower shelf bracket (H) using

two M6x8 flathead bolts (Q) with a Phillips screwdriver. If needed, adjust the

handle by turning the knob on the back of the handle as shown. The handle

should have a firm feeling with little or no slop.

STEP 9

STEP 8

Assemble CPU holder and CPU holder

mount using previously removed knobs.

STEP 10

Attach printer shelf (E) to lower shelf bracket (H) opposite from the CPU holder

using two M6x8 flathead bolts (Q) with a Phillips screwdriver. Slide CPU holder

and shelf assembly down so the bumpers are resting on the base, and tighten the

screw on the shelf bracket using a Phillips screwdriver.

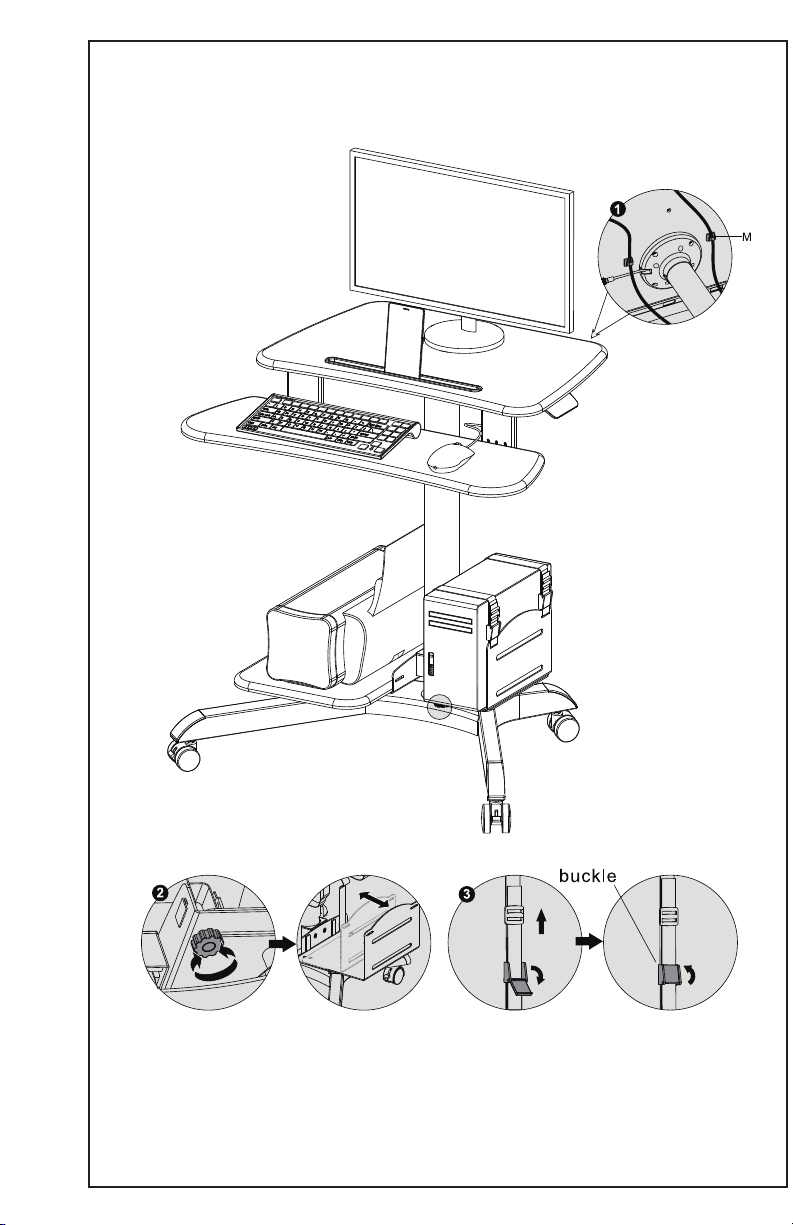

STEP 11

Thread straps of the CPU holder through slots on the CPU holder mount and turn ends of

straps to form a “T”, locking the straps into the slots.

Place monitor, keyboard and other items onto desk. Apply cable clips (M) where desired to

manage wires from keyboard and mouse.

STEP 12

Loosen knobs on CPU holder, adjust holder width to fit CPU tower, then tighten. Unlock

buckles on straps and extend straps. Place CPU tower in holder, pull straps tight around

CPU tower, then lock the buckles.

To prevent movement, press levers on the locking casters down. Pull levers up to allow

movement.

LAST UPDATED: 04/27/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
