Vivo MOUNT-MS01B Manual de usuario
Wooden Clamp-on Mouse Pad
Instruction Manual
SKU: MOUNT-MS01B
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-ms01b
2
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a
qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may
cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do
not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly
or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Phillips
Screwdriver
TOOLS NEEDED
WARNING!
PACKAGE CONTENTS
A (x1)
Mouse Pad
B(x1)
Lower Clamp
S-C (x1)
14.5mm Washer
C (x1)
Upper Clamp
S-D (x1)
14.5mm
Plastic Washer
S-E (x1)
10.2mm
Plastic Washer
S-F (x1)
10.2mm Washer
D (x1)
Clamp Screw
S-G (x1)
5.2mm Washer
S-H (x1)
6.5mm Washer
S-A (x2)
M6x7 Screw
S-B (x1)
M5x12 Screw
E (x1)
Clamp Plate
2.2lbs
(1kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
3

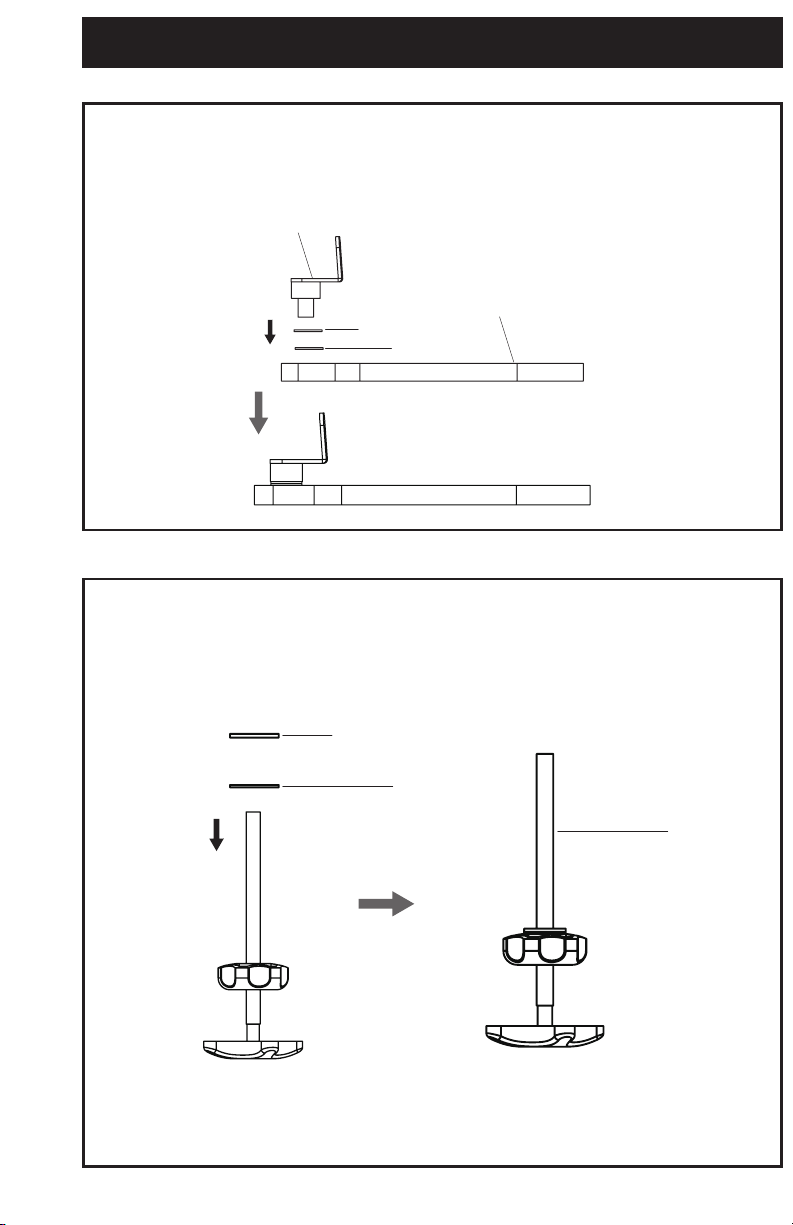

STEP 2
Place 10.2mm Washer (S-F) and 10.2mm Plastic Washer (S-E) onto Clamp Screw (D).
STEP 1
Insert Lower Clamp (B) with 14.5mm Washer (S-C) and 14.5mm Plastic Washer (S-D) into Mouse Pad
(A).
ASSEMBLY STEPS
B
S-C
S-D
A
S-E
S-F
D
4
STEP 4
STEP 3
D
E
S-B
S-G
S-H
Insert Clamp Screw (D) into Mouse Pad (A).
Place 6.5mm Washer (S-H), Clamp Plate (E), and 5.2mm Washer (S-G) onto Clamp Screw (D) and
secure using M5x12 Screw (S-B) and a phillips screwdriver.
D
5
STEP 5
S-A
C
Secure Upper Clamp (C) to clamp assembly using M6x7 Screws (S-A) and a phillips screwdriver.
6
STEP 6
Aer the clamp is attached, tighten the thumb nut against the bottom of Mouse Pad (A).
NOTE: Adjusting the tightness of the thumb nut will change the resistance when rotating the mouse
pad.
Thumb Nut
7
STEP 7
When not in use, Mouse Pad (A) can be rotated under the desktop for storage.
A
LAST UPDATED: 07/01/2021
REV 1.0
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
