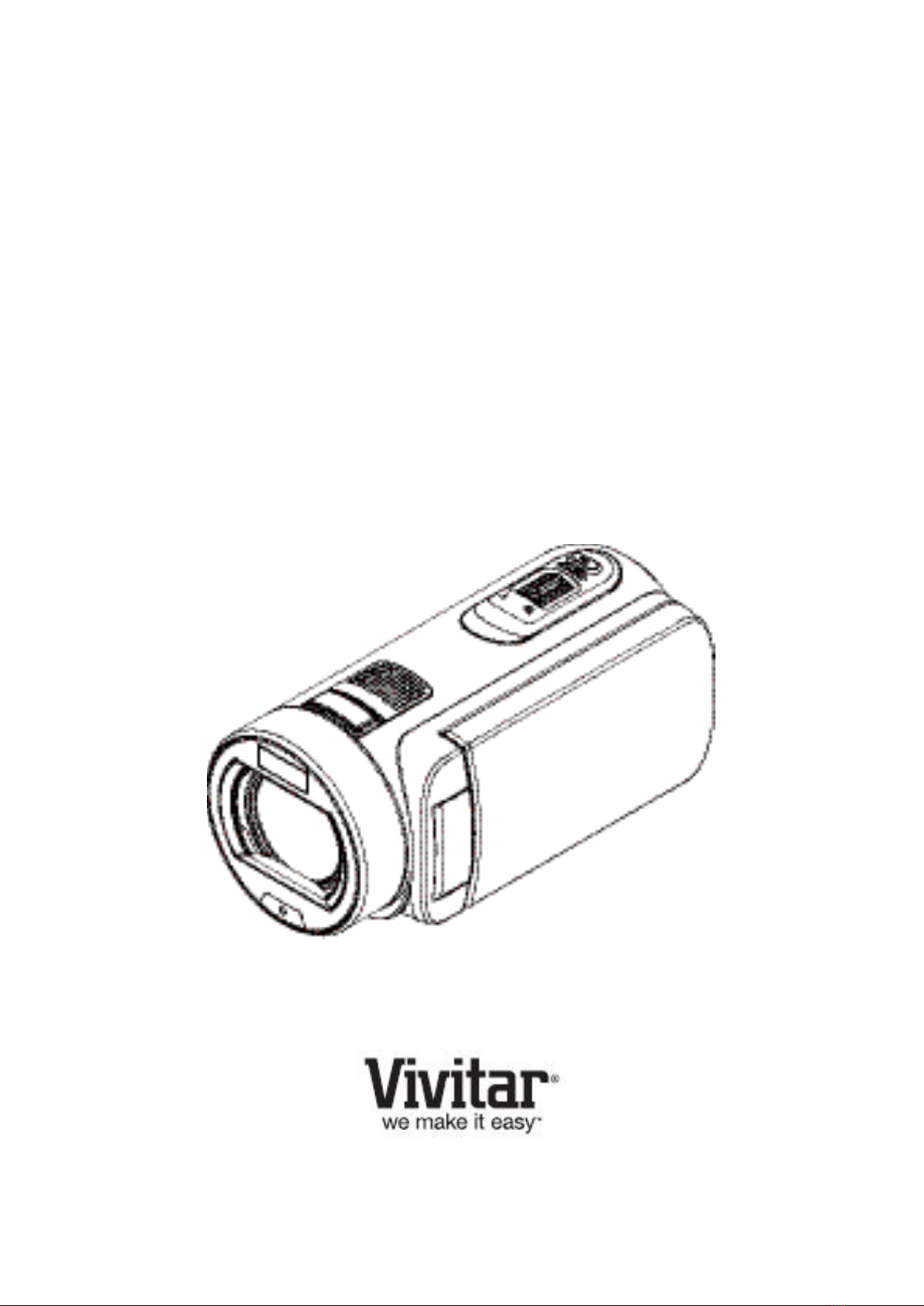

Vivitar 990HD Manual de usuario

High Denition

Digital Video Camera

990HD

User’s Manual

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

Read This Before Using the Camera

SAFETY INSTRUCTIONS

• Donotdrop,punctureordisassemblethecamera.

• Usethecamerawithcare.Roughhandlingmaydamagetheinternalcomponents.

• Donotexposethecameratohightemperature.Avoidcontactwithwater.

• Pleasenoticethatthecamerabodymaybecomewarmwhenoperatingitforanextendedperiod.

• Testforproperoperationbeforeusingthecamera.

• Onlyuseaccessoriessuppliedbythemanufacturer.

• Useonlythetypeofbatterythatcamewithyourcamera.

• Removethebatteryifthecameraisnotgoingtobeusedforlongperiods.

Product Information

• Designsandspecicationsofthecameraaresubjecttochangewithoutnotice.Thisincludesprimary

productspecications,software,andthisUser’sManual.

• ThisUser’sManualisageneralreferenceguideforthecamera.

• Theillustrationsinthismanualmaynotbethesameastheactualdesignofyourcameraandthose

youseeontheLCDscreen.

Contents

Read This Before Using the Camera ................................................... 2

Section 1 Getting to Know Your Camera........................................... 4

Section 2 Getting Started.................................................................... 7

Section 3 Enjoying the Record Mode ................................................ 9

Section 4 Enjoying the Playback Mode........................................... 21

Section 5 Setting Your Camera ....................................................... 26

Section 6 Viewing Photos and Videos on TV.................................. 30

Section 7 Using the Software........................................................... 31

Section 8 Transferring Media ........................................................... 34

Section 9 Sakar Warranty Card ........................................................ 35

Section 10 Technical Support ............................................................ 37

Section 11 Specications and System Requirements ..................... 36

Section 12 Troubleshooting ............................................................... 38

Section 1

Getting to Know Your Camera

Overview

Thecameraisequippedwitha5Mega Pixel sensor that can take H.264 format videos.TheH.264

technologyallowsforextandedvideorecordingwithlessmemory.Highqualityimagesupto16mega-

pixelscanalsobedeliveredsmoothly.WithacolorLCDmonitor,youcanviewandexaminethevideos

andphotoseasily.

The camera features 3” (16:9) LCD touch panel which is an ideal platform for you to operate your

camera.Themenuoptionsareaccessiblewithyournger.Withthetouchpanel,youcanselect the

optionsdirectlyandquickly.

ThecameraalsofeaturesvideorecordingatanHDresolutionof1920x1080.Youcanalsoconnectitto

anHDTVviaanHDMIcable,andeasilyplaybacktherecordedhigh-denitionvideosonthewidescreen

HDTV.

Moreover, the CD included with the camera has an advanced uploading feature. With the exclusive

Vivitar Experience Image Managerapplication,youcanuploadvideosandphotoscapturedbythe

cameratoonlinesocialnetworksiteseffortlessly.

ISO sensitivity and color balance can either be adjusted automatically or changed manually.A 23 x

Opticalzoomhelpsyoutocontroloverthevideosandphotosyoutake.

Thevariedeffectoptions,suchasTimeLapseandSlowMotion,makerecordingmorefun.

Thebuilt-inmemoryallowsyoutotakephotosandtorecordvideoswithoutamemorycard.Thememory

cardslotallowsuserstoincreasethestoragecapacity.

Note

• Partialmemoryofthebuilt-inmemoryisusedforthecamera’sFirmwarecodeandsoftware.

• Install the bundled software application on the CD, Vivitar Experience Image Manager, for

viewingthevideosandphotosonaPC.

Standard Accessories

Unpackthepackageandmakesureallstandardaccessorieslistedareincluded:

• Camera

• USBCable

• AVCable

• HDMICable

• Adaptor

• Lithium-ionRechargeableBattery

• CameraEasyGuide

• CD-ROM(Software,User’sManual)

• Pouch

• LensCoverSet(LenscoverandStrap)

Front View

Rear View

Lens

Microphone

Photo Button

Tele/Wide Button

Flash

Self-timer LED

LCD Touch Panel

HDMI Port

Mini USB 2.0 Port

Video Button

TV Port

Record LED

Indicator

Playback LED

Indicator

Side View

Bottom View

Speaker

Power Button

Playback Button

Stabilization ButtonDigital Light Button

Pause Button

Tripod Socket Battery/SD card Cover

Section 2

Getting Started

Loading the Battery

Beforeusingthecamera,youmustloadtheLithium-ion

rechargeablebatterycomewithinthepackage.

1.Insert the battery according to the correct polarity marks

(+or-).

2.Closethebatterycoverrmly.

Charging the Battery

YoumustusethesuppliedACchargerortheUSBcable.Thecameramustbe

turnedOFF.Theblinkinglightconrmsthecameraiscurrentlycharging,and

thelightbecomesconstantafterthechargingiscompleted.InACcharging

Mode,thelightwillturnitselfoffautomatically after 3~5 minutes .Thefull

chargetimeisabout4to5hours.(Actualchargingtimemayvary.Itdepends

onthebatteryconditions.)

Inserting and Removing an SD Card (Optional)

Thecameracomeswithaninternalmemorythatallowsyoutostore

photosandvideos.Youcanexpandthememorycapacitybyusingan

optionalSDmemorycard.

1.Insertthememorycardintotheslot.Pleaserefertothegureon

therightside.

2.ToremovetheinstalledSDcard,pressthecardinwardtorelease

it.

3.Whenthecardpopsout,gentlyremoveitfromitsslot.

4.Recommendedmemorycapacity:1GBorabove.

Note

• When a memory card is tted, videos/photos are saved to the card rather than the built-in

memory.

• ProtectingDataonanSDCard:SDCardisread-only

whenitislocked.Nophotosorvideoscanberecorded

whentheSDcardislocked.Makesurethelockison

thewriteablepositionbeforerecordinganymedia.

Writeable

position

Write-Protected

Position

Turning the Camera On

• Toturnonthecamera:

1. FlipouttheLCDpanel;thecamerawillturnonautomatically.

2. Orpress[PowerButton]forapproximatelyonesecondtoturniton.

Conguring the Initial Date and Time Setup

• Thetimesettingscreenappearstoallowyoutosetupdateandtime:

Operation Display Screen

1. TouchYear,Month,Day,Hour,Minute,andAM/PMtoset.

2. Adjustthenumericvaluebytouching /

3. Touchthe[OK]icontovalidatethesetting.

4. TouchtheExiticon()toexit.

Getting Started

• Torecordvideo:Press[VideoButton]torecordvideo.Tostoprecording,pressitagain.

• To pause recording: Press [Pause Button] to pause recording. To continue the recording, press it

again.

• Totakeaphotoduringvideorecording:Whenrecordingvideo,press[PhotoButton]tocapturethe

image.TheDualrecordicon( )appearsontheLCDmonitor.

• Totakeaphoto:Press[PhotoButton]halfwaydownuntilthefocusingframeturnsfromwhitetogreen.

Then,pressitfullydowntotakephoto.



FocusingFrame:White FocusingFrame:Green

• Toviewstoredvideosandphotos:Press[PlaybackButton]ortouch onthescreentoswitchto

thePlaybackmode.

Turning the Camera Off

• Toturnoffthecamera:Youcaneitherpress[PowerButton]foronesecond,oryoucanplacetheLCD

panelbacktoitsoriginalposition.

Section 3

Enjoying the Record Mode

Button Function

Video Button:

1.Presstotakevideo.

2.Tostoprecording,pressitagain.

Photo Button:

1. Presstotakephoto.

2. Whenrecordingvideo,presstocapturetheimage.

Tele Button:

1.ZoomIn.

Wide Button

1.Zoomout.

Power Button:

1. Pressdownforonesecondtoturnonorturnoffthecamera.

Playback Button:

1.SwitchbetweenRecord/PlaybackMode.

2.Forquickreview,pressitafterrecording.

Pause Button:

1. Presstopausetherecording.

2. Tocontinuetherecording,pressitagain.

Digital Light Button:

DigitalLightOn/Off.

Stabilization Button:

StabilizationOn/Off.

LCD Monitor Information

TheindicatorsshownbelowmaydisplayonLCDwhenvideosandphotosarerecorded:

(1)

VideoResolution

FullHD(1080p30fps)

HD(720p60fps)

HD(720p30fps)

VGA(640X480)

SlowMotion(Recordvideoat432x240(QVGA)resolution.)

PhotoResolution

16MP

5MP

3MP

(2)

Recordingtimeofthevideothatcanstillbetakenatcurrent

resolution

Numberofimagesthatcanstillbetakenatcurrentresolution

(3)

Self-timerenabled

DualRecord

(4) PlaybackModeOn

(5) MenuOn

(6) InformationbarOn

(7) SDCardInserted
