Chapter 1
Introduction
Thank you for choosing the B-Station1. The B-Station1 is a solid-state con-
troller designed for two purposes.
Firstly, for remote-controlling a lighting system like CueCore or CueluxPro. The
buttons can be freely assigned to any function in the lighting controller, e.g.
select a cue or start/stop a show. Because the B-Station1 uses communication
protocols that are open (in the public domain) such as UDP and OSC, it can
also be used for controlling third-party equipment like show-controllers, lighting
consoles, media servers or audio devices.
Furthermore, the B-Station1 is designed as a standalone lighting control system
for small lighting setups like LED or architectural projects. It can control up
to 32 individual DMX fixtures and supports 6 cue-lists with each 128 cues. It
even features a dynamic FX-generator.
An internal web-server provides the web-interface through which you can pro-
gram the B-Station1. A modern browser is required to access this web-interface
during set-up. A browser or computer is not required for standalone use after
the initial set-up.
At the time of writing this manual the B-Station1’s firmware was at version
1.33.
The B-Station1 is end-of-life and is not recommended for new designs. It has
been superseded by B-Station2.
This manual discusses setting up and programming the unit. Chapter 2 provides
background information on the communication protocols used the B-Station1.
Chapters 4 and 5 cover how to set up the unit and configure the network con-
nection.
When the B-Station is just used for controlling external equipment then the
chapters 6 and 7 can be ignored. Setting up this functionality is done in the 8
chapter discussed on page 26.
Setting up the B-Station1 for stand-alone lighting control will involve the fol-
lowing steps:
6
Figure 1.1: B-Station1
•Patching fixtures (discussed in chapter 6)
•Creating cues (discussed in chapter 7)
•Assigning buttons to trigger the cues (discussed in chapter 8)
1.1 Features
The feature set of the B-Station1 includes:
•6 user-assignable push-buttons
•PWM controlled white LEDs
•Ethernet based, supporting protocols like UDP, OSC and Art-Net
•DMX-512 output
•Web-based user-interface for programming
•Standalone control for 6 zones, 32 fixtures and 768 cues
•Standalone FX-generator
•PoE (Power Over Ethernet) Class I
•Compatible with CueCore, QuadCore and IoCore
•Bundled with CueluxPro, vManager and Kiosc software
1.2 What’s in the box?
The B-Station1 packaging contains the following items (see figure 1.2):
•Info card
7
•B-Station1
•4 label sheets
Figure 1.2: B-Station1 box contents
1.3 Saving data to memory
This manual will describe how to configure the B-Station1 and program cuelists,
action, etc. The unit’s web-interface is used for editing these kinds of elements.
When changes are made, these changes are directly stored in the RAM memory
of the B-Station1 and the programming will directly influence the behaviour of
the unit. RAM memory is, however, volatile and its content will be lost through
a power cycle. For this reason the B-Station1 will copy any changes in the RAM
memory to its onboard flash memory. Flash memory retains its data even when
not powered. The B-Station1 will load all its data back from the flash memory
upon startup.
This memory copy process is conducted automatically by the B-Station1 and
should not be of any concern of the user. One point of consideration is, however,
that after making a change the unit should be given time to perform the copy to
flash. As a rule of thumb, do not disconnect the power from the device within
30 seconds from making a programming change.
1.4 Further Help
If, after reading this manual, you have further questions then please consult
the online forum at http://forum.visualproductions.nl for more technical
support.
8
Chapter 2
Protocols
The B-Station1 is fitted with several communication ports and supports various
protocols. This chapter describes these protocols and to which extent they are
implemented in the B-Station1
2.1 DMX-512
DMX-512 is the standard communication protocol for stage lighting. Its official
name is E1.11-2008 USITT DMX512-A. Nowadays the reach of the DMX proto-
col has extended beyond entertainment lighting and is also used for architectural
lighting. Originally one DMX network contained 512 channels which is called a
’universe’. With the growing size and complexity of lighting systems it is now
very common for a system to compose of multiple universes, each conveying 512
channels. It is advised to use a shielded twisted pair cable for DMX cabling.
The cable should be terminated with an 120 Ohm resistor.
DMX-512 is a very successful protocol with, however, a few limitations. The
maximum number of attached devices is limited to 32 and they all have to be
connected in bus-topology having one cable running via each device. Further-
more, a DMX-512 cable should not be longer than 300 meters.
The DIN Rail RdmSplitter from Visual Productions (See figure 2.1) helps tackle
those inconvenient limitations. The Splitter takes a DMX signal and sends it
out again on its 6 DMX output ports for scaling group topology. Each output
port is capable of driving 32 more devices. The Splitter can also function as a
signal booster as each port supports another 300 meter long connection.
The B-Station1 has one DMX port and is therefor able control 512 channels.
9

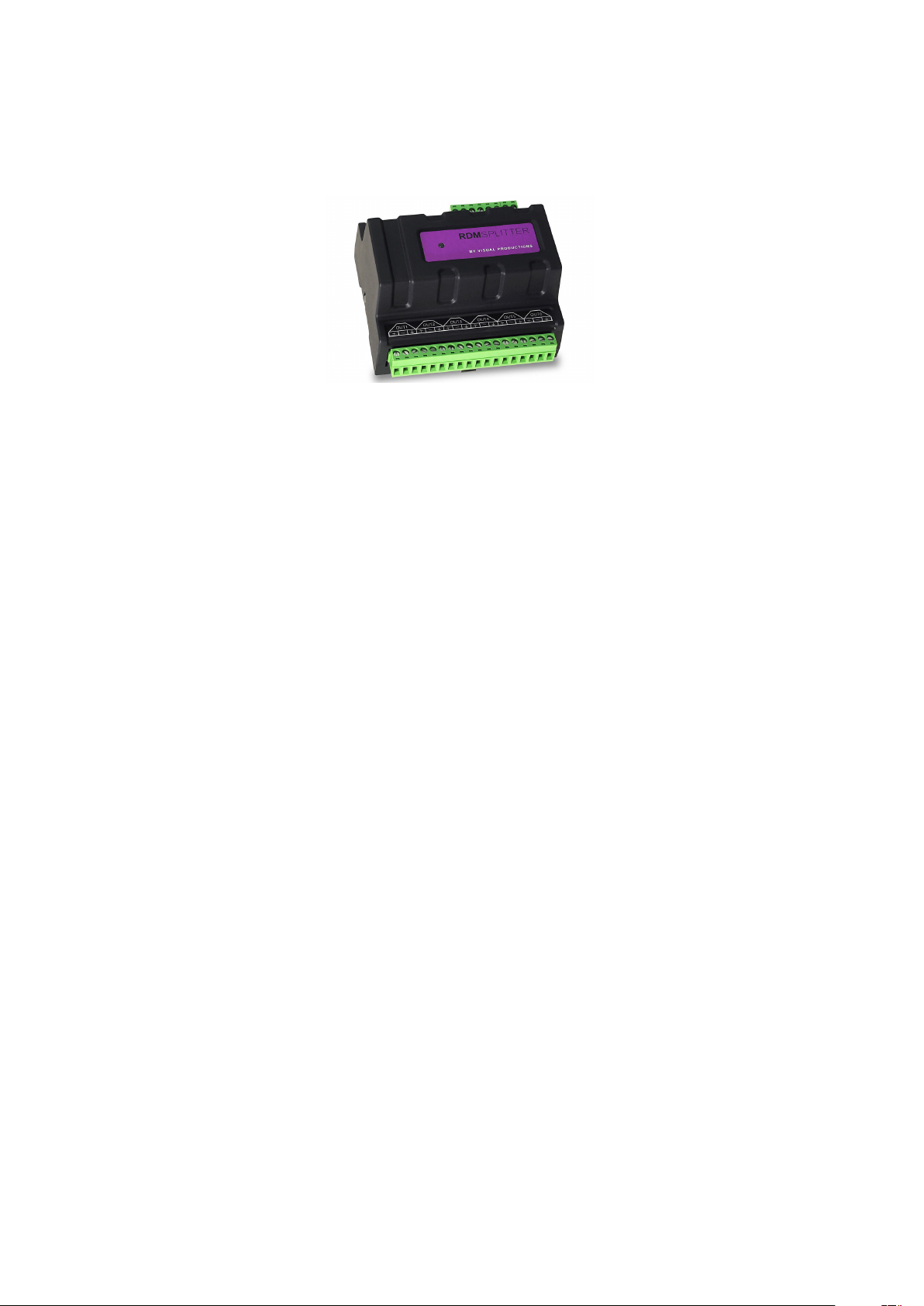

Figure 2.1: Visual Productions’ RdmSplitter
2.2 Art-Net
The Art-Net protocol primarily transfers DMX-512 data over Ethernet. The
high bandwidth of an Ethernet connection allows Art-Net to transfer up to 256
universes.
The data sent out for Art-Net does put a certain load on the network, therefore
it is recommended to disable Art-Net when not in use.
The B-Station1 supports sending and receiving of one universe of Art-Net data.
2.3 UDP
User Datagram Protocol (UDP) is a simple protocol for sending messages across
the network. It is supported by various media devices like video projectors and
Show Controllers. It does not incorporate error checking, therefor it is faster
than TCP but less reliable.
There are two ways how to have the B-Station1 respond to incoming UDP
messages. The API (see page 61) makes typical B-Station1 functions available
through UDP. Furthermore, custom messages can be programmed in the Show
Control page (see page 26). This is also the place where to program outgoing
UDP messages.
2.4 OSC
Open Sound Control (OSC) is a protocol for communicating between software
and various multi-media type devices. OSC uses the network to send and receive
messages, it can contain various information.
There are apps available for creating custom-made user interfaces on iOS (iPod,
iPhone, iPad) and Android. These tools allow to program fool-proof user-
interfaces for controlling the device. E.g. Kiosc from Visual Productions.
10
