Vista Vizion Series Manual de usuario

Vizion DVR & NVR Recorder Range Quick Guide Ver 1.0 2022-11

DVR & NVR NDAA Recorder Range

Before You Begin

Please read this guide before installing or operating the product. You

must have knowledge of CCTV, IT and electrical wiring and products.

Technical Support

If you still have questions after referring to the guide, or require more

information, please contact Vista Technical Support or use the QR code.

Vista Technical Support +44 (0) 118 912 5125

Norbain SD, Inspired, Easthampstead Road,

Bracknell, Berkshire RG12 1YQ

* WARNING: Improper use can cause severe bodily injury or

equipment damage.

This guide is intended for multiple product models. Illustrations and

descriptions, etc may vary from actual appearance.

DVR

VA-DVR0405MP

VA-DVR0805MP

VA-DVR1605MP

NVR

VIP-NVR0408MP

VIP-NVR0808MP

VIP-NVR1608MP

VIP-NVR1612MP

VIP-NVR3212MP

1. Packing List

Please contact Norbain if any items are missing or damaged and note

contents will vary according to each camera model number.

➢Recorder

➢USB Mouse

➢UK mains lead or

PSU*1

➢Rack ears*1

➢Single HDD Data and

Power Lead *2

➢Alarm block

connector

➢This guide

*1Dependant on chassis type.

*2Dependant if recorder supplied without HDDs being fitted

2. Safety & Maintenance Instructions

•Use only correctly rated PSUs supplied with the device.

•Do not use this apparatus near water

•Do not install near any heat sources such as radiators, stoves, or

other apparatus (including amplifiers) that product heat.

•Do not block any ventilation openings.

•Protect the power cord from being walked on or pinched.

•Only use attachments/accessories specified by the manufacturer.

•Unplug this apparatus during lightning storms.

•Refer all servicing to qualified service personnel only. Servicing is

required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid spillage etc.

CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE

BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE

THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY

SERVICING OTHER THAN THAT CONTAINED IN THE

OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED

TO DO SO.

3. Indicators

Refer to the below image and accompanying table for a description of

the front mounted LED indicators*.

*VIP-NVR04 and VA-DVR04 used as an example.

LED

Status

Description

PWR(Power)

Steady on

Connected to power.

RUN(Operation)

Steady on

Normal.

Blinking

Starting up.

NET(Network)

Steady on

Connected to network.

CLOUD

Steady on

Connected to cloud.

HD(Hard disk)

Steady on

No disk; or disk is

abnormal.

Blinking

Reading or writing data.

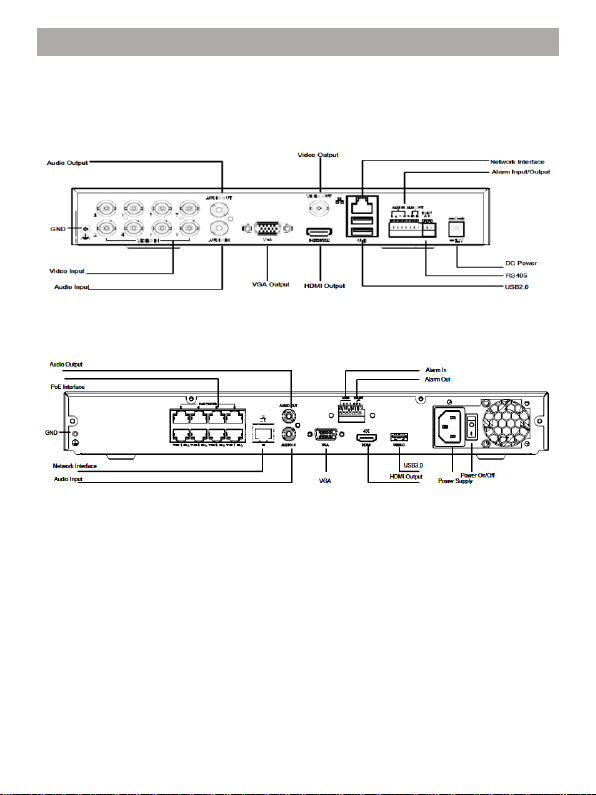

4. Interfaces

Interface identification is provided below via three example recorders.

Your actual unit may therefore vary slightly.

VA-DVR0805MP

VIP-NVR0808MP

VIP-NVR3212MP

5. Disk Installation

Your recorder will normally be specified and provided with the required

HDD storage already installed. However, if adding your own additional

HDDs, please refer to the below section. Images are provided as an

illustration and reference only, as your actual device may vary.

Preparation

•You will require a 1# or 2# Philips screwdriver and pair of

antistatic gloves or a wrist strap.

•Disconnect power before installation.

Insert two rear screws only & screw-in

only halfway!

1 and 2 HDD Chassis

1. Loosen the screws on the rear and side panel (below) then remove

the upper cover.

Rear Panel

Side Panel

2. Insert just the two rear screws in the HDD - those closest to the

power and data connectors as indicated below. Screw them in only

halfway!

3. Offer the HDD into the base of the chassis and engage the two

screwheads into the two keyholes in the bottom of the chassis –

refer to the image of the underside of chassis below.

4. Slide the disk intoplace so the two screwheads move from position

A to the lock position B in the keyholes (below). Now insert and

tighten the two remaining screws into the HDD from the underside of

the chassis and finally tighten the two screws in the keyhole position.

Underside of 2 HDD Chassis

5. Connect the power and data cables to the new HDD.

6. Replace the top cover and tighten the screws.

This completes this part of the procedure. Format the new HDDs once

logged into the recorder.

4 HDD Chassis

1. Loosen the screws on the upper cover and slid it rearwards and

remove (below).

Note: The actual installation procedure for HDDs differs according

to your chassis having either (1.) mounting plate or (2.) disk

bracket. Please refer and go to the relevant section.

Mounting Plate HDD Install

1. Loosen the screws, of the chosen or next free mounting plate, on the

side panels.

2. Turn the upper mounting plate in the direction shown, then remove

the plate.

3. Secure the disks on the mounting plate. Fix the screws according to

the figure below and avoid damaging the disk in the process.

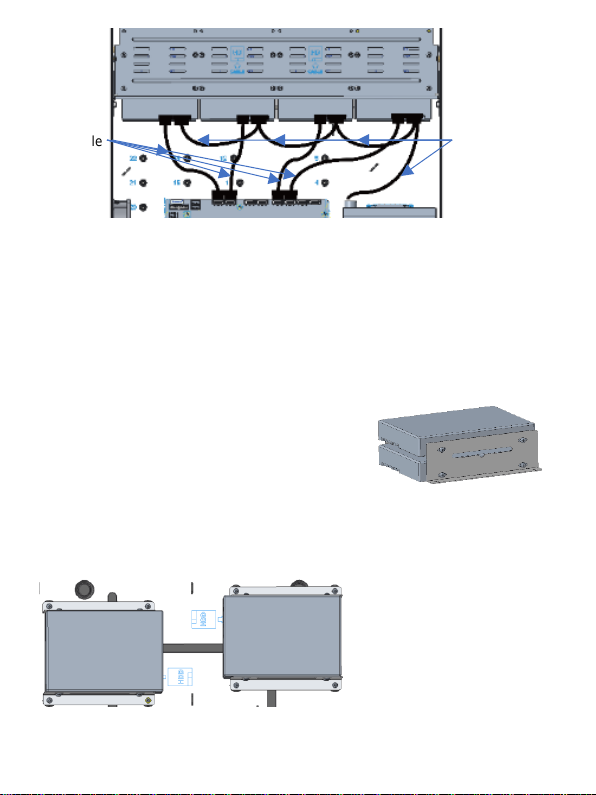

4. Put the mounting plate back in place. Connect power and data

cables as shown below. Repeat the steps to connect all the disks.

Power cable

Data cable

5. Refit cover and secure it as well as the mounting plate screws.

This completes this part of the procedure. Format the new HDDs once

logged into the recorder.

Disk Bracket HDD Install

1. Fasten HDDs to the brackets (right).

2. Fasten the brackets, with the new attached HDDs, to the base of the

chassis (below).
