Viscount Prestige 40 Manual de usuario

viscount

Quick Guide - EN

Ver. UK - 1.0

Prestige 40

K.INV.

POWER EXT.SPK.

TSWS C

SHR 345612

A.P

123456789101112 131415161718192021222324 252527282930313233343536

SWELL ORCHESTRA

Harp Voice

GREATORCHESTRA

Chimes

PEDAL ORCHESTRA

String

PEDAL MAN I MAN II

Prestige 40

bass

Oktav-

Choral-

bass

Bombarde

16' 8'

Trompete Schalmei

Coupler

II/P

Super-

oktave

Spitzflöte

Oktave

Hohlflöte

Prinzipal

16'

Prinzipal

Coupler

I/P

16'

Prinzipal-

bass Subbass

16'

Gedackt

Fagott

16' 8'

Trompete Tremulant Coupler

II / I

Contra

Bourdon

32 4f.

Mixtur

4f.

Mixtur

Kornet

3f. 8'

Prinzipal

gedackt

Rohr-

Gamba Celeste

Vox

Rohrflöte

2/'

Nasard

Blockflöte

1/'

Terz

Zimbel

3f. 8'

Trompete

Oboe Tremulant

SWELL

CRESCENDO

414039 444342

3837

THRU OUT

MIDI

IN L(MONO)

INPUT

R L(MONO)

OUTPUT

HEADPHONES

456

SW/PD

MIDI

SUSTAIN

M.BANK TRANSPOSERSWELL CRESCENDO

viscount

Voice

123

GT/PD TUTTI

SW/GT

Quick Guide - Viscount

Prestige 40

CONTENTS

1. Important notes ........................................................................................................................ 3

1.1 Looking after the product..................................................................................................... 3

1.2 Notes on floppy disks........................................................................................................... 3

1.3 Notes about the manual ....................................................................................................... .4

2. Controls and connections......................................................................................................... 5

2.1 The front panel ..................................................................................................................... 5

2.2 The left side panel ................................................................................................................ 6

2.3 The controls for the manuals thumb pistons ........................................................................ 6

2.4 Pedalboard controls .............................................................................................................. 7

2.5 Connections underneath the manuals................................................................................... 8

2.6 Connections on the rear panel .............................................................................................. 9

3. Central control unit................................................................................................................ 11

4. Organ general settings ........................................................................................................... 14

4.1 Setting the tremulants......................................................................................................... 14

4.2 Selecting the type of reverb................................................................................................15

4.3 General settings for the manuals ........................................................................................ 15

5. Recording and playing back musical performances ........................................................... 17

5.1 Recording a performance ................................................................................................... 17

5.2 Playing back a performance ............................................................................................... 18

6. Voice local off .......................................................................................................................... 19

7. Factory Setting........................................................................................................................ 19

Viscount - Quick Guide

Prestige 40

Quick Guide - Viscount

Prestige 40

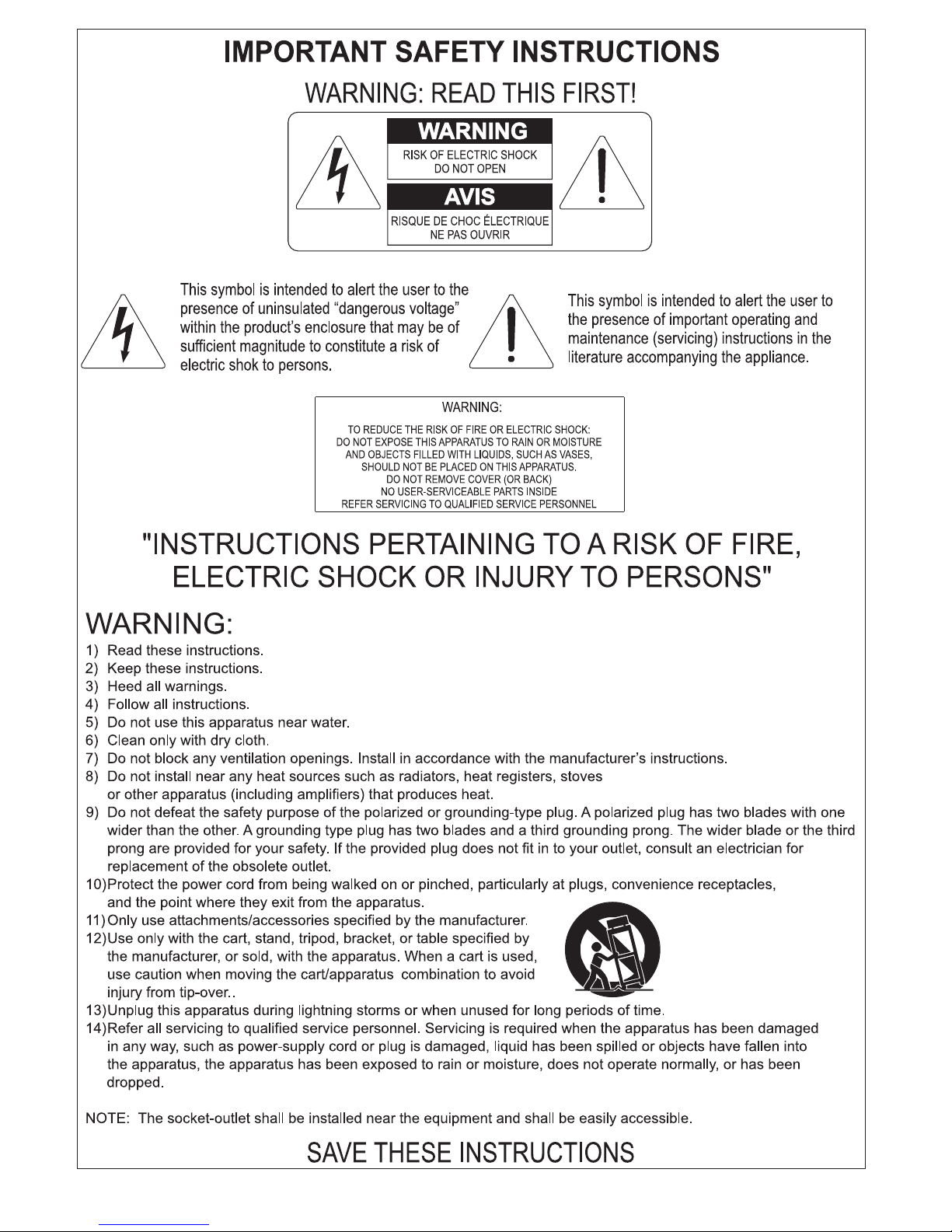

1. IMPORTANT NOTES

1.1 LOOKINGAFTER THE PRODUCT

•Do not apply excessive force to the organ’s structures or the controls (knobs, stops, push-

buttons, etc.).

•When possible, do not place the instrument close to units which generate strong interference,

such as radios, TVs, computer videos, etc.

•Do not place the organ close to heat sources, in damp or dusty places or in the vicinity of strong

magnetic fields.

•Do not expose the instrument to direct sunlight.

•Never insert foreign bodies inside the instrument or pour liquids of any kind into it.

•For cleaning, use only a soft brush or compressed air; never use detergents, solvents or alcohol.

•Always use good quality screened cables for connection to amplification or diffusion systems.

When disconnecting cables from sockets, always take hold of the connector and not the cable

itself; when winding cables, do not knot or twist them.

•Before making the connections ensure that the other units (especially amplification and diffusion

systems) you are about to connect are switched off. This will prevent noisy or even dangerous

signal peaks.

•If the organ is to be out of use for lengthy periods, disconnect the plug from the power socket.

1.2 NOTES ON FLOPPY DISKS

•Use only good quality floppy disks.

•Do not extract the floppy disk when reading or writing operations are in progress (when the

LED on the drive is on); this may damage the head and the magnetic medium.

•Use only 3.5" DD and HD (720Kbyte and 1.44Mbyte) floppy disks formatted to the MS-DOS

standard.

•Take good care of your floppy disks and do not place them close to heat sources or magnetic

fields (computer videos, loudspeakers, etc.), or in damp or dusty places.

•The manufacturer does not accept any liability for damage to the floppy disk drive in case of

use of damaged floppy disks.

Viscount - Quick Guide

Prestige 40

1.3 NOTES ABOUT THE MANUAL

•Take good care of this manual.

•This manual is an integral part of the instrument. The descriptions and illustrations in this

publication are not binding.

•While the instrument’s essential characteristics remain the same, the manufacturer reserves the

rightto make any modifications toparts, details oraccessories considered appropriateto improve

the product or for requirements of a constructional or commercial nature, at any time and without

undertaking to update this publication immediately.

manufacturer’s specific written permission is forbidden.

•All the trademarks referred to in this manual are the property of the respective manufacturers.

•Please read all the information carefully, sothat you obtain the best performance and will from

your instrument.

•The codes or numbers in square brackets ([]) indicate the names of the buttons, sliders, trimmers

and connectors on the instrument. For example, [ENTER] refers to the ENTER button.

•The illustrations and display pages are purely guideline and may differ from those actually

shown on the display.

Quick Guide - Viscount

Prestige 40

2. CONTROLS AND CONNECTIONS

2.1 THE FRONT PANEL

1 2 3

1. [PEDAL] stops: this section contains the voices of the pedal board and the couplers.

o[Great to Pedal]: the voices of the Great will also play on the pedal board.

o[Swell to Pedal]: the voices of Swell will also play on the pedal board.

2. [SWELL] stops: these stops can be used to activate the voices of Swell on and off.

3. [GREAT] stops: this section contains the stops of the Great as well as the coupler:

o[Swell to Great]: the voices of Swell will also play on the Great

K. INV.

M. BANK TRANSPOSERSWELL CRESCENDO

4 5 7 8

4. [SWELL] LED bar: shows the position of the [SWELL]

expression pedal.

5. [CRESCENDO] LED bar: these LEDs display the step

of the Crescendo currently set with the pedal of the same

name.

6. [K. INV.] LED: LED displaying the status of the

KEYBOARDS INVERSION function, which enables the

positions of Swell and Great to be inverted (LED on). To

set the function, refer to par. 4.3.

7. [M. BANK] selector: in order to select one of the eight memory banks for memorizing general

and/or dedicated memories. Thus you will have in total 48 memories.

This feature is particularly useful in case the instrument is used by more than one organist, as

each will be able to save his setting in a different Memory Bank.

8. [TRANSPOSER] selector: sets the instrument’s tuning within a range of +5 / -6 semitones

(adjustments in steps of one semitone).

Viscount - Quick Guide

Prestige 40

2.2 THE LEFT SIDE PANEL

2.3 THE CONTROLS FOR THE MANUAL THUMB PISTONS

viscount

1 2 3 4 5

POWER EXT. SPK.

SWELL ORCHESTRA

Harp Voice

GREAT ORCHESTRA

Chimes

PEDAL ORCHESTRA

String

414039 444342

3837

Voice

1 2

3 4 5

1. [SWELLORCHESTRA] stops:this section

contains the Orchestra voices of the Swell.

2. [GREATORCHESTRA] stops: this section

contains the Orchestra voices of the Great.

3. [PEDAL ORCHESTRA] stops: Orchestra

voices of the Pedalboard.

4. [POWER] Switch: in order to switch the

instrument on and off.

5. [EXT. SPK.] switch: in order to switch on

and off the power supply on the [EXT +12

VDC] connector that will be used by the

external speakers.

NOTE

The couplers do not work with the Orchestra voices.

1. [S] button: “Set” button which enables memory saving. To save a memory, simply press the

[S] button and, keeping it pressed down, then press the button of the memory you wish to save.

2. Memories: this section contains the instrument’s general memories.

The memories also include an [HR] button, also known as 0, which recalls the set up that was

present before a memory was activated. The contents of [HR] are not affected by calling up a

memory when another one has previously been activated.

Quick Guide - Viscount

Prestige 40

In each memory the following can be saved

-the voices (including Orchestra)

-the couplers

-the Tremulants (also with different speed and depth by activating this function on Menu

Set-Up, see par. 4.3)

-the MIDI To controls (par.3) and Program Change set using the SEND PROGRAM

CHANGE function (“Advanced Manual”)

-the Enclosed and Automatic Pedal (by activating the relevant function, see par. 4.3)

3. [ENC] button: pressing this button activates the Enclosed function used to control the organ’s

general volume by means of the [SWELL] pedal.

4. [A.P.] button: this button enables the Automatic Pedal, used to play the voices of the pedal

board using the first 32 notes of the Great. In this case, the organ pedal board is deactivated and

the voices become monophonic, with priority given to the lowest note.

5. [T] button: “Tutti” button, which turns on a preset series of voices and couplers.

The voice composition of the ‘Tutti’function is programmable. To save a new set up, switch on

the voices and couplers of your choice, press [S] and, keeping it pressed down, then press

button [T] or the [TUTTI] foot piston.

6. [C]button: “Cancel” button, which switches off any voices, couplers and buttons on the manual

divisionals which may be on and turns the HR buttons on.

7. Floppy disk drive: use only 720 Kb or 1.44 Mb 3.5" floppy disks.

2.4 PEDAL BOARD CONTROLS

123456

SW/PD

MIDI

SUSTAIN

SWELL

CRESCENDO

GT/PD TUTTI

SW/GT

1 2 3 4 5 6

1. General memory pistons: these pistons can be used to recall the organ general memories.

2. [SWELL] pedal: this expression pedal is used to control the volume of the Swell.

3. [CRESCENDO] pedal: this pedal can be used to select the Crescendo steps which activate a

preset series of stops. The step currently selected is displayed by the [CRESCENDO] LED bar

Viscount - Quick Guide

Prestige 40

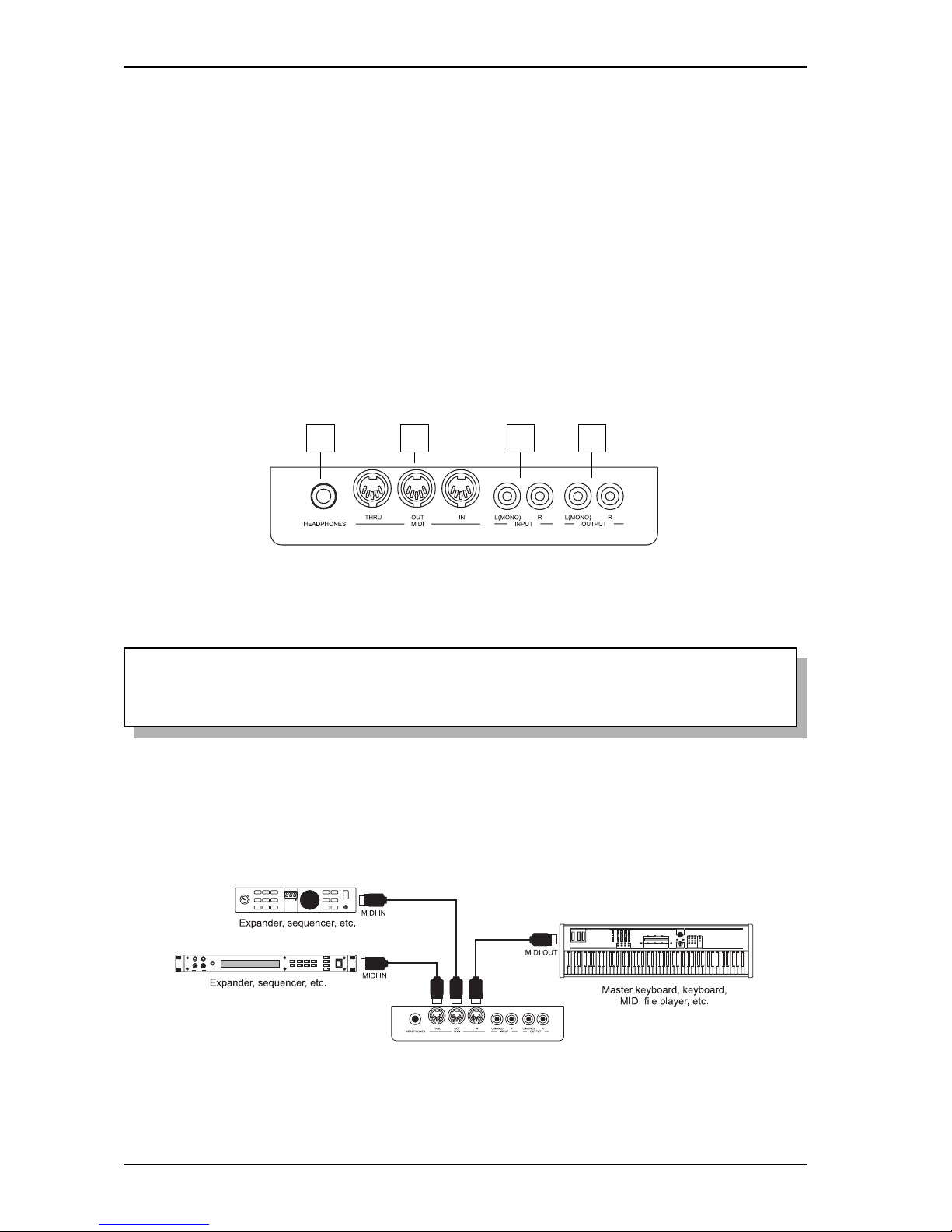

1 2 3 4

1. [HEADPHONES] socket: Jack socket to which a headphone set can be connected.

With headphones connected, the organ’s internal amplification is cut off.

NOTE

For optimum performance from the [HEADPHONES] output it is recommended that

headphones with a minimum impedance of 16

be used.

2. [MIDI] sockets: five-pin DIN plugs for connecting instruments with MIDI interface.

The [IN] connector allows receipt of MIDI messages generated by remote MIDI sources, the

[OUT] connector sends the MIDI messages generated by the Prestige, and the [THRU]

connection sends exactly the same data received at the [IN] connector.

on the centre panel (see also point 5 of par. 2.1).

Each Crescendo step is programmable. To do this, use the [CRESCENDO] pedal to select the

step required, switch on the voices and couplers needed, press button [S] and, keeping it pressed

down, then press the general memories [HR] button.

4. [MIDI SUSTAIN] piston: Sustain piston of the Orchestra voices and by which CC64 is sent

to the [MIDI OUT].

5. Coupler pistons: these pistons activate the organ couplings described in par. 2.1.

6. [TUTTI] piston: the piston used to activate the Tutti. For a more detailed description, refer to

point 5 of par. 2.3.

2.5 CONNECTIONS UNDERNEATH THE MANUALS

3. [INPUT] sockets: RCA input sockets which allow other instruments to be played using the

organ’s internal amplification. If the source is monophonic use the [L(MONO)] connector only.

4. [OUTPUT] sockets: RCA sockets to output the non-amplified signal, for connecting optional

Tabla de contenidos

Otros manuales de Instrumento musical de Viscount

Viscount

Viscount Physis Plus Manual de usuario

Viscount

Viscount Smart 30 Manual de usuario

Viscount

Viscount Allegro Manual de usuario

Viscount

Viscount Viva Manual de usuario

Viscount

Viscount Envoy 350 FV Manual de usuario

Viscount

Viscount Classico Grand Manual de usuario

Viscount

Viscount Maestro Manual de usuario

Viscount

Viscount Vivace Manual de usuario

Viscount

Viscount chorum 60 Manual de usuario

Viscount

Viscount Chorale 1 Manual de usuario

Viscount

Viscount Prestige Organs Guía de configuración

Viscount

Viscount Roma Manual de usuario

Viscount

Viscount Prestige Series Guía de configuración

Viscount

Viscount Chorale 8 Manual de usuario

Viscount

Viscount Jubilate 230 Manual de usuario

Viscount

Viscount Prestige 20 Manual de usuario

Viscount

Viscount Canticus I-II Manual de usuario

Viscount

Viscount UNICO CL7 Manual de usuario

Viscount

Viscount Vivace 40 Deluxe Manual de usuario

Viscount

Viscount Cantorum VI Plus Manual de usuario

Viscount

Viscount Verona Manual de usuario

Viscount

Viscount LEGEND Manual de usuario

Viscount

Viscount Sonus 60 Manual de usuario

Viscount

Viscount Classico SV-80 Manual de usuario

Manuales populares de Instrumento musical de otras marcas

Kawai

Kawai CN17 Manual de usuario

Yamaha

Yamaha PCY130 Manual de usuario

Korg

Korg SP-170S Manual de usuario

Roland

Roland ep-97 Manual de usuario

Roland

Roland LX-15 Manual de usuario

Johannus

Johannus Rembrandt 200 Manual de usuario

Yamaha

Yamaha Clavinova CVP-709 Manual de usuario

Yamaha

Yamaha YC-20 Manual de usuario

Yamaha

Yamaha Clavinova CVP-609 Manual de usuario

Casio

Casio celviano ap-700 Manual de usuario

Yamaha

Yamaha PSR-E473 Manual de usuario

Modulus

Modulus Quantum Series Manual de usuario

Gear4music

Gear4music SDP-4 Manual de usuario

HOMCOM

HOMCOM 390-006 Manual de usuario

Xotic Guitars

Xotic Guitars ProVintage Series Manual de usuario

Sadowsky

Sadowsky MetroLine Series Manual de usuario

Bosendorfer

Bosendorfer CEUS Manual de usuario

Gewa

Gewa UP 260 G Manual de usuario
