Viotek GNV32CBO Manual de usuario

In order to continue serving our customers and providing the best products, our product information

including our user manuals may receive updates from time to time. Please check our website for the latest

user manuals and product materials. ver.1.0 6/19/19

GNV32CBO

Table of Contents

Section 1: Safety Precautions..................................................... 4

Section 2: Box Contents.............................................................. 5

Section 3: Product Overview....................................................... 6

3.1 – Monitor Buttons ............................................................... 6

3.2 – Monitor Ports................................................................... 6

Section 4: Stand Installation ....................................................... 7

Section 5: Mount Installation ...................................................... 8

Section 6: Connectivity Options................................................. 9

6.1 – Connecting the Power Cable........................................... 9

6.2 – Connecting Your Headhones .......................................... 9

6.3 – HDMI Connectivity .......................................................... 10

6.4 – DVI Connectivity ............................................................. 10

6.5 – DP Connectivity .............................................................. 10

Section 7: Basic Operation.......................................................... 11

Section 8: Indicator Light ............................................................ 11

Section 9: OSD.............................................................................. 12

9.1 – OSD Menu Functions ...................................................... 13

Section 10: ECO Modes and Gameplus ..................................... 14

Section 11: Troubleshooting........................................................ 15

Section 12: Speciﬁcations........................................................... 16

Section 13: One-Year Limited Hardware Warranty.................... 17

Section 1: Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use

dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,

the safest. If using damp cloth, wait for your monitor to completely dry before

plugging it in again.

2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your

monitor.

3. This monitor features ventilation openings on the back of the unit. Avoid blocking

these openings to prevent the monitor from overheating.

4. Avoid placing this monitor near any heat sources, e.g., portable heaters or

heating vents, as this may cause damage to your monitor.

5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen

or any part of the monitor.

6. Do not insert anything into any part of the monitor especially the ventilation

openings.

7. Always make sure your monitor is placed on a secure, level surface to prevent it

from falling and sustaining damage.

8. Unplug your monitor during any extended periods of non-use.

9. Do not place heavy items on the monitor or monitor cables.

10. Do not attempt to disassemble or remove parts from the monitor. Any

disassembly or modication not performed by an authorized technician can

result in damage to the monitor and/or possible exposure to high voltage

electricity which may lead to serious injury or death.

VIOTEK®shall not be held responsible for injury or damage of products or persons

due to failure to adhere to the aforementioned precautions or any others noted

hereafter.

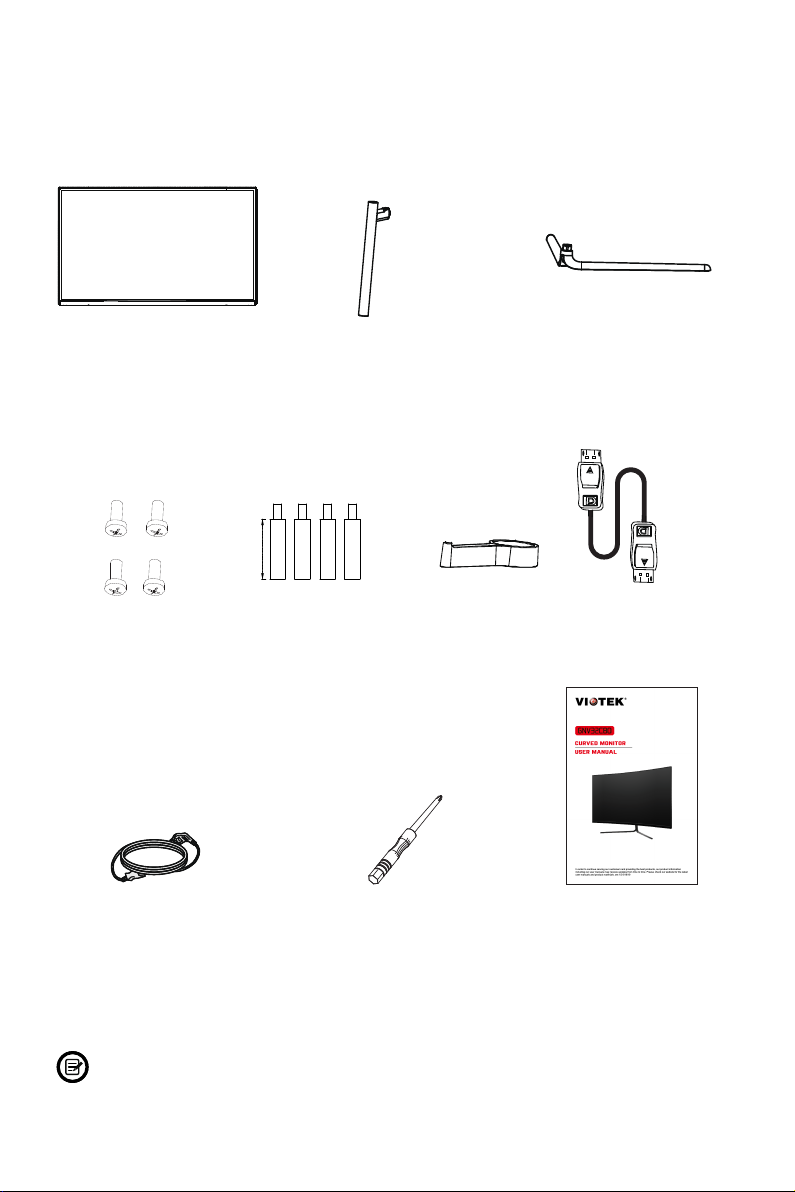

Section 2: Box Contents

Monitor x 1 Stand Stem x 1 Stand Base x 1

Power Cable x 1

(AC 100-240V, 50/60Hz)

Cable ClipNO. 1 Screws x 4

(for Stand Installation)

DP Cable x 1

Screwdriver x 1 User Manual x 1

Extra screws may be included as backup.

NO. 2 Screws x 4

(for Wall Mounting)

26mm

31mm

26mm

31mm

Section 3: Product Overview

3.1 – Monitor Buttons

7 Power Connector: Insert the power cable to supply power to the monitor.

8 Audio Output: Insert the audio cable for output of audio signals.

9 HDMI Connector: Insert one end of the HDMI cable into the computer’s

HDMI output and connect the other end to the monitor’s HDMI port.

10 DVI Connector: Insert one end of the DVI cable into the computer’s DVI

output and connect the other end to the monitor’s DVI port.

11 DP Connector: Insert one end of the DP cable into the computer’s DP output

and connect the other end to the monitor’s DP port.

7 9 10 11

2 3 4 5 61

1 M Menu Button: Press to display the OSD menu or enter sub-menus.

2 Down Button: Press to move down in the menus.

3 Up Button: Press to move up in the menus.

4 E Exit Button:Press to exit.

5 Power Button: Press to turn the monitor on/off.

6 LED Indicator: Changes colors to indicate status. Refer to Section 8.

3.2 – Monitor Ports

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.

1. Open the package and take out the monitor with foam still attached. Gently place

it on a desktop or table.

2. Take out the stem, cable clip, and base. Use the included screwdriver and one

screw to fasten base to the stem.

Screw x 1

Stand Stem

Cable Clip

Base

3. Remove the foam covering the bottom of the monitor, then remove the adapter

from the back of monitor. Use two NO. 1 screws to fasten adapter onto the stem.

Adapter

Screws x 2

4. With the stand fully assembled, reattach it onto the back of monitor. Then remove

the remaining foam on monitor and stand it up on a at, level desktop or table.

Press the button to remove the monitor from the bracket if mounting.

Button

Make sure the monitor is laid on a at surface before removing the stand.

Section 5: Mount Installation

1. Open the package and take out the product with foam still attached. Gently

place it on a desktop or table. Remove the extra parts and the foam covering the

monitor. If the monitor is already attached to the stand, remove the stand.

Button

2. Press the button to remove the adapter on back of monitor, then tighten the

included four NO. 2 screws onto the mounting holes on back of monitor.

NO. 2

Screws x 4

3. Install the monitor on the wall, mount, or xture as desired.

Mount

(Not included)

Section 6: Connectivity Options

6.1 – Connecting the Power Cable

Connect the included power cable to the power connector, and then plug the other

end into an wall outlet.

Power Cable

6.2 – Connecting Your Headhones

Plug in your headphones, or any 3.5mm-compatible external audio device, to

receive audio signals from your monitor. If your headphones are connected to the

monitor while audio devices are connected to your computer, the audio devices will

not produce sound. Headphones and other audio devices not included.

Headphones (not included)

Listening to loud audio for prolonged periods of time may permanently

damage your hearing.

6.3 – HDMI Connectivity

In order for the monitor to receive HDMI signals from the computer, use an HDMI

cable (not included) to connect the monitor to the computer.

HDMI OUTPUT

HDMI Cable (not included)

6.4 – DVI Connectivity

In order for the monitor to receive DVI signals from the computer, use a DVI cable

(not included) to connect the monitor to the computer.

DVI

DVI OUTPUT

DVI Cable (not included)

DVI cables do not carry audio signals.

6.5 – DP Connectivity

In order for the monitor to receive DisplayPort (DP) signals from the computer, use

the DP cable (included) to connect the monitor to the computer.

DP OUTPUT

DP Cable (included)
